Vulcan

Vulcan Heavy Duty Countertop Gas Griddle, 36 x 24-Inch Polished Steel Plate, Low Profile

SKU: MSA36-QS-PLATINUM
$7,325.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Vulcan

Vulcan Heavy Duty Countertop Gas Griddle, 36 x 24-Inch Polished Steel Plate, Low Profile

1-Inch Plate Thickness, Mechanical Snap Action Thermostat, 81,000 BTU

Designed for high-volume service, this countertop gas griddle combines a thick polished steel plate, zoned thermostatic control, and a durable stainless steel body.

  • 36" W x 24" D cooking surface supports busy breakfast and lunch service.
  • 1" thick polished steel griddle plate helps promote even heat distribution.
  • Embedded mechanical snap action thermostats control heat every 12" across the surface.
  • Millivolt pilot safety with manual ignition supports dependable startup.
  • Stainless steel front and sides with a front grease trough simplify cleanup.
  • 4" back and tapered side splashes help contain grease and food debris.
  • 4" adjustable legs provide a stable countertop installation.

Overall Dimensions:

36.0"W x 31.5"D x 15.25"H

Product Weight:

400.0 lb

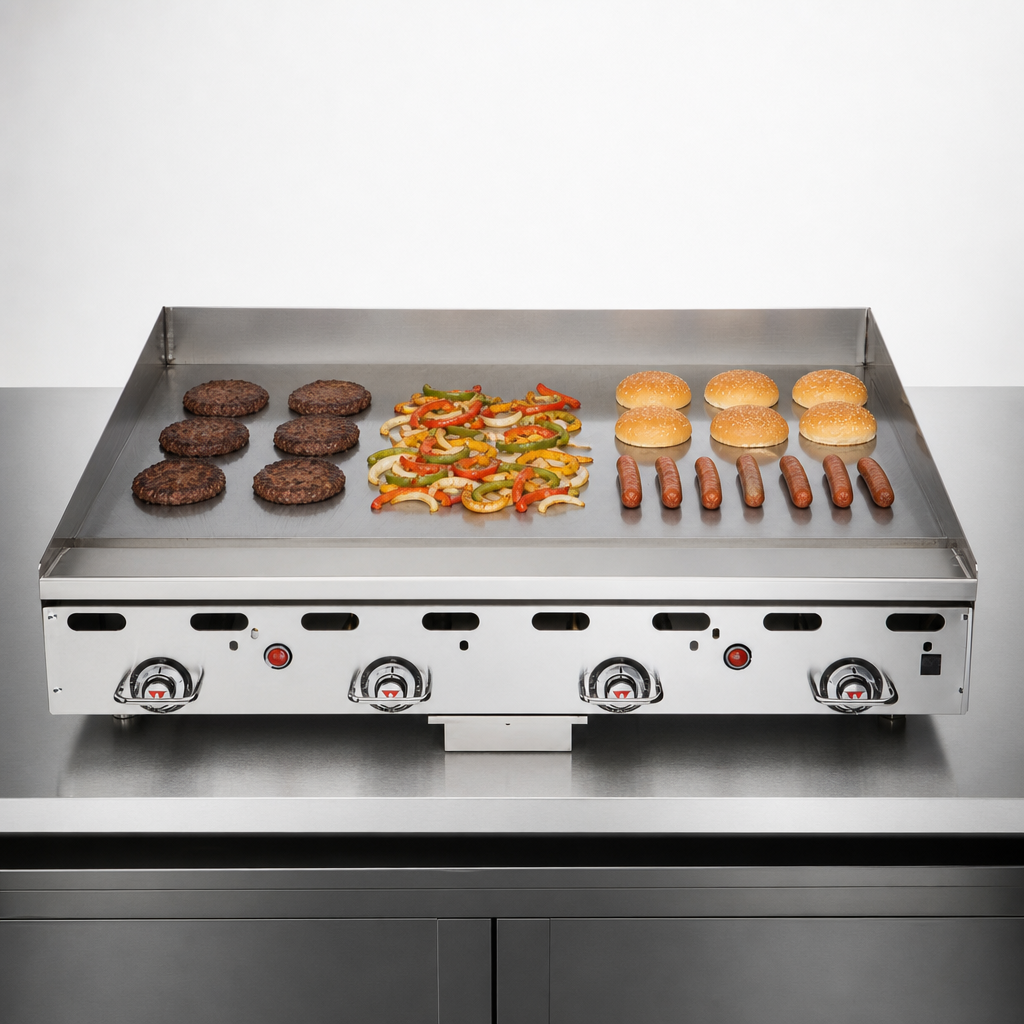

Large Countertop Cooking Surface

Offers a 36-inch wide by 24-inch deep cooking area for high-volume griddling.

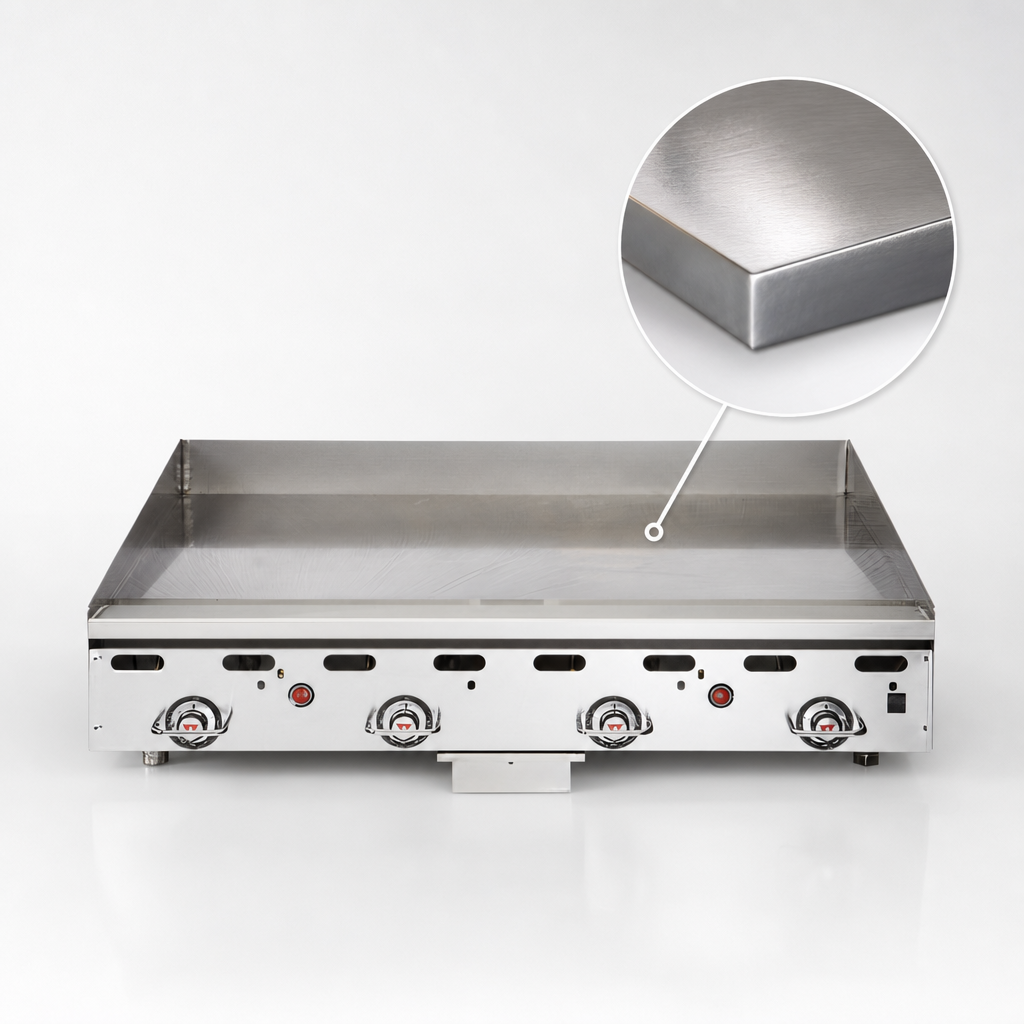

1-Inch Polished Steel Plate

Thick polished steel plate is built for durability and consistent heat transfer.

Thermostatic Heat Control

Embedded mechanical snap action thermostats provide temperature control every 12 inches.

Millivolt Pilot Safety

Includes millivolt pilot safety with manual ignition for dependable operation.

Stainless Steel Front and Sides

Durable stainless steel exterior helps withstand demanding kitchen use.

Grease Management Design

Front grease trough and 4-inch back with tapered side splashes help keep the cooking area cleaner.

Adjustable Countertop Legs

4-inch adjustable legs help level the griddle on the work surface.

High Output Performance

81,000 BTU output delivers the heat needed for busy commercial kitchens.

Type Heavy Duty Griddle
Style Low Profile
Installation Type Countertop
Controls Mechanical Snap Action Thermostat
Cooking Surface Width 36 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
BTU 81,000 BTU
Material Stainless Steel
Finish Polished Steel
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 32 Inches
Shipping Height 16 Inches
Shipping Weight 400 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Sell sheet PDF Download PDF Parts list PDF Download PDF Owner's manual - french PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 36 inches wide by 24 inches deep.
It uses a 1-inch thick polished steel griddle plate.
It is a gas griddle with embedded mechanical snap action thermostats for control every 12 inches.
The unit includes millivolt pilot safety with manual ignition.
A front grease trough, 4-inch back splash, and tapered side splashes help manage grease and food debris.
