Key specifications

BTU
81,000 BTU
Dimensions
36.0"W × 31.5"D × 15.25"H
Type
Griddle
Style
Heavy Duty
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Vulcan SKU: MSA36

Vulcan MSA36 36-Inch Gas Griddle with 1-Inch Plate

$7,325.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Feature
Gas typeRequired
Griddle plate
Grease trough
Plate rails
Condiment rails
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $678/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Chassis Material Stainless Steel and Aluminized Steel
Finish Stainless Steel
Plate Material Polished Steel
Plate Finish Smooth Steel
Cooking Surface Width 36 in
Cooking Surface Depth 24 in
Plate Thickness 1 in
Controls Mechanical Snap Action Thermostat
Temperature Range 200°F–550°F
Burner Count 3
BTU 81,000 BTU
Grease Drawer Capacity 6 qt
Drawer Count 1
Leg Height 4 in
Ignition Type Manual
Pilot Safety Millivolt
Gas Connection 3/4 in Rear

Description

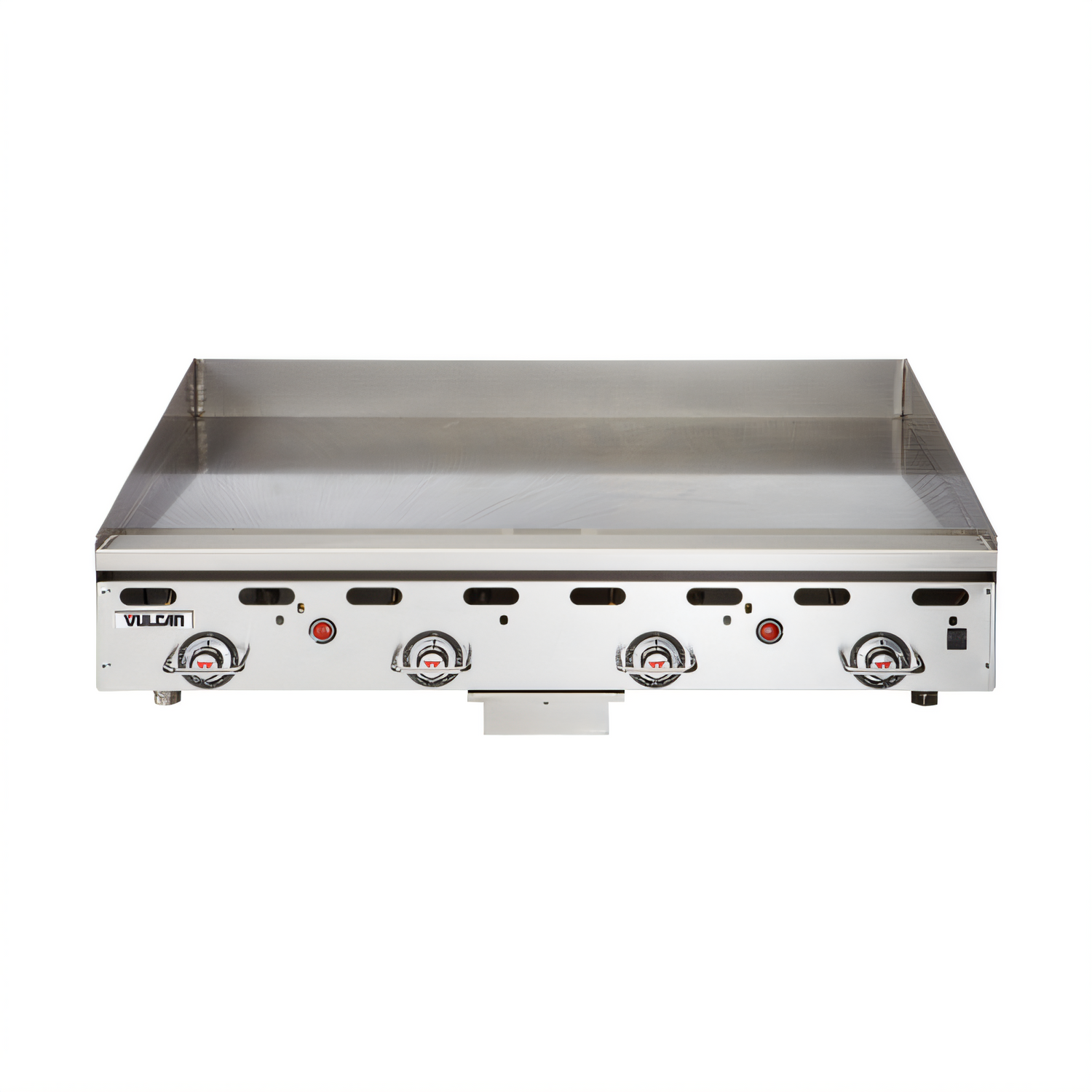

The Vulcan MSA36 is a heavy-duty countertop griddle with a 36 in W x 24 in D cooking surface and a 1 in thick polished steel plate.

  • Three embedded mechanical snap-action thermostats provide one thermostat for each 12 in section, with temperature adjustment from 200°F to 550°F.
  • The gas system is rated at 81,000 BTU and uses manual ignition with millivolt pilot safety.
  • The unit has a stainless steel front and sides, front grease trough, 4 in back splash, and tapered side splashes.
  • The low-profile unit includes 4 in adjustable legs and a 6 qt stainless steel grease drawer.

Overall Dimensions:

36.0"W x 31.5"D x 15.25"H

Product Weight:

395.0 lb

Cooking Surface

36 in W x 24 in D cooking surface.

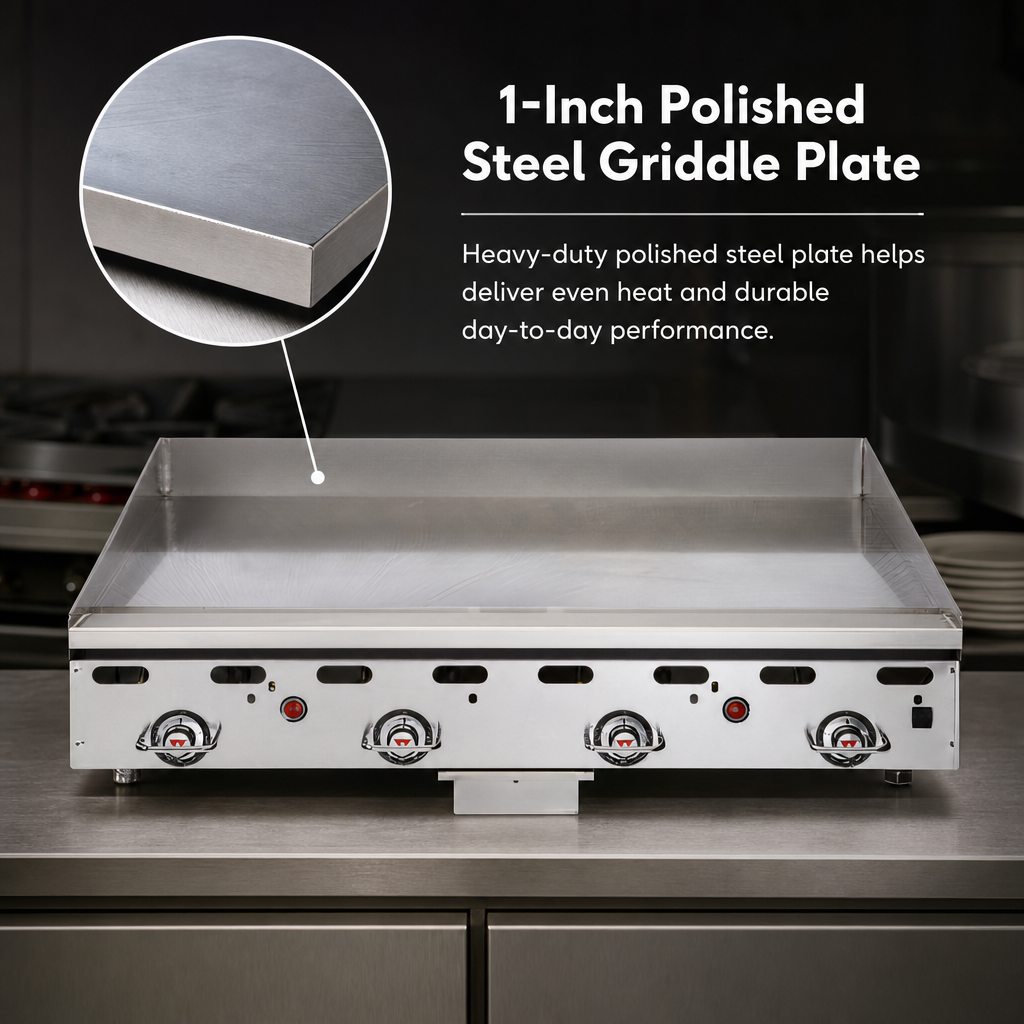

Polished Steel Plate

1 in thick polished steel plate with a smooth finish.

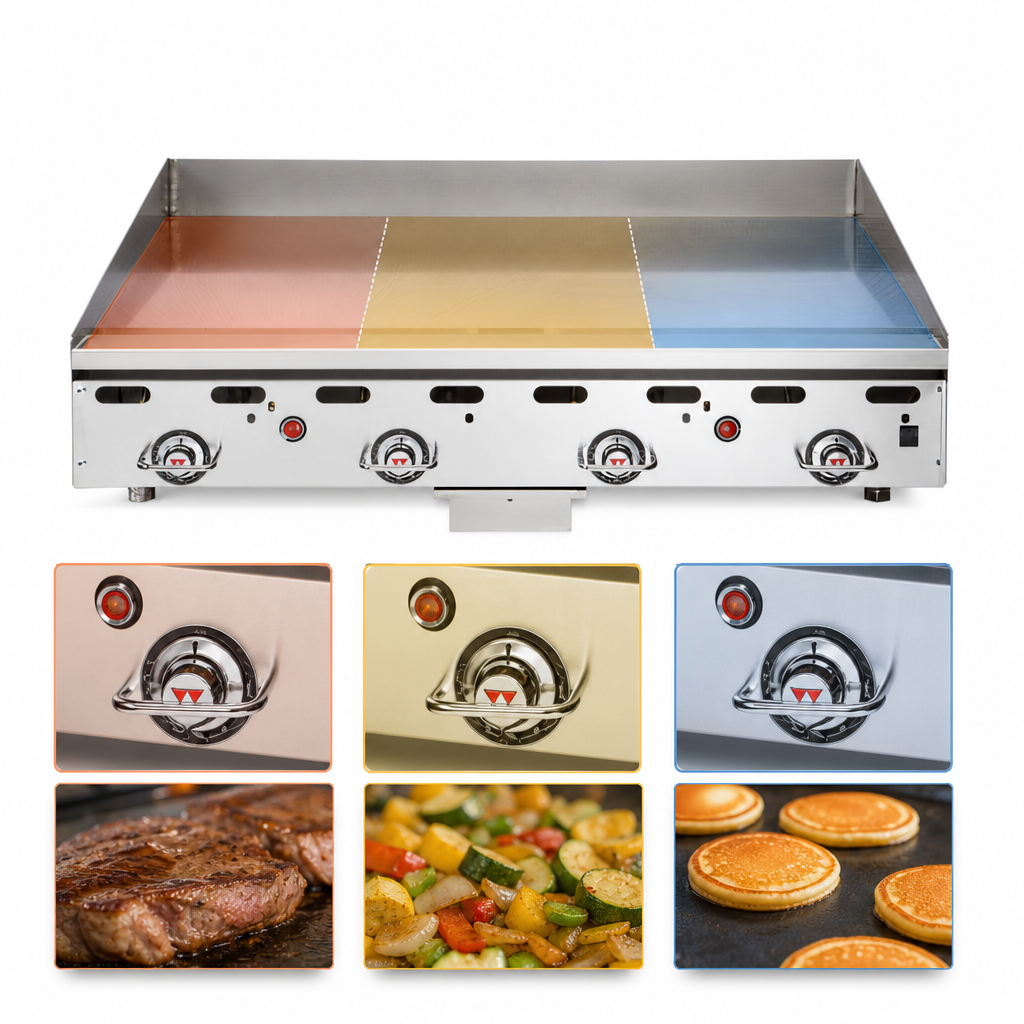

Thermostatic Control

Embedded mechanical snap-action thermostat for each 12 in section.

Gas Heat

Rated at 81,000 BTU.

Ignition and Safety

Manual ignition with millivolt pilot safety.

Grease Management

Front grease trough and 6 qt stainless steel grease drawer.

Exterior

Stainless steel front and sides with a 4 in back splash and tapered side splashes.

Adjustable Legs

Includes 4 in adjustable legs.

Frequently Asked Questions

Yes. The MSA36 is specified as a countertop griddle.
The cooking surface is 36 in wide by 24 in deep.
The polished steel griddle plate is 1 in thick.
The steel plate temperature adjusts from 200°F to 550°F.
The griddle is rated at 81,000 BTU.
It uses embedded mechanical snap-action thermostats, with manual ignition and millivolt pilot safety.
The listed dimensions are 36 in wide, 31.5 in deep, and 15.25 in high, with a weight of 395 lb.
The listed certifications are CSA Flame, CSA Star, and NSF.
