Vulcan

Vulcan MSA Series MSA24-30 Heavy Duty Countertop Gas Griddle, 24 x 30 Inch Cooking Surface

SKU: MSA24-30
$9,372.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Vulcan

Vulcan MSA Series MSA24-30 Heavy Duty Countertop Gas Griddle, 24 x 30 Inch Cooking Surface

1-Inch Polished Steel Plate, Mechanical Snap-Action Thermostats, Millivolt Pilot Safety

This countertop gas griddle delivers dependable, even heat across a 24 x 30 inch surface with a thick polished steel plate and precise thermostatic control.

  • 24 x 30 inch cooking surface provides ample space for high-volume breakfast, lunch, and dinner service.
  • 1-inch thick polished steel griddle plate helps retain heat for consistent cooking performance.
  • Embedded mechanical snap-action thermostats are positioned every 12 inches for more even temperature control.
  • Millivolt pilot safety and manual ignition support reliable operation without complex electronics.
  • Front grease trough and 4-inch back plus tapered side splashes help contain mess and simplify cleanup.
  • Stainless steel front and sides offer durable, professional-grade construction.
  • 4-inch adjustable legs help with stable countertop placement and leveling.

Overall Dimensions:

24.0"W x 37.5"D x 15.25"H

Product Weight:

265.0 lb

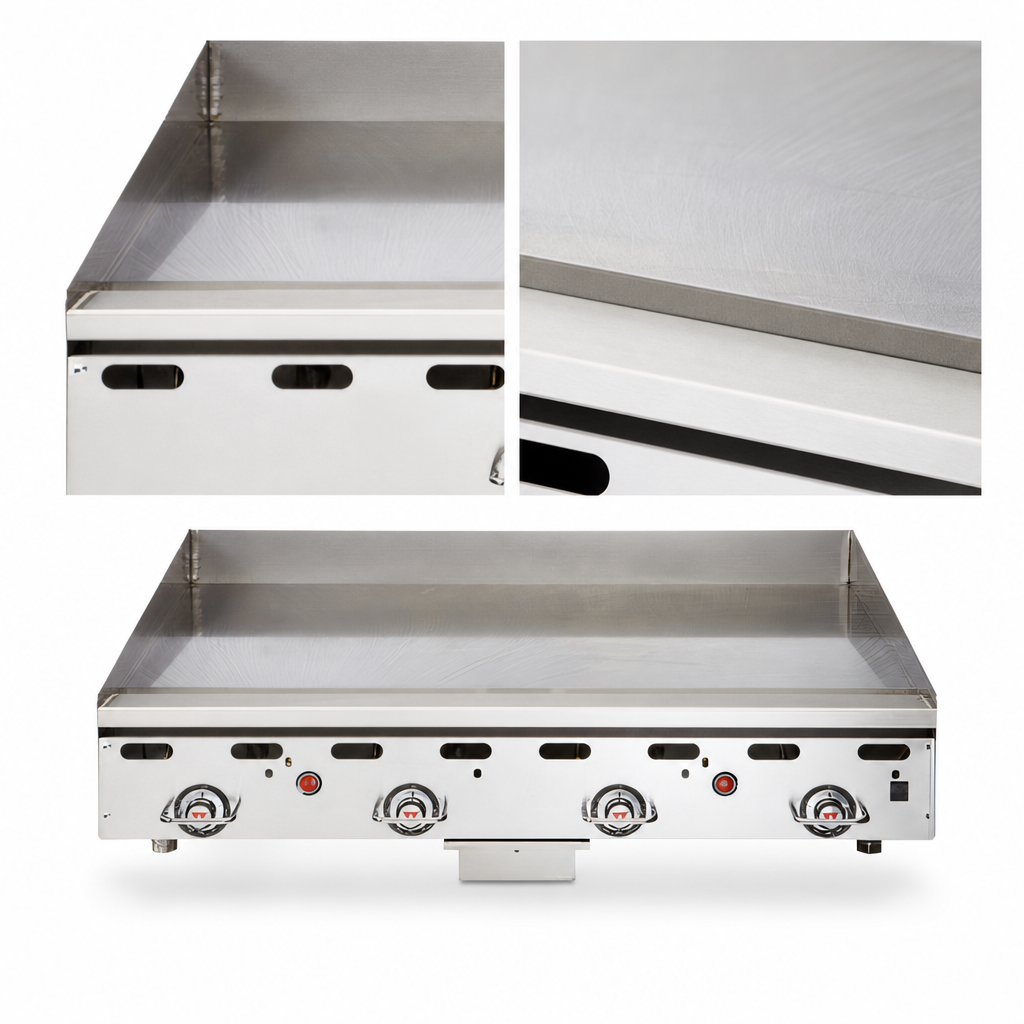

1-Inch Polished Steel Griddle Plate

Heavy-duty plate construction helps hold heat and promote even cooking across the surface.

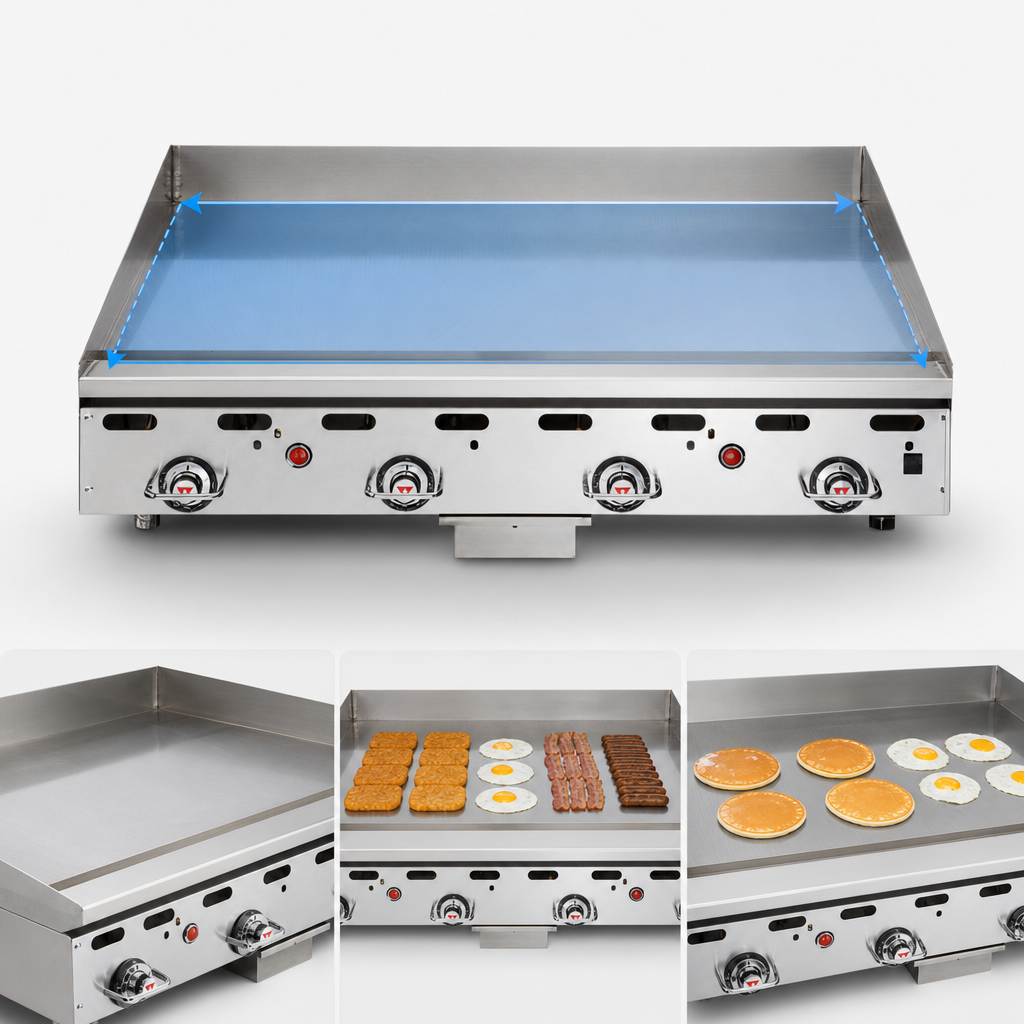

24 x 30 Inch Cooking Surface

Generous countertop footprint gives operators plenty of room for batch cooking.

Mechanical Snap-Action Thermostats

Embedded thermostatic controls every 12 inches help maintain consistent cooking zones.

Millivolt Pilot Safety

Provides a reliable pilot safety system for dependable gas operation.

Manual Ignition

Simple ignition method supports straightforward startup and operation.

Front Grease Trough

Helps collect grease for easier cleanup during service.

4-Inch Back and Tapered Side Splashes

Helps contain splatter and keep the cooking area cleaner.

Stainless Steel Front and Sides

Durable exterior construction is built for commercial kitchen use.

4-Inch Adjustable Legs

Supports stable positioning and basic leveling on the countertop.

Low Profile Design

Compact profile helps the unit fit into tight kitchen spaces.

Type Griddle
Style Heavy Duty
Installation Type Countertop
Cooking Surface Width 24 Inches
Cooking Surface Depth 30 Inches
Controls Mechanical Snap-Action Thermostat
BTU 54,000 BTU
Material Stainless Steel
Finish Polished Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual - french PDF Download PDF Sell sheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 24 inches wide by 30 inches deep.
It uses a 1-inch thick polished steel griddle plate.
The unit uses embedded mechanical snap-action thermostats located every 12 inches.
It features manual ignition with a millivolt pilot safety system.
A front grease trough, 4-inch back splash, and tapered side splashes help contain grease and splatter.
