Vulcan

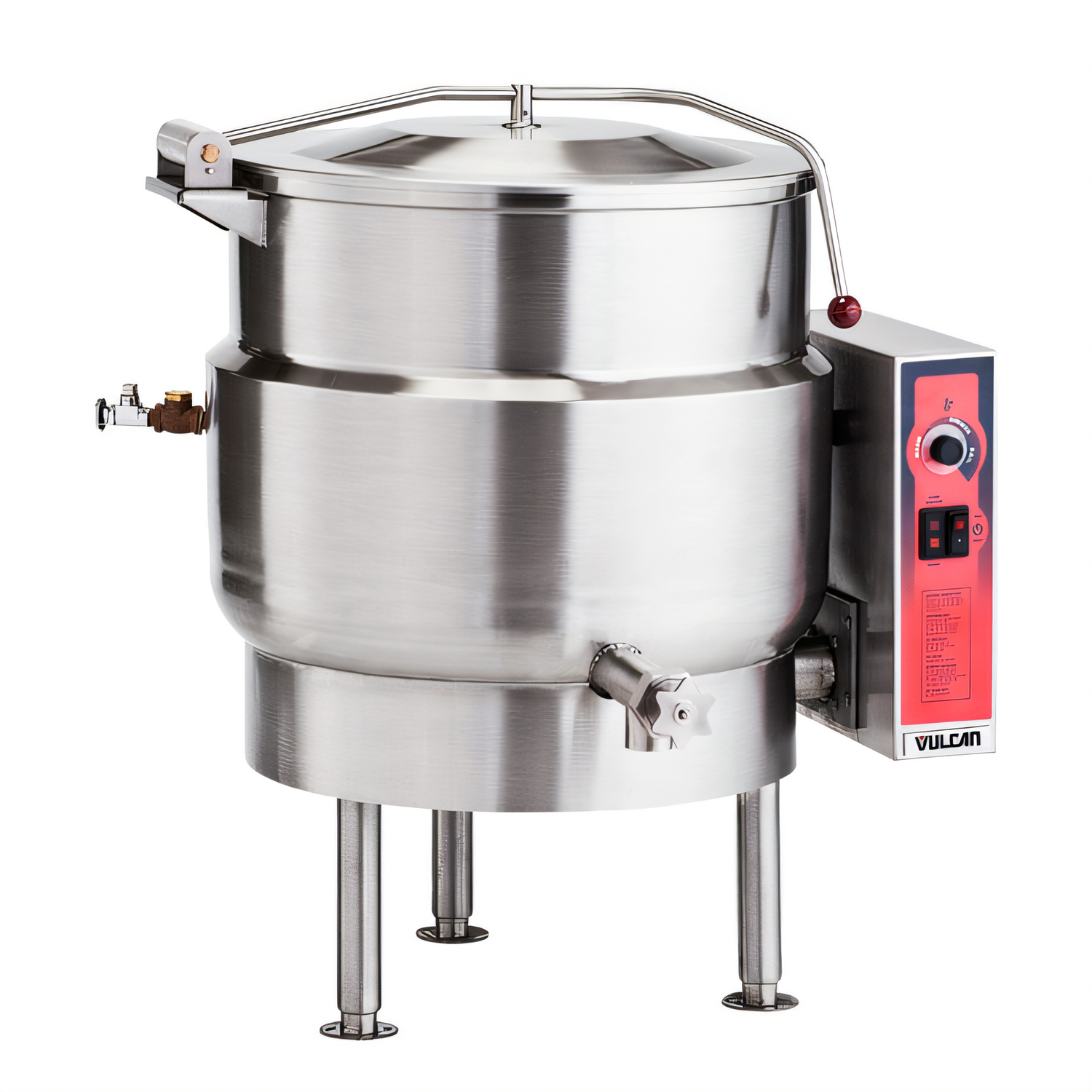

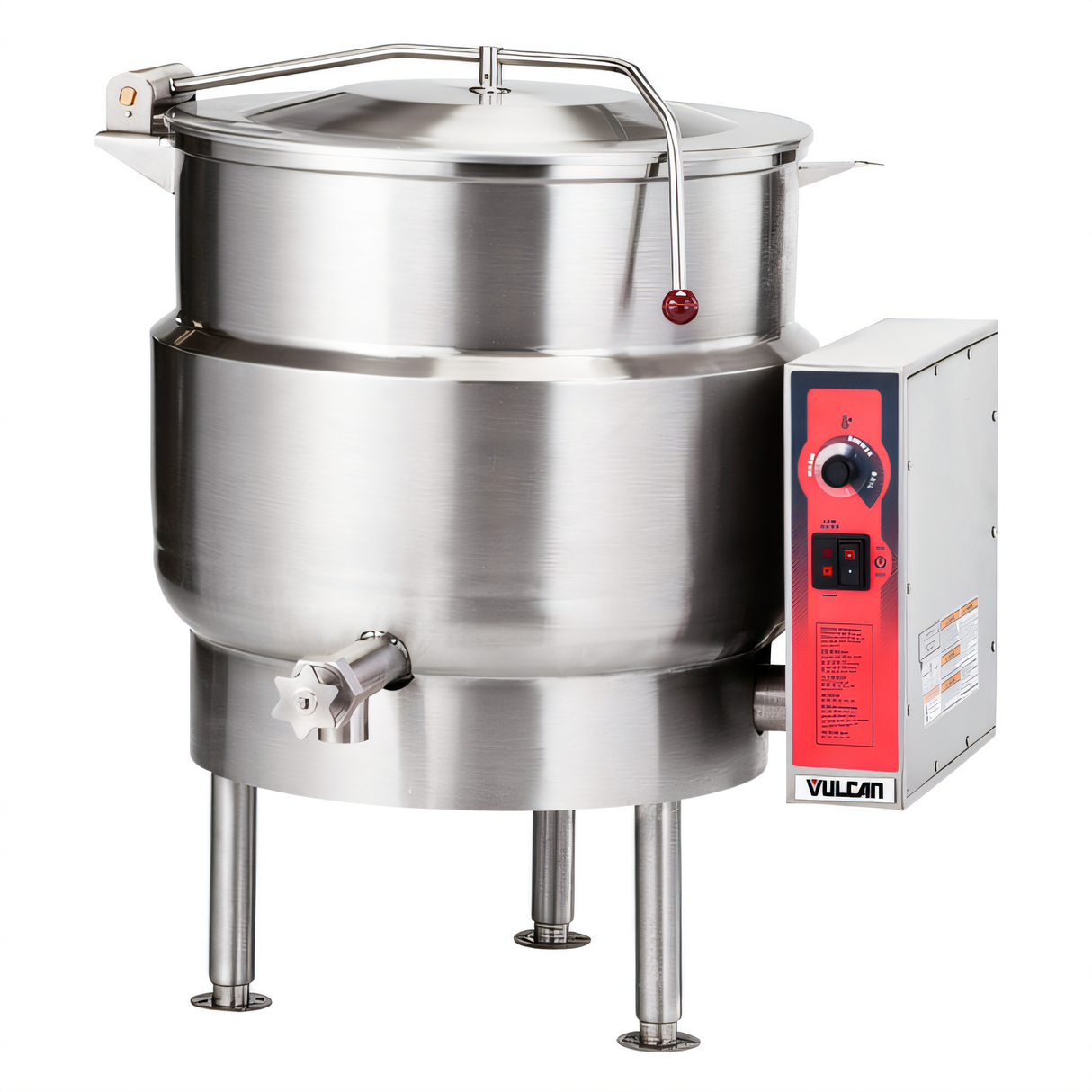

Vulcan K60EL Electric 60-Gallon Stationary Steam Kettle, 2/3 Jacketed, 316 Stainless Steel Liner, Tri-Leg Floor Model

SKU: K60EL
$30,639.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles Vulcan

Vulcan K60EL Electric 60-Gallon Stationary Steam Kettle, 2/3 Jacketed, 316 Stainless Steel Liner, Tri-Leg Floor Model

18 kW, Spring-Assisted Cover, True Working Capacity

Built for high-volume kitchens, this 60-gallon electric stationary kettle combines a durable 316 stainless steel liner, 2/3-jacketed heating, and safety-focused controls in a floor-mounted design.

  • 60-gallon true working capacity supports large-batch cooking and service.
  • 2/3-jacketed electric construction helps deliver even, consistent heating.
  • 316 stainless steel liner and stainless steel construction are built for demanding commercial use.
  • Spring-assisted hinged cover and heavy-duty pivot assembly improve loading and access.
  • Water-resistant control package includes temperature control, gauge, and low-water shut-off protection.
  • Floor-mounted tri-leg base with flanged feet provides stable installation.
  • 2-inch tangent draw-off valve and faucet bracket simplify product transfer.

Overall Dimensions:

40.5"W x 36.7"D x 39.5"H

Product Weight:

390.0 lb

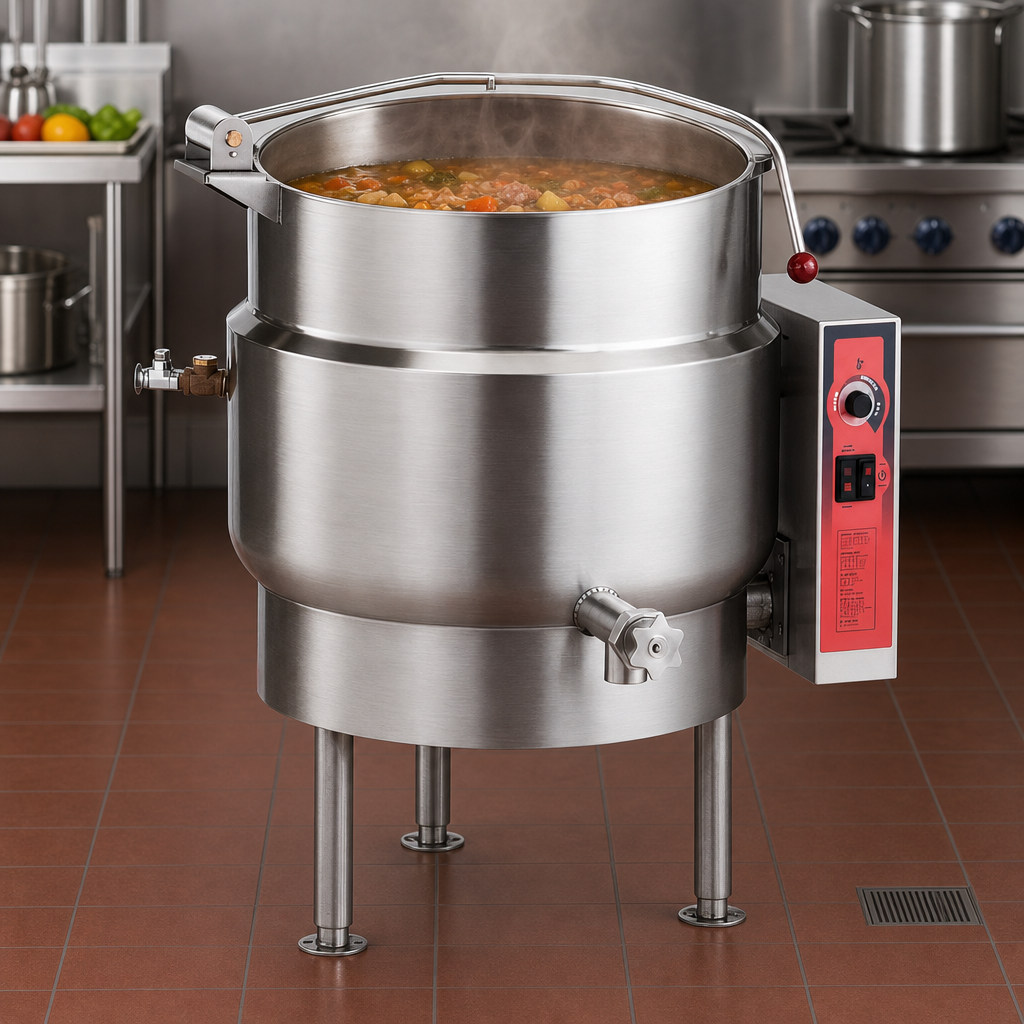

60-Gallon True Working Capacity

Sized for high-volume production, with 160 quarts of usable kettle capacity.

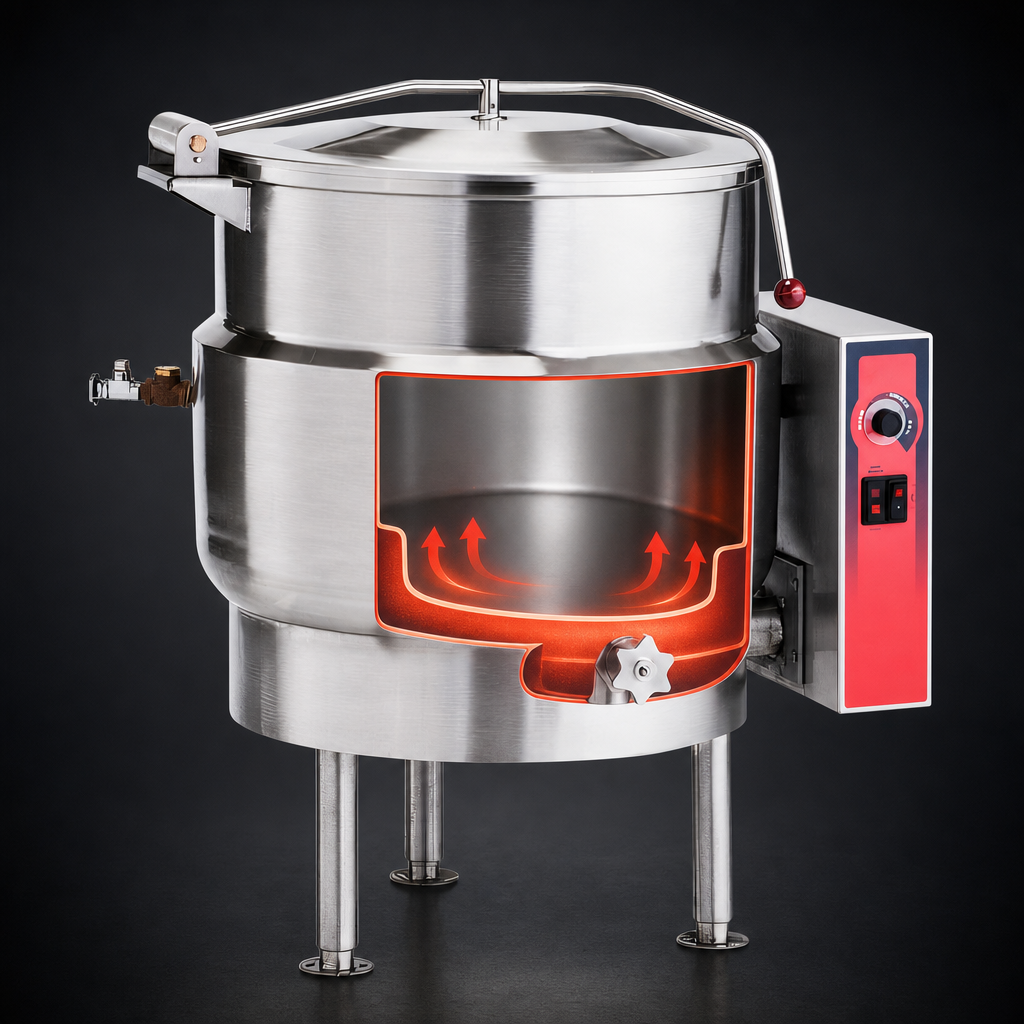

2/3-Jacketed Electric Heating

Self-contained electric kettle design helps distribute heat evenly across the cooking vessel.

316 Stainless Steel Ellipsoidal Liner

Fully welded ellipsoidal bottom liner is designed for durability and efficient cooking performance.

Spring-Assisted Hinged Cover

Heavy-duty pivot assembly, condensate ring, and drop-down lift handle make the cover easier to operate.

Complete Control Package

Includes power switch, power-on light, solid-state temperature control, vacuum/pressure gauge, pressure relief valve, low-water light, and low-water shut-off.

2-Inch Tangent Draw-Off Valve

Compression draw-off valve with perforated strainer and a faucet bracket positioned 130° right of the draw-off.

Floor-Mounted Tri-Leg Base

Tubular stainless steel legs with flanged feet provide stable stationary support.

Type Steam Kettle
Style Stationary
Installation Type Floor Model
Capacity 60 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Watts 18 kW
Phase 3-Phase
Controls Solid State
Kettle Jacket 2/3 Jacketed
Base Tri-Leg
Draw-Off Valve 2 Inch Compression Tangent With Perforated Strainer
Shipping Width 41 Inches
Shipping Depth 37 Inches
Shipping Height 40 Inches
Shipping Weight 390 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The K60EL has a true working capacity of 60 gallons, or 160 quarts, which equals 1,920 four-ounce servings.
Yes. It is a floor-mounted, stationary kettle with tubular stainless steel legs and flanged feet.
Standard controls include a power switch, power-on light, solid-state temperature control, vacuum/pressure gauge, pressure relief valve, low-water light, and low-water shut-off.
Yes. It includes a 2-inch compression tangent draw-off valve with a perforated strainer.
A water connection is only needed if you use the faucet accessory.
Available accessories include a clean-up kit, stainless steel 48-inch whip, non-perforated strainer, lead-free faucets, washdown hose options, and a pot filler with vacuum breaker.
