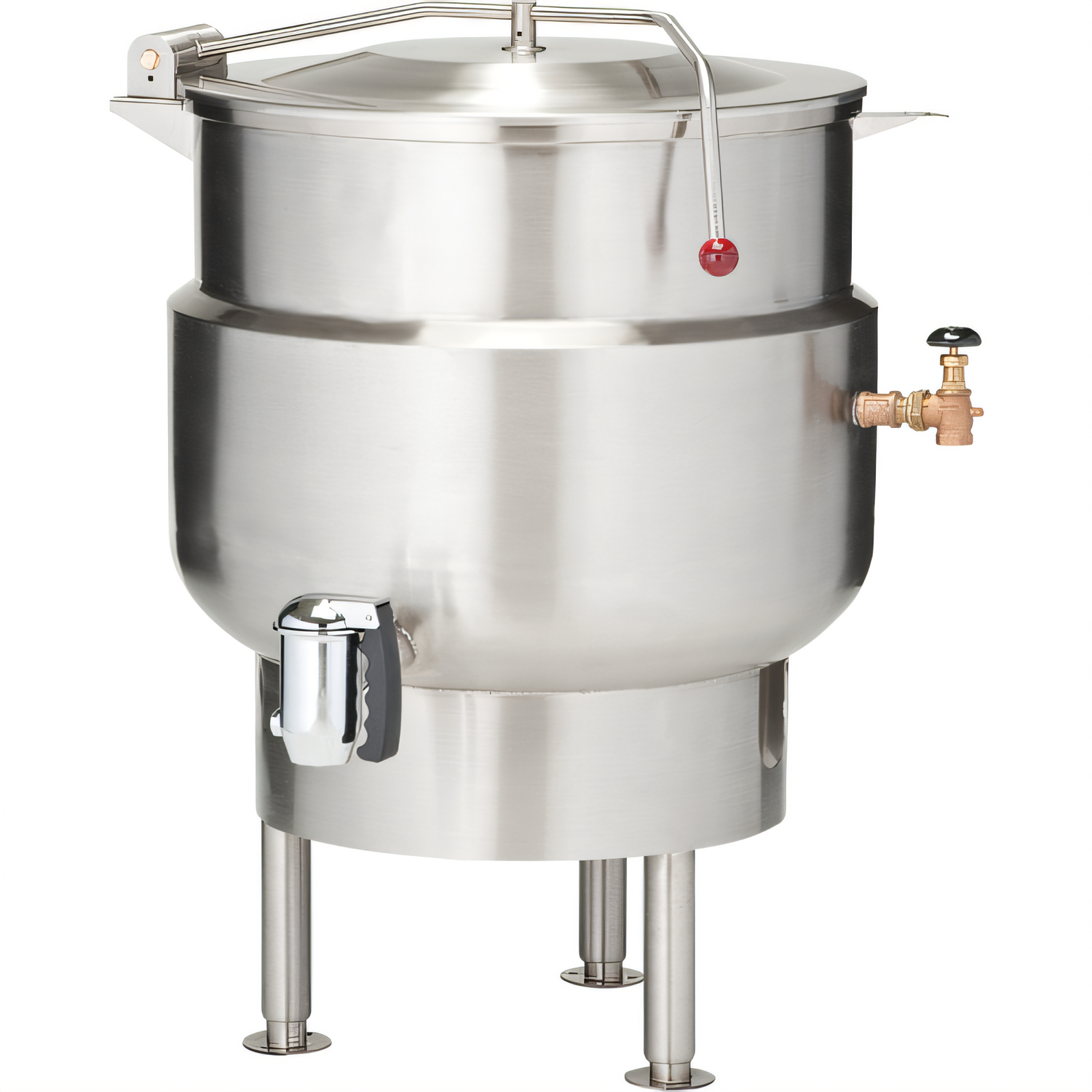

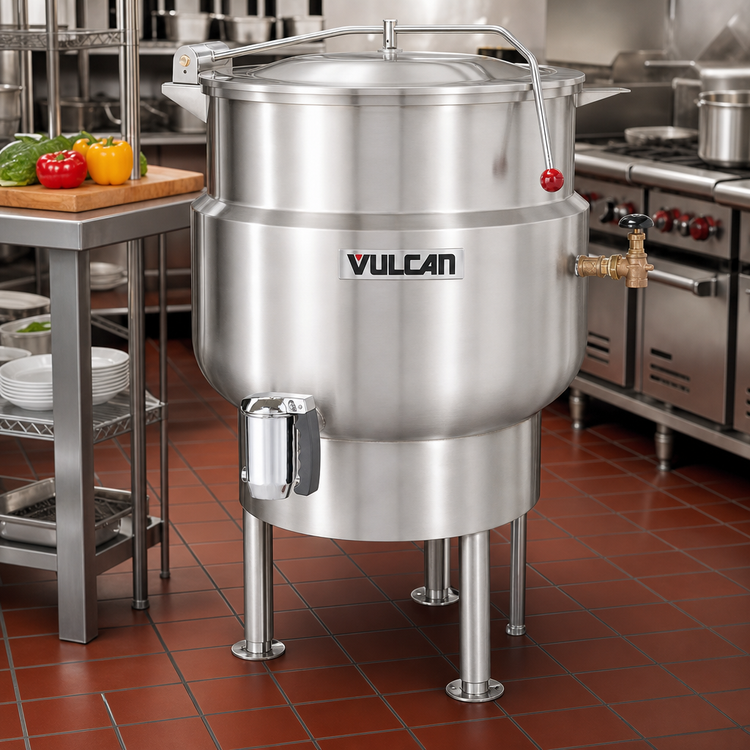

Vulcan K40DLT 40-Gallon Direct Steam Floor-Mounted Manual-Tilt Steam Kettle, 2/3 Jacketed

SKU: K40DLT
$20,002.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles Vulcan

Vulcan K40DLT 40-Gallon Direct Steam Floor-Mounted Manual-Tilt Steam Kettle, 2/3 Jacketed

316 Stainless Steel Liner, Tri-Leg Base, 50 PSI Steam Jacket

Built for high-volume batch cooking, this 40-gallon direct steam kettle combines a durable 316 stainless steel liner, manual 90° tilt, and floor-mounted tri-leg stability for fast, controlled emptying.

  • 40-gallon true working capacity handles large batches of soups, sauces, and stocks.
  • 2/3 jacketed direct steam design with a 50 PSI steam jacket rating.
  • 316 series stainless steel ellipsoidal-bottom liner for durability and easier cleaning.
  • Manual tilt mechanism swings forward 90° to empty the kettle completely.
  • Stainless steel enclosure includes the steam control assembly, self-locking tilt mechanism, and faucet bracket.
  • Tubular stainless steel legs with flanged feet provide stable floor-mounted support.

Overall Dimensions:

41.8"W x 41.7"D x 36.1"H

Product Weight:

332.0 lb

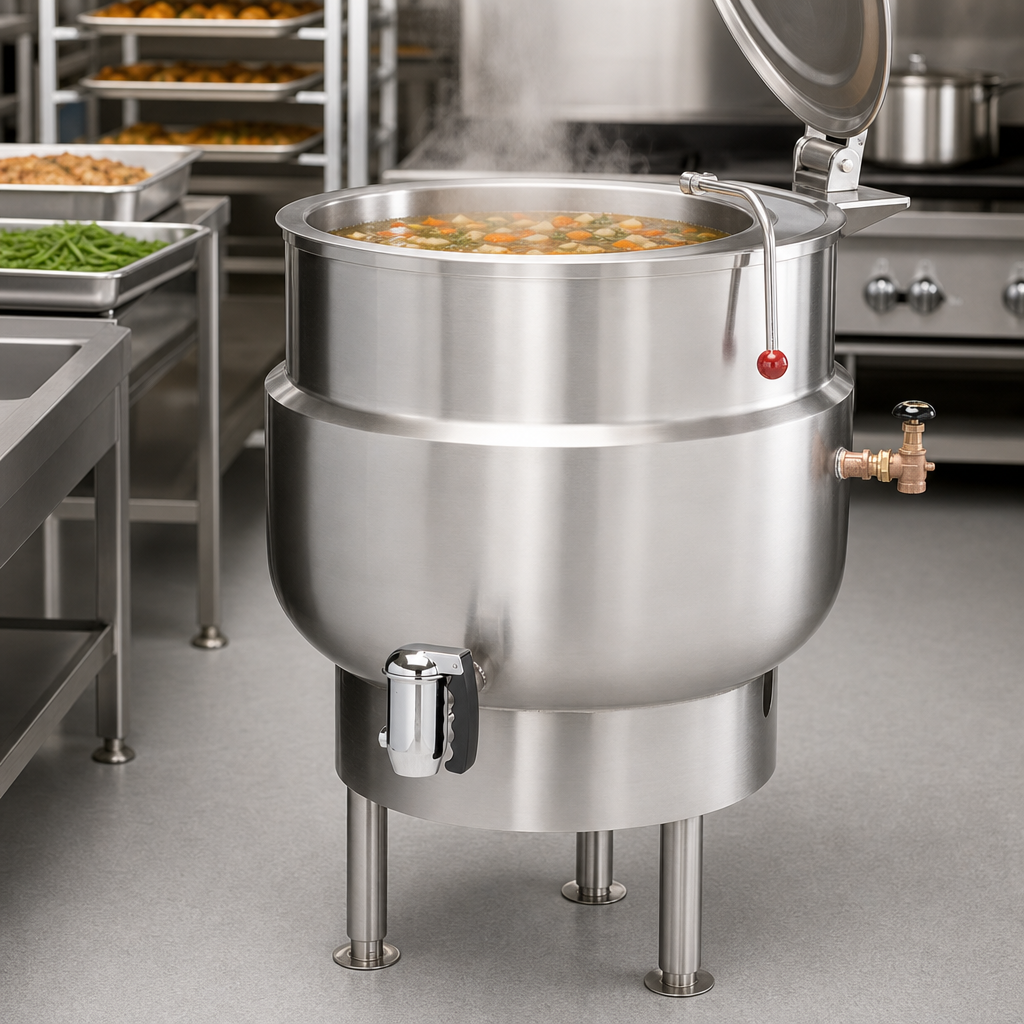

40-Gallon True Working Capacity

Sized for high-volume production, with capacity equal to 160 quarts or 1,280 four-ounce servings.

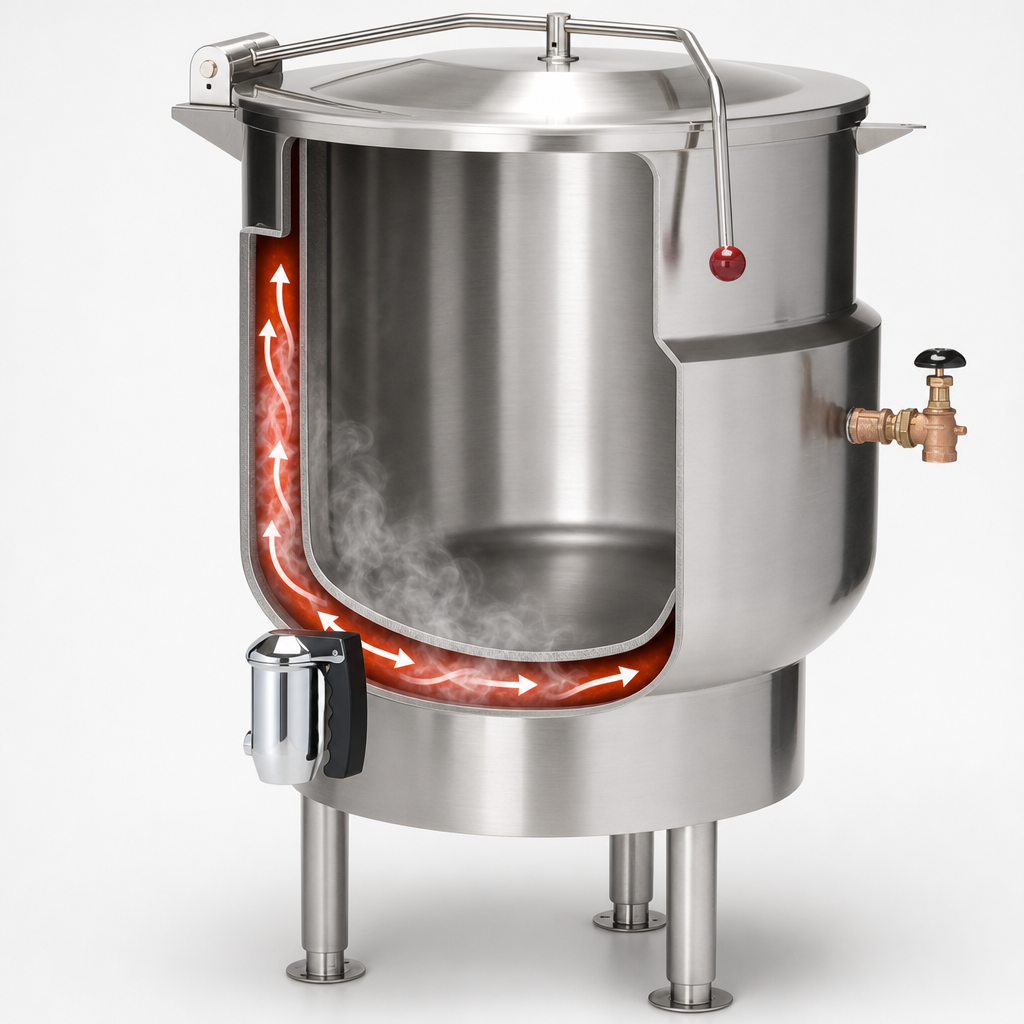

2/3 Jacketed Direct Steam Design

Direct steam heating across the kettle jacket supports consistent batch cooking performance.

316 Stainless Steel Ellipsoidal Bottom Liner

Formed and fully welded liner construction helps improve durability and cleaning ease.

Manual Forward Tilt

The kettle tilts forward 90 degrees to completely empty contents.

Stainless Steel Steam Control Enclosure

Encloses the steam control valve, self-locking tilt mechanism, and faucet bracket on the tilting console.

50 PSI Steam Jacket Rating

Rated for dependable steam-jacket operation under commercial use conditions.

Tri-Leg Floor Base

Tubular stainless steel legs with flanged feet provide a stable floor-mounted base.

Embossed Gallon/Liter Markings

Marked measurements help with volume tracking and batch consistency.

Type Steam Kettle
Style Direct Steam
Installation Type Floor Model
Capacity 40 Gallons
Kettle Jacket 2/3 Jacketed
Tilt Type Manual
Base Tri-Leg
Material Stainless Steel
Interior Finish 316 Stainless Steel
Steam Jacket Rating 50 PSI
Steam Supply Connection 3/4 Inch IPS
Condensate Return Connection 1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 42 Inches
Shipping Height 37 Inches
Shipping Weight 332 lb.

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The K40DLT has a 40-gallon true working capacity, equal to 160 quarts or 1,280 four-ounce servings.
Yes. It uses a manual tilt mechanism and tilts forward 90 degrees to empty completely.
The steam supply connection is 3/4 Inch IPS and the condensate return connection is 1/2 Inch IPS.
It has a stainless steel exterior with a 316 series stainless steel ellipsoidal-bottom liner.
Yes. Accessories and add-ons include covers, draw-off valves, strainers, clean-up tools, faucets, hoses, and pot filler options.
