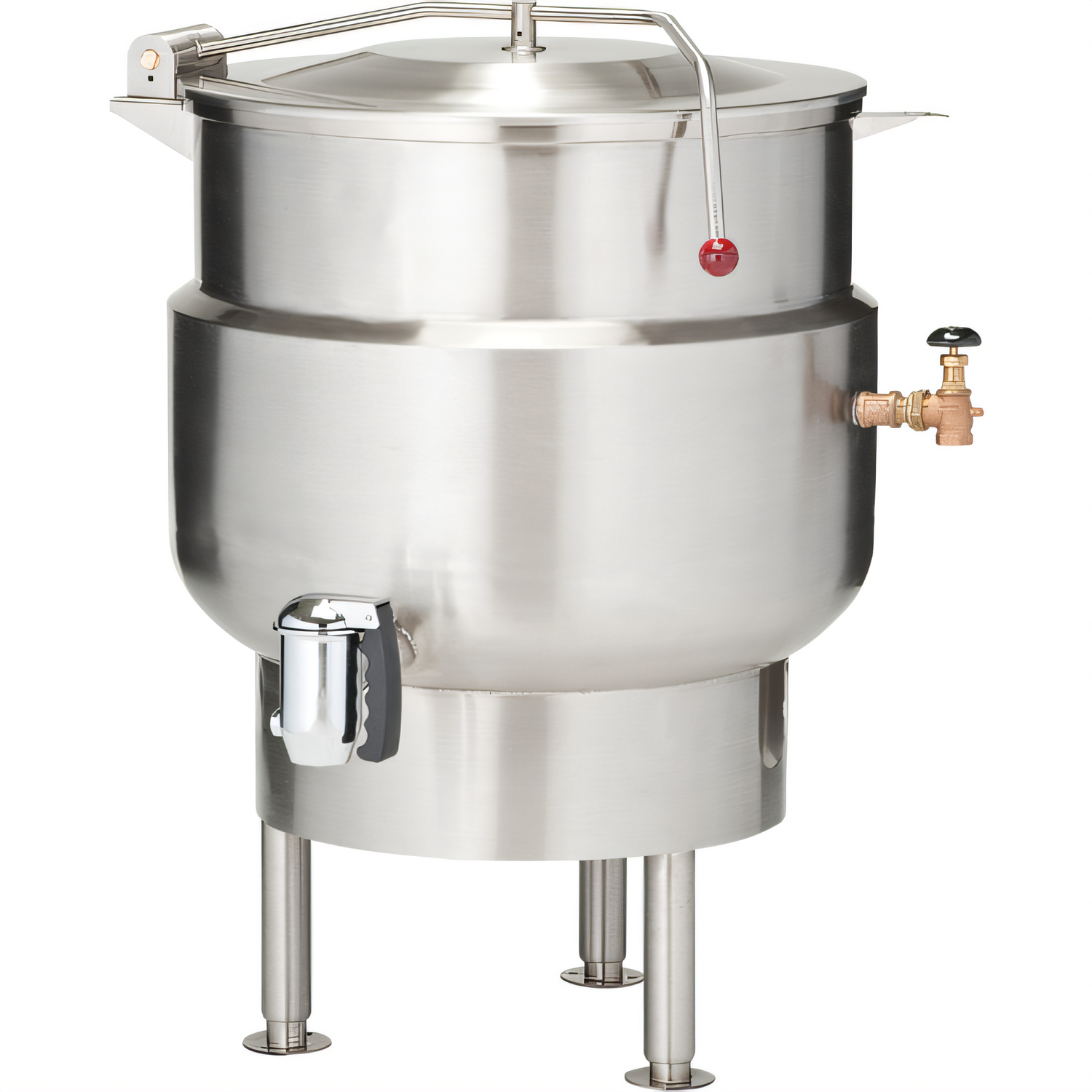

Vulcan K20DLT 20-Gallon Direct Steam 2/3-Jacketed Floor-Mounted Tilting Kettle

SKU: K20DLT
$18,620.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles Vulcan

Vulcan K20DLT 20-Gallon Direct Steam 2/3-Jacketed Floor-Mounted Tilting Kettle

Manual Tilt, 316 Stainless Steel Liner, Tri-Leg Base

Built for high-volume batch cooking, this 20-gallon direct steam kettle combines a durable 316 stainless steel liner with a manual 90° tilt for fast, complete emptying.

  • 20-gallon true working capacity supports large batch production.
  • Direct steam, 2/3-jacketed design promotes even heat transfer.
  • 316 stainless steel liner with ellipsoidal bottom adds durability and sanitation.
  • Manual self-locking tilt mechanism lets the kettle empty forward 90°.
  • Stainless steel steam control enclosure includes a faucet bracket on the tilting console.
  • Tri-leg stainless steel base provides stable floor-mounted support.

Overall Dimensions:

37.8"W x 37.3"D x 35.7"H

Product Weight:

240.0 lb

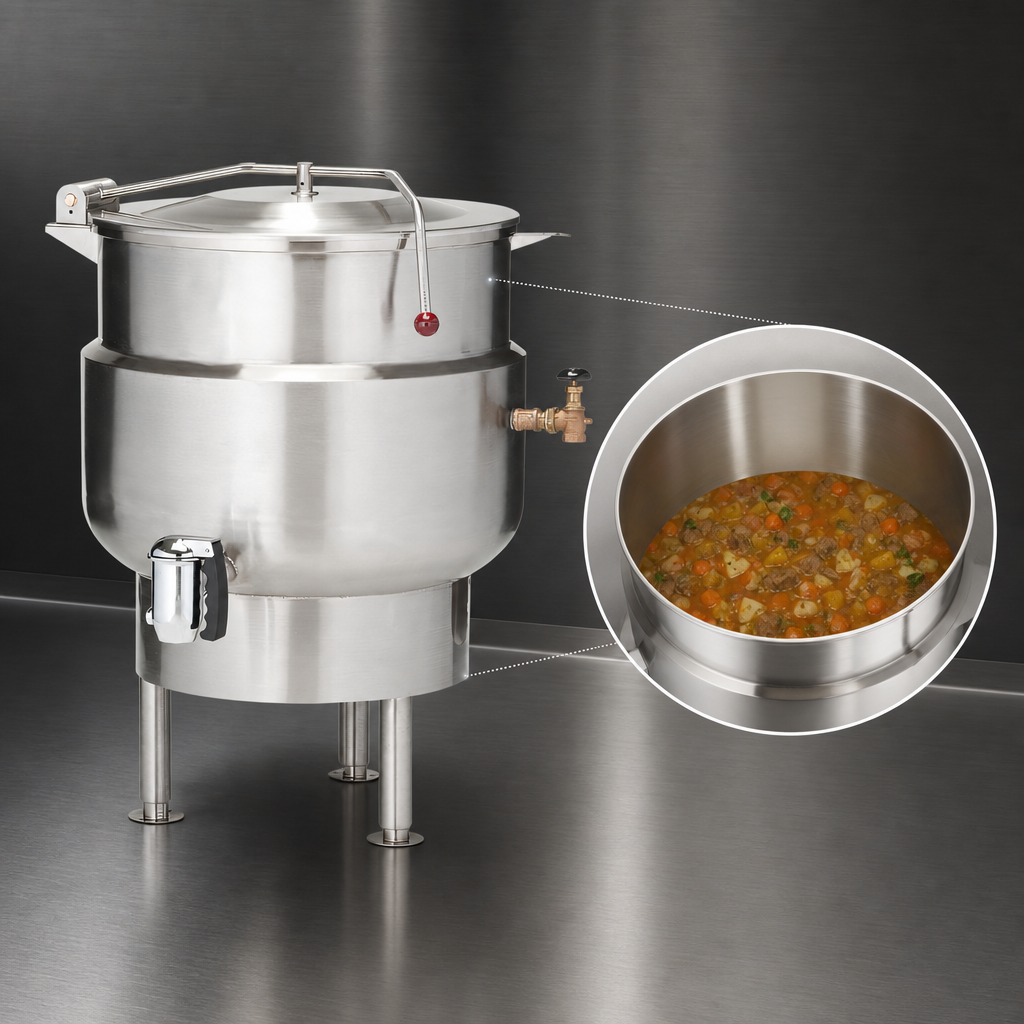

20-Gallon True Working Capacity

Rated at 20 gallons, or 80 quarts / 76 liters, for commercial batch cooking.

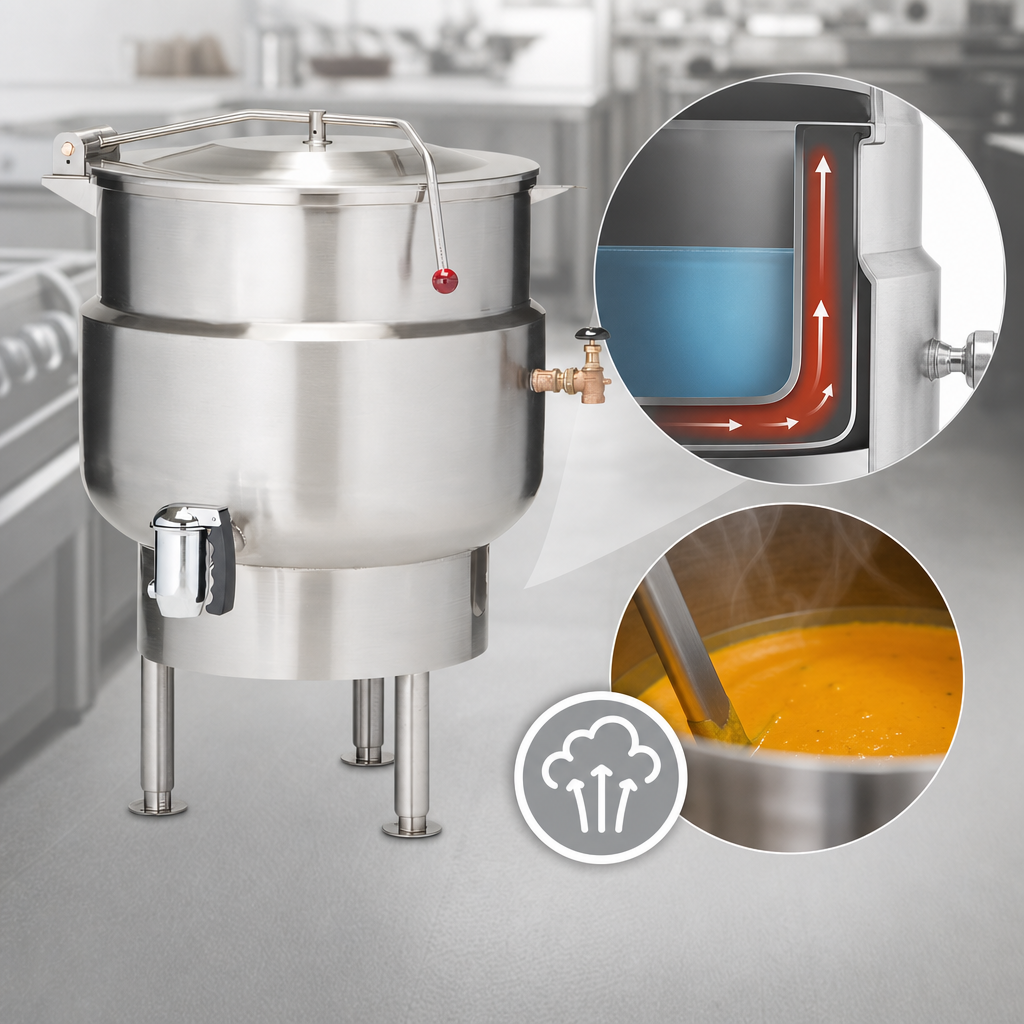

Direct Steam, 2/3-Jacketed Design

Direct steam heating with a jacketed kettle body helps deliver efficient, even heat.

316 Stainless Steel Liner

Ellipsoidal bottom liner is formed and fully welded from 316 stainless steel for strength and sanitation.

Manual Self-Locking Tilt

The kettle tilts forward 90° to completely empty, with a manual self-locking mechanism.

Steam Control Assembly

Includes a condensate return line strainer and safety valve steam trap.

Stainless Steel Enclosure and Faucet Bracket

Protective stainless steel enclosure houses the steam control valve and includes a faucet bracket on the tilting console.

Tri-Leg Stainless Steel Base

Tubular stainless steel legs with flanged feet provide stable floor-mounted support.

Embossed Measurement Markings

Gallon and liter markings are embossed for convenient volume reference.

Type Steam Kettle
Style Direct Steam
Installation Type Floor Model
Tilt Manual
Jacket Type 2/3 Jacketed
Capacity 20 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Base Tri-Leg
Steam Jacket Pressure 50 PSI
Steam Supply Connection Size 3/4 Inch IPS
Condensate Return Connection Size 1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 38 Inches
Shipping Height 36 Inches
Shipping Weight 240 lb.

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The K20DLT has a 20-gallon true working capacity, equal to 80 quarts or 76 liters.
It uses a manual, self-locking tilt mechanism and tilts forward 90° to completely empty.
The liner is 316 series stainless steel with an ellipsoidal bottom.
The kettle requires a 3/4-inch IPS steam supply and a 1/2-inch IPS condensate return connection.
It includes a one-year limited parts and labor warranty. A second-year extended limited parts and labor warranty is available as an option.
Optional accessories include a spring assist hinged stainless steel cover, pouring lip strainer, clean-up kit, 48-inch whip, solid disk, faucet options, washdown hose options, and draw-off valve options.
