Key specifications

Phase
1-Phase or 3-Phase
Dimensions
60.0"W × 34.67"D × 58.0"H
Type
Range
Size
60 in
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Vulcan SKU: EV60SS-5HT208

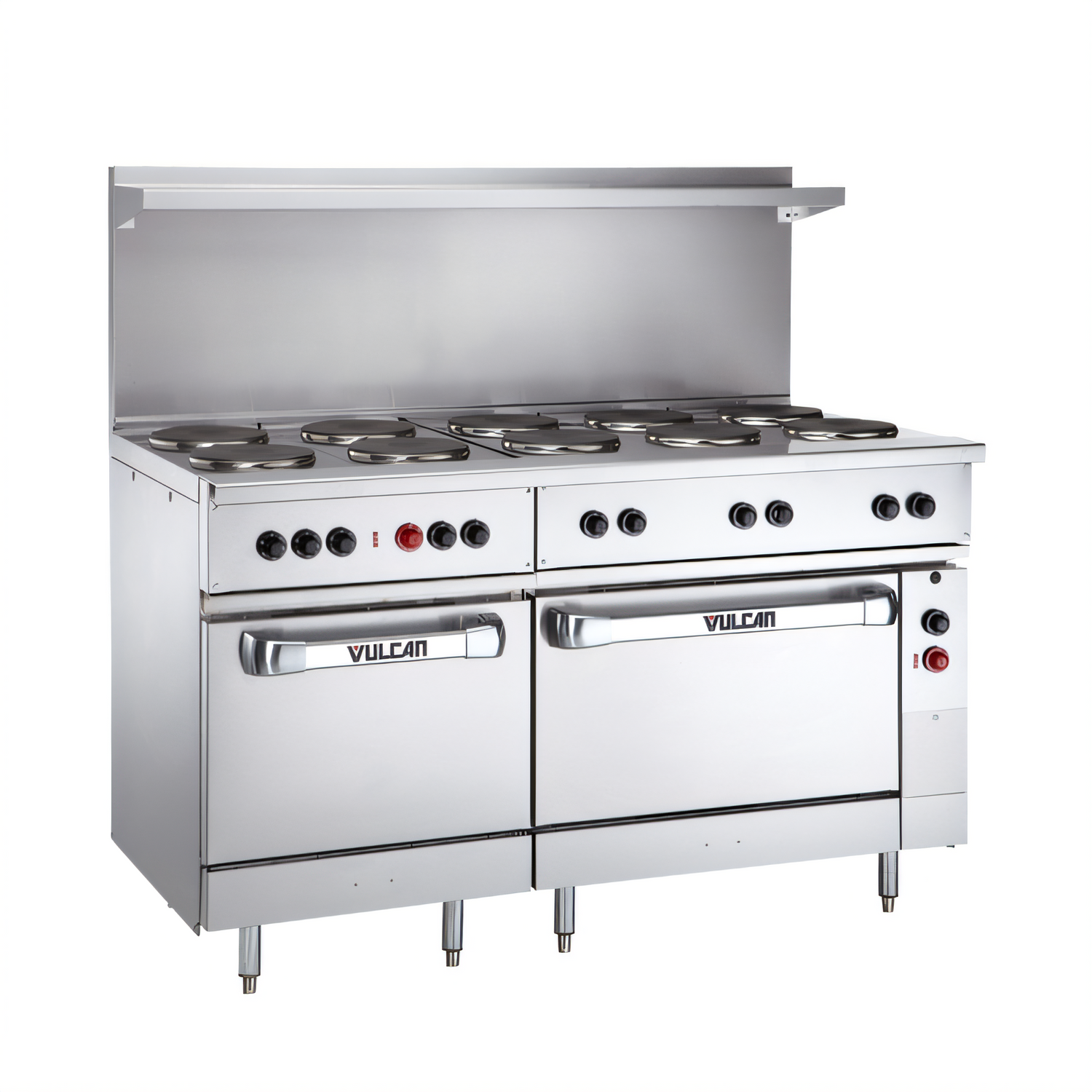

Vulcan EV60SS-5HT208 60-Inch Electric Range with 5 Hot Tops

$25,742.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,381/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Size 60 in
Installation Type Floor Model
Material Stainless Steel
Frame Material Aluminized Steel
Finish Stainless Steel
Hot Top Count 5
Hot Top Size 12 in x 24 in
Oven Count 2
Oven Configuration 1 Standard, 1 Oversized
Controls Thermostatic
Temperature Range 200°F to 500°F
Shelf Configuration Single-Deck High Shelf
Leg Height 6 in
Voltage 208 Volts
Phase 1-Phase or 3-Phase
Crumb Tray Full-Width Pull-Out

Description

EV60SS-5HT208 is a 60-inch electric restaurant range with five 12 in x 24 in thermostatically controlled hot top sections, one oversized oven, and one standard oven.

The range has an aluminized steel welded frame with stainless steel front, sides, back riser, shelf, and legs. It includes a single-deck high shelf, 6 in adjustable legs, and a full-width pull-out stainless steel crumb tray.

  • Each oven includes one oven rack and three rack positions.
  • Oven thermostats adjust from 200°F to 500°F.
  • The model is specified for 208 Volts and requires two separate electrical hook-ups.

Overall Dimensions:

60.0"W x 34.67"D x 58.0"H

Product Weight:

750.0 lb

Five Thermostatically Controlled Hot Tops

Includes five 12 in x 24 in hot top sections with thermostatic controls.

Dual-Oven Configuration

Includes one oversized oven and one standard oven.

Stainless Steel Exterior Components

The front, sides, back riser, shelf, and legs are stainless steel.

Adjustable Oven Thermostat

The oven thermostat adjusts from 200°F to 500°F.

Oven Rack Positions

Each oven includes one oven rack and three rack positions.

Pull-Out Crumb Tray

A full-width pull-out stainless steel crumb tray is located beneath the cooking top.

Single-Deck High Shelf

Includes a stainless steel single-deck high shelf.

208V Electrical Supply

Requires 208 Volts and two separate electrical hook-ups; the installation documentation supports 1- or 3-phase power.

Frequently Asked Questions

It has five thermostatically controlled hot top sections, each measuring 12 in x 24 in.
The range includes one oversized oven and one standard oven. Each oven includes one rack and three rack positions.
This model is specified for 208 Volts, requires two separate electrical hook-ups, and supports either 1-phase or 3-phase power. It ships in 3-phase and is field convertible to single phase.
The range measures 60 in wide x 34.67 in deep x 58 in high and weighs 750 lb.
The listed certifications are NSF and cCSAus.
Vulcan lists a one-year limited parts and labor warranty from the date of original installation.
