Key specifications

Phase
1-Phase / 3-Phase
Dimensions
48.0"W × 34.0"D × 58.0"H
Type
Restaurant Range
Style
French Plate
Installation Type
Floor Model
Material
Aluminized Steel
Spec sheet
Vulcan SKU: EV48SS-8FP480

Vulcan EV48SS-8FP480 48-Inch Electric Range, 8 French Plates

$22,848.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,113/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style French Plate
Installation Type Floor Model
Material Aluminized Steel
Finish Stainless Steel
Diameter 9.5 in
Plate Count 8
Plate Power 2 kW Each
Oven Count 2
Oven Interior Size 20 in W x 26.5 in D x 14 in H
Pan Size 18 in x 26 in
Temperature Range 200°F to 500°F
Voltage 480 Volts
Phase 1-Phase / 3-Phase
Leg Height 6 in
Shelf Type Single Deck High Shelf
Crumb Tray Full Width Pull-Out

Description

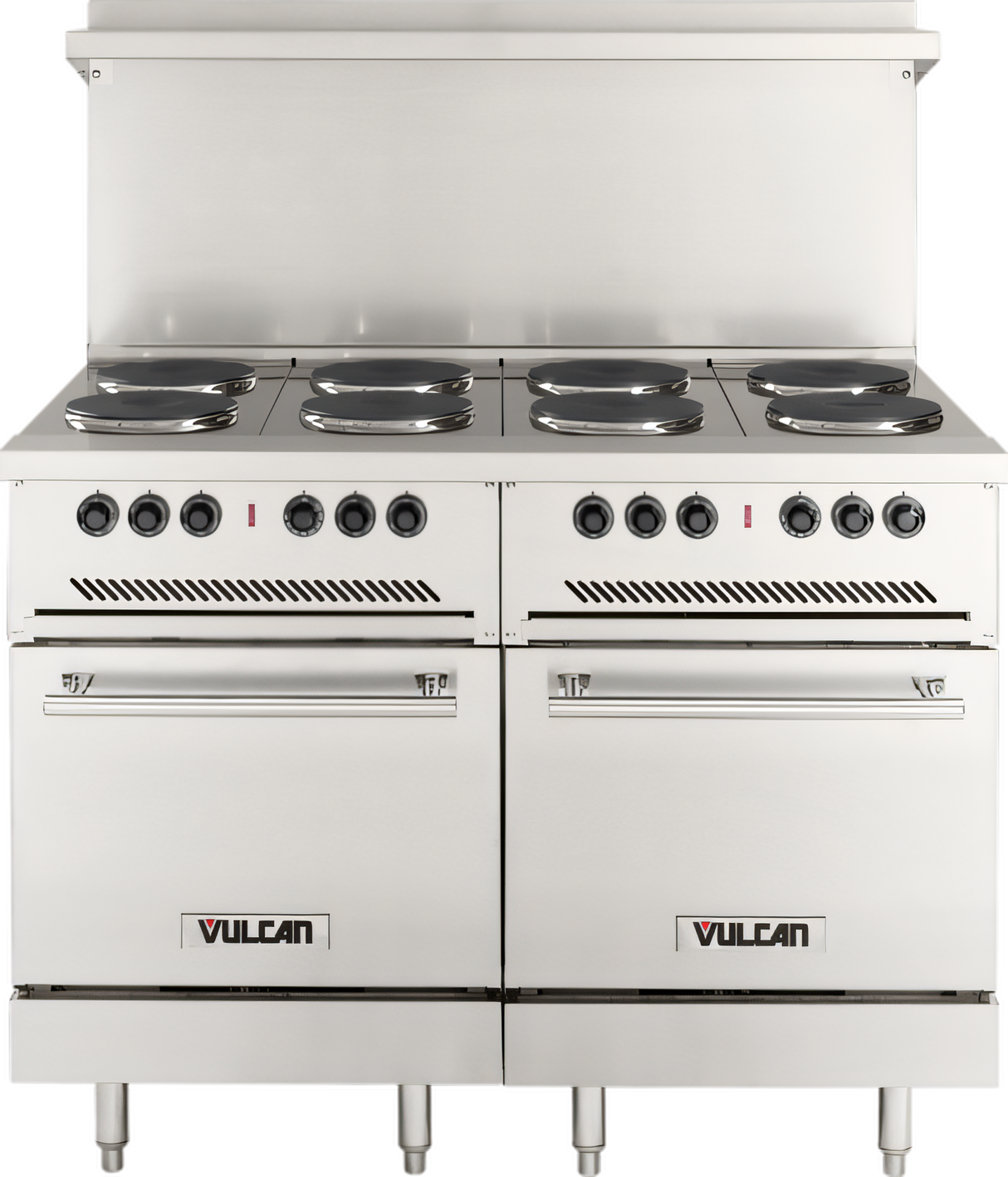

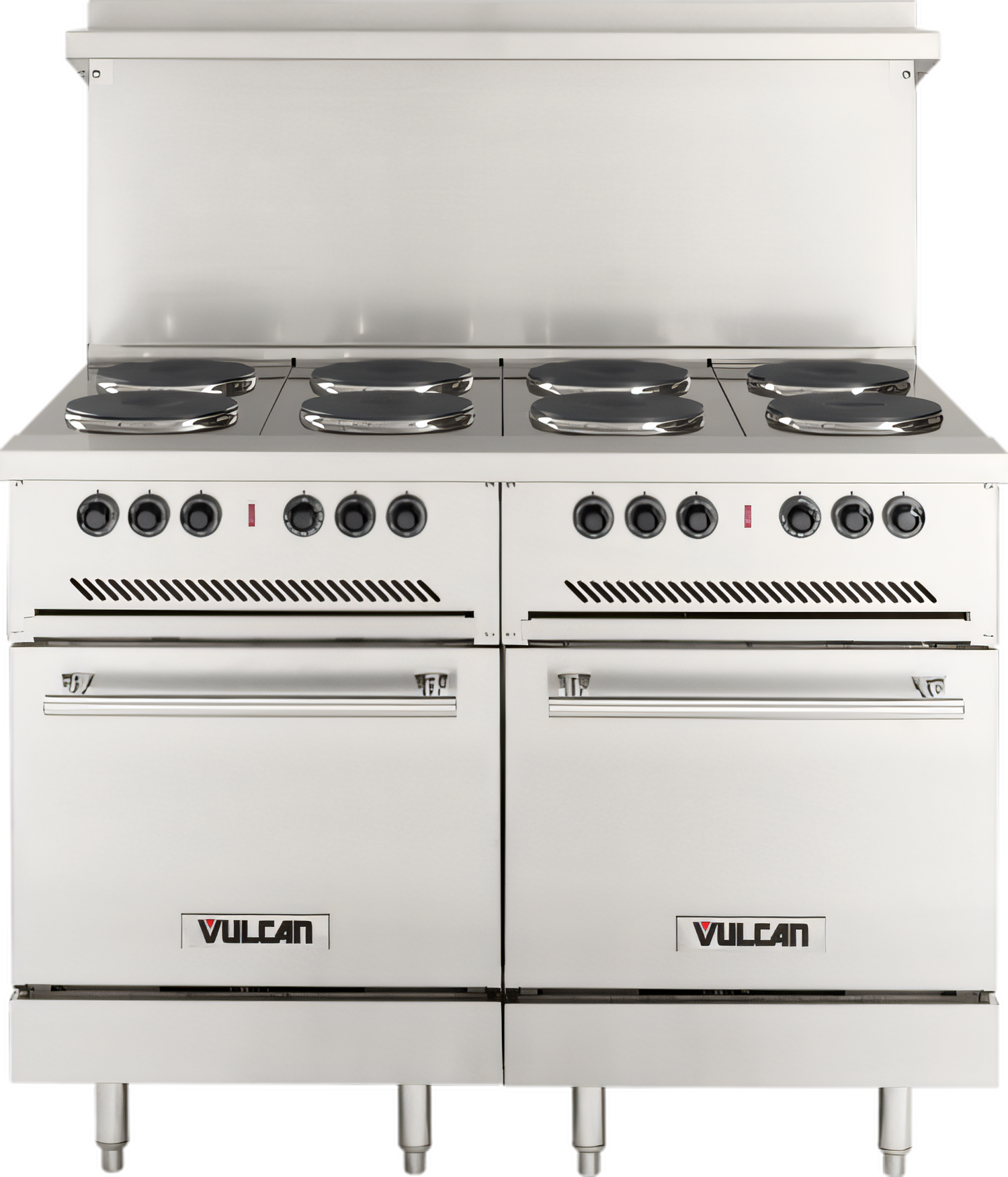

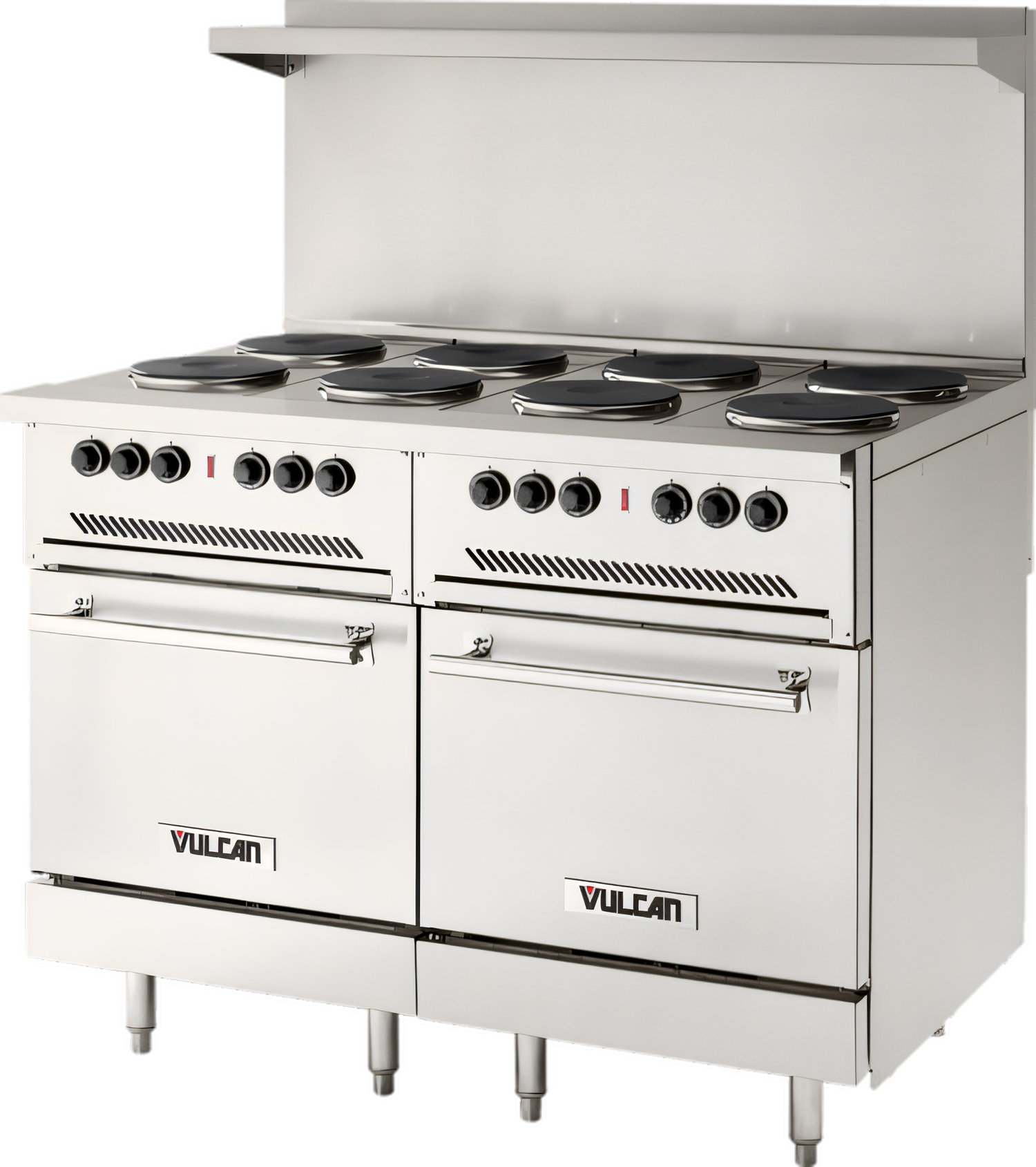

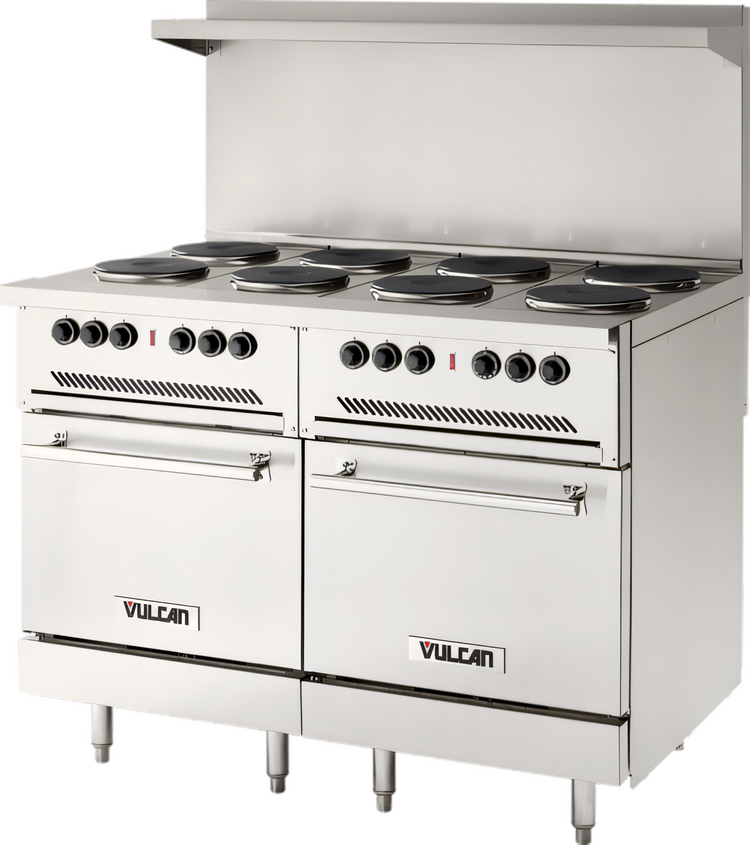

Vulcan EV48SS-8FP480 is a 48-inch electric restaurant range with eight 9.5-inch round French plates and two standard ovens.

The range has a stainless steel front and sides, back riser, single-deck high shelf, 6-inch legs, and a full-width pull-out stainless steel crumb tray. Each oven includes one rack with three rack positions, and the oven thermostat adjusts from 200°F to 500°F.

  • 480-volt electrical model with 1- or 3-phase power capability
  • Each French plate has a 2 kW input
  • 18-inch by 26-inch sheet pans fit front to back

Overall Dimensions:

48.0"W x 34.0"D x 58.0"H

Product Weight:

700.0 lb

French Plate Cooktop

Eight 9.5-inch round French plates provide 2 kW input per plate.

Two Standard Ovens

Two standard ovens are included; each interior measures 20 inches wide by 26.5 inches deep by 14 inches high.

Oven Racks

Each oven includes one oven rack with three rack positions.

Oven Temperature Range

The oven thermostat adjusts from 200°F to 500°F and includes top browning heat control.

Stainless Steel Exterior

The front, sides, back riser, shelf, and legs are stainless steel.

Pull-Out Crumb Tray

A full-width stainless steel crumb tray pulls out from beneath the cooking top.

Electrical Configuration

This 480-volt model supports 1- or 3-phase power, and the installation instructions specify two separate electrical hookups.

Sheet Pan Compatibility

18-inch by 26-inch sheet pans fit front to back in the ovens.

Frequently Asked Questions

It has eight 9.5-inch round French plates, each with 2 kW input.
The range includes two standard ovens. Each oven interior measures 20 inches wide by 26.5 inches deep by 14 inches high.
This model is rated for 480 volts and supports 1- or 3-phase power. The installation instructions specify two separate electrical hookups.
The range measures 48 inches wide by 34 inches deep by 58 inches high on 6-inch legs.
Yes. 18-inch by 26-inch sheet pans fit front to back.
