Key specifications

Phase
1-Phase / 3-Phase
Dimensions
48.0"W × 34.0"D × 58.0"H
Type
Range
Style
French Plate
Installation Type
Floor Model
Material
Aluminized Steel
Spec sheet
Vulcan SKU: EV48SS-8FP240

Vulcan EV48SS-8FP240 48-Inch Electric Range, 8 French Plates

$21,955.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,031/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style French Plate
Installation Type Floor Model
Material Aluminized Steel
Finish Stainless Steel
Diameter 9.5 Inches
Oven Count 2
Oven Interior Dimensions 20 W x 26.5 D x 14 H Inches
Pan Size 18 x 26 Inches
Shelf Count 1
Voltage 240 Volts
Watts 26 kW
Phase 1-Phase / 3-Phase
Controls Infinite Heat Controls
Temperature Range 200°F to 500°F
Electrical Hookups 2 Separate Hookups

Description

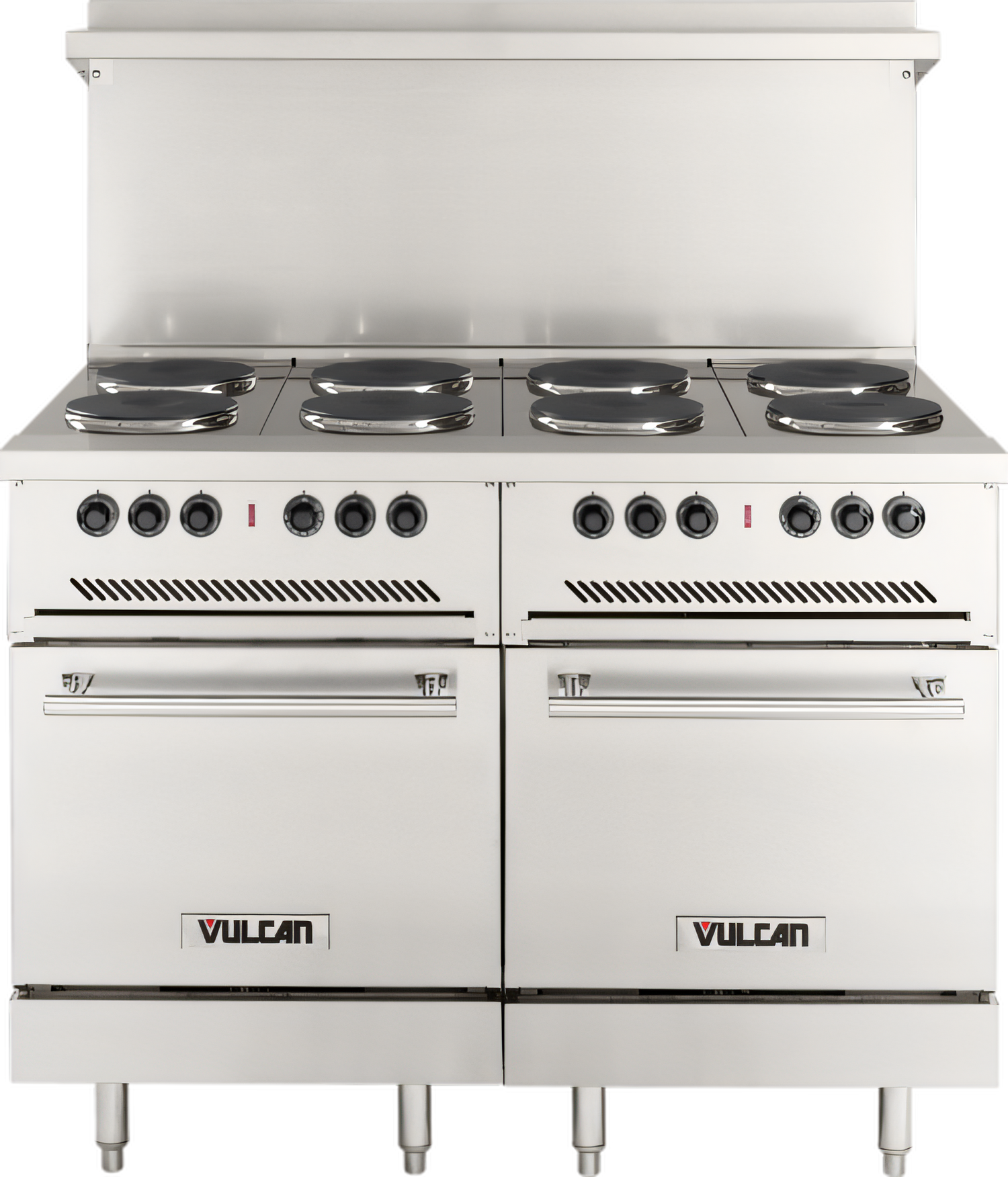

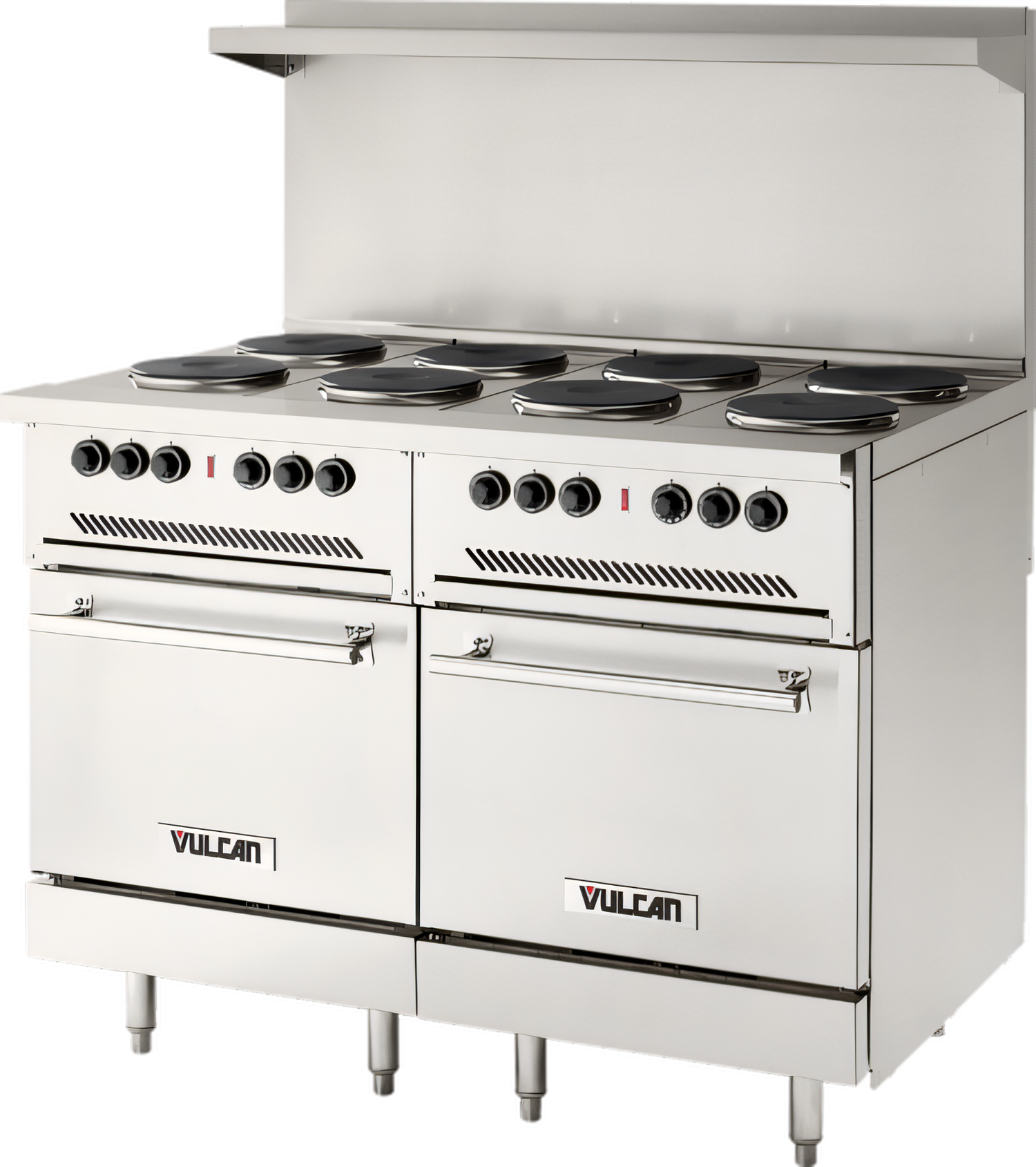

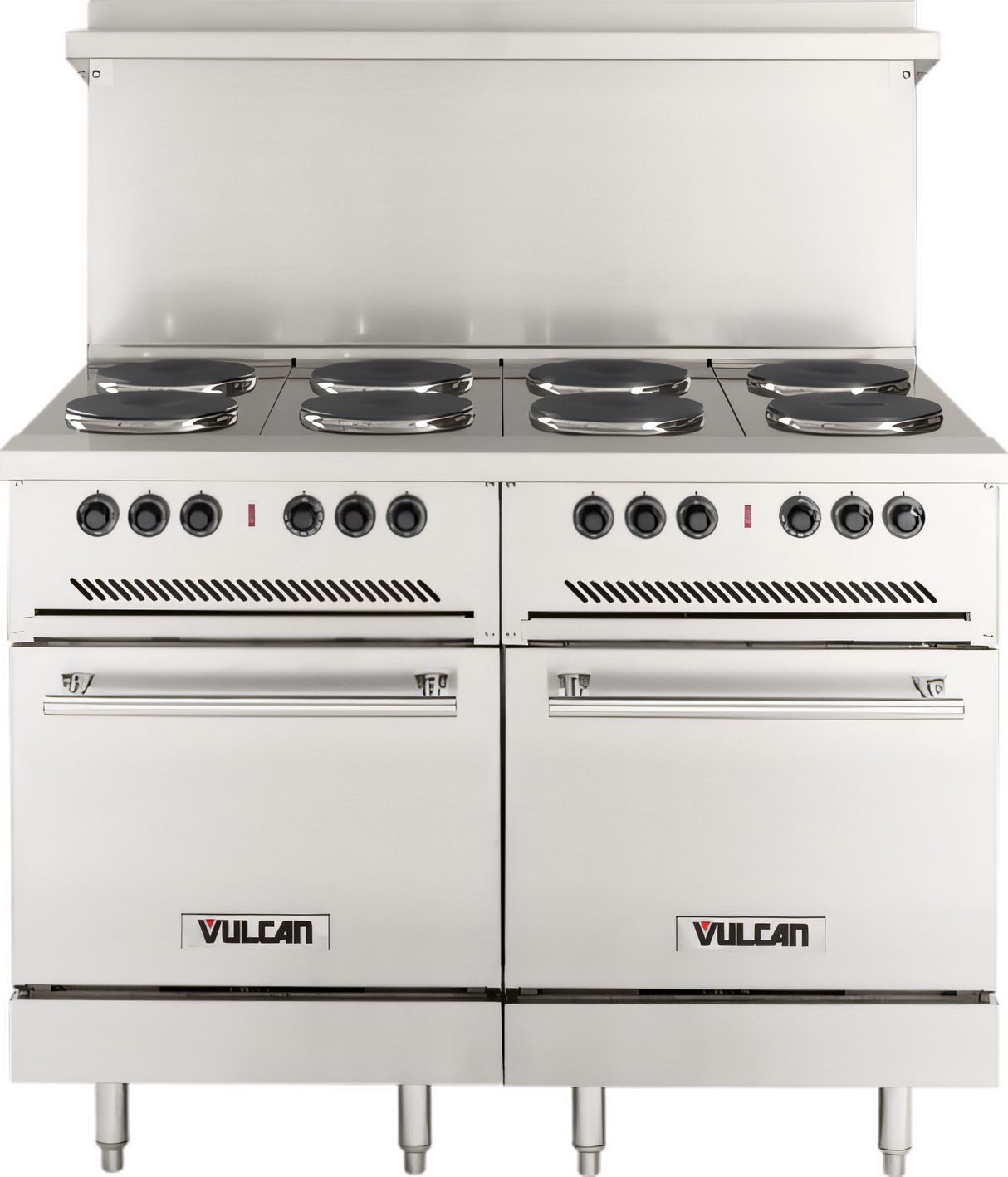

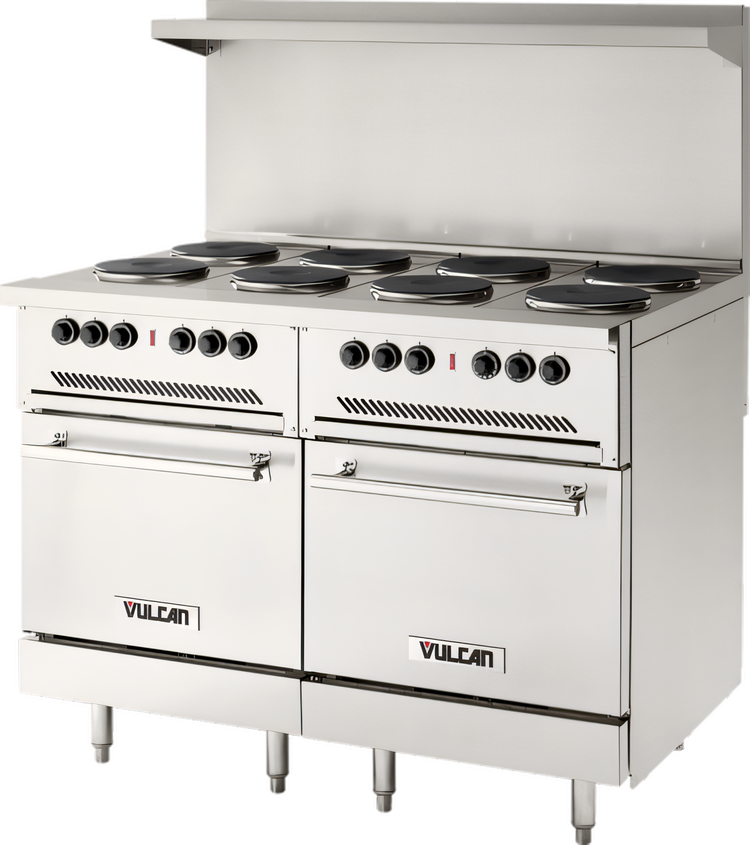

The EV48SS-8FP240 is a 48-inch electric restaurant range with eight 9.5-inch round French plates and two standard ovens.

  • Each French plate provides 2 kW input with an infinite heat control switch.
  • Each standard oven has a 20-inch-wide by 26.5-inch-deep by 14-inch-high interior, one oven rack, and three rack positions.
  • The range has a stainless steel front, sides, back riser, shelf, and legs, plus 6-inch adjustable legs.
  • Oven thermostats adjust from 200°F to 500°F, and the range includes a full-width pull-out stainless steel crumb tray.
  • The 240-volt range supports 1- or 3-phase power and requires two separate electrical hookups.

Overall Dimensions:

48.0"W x 34.0"D x 58.0"H

Product Weight:

700.0 lb

French Plate Cooking Surface

Eight 9.5-inch round French plates provide 2 kW input per plate.

Standard Ovens

Two standard ovens are included; each has a 20-inch-wide by 26.5-inch-deep by 14-inch-high interior, one oven rack, and three rack positions.

Infinite Heat Controls

French plates use infinite heat control switches.

Oven Temperature Control

The oven thermostat adjusts from 200°F to 500°F.

Stainless Steel Components

The front, sides, back riser, shelf, and legs are stainless steel.

Adjustable Legs

The range is supplied with 6-inch adjustable legs.

Pull-Out Crumb Tray

A full-width pull-out stainless steel crumb tray is located beneath the cooking top.

Electrical Configuration

The 240-volt range supports 1- or 3-phase power, ships in 3-phase, and can be field-converted to single-phase.

Frequently Asked Questions

It has eight 9.5-inch round French plates, with 2 kW input per plate.
The range includes two standard ovens.
Each oven interior measures 20 inches wide by 26.5 inches deep by 14 inches high.
This model is 240 volts and supports either 1-phase or 3-phase power. It ships in 3-phase and can be field-converted to single-phase.
The oven thermostat adjusts from 200°F to 500°F.
The range measures 34 inches deep by 48 inches wide by 58 inches high on 6-inch adjustable legs.
Vulcan provides a one-year limited parts and labor warranty from the date of original installation, subject to its commercial equipment warranty terms.
