Key specifications
- Phase
- 1-Phase / 3-Phase
- Dimensions
- 48.0"W × 34.0"D × 58.0"H
- Type
- Restaurant Range
- Style
- Electric
- Installation Type
- Floor Model
- Material
- Aluminized Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

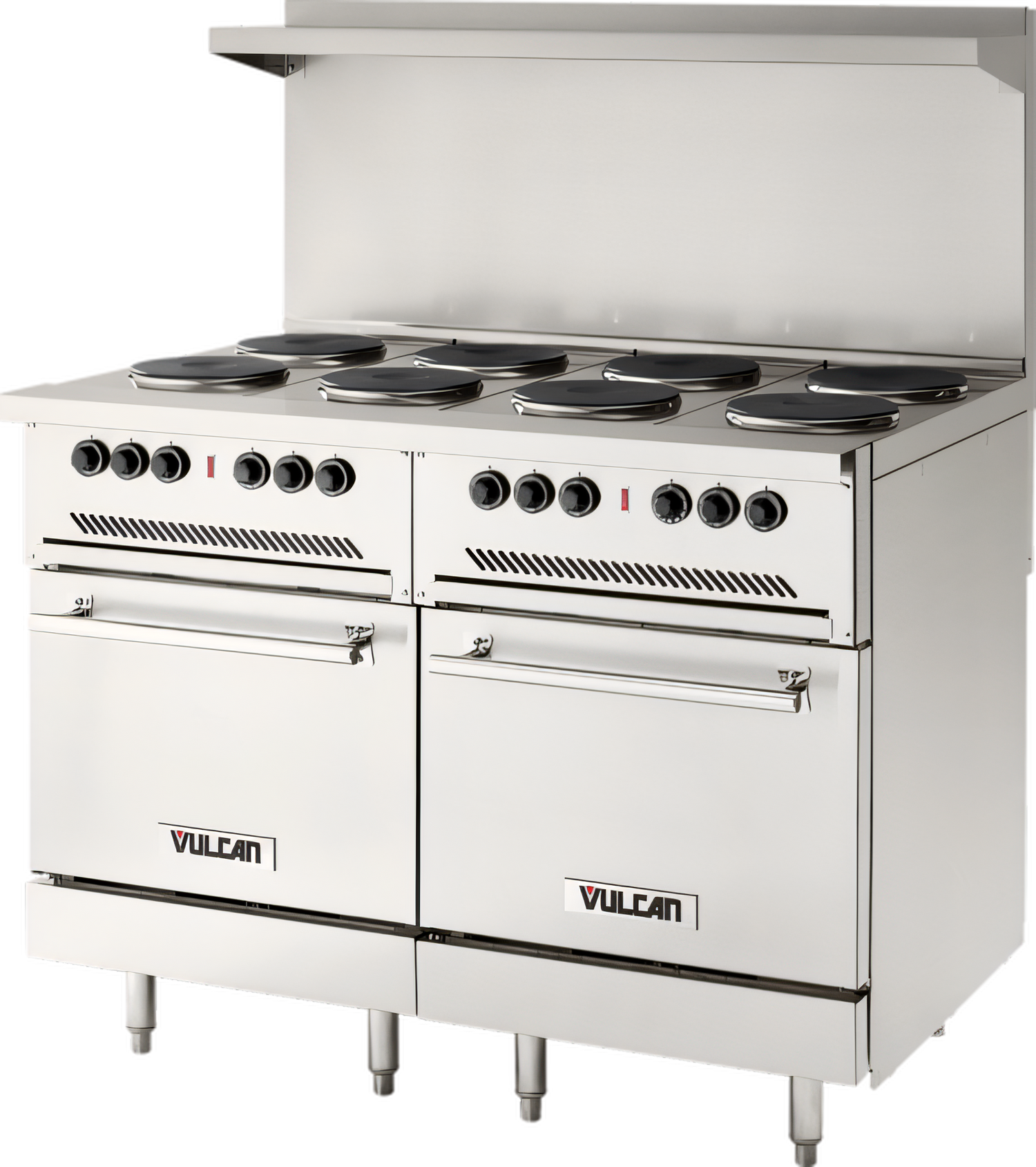

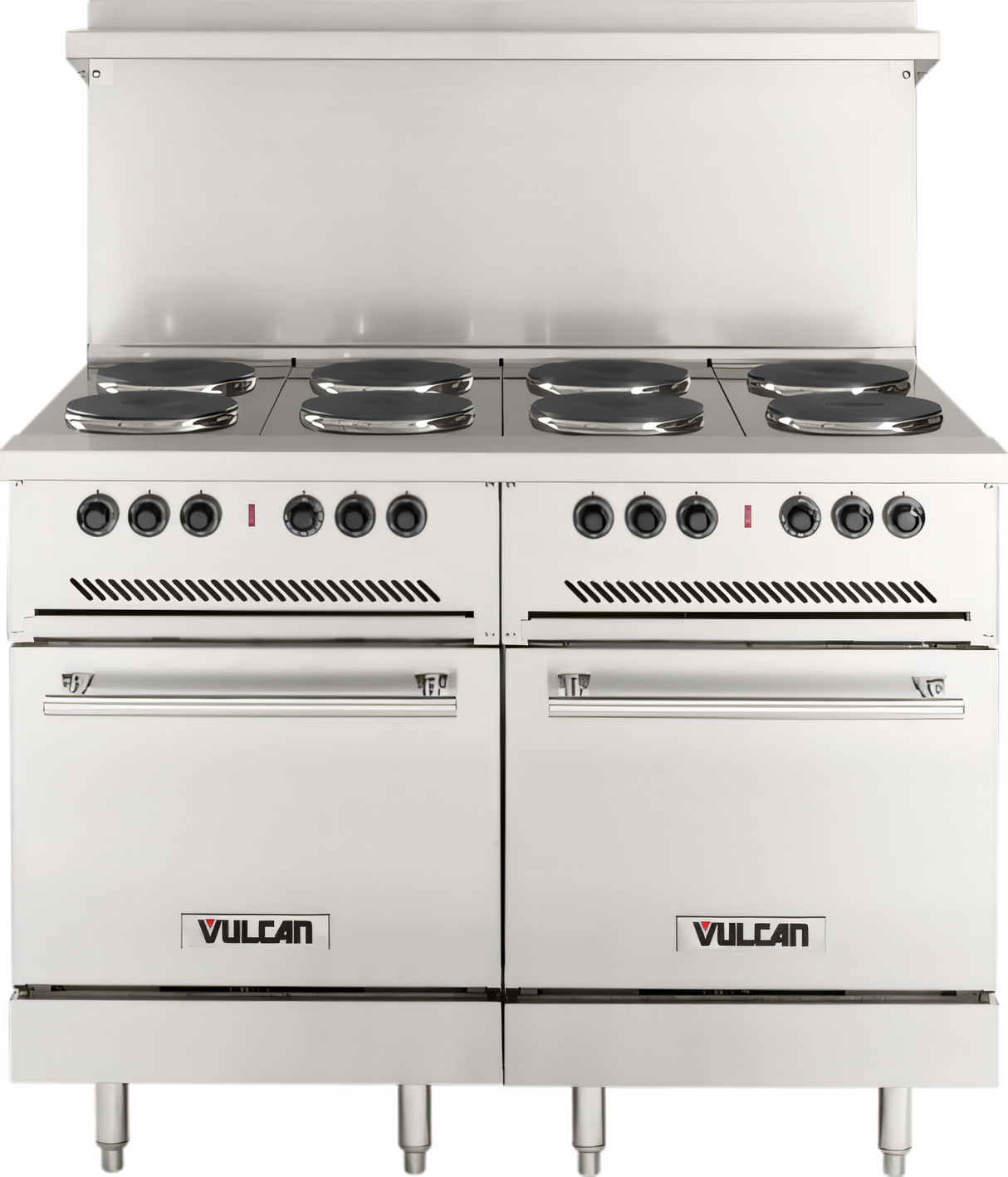

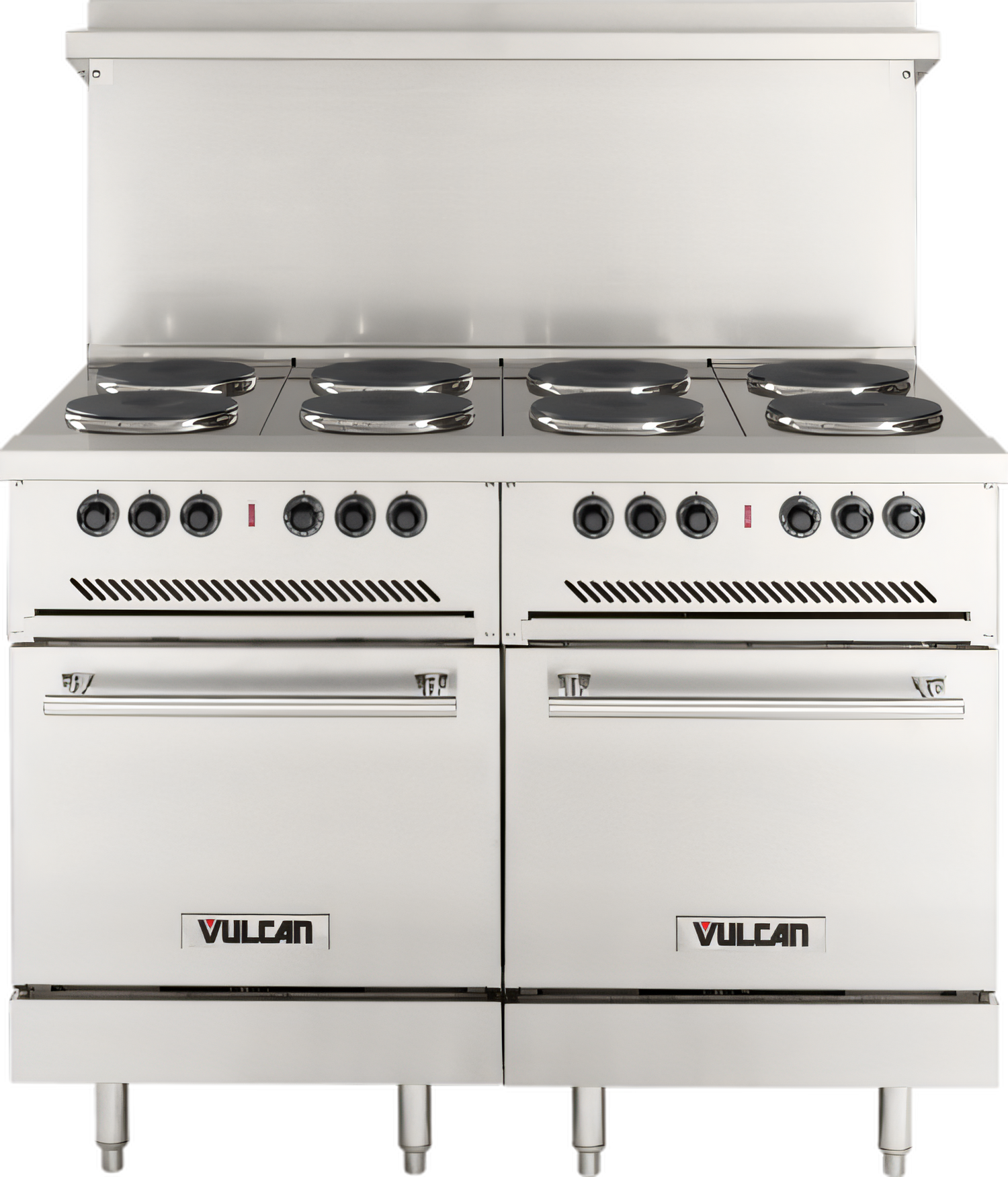

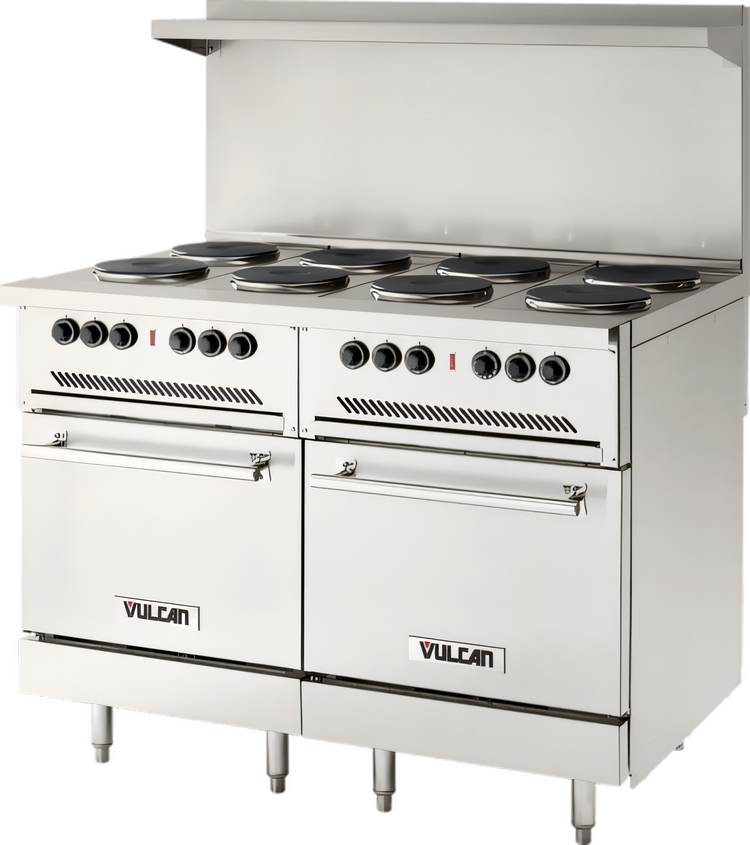

The Vulcan EV48SS-8FP208 is a 48-inch electric restaurant range with eight 9.5-inch round French plates and two standard ovens.
The range has a fully MIG-welded aluminized steel frame with stainless steel front, sides, back riser, shelf, and legs. Each French plate provides 2 kW input with infinite heat control, while each oven includes one rack, three rack positions, and a thermostat adjustable from 200°F to 500°F.
This floor-model range measures 48 in W x 34 in D x 58 in H on 6 in adjustable legs and requires two separate electrical hookups.
Overall Dimensions:
48.0"W x 34.0"D x 58.0"HProduct Weight:
634.0 lbFrench Plates
Eight 9.5-inch round French plates provide 2 kW input per plate.
Infinite Heat Controls
The French plates use infinite heat control switches.
Two Standard Ovens
The range includes two standard ovens, each measuring 20 in W x 26.5 in D x 14 in H internally.
Oven Temperature Control
Each oven thermostat adjusts from 200°F to 500°F.
Oven Racks
Each oven includes one rack and three rack positions.
Top Browning Control
The ovens include top browning heat control.
Stainless Steel Components
The front, sides, back riser, shelf, and legs are stainless steel.
Aluminized Steel Frame
The frame is fully MIG welded aluminized steel.
Pull-Out Crumb Tray
A full-width pull-out stainless steel crumb tray is located beneath the cooking top.
Adjustable Legs
The range is supplied on 6-inch adjustable legs.
Sheet Pan Compatibility
18 in x 26 in sheet pans fit front to back.
Separate Electrical Hookups
The EV48 range requires two separate electrical hookups.
Cool-Touch Knobs
The control knobs are designed to remain cool to the touch.
