Key specifications
- Phase
- 1-Phase or 3-Phase
- Dimensions
- 48.0"W × 34.0"D × 58.0"H
- Type
- Range
- Style
- French Plate
- Installation Type
- Floor Model
- Material
- Aluminized Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

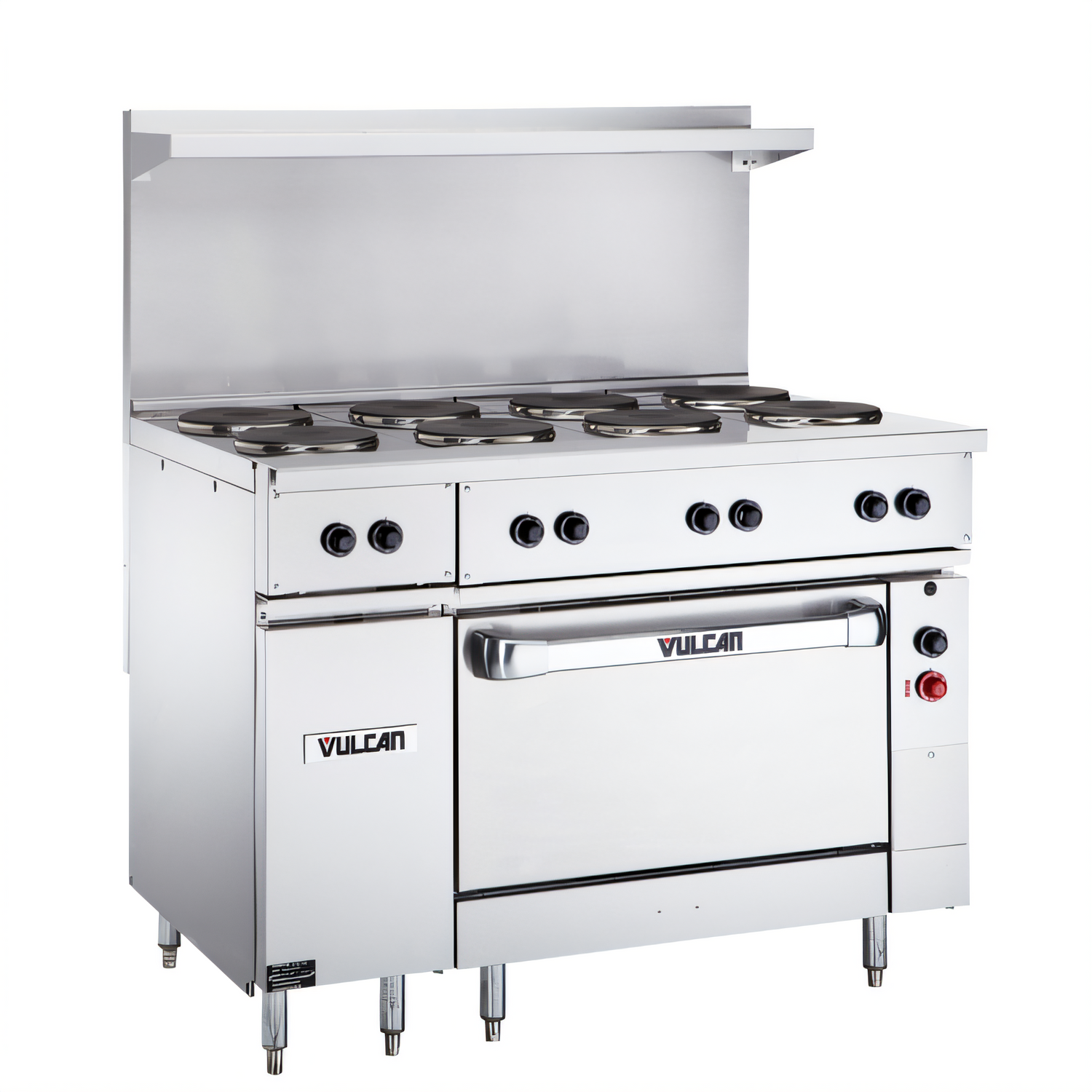

The Vulcan EV48S-8FP240 is a 48-inch electric restaurant range with eight 9.5-inch round French plates and a standard oversized oven.
- French plates: Eight 2 kW plates with infinite heat controls.
- Oven: One 5 kW oven with top browning control, one rack, three rack positions, and a thermostat adjustable from 200°F to 500°F.
- Construction: MIG-welded aluminized steel frame with stainless steel front, sides, back riser, shelf, and legs.
- Base: One standard oven and one cabinet.
- Installation: Floor model with 6-inch adjustable legs; requires two separate electrical hookups and 240-volt, 1- or 3-phase power.
Overall Dimensions:
48.0"W x 34.0"D x 58.0"HProduct Weight:
590.0 lbEight French Plates
Includes eight 9.5-inch round French plates with 2 kW input per plate.
Infinite Heat Controls
French plates use infinite heat control switches.
Standard Oversized Oven
Includes one 5 kW oven with top browning control, one rack, and three rack positions.
Adjustable Temperature
The oven thermostat adjusts from 200°F to 500°F.
Stainless Steel Exterior
The front, sides, back riser, shelf, and legs are stainless steel.
Pull-Out Crumb Tray
A full-width pull-out stainless steel crumb tray is located beneath the cooking top.
Adjustable Legs
Includes 6-inch adjustable legs.
Two Electrical Hookups
The EV48 range requires two separate electrical hookups.
