Key specifications

Phase
1-Phase / 3-Phase
Dimensions
48.0"W × 34.0"D × 58.0"H
Type
Restaurant Range
Style
French Plate
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Vulcan SKU: EV48S-8FP208

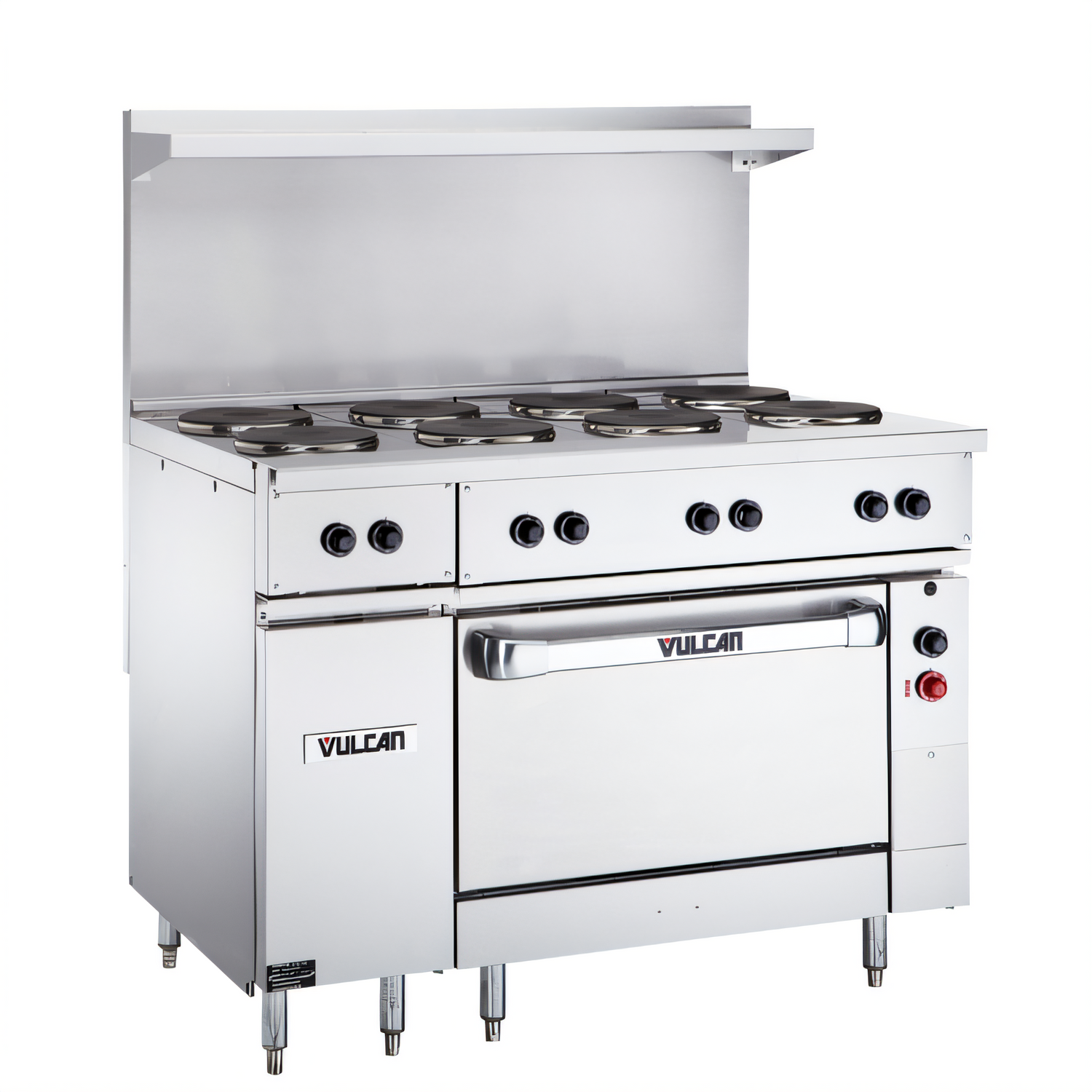

Vulcan EV48S-8FP208 48-Inch Electric Range, 8 French Plates

$17,211.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,592/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style French Plate
Installation Type Floor Model
Material Stainless Steel
Frame Material Aluminized Steel
Finish Stainless Steel
Size 48 Inches
Plate Count 8
Diameter 9.5 Inches
Base Configuration 1 Standard Oven, 1 Cabinet
Rack Count 1
Rack Positions 3
Shelf Count 1
Pan Size 18 x 26 Inches
Controls Infinite Heat Controls
Temperature Range 200°F to 500°F
Voltage 208 Volts
Watts 21 kW
Phase 1-Phase / 3-Phase
Electrical Hookups 2
Leg Height 6 Inches
Oven Input 5 kW

Description

Vulcan EV48S-8FP208 is a 48-inch electric restaurant range with eight 9.5-inch round French plates and one standard oversized oven.

The French plates provide 2 kW input per plate with infinite heat controls. The oven has a 5 kW input, top browning control, thermostat adjustment from 200°F to 500°F, one rack, and three rack positions.

  • Stainless steel front, sides, back riser, shelf, and legs
  • Full-width pull-out stainless steel crumb tray
  • 6-inch adjustable legs and single-deck high shelf
  • 208-volt power with 1- or 3-phase operation; shipped in 3-phase and field convertible to single phase

Exterior dimensions are 48 inches wide by 34 inches deep by 58 inches high on 6-inch adjustable legs.

Overall Dimensions:

48.0"W x 34.0"D x 58.0"H

Product Weight:

700.0 lb

French Plates

Eight 9.5-inch round French plates provide 2 kW input per plate and use infinite heat control switches.

Standard Oversized Oven

Includes one standard oversized oven with a 5 kW input, one oven rack, and three rack positions.

Oven Temperature Control

The oven thermostat adjusts from 200°F to 500°F.

Top Browning Control

The oven includes a top browning heat control.

Stainless Steel Exterior

The front, sides, back riser, shelf, and legs are stainless steel.

Pull-Out Crumb Tray

A full-width pull-out stainless steel crumb tray is located beneath the cooking top.

Adjustable Legs

The range is specified with 6-inch adjustable legs.

Sheet Pan Compatibility

18 x 26-inch sheet pans fit side to side and front to back.

Electrical Configuration

The model requires 208-volt power and supports 1- or 3-phase operation. Ranges are shipped in 3-phase and are field convertible to single phase.

Frequently Asked Questions

It has eight 9.5-inch round French plates, each with 2 kW input.
The standard oversized oven has a 5 kW input, one rack, three rack positions, a top browning control, and thermostat adjustment from 200°F to 500°F.
It requires 208-volt power and supports 1- or 3-phase operation. The range is shipped in 3-phase and can be field converted to single phase.
The range is 48 inches wide, 34 inches deep, and 58 inches high on 6-inch adjustable legs. The listed weight is 700 pounds.
Yes. It includes one oven rack and provides three rack positions.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.

Need help deciding?

Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.

or call (888) 307-5030
