Key specifications

Amps
18.1/27.1 Amps (3-Phase); 41.7 Amps (1-Phase)
Phase
1-Phase or 3-Phase
Dimensions
36.0"W × 34.0"D × 58.0"H
Type
Range
Style
Hot Top
Installation Type
Floor Model
Spec sheet
Vulcan SKU: EV36S-3HT480

Vulcan EV36S-3HT480 36-Inch Electric Range with 3 Hot Tops

$16,251.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,503/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Hot Top
Installation Type Floor Model
Material Aluminized Steel
Finish Stainless Steel
Hot Top Count 3
Hot Top Size 12 in x 24 in
Oven Type Standard Oversized
Oven Interior Width 26.5 in
Oven Interior Depth 26.375 in
Oven Interior Height 14 in
Rack Count 1
Rack Positions 3
Controls Thermostatic
Temperature Range 200°F to 500°F
Voltage 480 Volts
Amps 18.1/27.1 Amps (3-Phase); 41.7 Amps (1-Phase)
Watts 20 kW
Phase 1-Phase or 3-Phase

Description

The Vulcan EV36S-3HT480 is a 36-inch electric restaurant range with three thermostatically controlled hot-top sections and one standard oversized oven.

  • Three 12-inch by 24-inch hot-top sections
  • Standard oversized oven with a 26.5-inch-wide by 26.375-inch-deep by 14-inch-high interior
  • Oven thermostat adjusts from 200°F to 500°F
  • Includes one oven rack with three rack positions
  • Stainless steel front, sides, back riser, shelf and legs
  • Full-width pull-out stainless steel crumb tray
  • Single-deck high shelf and 6-inch adjustable legs

The range requires 480-volt, 1- or 3-phase power and is intended for commercial use.

Overall Dimensions:

36.0"W x 34.0"D x 58.0"H

Product Weight:

440.0 lb

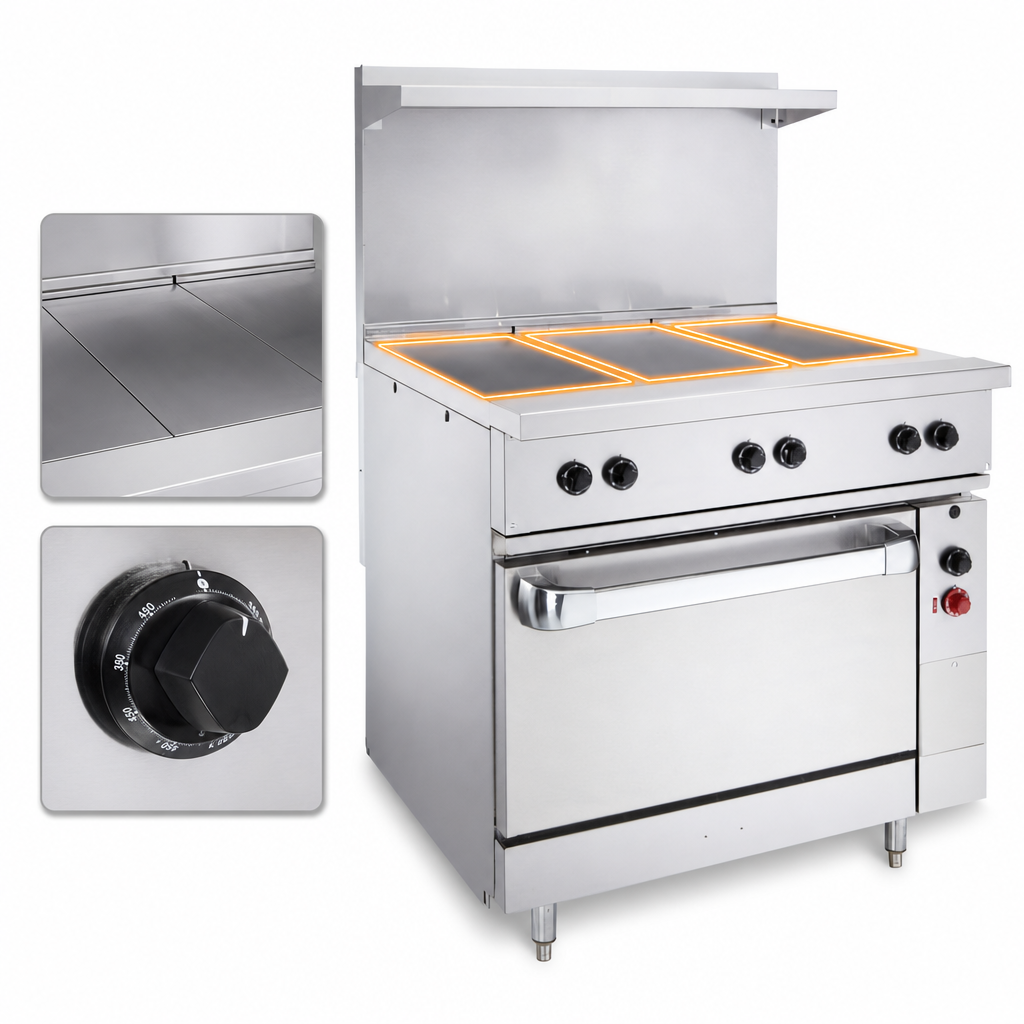

Three Hot Tops

Includes three 12-inch by 24-inch thermostatically controlled hot-top sections.

Standard Oversized Oven

Includes one standard oversized oven with a 26.5-inch-wide by 26.375-inch-deep by 14-inch-high interior.

Adjustable Oven Thermostat

Oven thermostat adjusts from 200°F to 500°F.

Oven Rack

Includes one oven rack with three rack positions.

Top Browning Control

The oven includes top browning heat control.

Stainless Steel Components

Front, sides, back riser, shelf and legs are stainless steel.

Pull-Out Crumb Tray

Full-width pull-out stainless steel crumb tray is located beneath the cooking top.

Adjustable Legs

Includes 6-inch adjustable legs.

High Shelf

Includes a single-deck high shelf.

Frequently Asked Questions

It has three thermostatically controlled hot-top sections, each measuring 12 inches by 24 inches.
The range requires 480 volts and can be connected to either 1-phase or 3-phase power. The total connecting load is 20 kW.
The oven thermostat adjusts from 200°F to 500°F.
Yes. It includes one oven rack and provides three rack positions.
The range measures 36 inches wide by 34 inches deep by 58 inches high on 6-inch adjustable legs.
