Key specifications

Phase
1-Phase or 3-Phase
Dimensions
24.0"W × 34.0"D × 58.0"H
Type
Restaurant Range
Style
French Plate
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Vulcan SKU: EV24S-4FP480

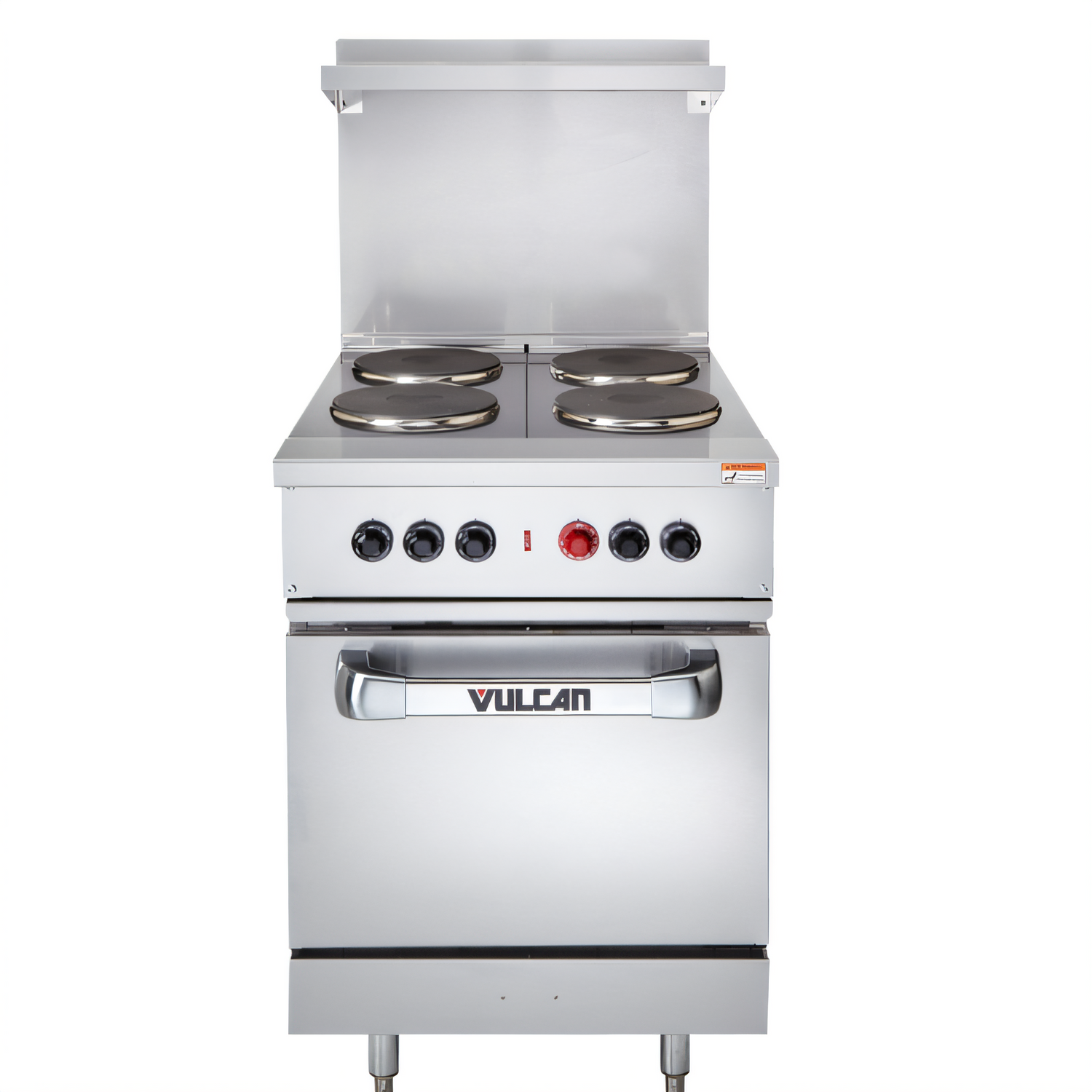

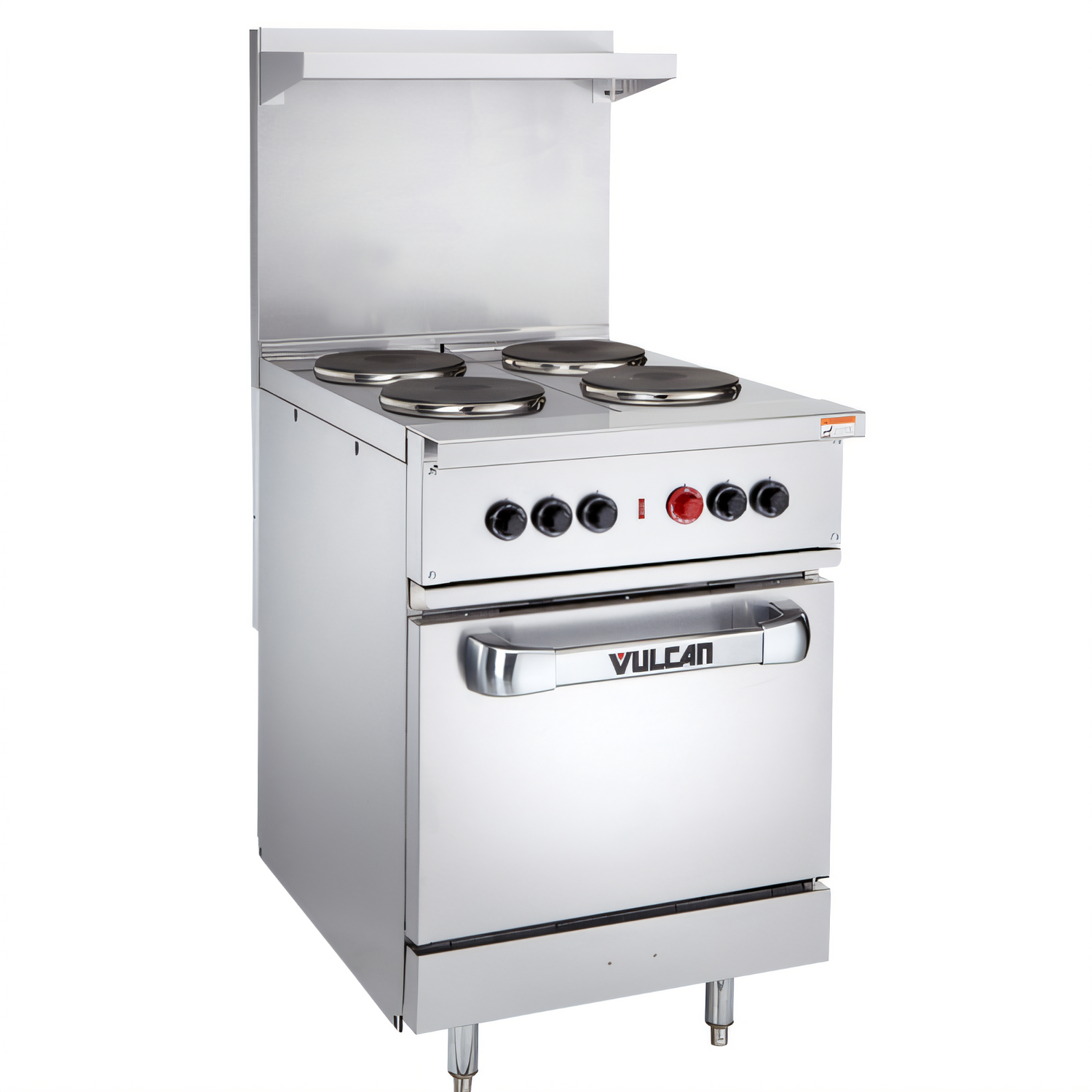

Vulcan EV24S-4FP480 24-Inch Electric Range, 4 French Plates

$11,432.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,057/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style French Plate
Installation Type Floor Model
Material Stainless Steel
Frame Material Aluminized Steel
Finish Stainless Steel
Hotplate Count 4
Hotplate Power 2 kW Each
Top Material Cast Iron
Oven Type Standard
Oven Power 5 kW
Oven Rack Count 1
Rack Positions 3
Oven Temperature Range 200°F to 550°F
Voltage 480 Volts
Watts 13 kW
Phase 1-Phase or 3-Phase
Controls Infinite Heat Control

Description

The Vulcan EV24S-4FP480 is a 24-inch electric restaurant range with four 2 kW French hotplates, infinite controls, and a standard oven.

  • The 5 kW oven includes one rack, three rack positions, and a thermostat adjustable from 200°F to 550°F.
  • Construction includes a stainless steel front, sides, back riser, shelf, and legs with an aluminized steel frame.
  • A full-width pull-out stainless steel crumb tray is located beneath the cooking top.
  • The floor-model range measures 24 inches wide by 34 inches deep by 58 inches high and operates on 480V power.

Overall Dimensions:

24.0"W x 34.0"D x 58.0"H

Product Weight:

325.0 lb

French Hotplates

Four 2 kW French hotplates with solid cast iron cooking surfaces.

Standard Oven

The 5 kW standard oven includes one rack, three rack positions, and a top browning control.

Oven Temperature Control

The oven thermostat adjusts from 200°F to 550°F.

Stainless Steel Exterior

The front, sides, back riser, shelf, and legs are stainless steel.

Pull-Out Crumb Tray

A full-width stainless steel crumb tray pulls out from beneath the cooking top.

Floor-Model Design

The range is configured with 6-inch legs.

Frequently Asked Questions

It has four 2 kW French hotplates with solid cast iron cooking surfaces.
Yes. It includes one standard oven with one rack and three rack positions.
The oven thermostat adjusts from 200°F to 550°F.
This model requires 480 Volts and supports 1-phase or 3-phase power. Ranges are shipped in 3-phase and are field convertible to single phase.
The range measures 24 inches wide by 34 inches deep by 58 inches high.
Vulcan provides a one-year limited parts and labor warranty from the date of original installation, subject to its commercial equipment warranty terms.
