Key specifications

Amps
32.5 / 32.5 / 28.9 Amps (3-Phase); 54.2 Amps (1-Phase)
Phase
1-Phase or 3-Phase
Dimensions
24.0"W × 34.0"D × 58.0"H
Type
Restaurant Range
Style
French Plate
Installation Type
Floor Model
Spec sheet
Vulcan SKU: EV24S-4FP240

Vulcan EV24S-4FP240 24-Inch Electric Range, 4 French Plates

$10,987.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,016/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style French Plate
Installation Type Floor Model
Material Stainless Steel
Frame Material Aluminized Steel
Finish Stainless Steel Front and Sides
Plate Material Cast Iron
Diameter 9.5 in
Hotplate Count 4
Plate Power 2 kW Each
Shelf Type Single-Deck High Shelf
Leg Height 6 in
Oven Count 1
Oven Power 5 kW
Oven Rack Count 1
Rack Positions 3
Oven Interior Dimensions 27 in D x 20 3/8 in W x 13 1/2 in H
Pan Size 18 x 26 in
Voltage 240 Volts
Amps 32.5 / 32.5 / 28.9 Amps (3-Phase); 54.2 Amps (1-Phase)
Watts 13 kW
Phase 1-Phase or 3-Phase
Controls Infinite Heat and Top Browning Controls
Temperature Range 200°F to 550°F

Description

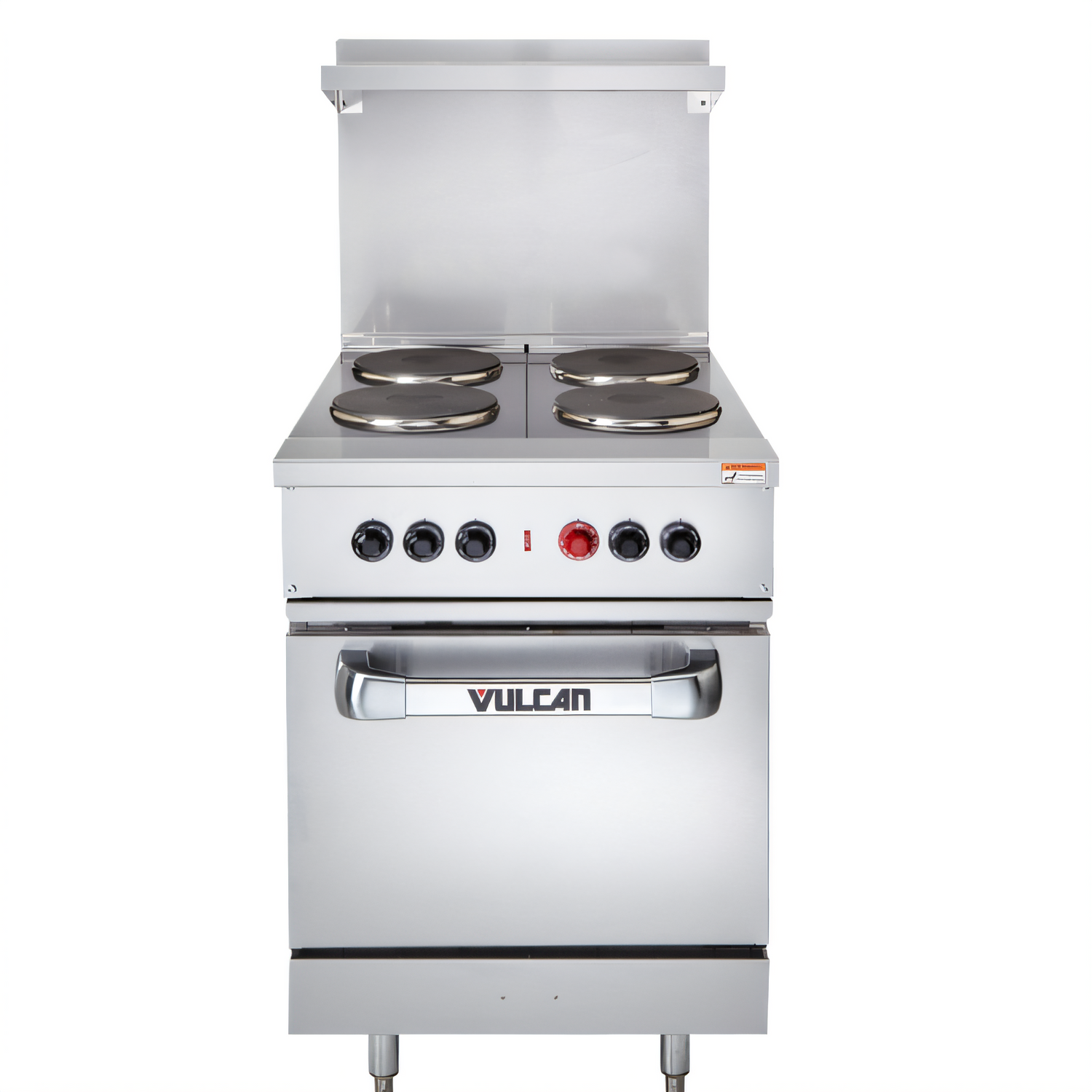

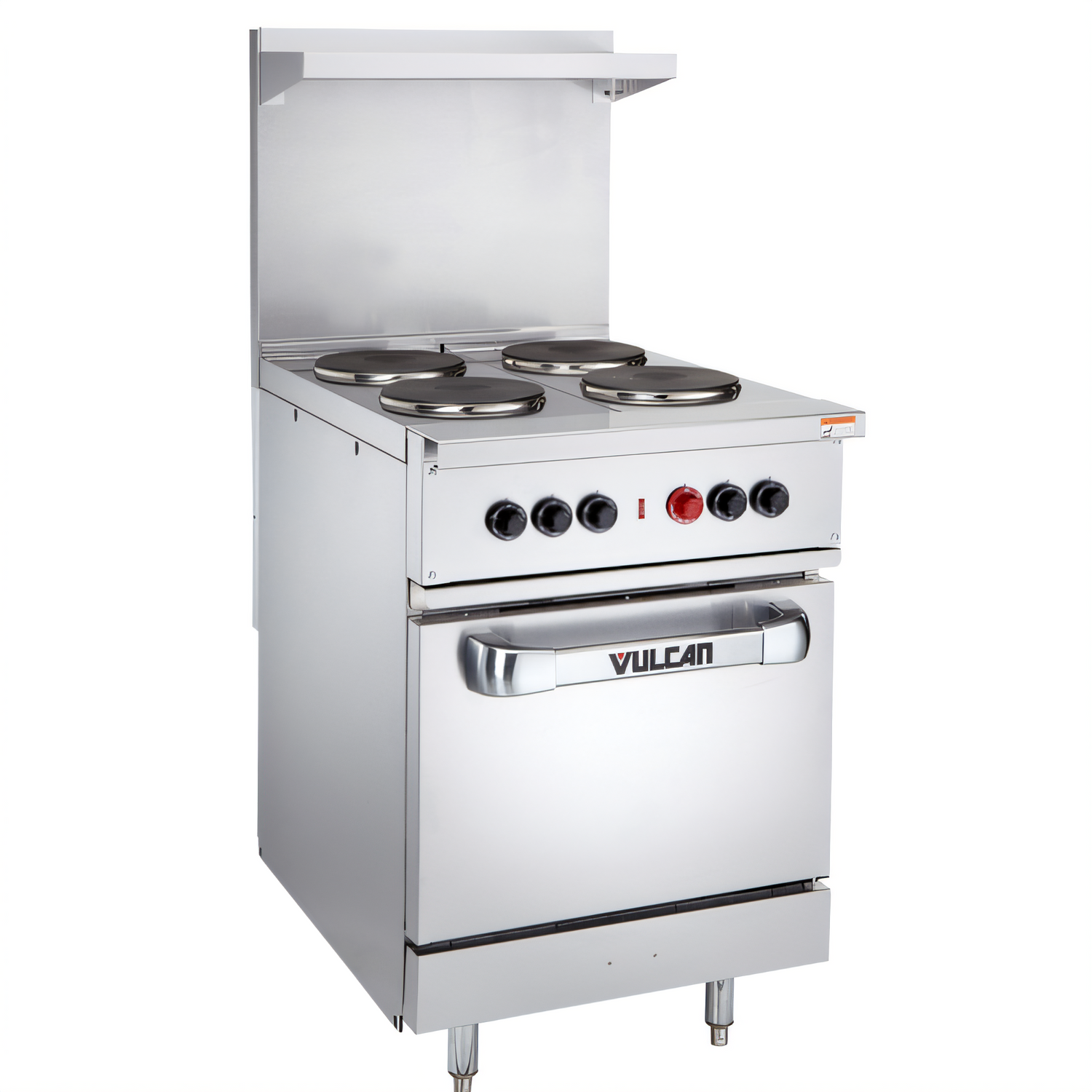

EV24S-4FP240 is a 24-inch electric restaurant range with four 2.0 kW solid cast-iron French hotplates, a standard oven, a single-deck high shelf, and 6-inch legs.

  • Four 9-1/2-inch French hotplates with infinite heat controls.
  • The 5 kW standard oven includes one rack, three rack positions, and a thermostat adjustable from 200°F to 550°F.
  • A top browning control and full-width pull-out stainless steel crumb tray are included.
  • Construction includes a MIG-welded aluminized steel frame with stainless steel front, sides, back riser, shelf, and legs.
  • 18 x 26-inch sheet pans fit front to back in the oven.

Overall Dimensions:

24.0"W x 34.0"D x 58.0"H

Product Weight:

325.0 lb

French Hotplates

Four 2.0 kW, 9-1/2-inch solid cast-iron French hotplates.

Infinite Heat Controls

Each French hotplate uses infinite heat control.

Standard Oven

The standard oven has 5 kW of heating power and interior dimensions of 27 in D x 20 3/8 in W x 13 1/2 in H.

Oven Rack

Includes one oven rack with three rack positions.

Temperature Control

The oven thermostat adjusts from 200°F to 550°F.

Top Browning Control

Includes a top browning heat control.

Crumb Tray

Includes a full-width pull-out stainless steel crumb tray.

High Shelf and Legs

Includes a single-deck high shelf and 6-inch legs.
