Key specifications

Phase
1-Phase Or 3-Phase
Dimensions
24.0"W × 34.0"D × 58.0"H
Type
Restaurant Range
Style
French Plate
Installation Type
Floor Model
Material
Aluminized Steel
Spec sheet
Vulcan SKU: EV24S-4FP208

Vulcan EV24S-4FP208 24-Inch Electric Range, 4 French Plates

$10,987.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,016/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Restaurant Range
Style French Plate
Installation Type Floor Model
Material Aluminized Steel
Top Material Cast Iron
Finish Stainless Steel Front And Sides
Hotplate Count 4
Hotplate Power 2 kW Each
Oven Count 1
Oven Type Standard
Oven Power 5 kW
Oven Interior Dimensions 27 in D x 20 3/8 in W x 13 1/2 in H
Rack Count 1
Rack Positions 3
Shelf Count 1
Pan Size 18 in x 26 in
Controls Infinite Heat; Oven Thermostat; Top Browning
Temperature Range 200°F to 550°F
Voltage 208 Volts
Watts 13 kW
Phase 1-Phase Or 3-Phase
Leg Height 6 in

Description

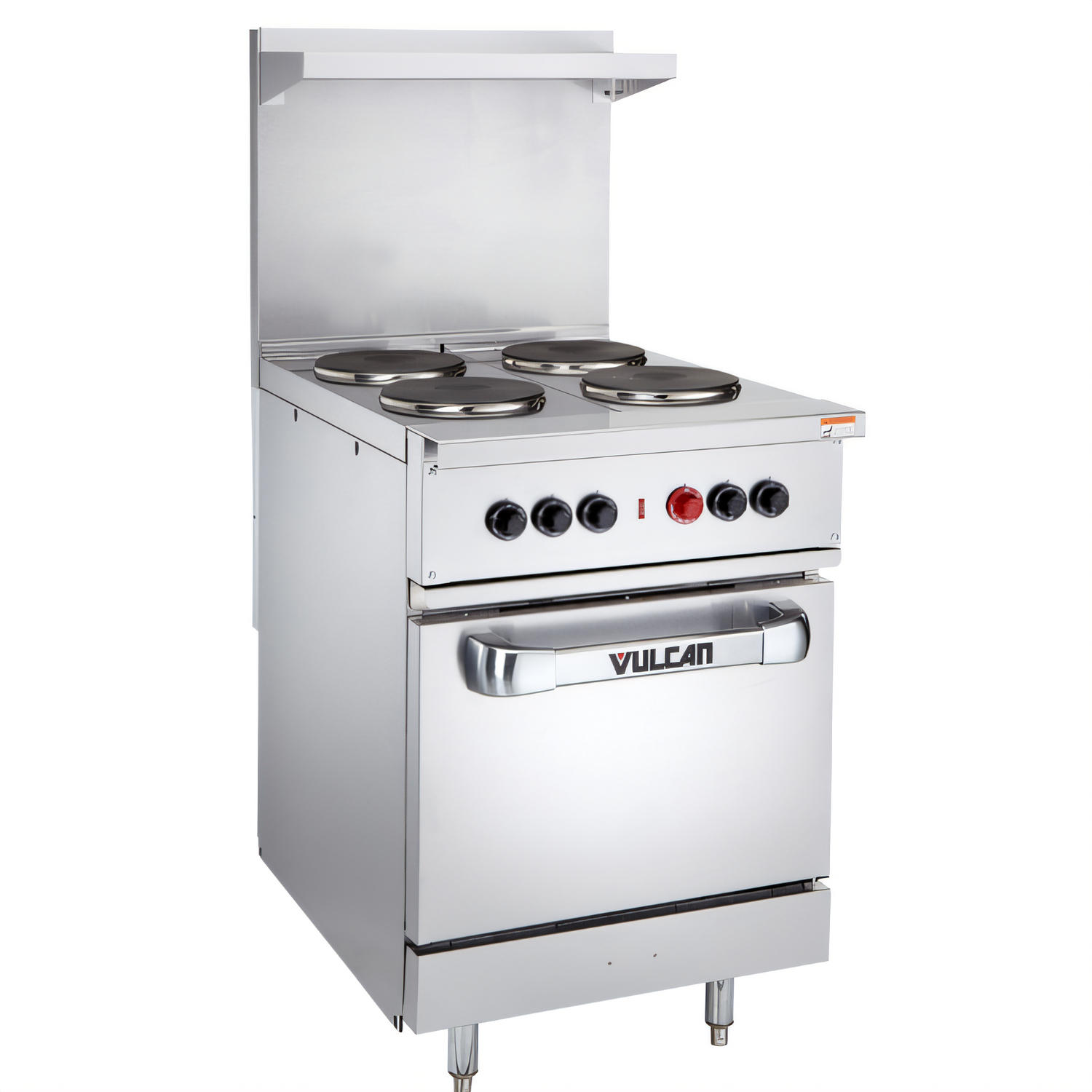

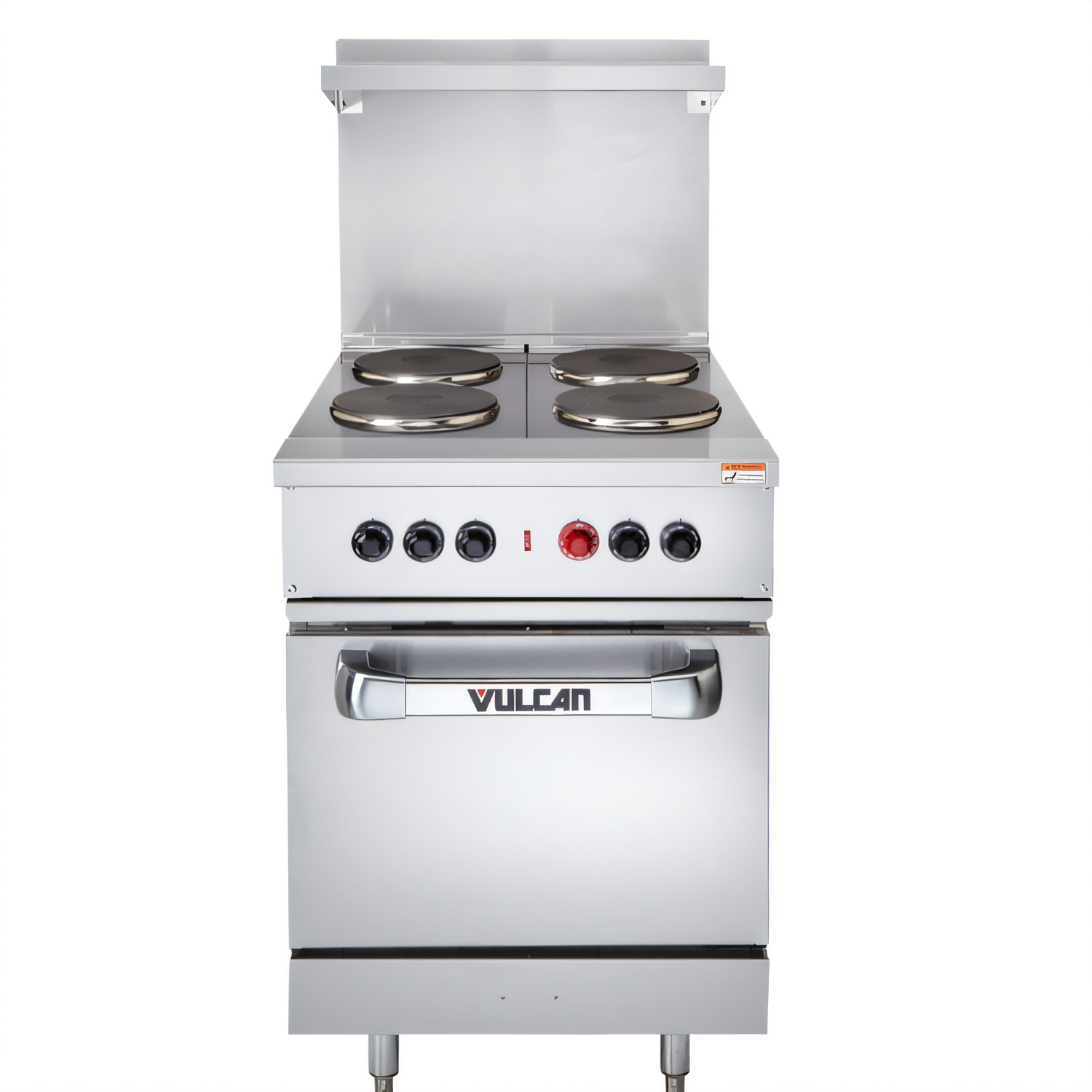

The Vulcan EV24S-4FP208 is a 24-inch electric restaurant range with four solid cast iron French plates and one standard oven.

  • Four 2 kW French plates use infinite heat control.
  • The 5 kW standard oven includes one rack and three rack positions.
  • The oven thermostat adjusts from 200°F to 550°F and includes top browning control.
  • Stainless steel front, sides, back riser, shelf and legs provide the finished exterior components.
  • A full-width pull-out stainless steel crumb tray is located beneath the cooking top.
  • The range requires 208V power and supports 1- or 3-phase operation.

Exterior dimensions are 34 inches deep by 24 inches wide by 58 inches high on 6-inch adjustable legs. This appliance is designed for commercial use only.

Overall Dimensions:

24.0"W x 34.0"D x 58.0"H

Product Weight:

325.0 lb

French Hotplates

Four solid cast iron French plates provide 2 kW input per plate.

Infinite Heat Control

Each French plate uses an infinite heat control switch.

Standard Oven

The 5 kW oven has a 27 in D x 20 3/8 in W x 13 1/2 in H interior.

Oven Controls

The thermostat adjusts from 200°F to 550°F and includes top browning control.

Oven Rack

Includes one oven rack with three rack positions.

Stainless Steel Components

The front, sides, back riser, shelf and legs are stainless steel.

Pull-Out Crumb Tray

A full-width stainless steel crumb tray is located beneath the cooking top.

Sheet Pan Compatibility

18 in x 26 in sheet pans fit front to back.

Frequently Asked Questions

It has four solid cast iron French plates, each rated at 2 kW.
It includes one standard oven with a 5 kW heating system, one rack and three rack positions.
This model requires 208V power and supports either 1-phase or 3-phase operation. It ships in 3-phase configuration and is field convertible to single phase.
The range measures 34 inches deep by 24 inches wide by 58 inches high on 6-inch adjustable legs.
