Vulcan

Vulcan Expando 12-Inch Electric Restaurant Range with Two 9-1/2-Inch Round French Plates, Enclosed Base, and 480V

SKU: EV12-2FP480
$4,650.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Electric Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan Expando 12-Inch Electric Restaurant Range with Two 9-1/2-Inch Round French Plates, Enclosed Base, and 480V

Stainless Steel Front and Sides, 10-Inch Riser, 6-Inch Adjustable Legs

A compact 480V electric range that combines two round French plates, durable stainless steel construction, and a fully enclosed base in a 12-inch footprint.

  • Compact 12-inch-wide electric restaurant range for tight cooklines.
  • Two 9-1/2-inch round French plates rated at 2.0 kW each.
  • 480V model ships in 3-phase and is field convertible to single phase.
  • Fully MIG welded aluminized steel frame for added durability.
  • Stainless steel front, sides, back riser, and 6-inch adjustable legs.
  • Fully enclosed cabinet base with removable front panel.

Overall Dimensions:

12.0"W x 34.0"D x 37.0"H

Product Weight:

170.0 lb

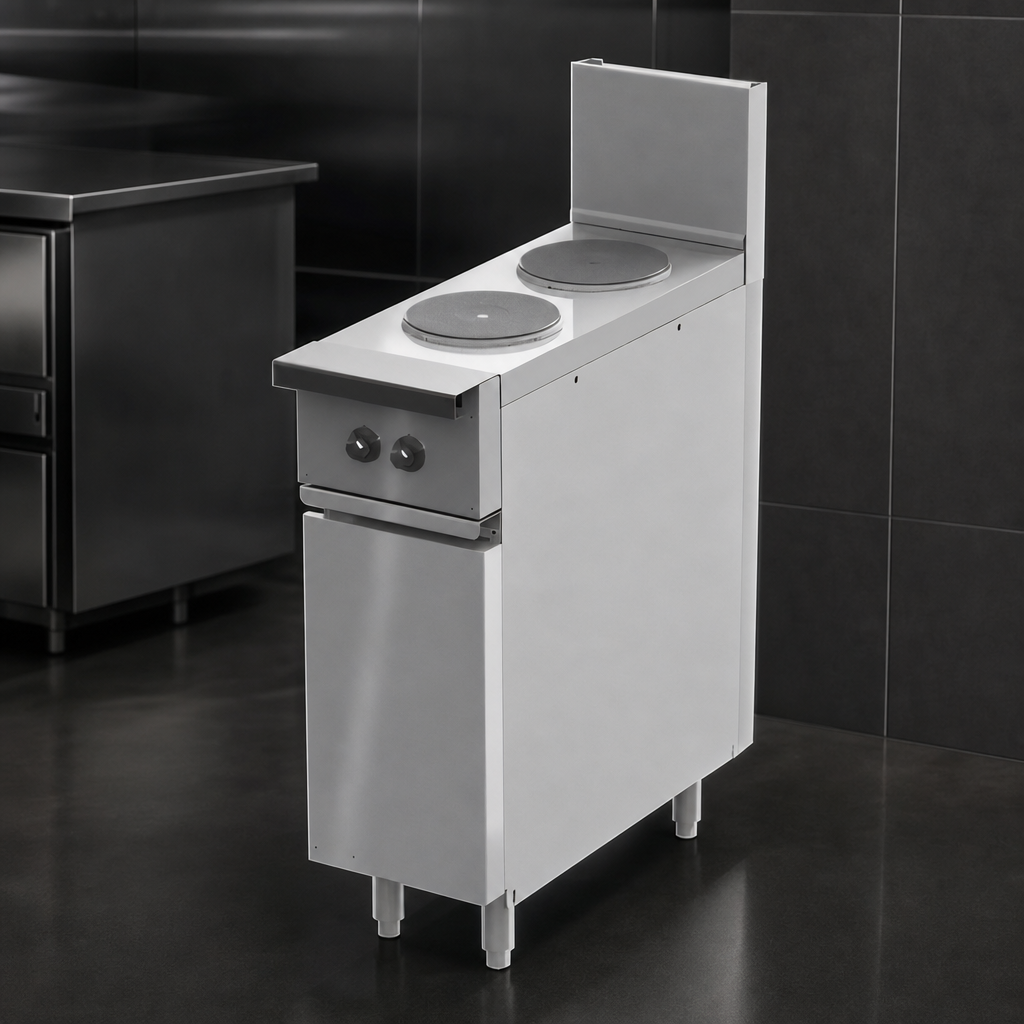

Two 9-1/2-Inch Round French Plates

Provides two 2.0 kW cooking surfaces for flexible top-side cooking in a compact footprint.

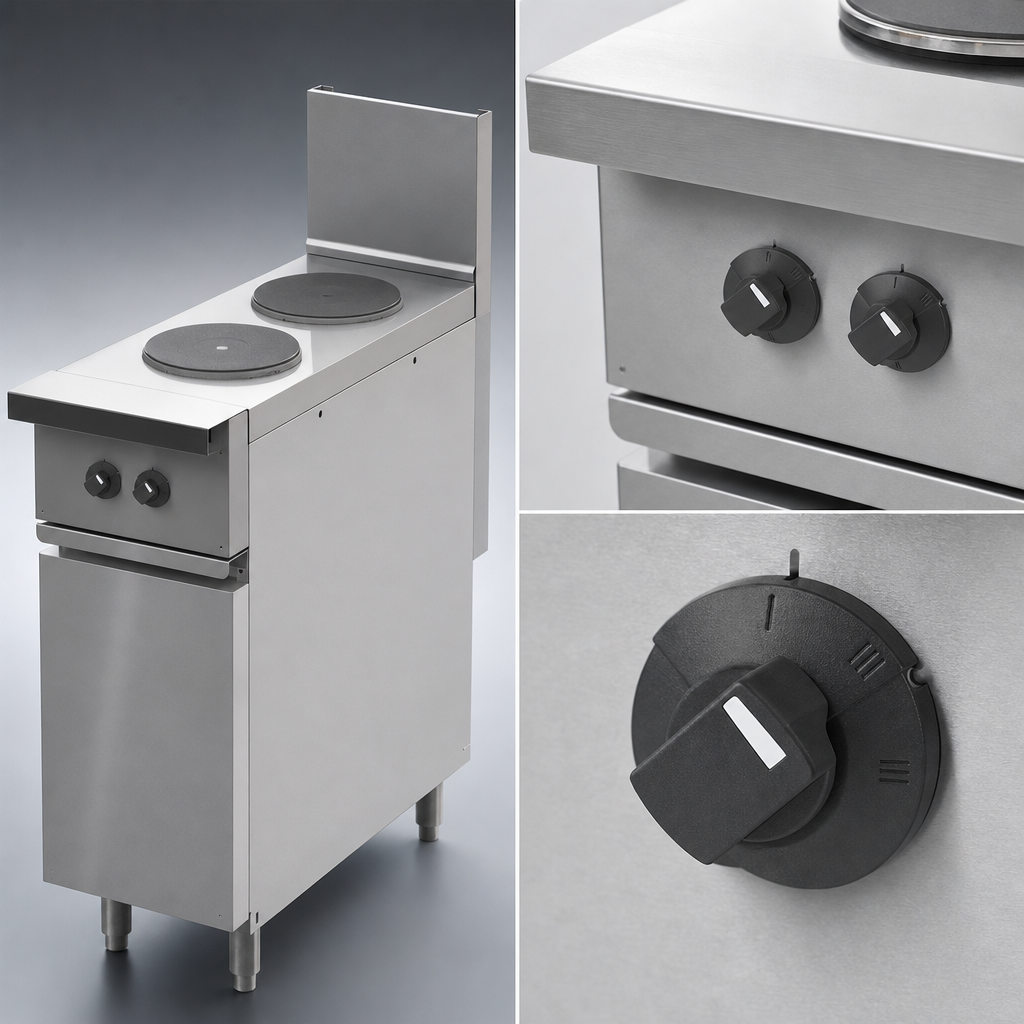

4-Position Heat Switch Control

The 480V model uses a 4-position heat switch for each plate.

Heavy-Duty Welded Frame

Fully MIG welded aluminized steel frame adds strength and long-term durability.

Stainless Steel Exterior Components

Stainless steel front, sides, back riser, and legs help protect the range in demanding kitchen environments.

Fully Enclosed Base Cabinet

Enclosed 31-inch-high body with a removable front panel for a cleaner look and easier service access.

6-Inch Adjustable Legs

Adjustable stainless steel legs help with leveling and installation.

Flexible Electrical Setup

Designed for 208, 240, or 480 volt service; ranges ship in 3-phase and are field convertible to single phase.

Type Electric Restaurant Range
Style Round French Plates
Installation Type Freestanding
Voltage 480 Volts
Phase 3-Phase
Watts 4 kW
Controls 4-Position Heat Switch
Material Aluminized Steel
Finish Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Sell sheets PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has two 9-1/2-inch round French plates, each rated at 2.0 kW.
This model is the 480V version. The range family can use 208, 240, or 480 volt service and is designed for 1- or 3-phase power; it ships in 3-phase and is field convertible to single phase.
The range measures 12 inches wide, 34 inches deep, and 37 inches high on 6-inch adjustable legs.
For range-only installations, the clearance requirement is 0 inches at the rear and sides from combustible and non-combustible construction.
The cutsheet lists a one-year limited parts and labor warranty.
