Key specifications

Amps
20.8 Amps
Phase
1-Phase
Dimensions
12.0"W × 34.0"D × 47.0"H
Type
Range
Style
Enclosed Base
Installation Type
Floor Model
Spec sheet
Vulcan SKU: EV12-1HT240

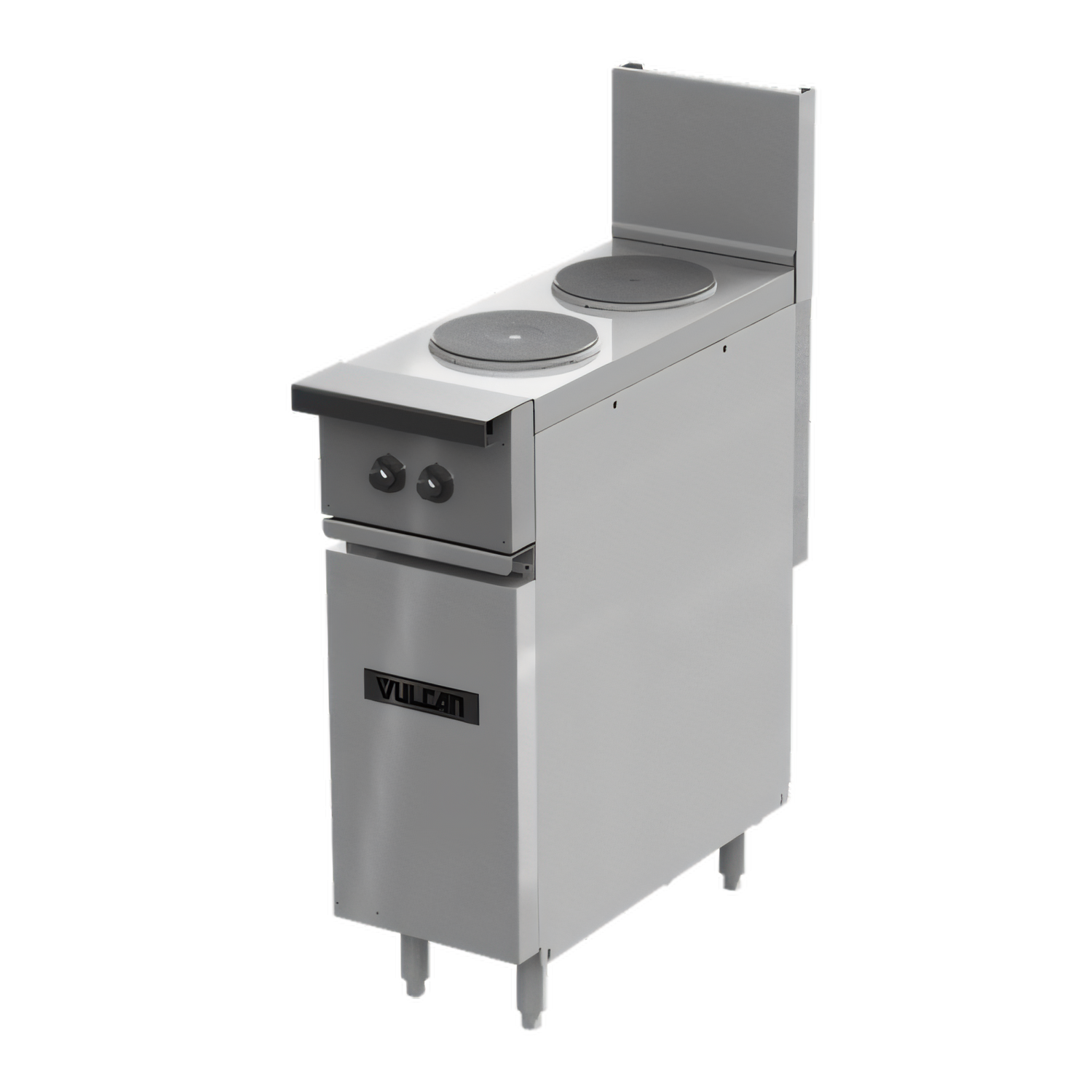

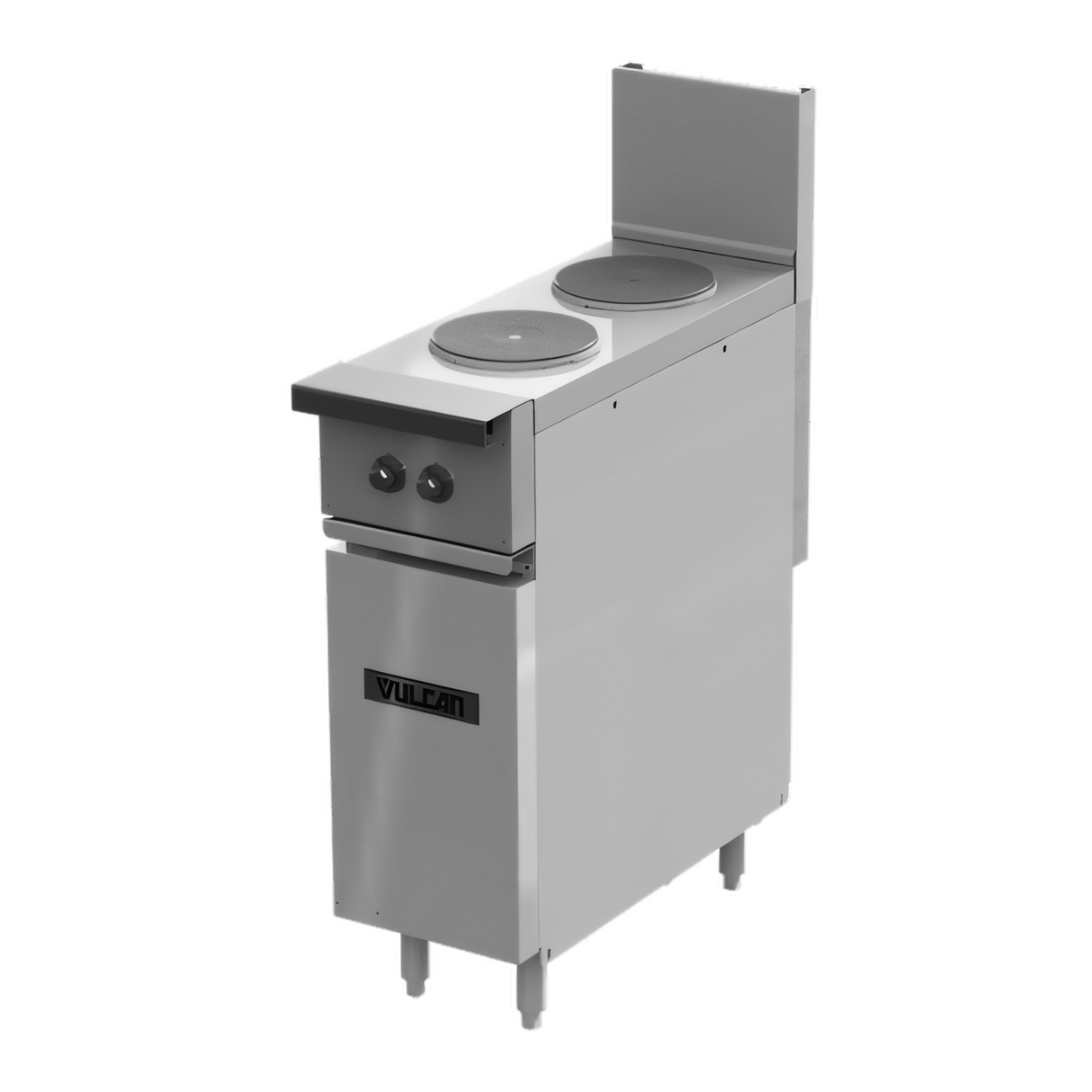

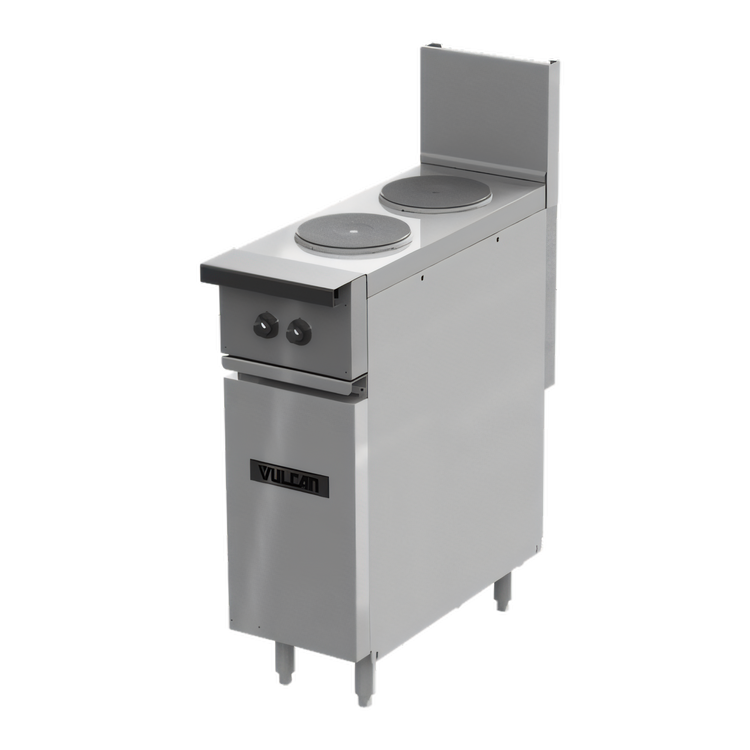

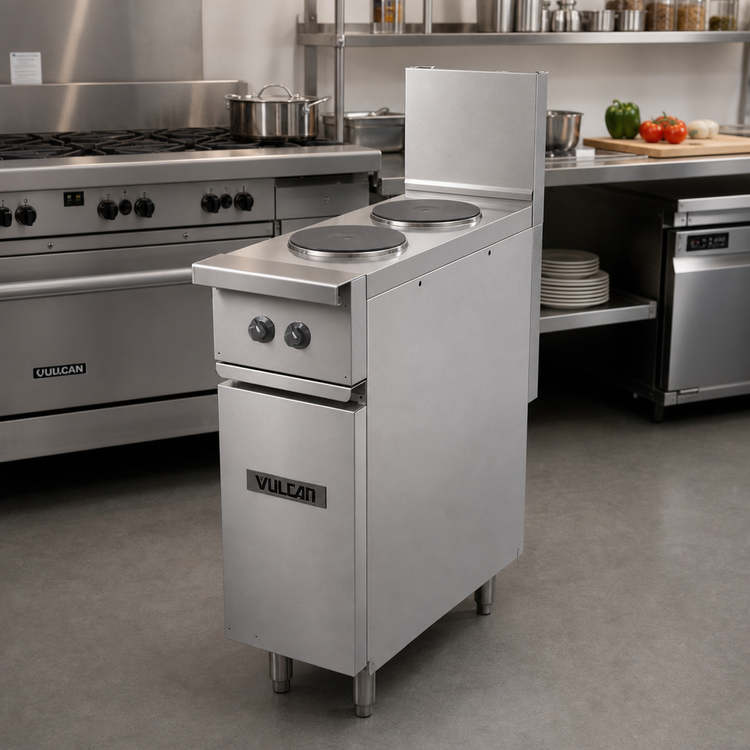

Vulcan Expando EV12-1HT240 12-Inch Electric Hot Top Range

$5,386.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical
Cooking surface
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $498/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range
Style Enclosed Base
Installation Type Floor Model
Material Aluminized Steel
Front Material Stainless Steel
Side Material Stainless Steel
Riser Material Stainless Steel
Leg Material Stainless Steel
Top Type Hot Top
Hot Top Size 12 x 24 Inches
Riser Height 10 Inches
Leg Height 6 Inches
Controls Thermostatic
Voltage 240 Volts
Amps 20.8 Amps
Watts 5 kW
Phase 1-Phase

Description

Commercial electric hot top range. The EV12-1HT240 features one 12 x 24 inch, 5 kW cast hot top with thermostatic controls and a fully enclosed base with one cabinet.

  • Construction: Aluminized steel frame with stainless steel front and sides.
  • Design: Includes a 10-inch riser and 6-inch legs.
  • Electrical: Operates at 240 volts and is available in single phase only.
  • Use: The hot top is not suitable for griddle work, and the appliance is manufactured for commercial use only.
  • Certifications: NSF and cULus.

Overall dimensions are 12 inches wide, 34 inches deep, and 47 inches high. Shipping weight is 170 pounds.

Overall Dimensions:

12.0"W x 34.0"D x 47.0"H

Product Weight:

170.0 lb

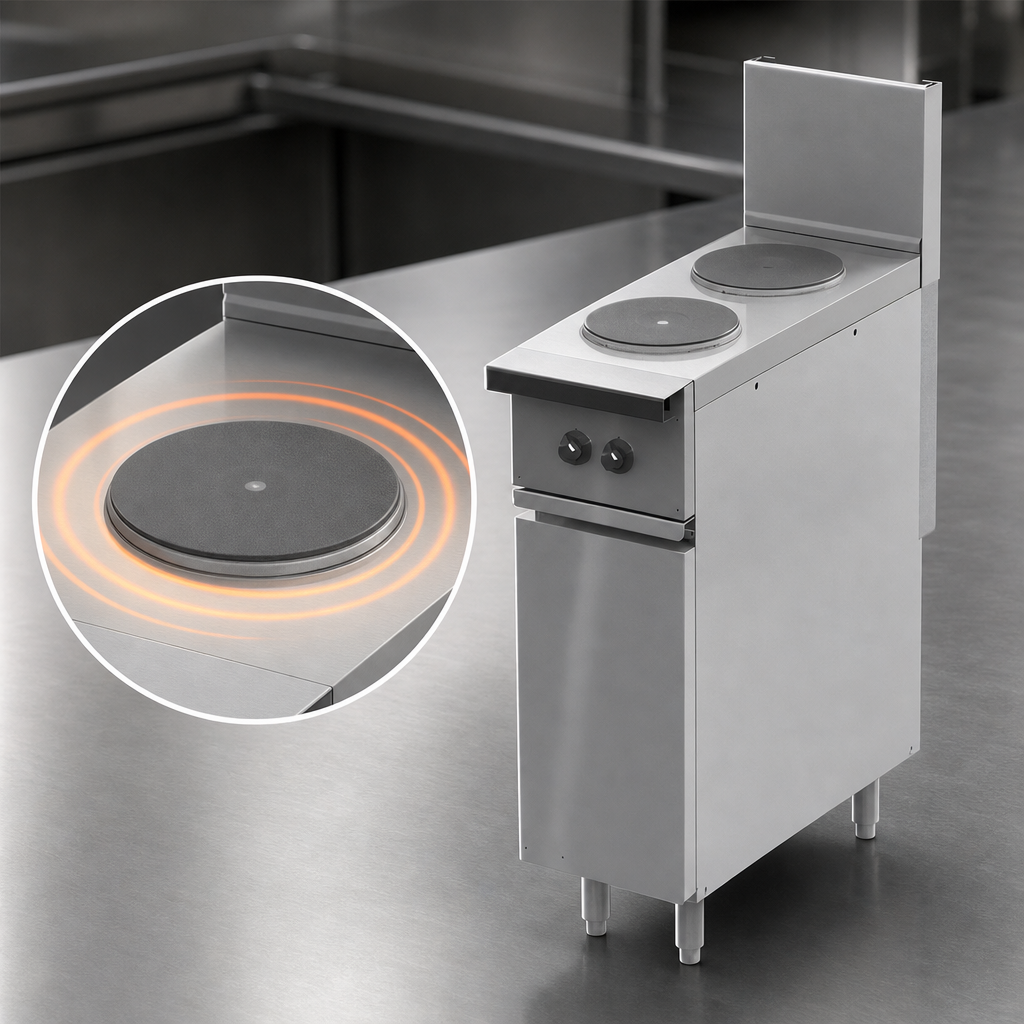

12 x 24 Inch Hot Top

Includes one 12 x 24 inch, 5 kW cast hot top.

Thermostatic Controls

The hot top is thermostatically controlled.

Enclosed Base

Features one enclosed cabinet base.

Stainless Steel Exterior

The front and sides are stainless steel.

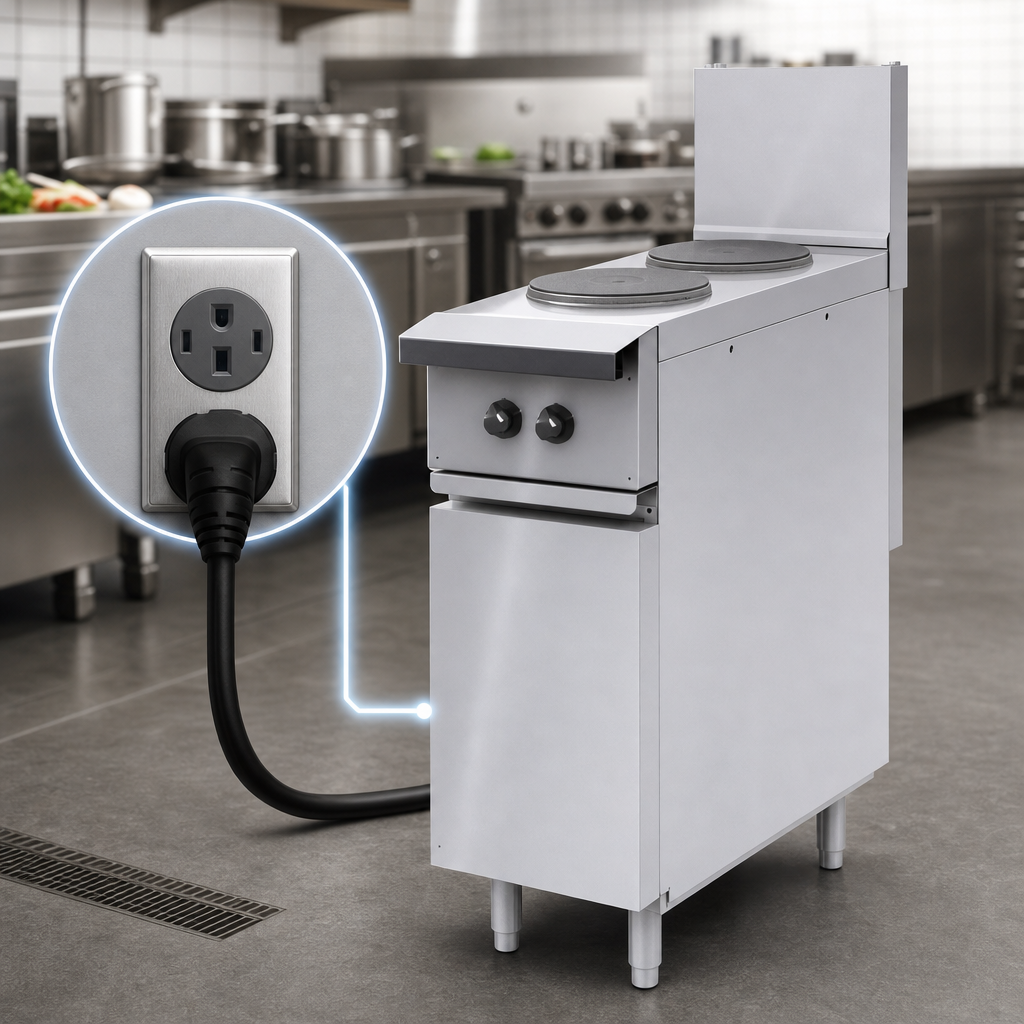

Single-Phase Operation

Designed for 240-volt, single-phase operation only.

Commercial Use

Manufactured for commercial use only.

Certifications

Certified to NSF and cULus requirements.

Frequently Asked Questions

It has one 12 x 24 inch, 5 kW cast hot top with thermostatic controls.
It operates at 240 volts and is available in single phase only.
Yes. It has one enclosed cabinet base.
The range is 12 inches wide, 34 inches deep, and 47 inches high, with a weight of 170 pounds.
No. The hot top is not suitable for griddle work.
Yes. It is manufactured for commercial use only.
The range has NSF and cULus certifications.
