Vulcan Expando 12-Inch Electric Restaurant Range with 1 Hot Top, Thermostatic Controls, Enclosed Base, and 208V Single-Phase Power

Stainless Steel Front and Sides, 10-Inch Riser, 6-Inch Adjustable Legs

A compact commercial range that delivers precise thermostatic heat from a 5 kW cast hot top in a durable stainless steel build.

  • 12-inch electric restaurant range with one 12" x 24" cast hot top.
  • Thermostatic controls help maintain consistent cooking temperatures.
  • Fully enclosed base cabinet with removable front panel adds utility and service access.
  • Stainless steel front, sides, back riser, and adjustable legs support durability and easy cleanup.
  • 208V single-phase configuration for compatible kitchen installations.
  • 6-inch adjustable legs and a 10-inch riser help the unit fit your line.
  • Hot top is not suitable for griddle work.

Overall Dimensions:

12.0"W x 34.0"D x 37.0"H

Product Weight:

170.0 lb

5 kW Cast Hot Top

Includes one 12" x 24" cast hot top for focused cooking performance.

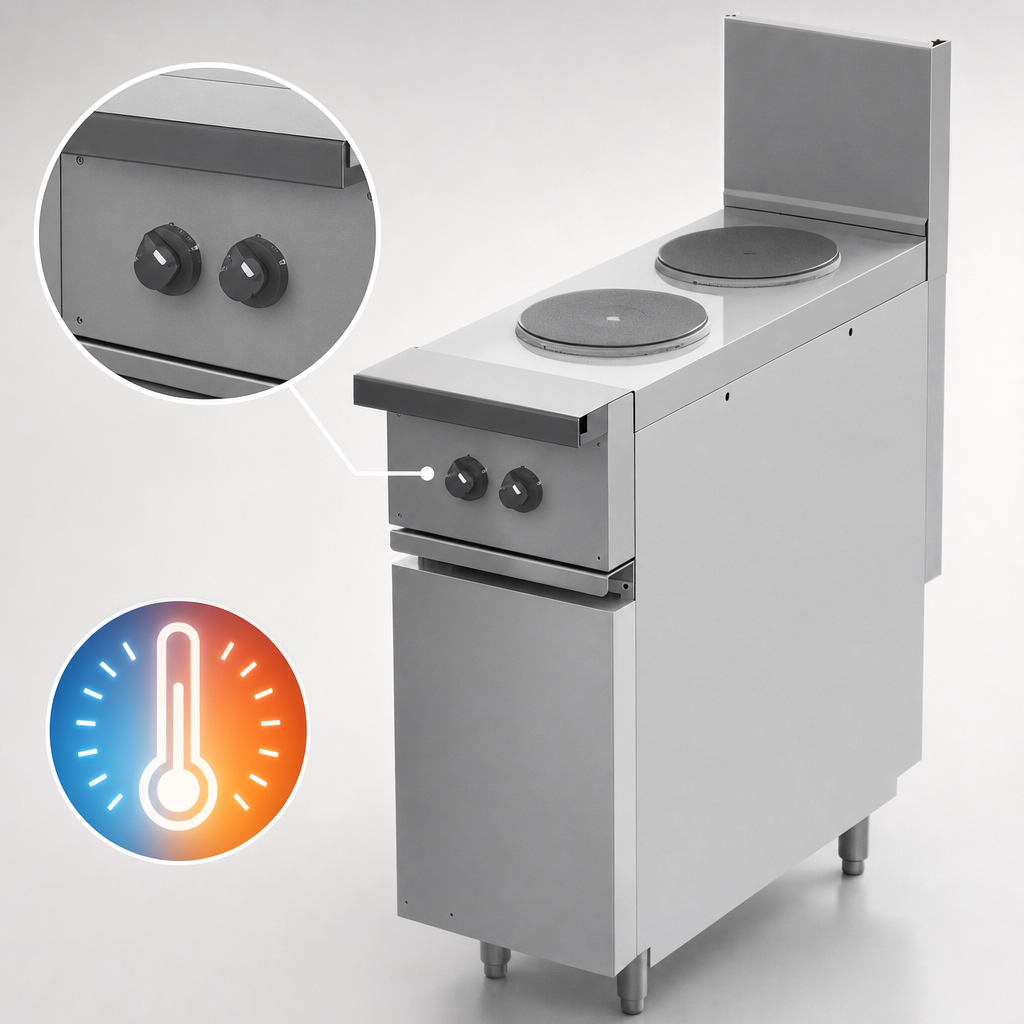

Thermostatic Controls

Thermostatically controlled heat helps maintain steady temperatures.

Enclosed Base Cabinet

Fully enclosed base design with a removable front panel for access and utility.

Stainless Steel Exterior

Stainless steel front, sides, back riser, and legs improve durability and cleanup.

208V Single-Phase Power

This model is the 208V version and the hot top configuration is available in single phase only.

6-Inch Adjustable Legs

Adjustable legs help with leveling and installation on the cooking line.

10-Inch Riser

Includes a 10-inch riser per the product description.

Hot Top Use Limitation

The hot top is not suitable for griddle work.

Type Restaurant Range
Style Hot Top
Installation Type Freestanding
Controls Thermostatic
Material Aluminized Steel
Finish Stainless Steel
Cooking Surface Width 12 Inches
Cooking Surface Depth 24 Inches
Voltage 208 Volts
Phase 1-Phase
Watts 5 kW
Amps 24 Amps
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Sell sheets PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model requires 208V single-phase power.
It includes one 12" x 24" cast hot top rated at 5 kW.
No. The cut sheet states that the hot top is not suitable for griddle work.
The range measures 12" wide, 34" deep, and 37" high on 6" adjustable legs.
The cut sheet lists a one-year limited parts and labor warranty.
No. The documentation states that it is manufactured for commercial use only.
