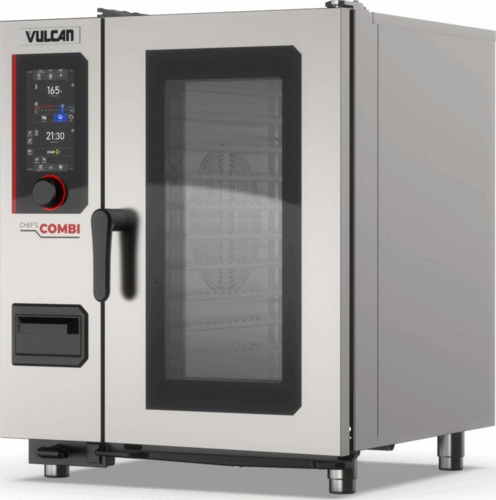

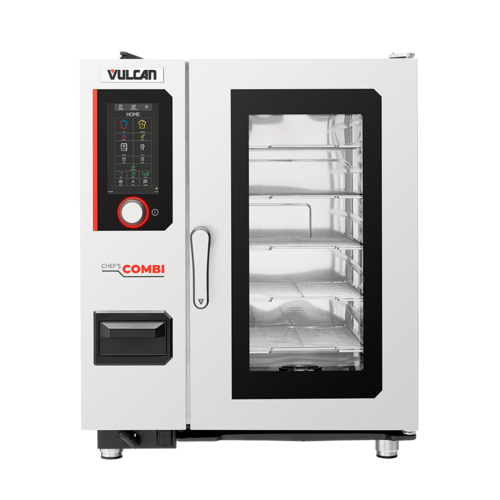

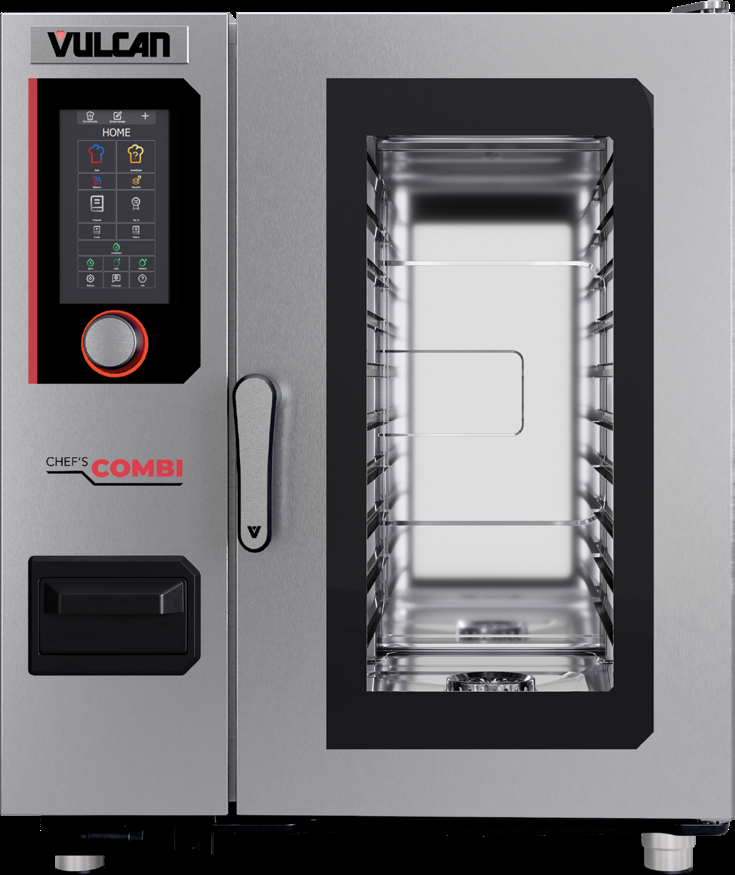

Vulcan Chef'sCombi 101G Gas 10-Level Half-Size Steam Generator Combi Oven

Half-Size GN 1/1 Capacity, Natural Gas, Digital CombiOS Controls

This 10-level gas combi oven combines convection, steam, and combination cooking with automated climate control and self-cleaning to deliver consistent results with less operator effort.

  • 10-level half-size capacity holds up to 10 half-size sheet pans or 10 full-size hotel pans.
  • Gas-fired combi oven supports convection, steam, and combination cooking for broad menu versatility.
  • CombiOS touchscreen interface is customizable, responsive, and glove-friendly for fast operation.
  • CombiClimateControl, AutoClimate, CombiGuide, and MenuMix help produce repeatable results across mixed loads.
  • CombiCare automatic cleaning and limescale management reduce downtime and simplify maintenance.
  • Ethernet connectivity, USB data transfer, and optional WiFi/Bluetooth dongle support SmartConnect and HACCP logging.
  • Stainless steel construction, double-glazed door, retractable sprayer, and IPX5 protection are built for commercial use.
  • Large floor model requires a stand for proper installation.

Overall Dimensions:

33.54"W x 35.16"D x 42.36"H

Product Weight:

486.0 lb

Three Cooking Modes

Supports convection, steam, and combination cooking to handle baking, roasting, steaming, regeneration, and other common combi applications.

CombiOS Touchscreen Interface

The 10-inch capacitive HD touchscreen is usable with gloves and can be customized to show only the functions operators need.

CombiClimateControl

Uses controlled air distribution, fresh steam, and high-performance dehumidification to promote even cooking and crisp results.

AutoClimate

Assists manual cooking by automatically setting the cooking climate based on the selected cabinet temperature.

CombiGuide and MenuMix

Guided recipes and synchronized multi-level timing help different foods finish together with consistent results.

CombiCare Automatic Cleaning

Programmable wash and rinse cycles, cleaner tabs, care sticks, and limescale removal simplify daily maintenance.

Steam Generator and Humidity Control

Fresh steam generation and 0-100% humidity control support precise steaming, baking, and humidifying performance.

Multi-Point Core Probe

Built-in core probe supports accurate food temperature monitoring during cooking.

Networking and Data Tools

Ethernet is standard, USB supports local data exchange, and WiFi/Bluetooth are available through an optional USB dongle; SmartConnect monitors HACCP data and alerts.

Stainless Steel Cabinet and Door

ASTM 304 stainless steel construction, a seamless hygienic cavity, a double-glazed rear-ventilated door, and an integrated retractable sprayer support durability and easy cleaning.

Adaptive Speed Fan

Five adjustable air speeds help match airflow to the cooking load and maintain performance across cycles.

Type Combi Oven
Style Steam Generator
Installation Type Floor Model (With Stand)
Capacity 10 Levels
Pan Capacity 10 Half-Size Sheet Pans / 10 Full-Size Hotel Pans
Pan Size 13 x 18 Inches / 12 x 20 Inches
Controls Digital
Material Stainless Steel
Interior Finish 304 Stainless Steel
BTU 93,834 BTU/hr
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT Male
Gas Inlet Pressure 6.5-10 Inches W.C.
Voltage 120 Volts
Amps 5.8 Amps
Watts 0.6 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L5-15
Cord Length 6 Feet
Water Connection Required
Water Inlet Size 3/4 Inch GHT-M
Drain Connection Required
Drain Connection Size 1 1/2 Inches
Shipping Width 34 Inches
Shipping Depth 36 Inches
Shipping Height 43 Inches
Shipping Weight 486 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It holds up to 10 half-size sheet pans or 10 full-size hotel pans across 10 levels.
It offers convection, steam, and combination cooking, plus roasting, grilling, baking, air frying, poaching, simmering, low-temperature cooking, defrosting, regeneration, and holding.
Yes. The documentation notes that this large model requires a stand, and maximum level height should not exceed 63 inches when using an appropriate stand.
CombiCare automates cleaning with wash and rinse cycles and removes limescale from the steam generator during the cleaning cycle.
It ships with 120/60/1 electrical service, 0.6 kW power, 5.8 amps, and a NEMA L5-15 plug; natural gas at 93,834 BTU/hr with a 3/4 inch NPT male connection; plus required water and drain connections.
Yes. Ethernet is standard, USB supports local data exchange, and WiFi/Bluetooth are available through an optional USB dongle.
