Key specifications

Amps
67 Amps
Phase
3-Phase
Dimensions
27.0"W × 37.0"D × 20.38"H
Type
Fryer
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Vulcan SKU: CEF75

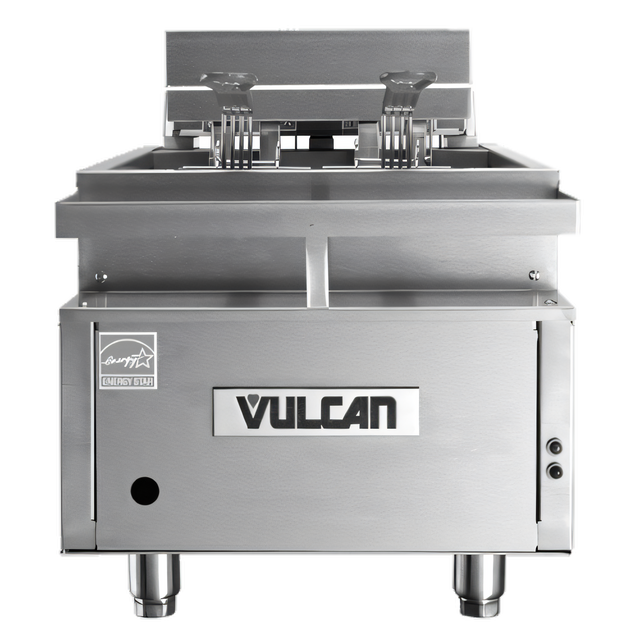

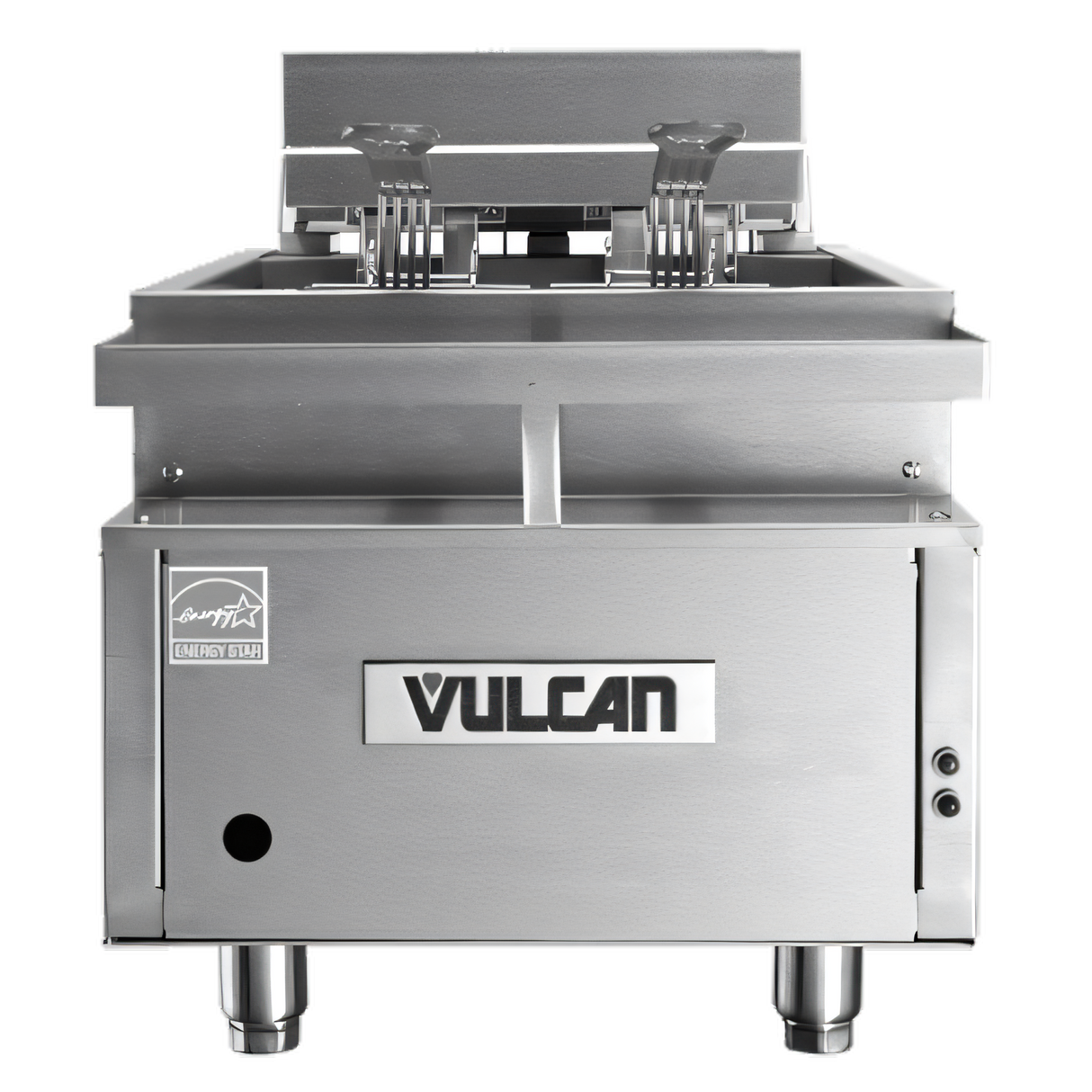

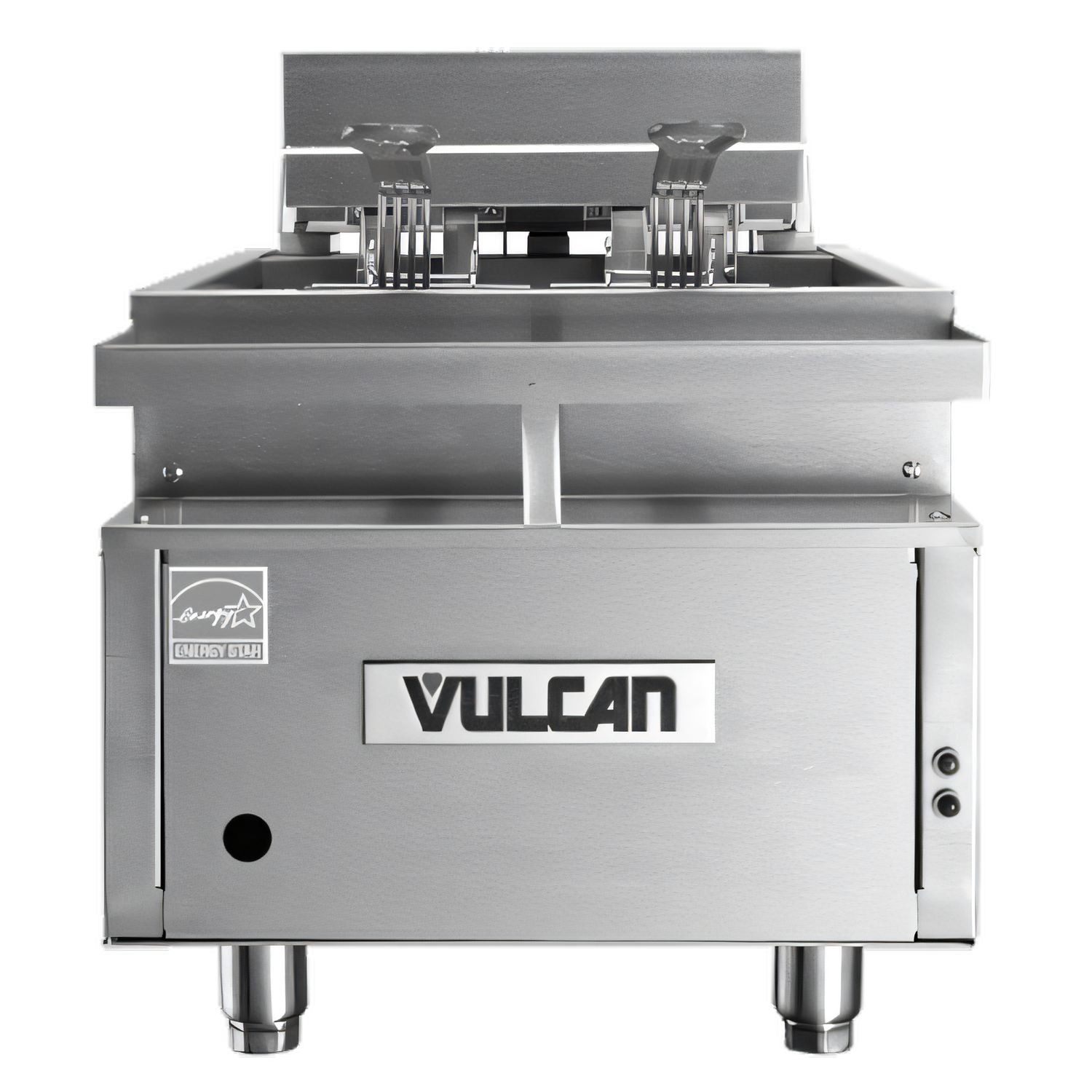

Vulcan CEF75 75 lb Countertop Electric Fryer

$10,922.00
/each
Estimated to ship in 8–11 business days Free Shipping
Electrical208 V · 3-phase
Warranty
Accessories
Included: Vulcan warranty One-year limited parts and labor warranty, plus a ten-year limited fry tank warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,010/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Fryer
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel
Capacity 75 lb
Controls Solid State Analog Knob
Voltage 208 Volts
Amps 67 Amps
Watts 24 kW
Hertz 50/60 Hz
Phase 3-Phase
Basket Count 2
Heating Element Type Low Watt Density Ribbon
Fry Tank Gauge 16 Gauge
Drain Valve Type Full-Port Ball

Description

Vulcan CEF75 is a countertop electric fryer with a 75 lb oil-capacity stainless steel fry tank and solid-state analog knob control.

It features 24 kW low-watt-density ribbon heating elements, a sloped tank bottom, condiment rail, and full-port ball-type drain valve with a quick-disconnect drain pipe.

  • Includes twin fry baskets with plastic-coated handles, a tank brush, clean-out rod, and drain extension.
  • Documented certifications are NSF and cCSAus.

Overall Dimensions:

27.0"W x 37.0"D x 20.38"H

Product Weight:

225.0 lb

Countertop Installation

Designed as a countertop electric fryer.

75 lb Oil Capacity

The stainless steel fry tank is specified with a 75 lb oil capacity.

Solid-State Analog Controls

Uses solid-state analog knob control.

Ribbon Heating Elements

Provides 24 kW low-watt-density ribbon-style heating elements.

Stainless Steel Fry Tank

Includes a 16-gauge stainless steel fry tank with stainless steel front and sides.

Drain System

Includes a 1 1/4 in. full-port ball-type drain valve and quick-disconnect drain pipe.

Condiment Rail

Includes a condiment rail designed to store towels or tongs and fit food pans.

Included Frying Items

Includes twin fry baskets with plastic-coated handles, a tank brush, clean-out rod, and drain extension.

Frequently Asked Questions

The CEF75 has a 75 lb oil capacity.
The documented power supply is 208 Volts, 3-Phase, with 24 kW total power.
It uses solid-state analog knob controls.
The fryer includes twin fry baskets with plastic-coated handles, a tank brush, clean-out rod, and drain extension.
The overall dimensions are 27 in. wide by 37 in. deep by 20.38 in. high.
The listed certifications are NSF and cCSAus.
