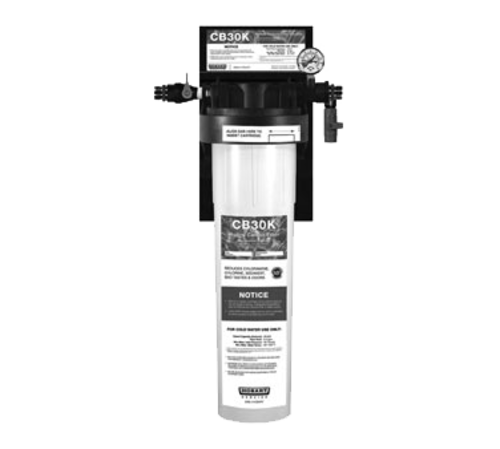

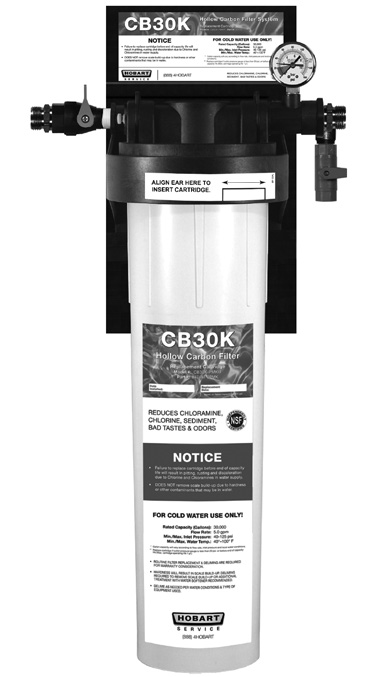

Single Cartridge Hollow Carbon Filter System, 30,000 Gallon Capacity

For steamer/combi applications; cold water use only

Designed for demanding steamer/combi applications, this high-capacity carbon filter delivers broad contaminant reduction with quick-change serviceability.

  • 30,000-gallon rated capacity with a 5 GPM flow rate.
  • Reduces chloramine, chlorine, sediment, bad tastes and odors, total organic compounds, tannins, and trihalomethanes.
  • Single-cartridge hollow carbon design with tool-free cartridge replacement.
  • Includes mounting bracket, shut-off valve, test port, gauge, and 3/4 Inch NPTF inlet and outlet.
  • Cold-water-only system for commercial steamer/combi water treatment.
  • Independently tested to ANSI/NSF 42 and 53 specifications.

Overall Dimensions:

14.0"W x 9.0"D x 23.88"H

Product Weight:

15.0 lb

30,000-Gallon Rated Capacity

Rated for 30,000 gallons of treated water under published operating conditions.

Broad Water Quality Reduction

Reduces chloramine, chlorine, sediment, bad tastes and odors, total organic compounds, tannins, and trihalomethanes.

Quick-Change Cartridge

Cartridge replacement can be performed without tools for faster maintenance.

Included Components

Supplied with a mounting bracket, shut-off valve, test port, gauge, and 3/4 Inch NPTF inlet and outlet.

Cold Water Use Only

Intended for cold water applications with a temperature range of 40° F to 100° F.

Service-Friendly Modular Design

Modular construction is adaptable to changing water conditions and is simple to install and service.

ANSI/NSF Tested

Independently tested to ANSI/NSF 42 and 53 specifications.

Access Clearance Guidance

Recommended clearance for service access is 13 inches at the front and 4 inches at the bottom.

Capacity 30,000 Gallons
Type Carbon Filter System
Style Single Cartridge
Flow Rate 5 GPM
Connection Size 3/4 Inch NPTF
Pressure Range 40 - 125 PSI
Temperature Range 40 - 100 °F
Shipping Weight 20 Lbs.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Routine filter replacement and deliming are required for warranty consideration.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It reduces chloramine, chlorine, sediment, bad tastes and odors, total organic compounds, tannins, and trihalomethanes.
No. It is for cold water use only.
The system is rated for 30,000 gallons and has a flow rate of 5 GPM. Actual capacity varies with flow rate, inlet pressure, and local water conditions.
Replace the cartridge before the end of its capacity life or when the outlet pressure gauge is less than 20 psi. Routine filter replacement and deliming are required for warranty consideration.
The system includes a mounting bracket, 3/4 Inch NPTF inlet and outlet, shut-off valve, test port, and gauge.
No. It does not remove scale build-up due to hardness; deliming or an additional water softener is recommended.
