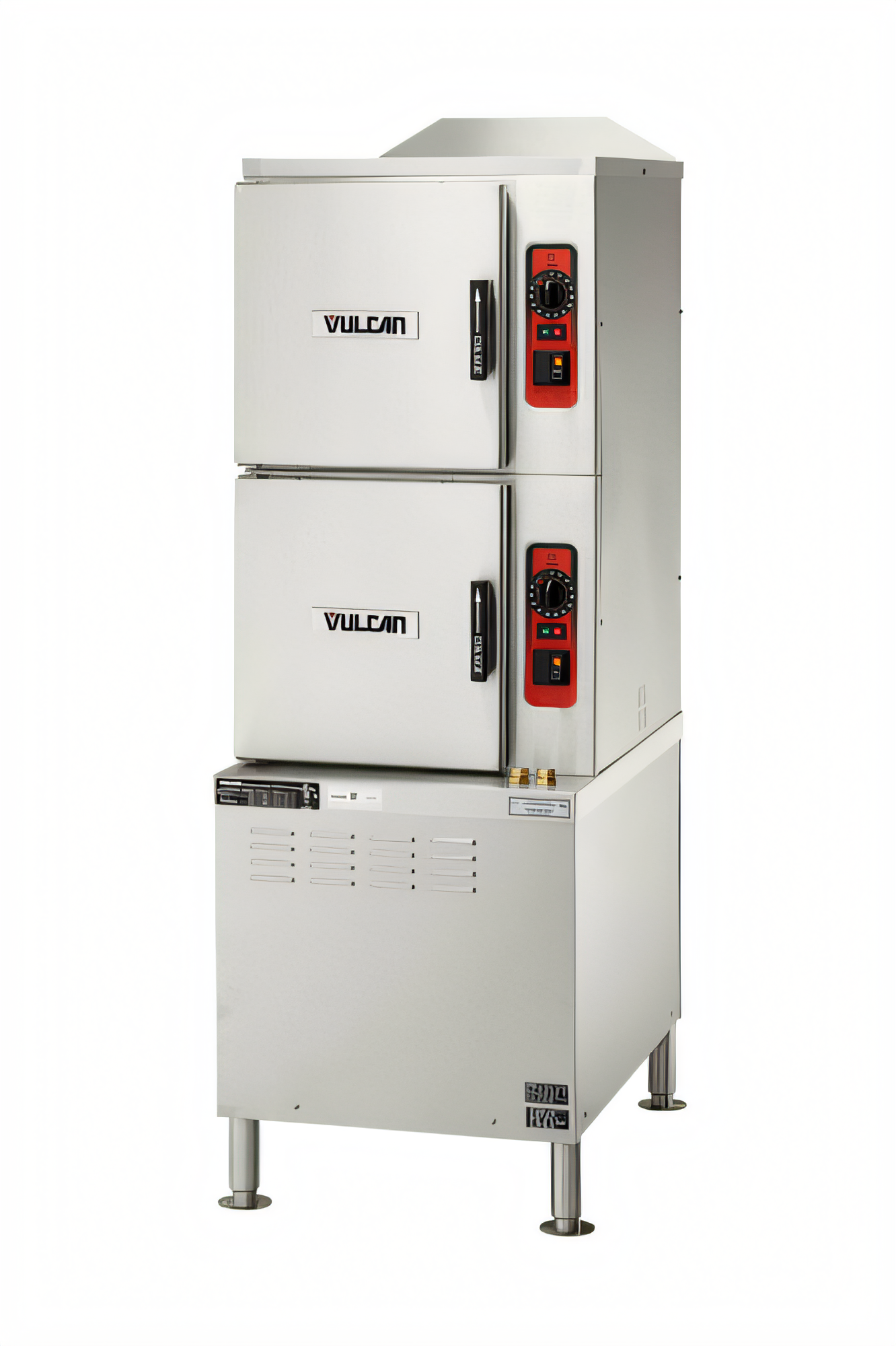

Vulcan C24ET10 Electric Convection Steamer on Cabinet Base, 2-Compartment, 10-Pan Capacity

SKU: C24ET10
$28,921.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steamer Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor) Vulcan

Vulcan C24ET10 Electric Convection Steamer on Cabinet Base, 2-Compartment, 10-Pan Capacity

24-Inch Wide, Stainless Steel, Dual Steam Generators

Built for high-volume kitchens, this two-compartment steamer delivers independent control, 10-pan capacity, and maintenance-friendly Smart Drain cleaning.

  • 10-pan total capacity with two independent compartments for batch cooking.
  • Dual stainless steel steam generators with Smart Drain, PowerFlush, and dual delime ports help simplify upkeep.
  • Separate 60-minute timers, constant steam, buzzer, and illuminated power switch on each compartment.
  • Stainless steel interior and exterior with a water-resistant cabinet base built for commercial use.
  • Ships for 208V 3-phase service and can be field-converted to additional 208V/240V single- or three-phase configurations.
  • Split water line connections use treated and untreated water supplies and require a 1-1/2 inch NPT drain connection.

Overall Dimensions:

24.0"W x 38.6"D x 71.3"H

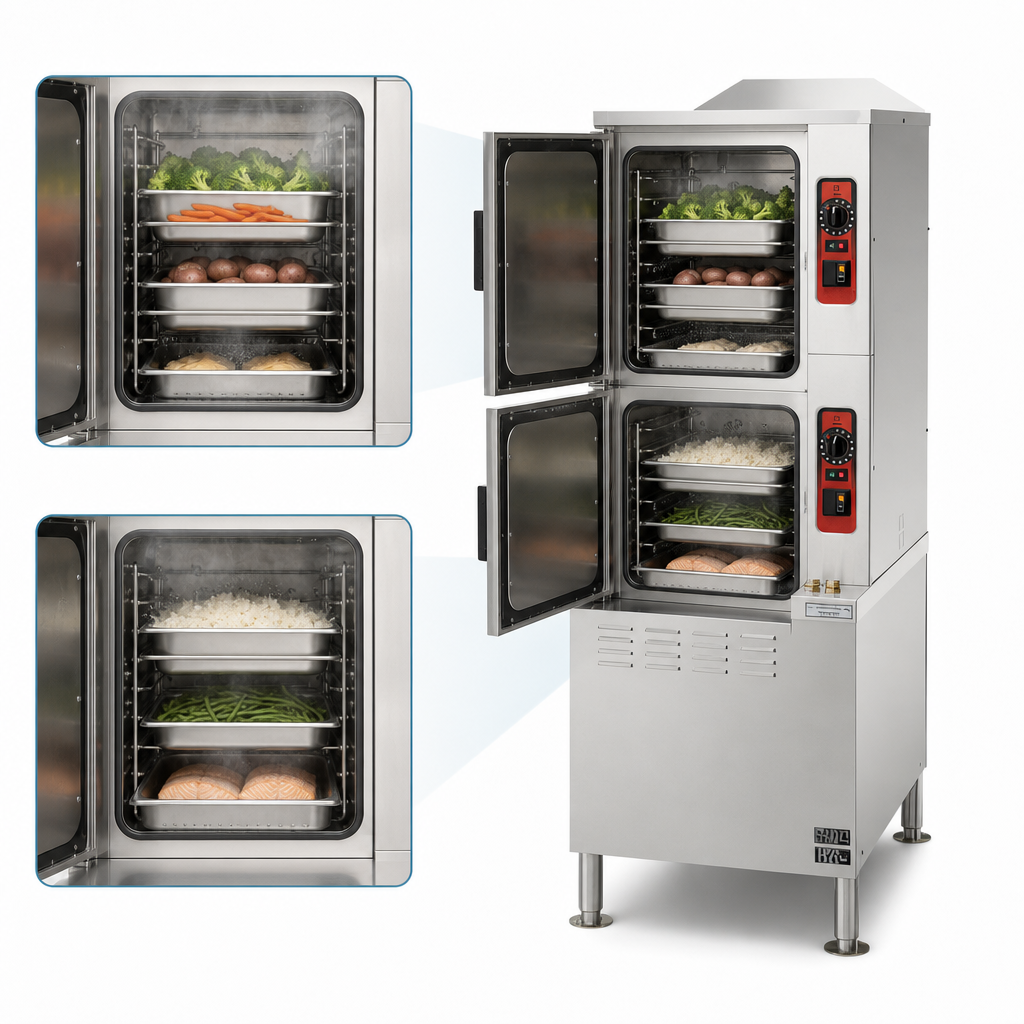

Two Independent Cooking Compartments

Two stainless steel compartments allow multiple batches to be steamed at the same time.

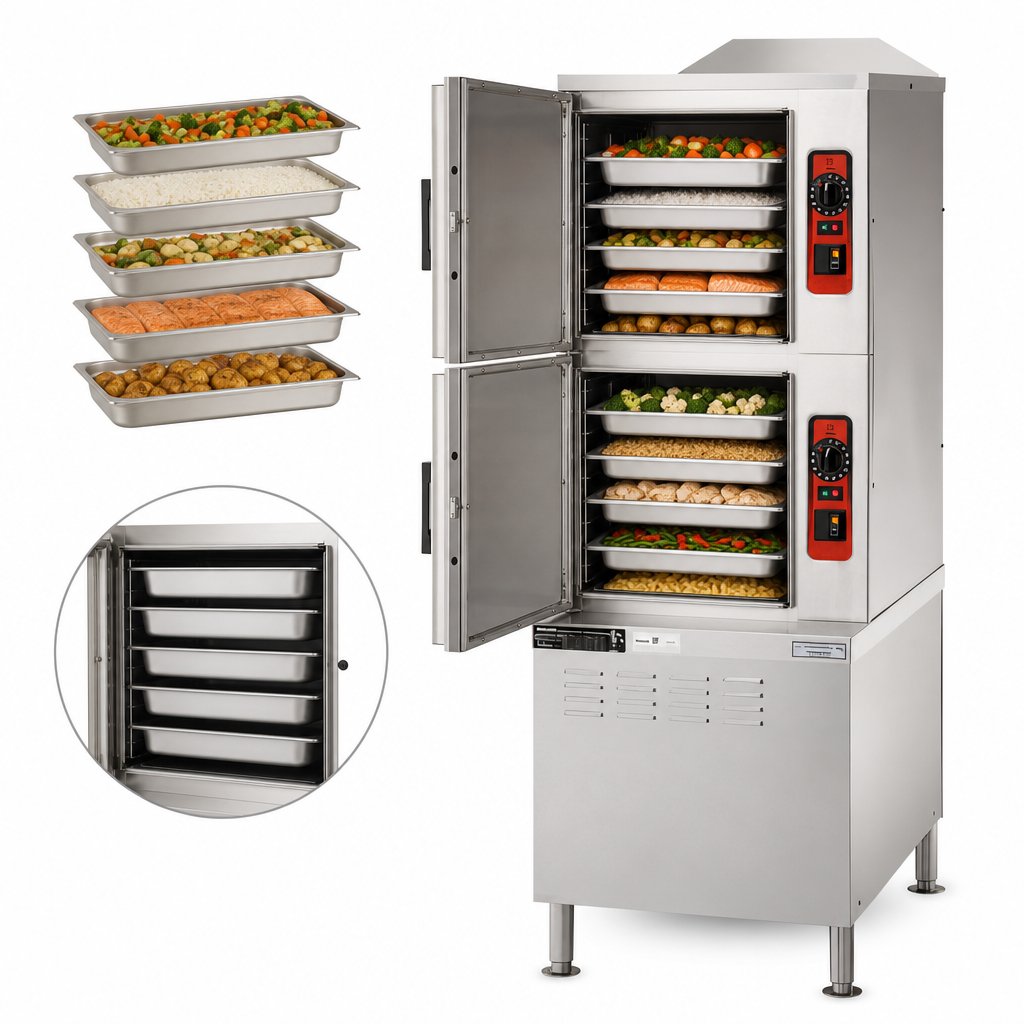

10-Pan Capacity

Configured for up to 10 12 Inch x 20 Inch x 2-1/2 Inch pans total, or 5 pans per compartment.

Dual Steam Generators

Two high-output stainless steel steam generators use staged water fill with Smart Drain and PowerFlush.

Independent Controls

Each compartment has its own 60-minute timer, constant steam feature, buzzer, and illuminated power switch.

Ready/Cook Indicators

Visual indicators help monitor compartment status during operation.

Stainless Steel Cabinet Base

Water-resistant cabinet base with enclosed bottom and 6-inch adjustable stainless steel legs with flanged feet.

Heavy-Duty Door Package

Heavy-duty doors and latch mechanisms include gasket guards for demanding kitchen use.

Split Water Line and Delime Access

Uses treated and untreated water connections, a 1-1/2 inch NPT drain connection, and dual delime ports.

Type Convection Steamer
Style Cabinet Base
Installation Type Floor Model
Compartments 2
Pan Capacity 10 12 Inch x 20 Inch x 2-1/2 Inch Pans
Controls Manual
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208 Volts
Phase 3-Phase
Hertz 50/60 Hz
Amps 94 Amps
Watts 30 kW
Water Connection Required
Water Inlet Size 3/4 Inch NSHT
Drain Connection Required
Drain Connection Size 1-1/2 Inch NPT
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 39 Inches
Shipping Height 72 Inches
Shipping Weight 585 lb.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Certified plus installation PDF Download PDF Installation & operation PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 2 cooking compartments.
It holds 10 total 12 Inch x 20 Inch x 2-1/2 Inch pans, with 5 pans per compartment.
It ships for 208/60-50/3 service and can be field converted to 208/60-50/1 and 240/60-50/3 or 240/60-50/1.
Yes. Each compartment has a separate 60-minute timer, buzzer, constant steam feature, and power switch.
It uses split water line connections for treated and untreated water and a 1-1/2 inch NPT drain connection.
The steamer includes Smart Drain, PowerFlush, and dual delime ports.
