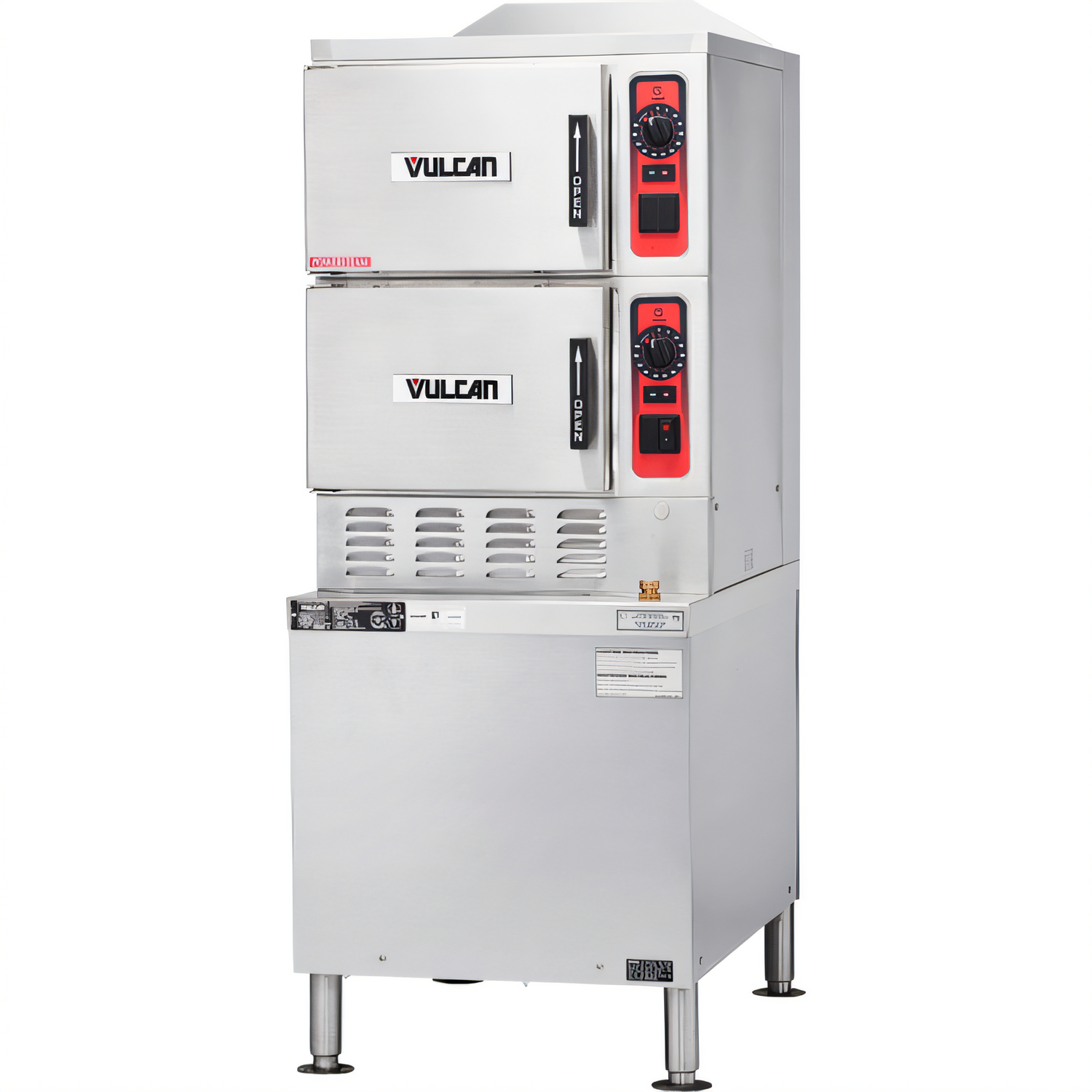

Vulcan C24DA10 10-Pan Two-Compartment Direct Steam Convection Steamer on Cabinet Base

24-Inch Wide, Manual Controls, 120V

A compact 24-inch-wide direct steam steamer with two independent compartments and manual timers for dependable batch cooking.

  • Two independent stainless steel compartments let you steam multiple menu items at the same time.
  • 10 total pan capacity with 5 pans per compartment.
  • Separate 60-minute timers and a constant steam feature support consistent results.
  • Stainless steel exterior, interior, cabinet base, and flanged feet add durability.
  • Direct potable steam connection with pressure regulator helps simplify installation.
  • Requires 120V power plus a 3/4 inch water line and 1-1/2 inch drain connection.

Overall Dimensions:

24.0"W x 35.4"D x 72.0"H

Product Weight:

565.0 lb

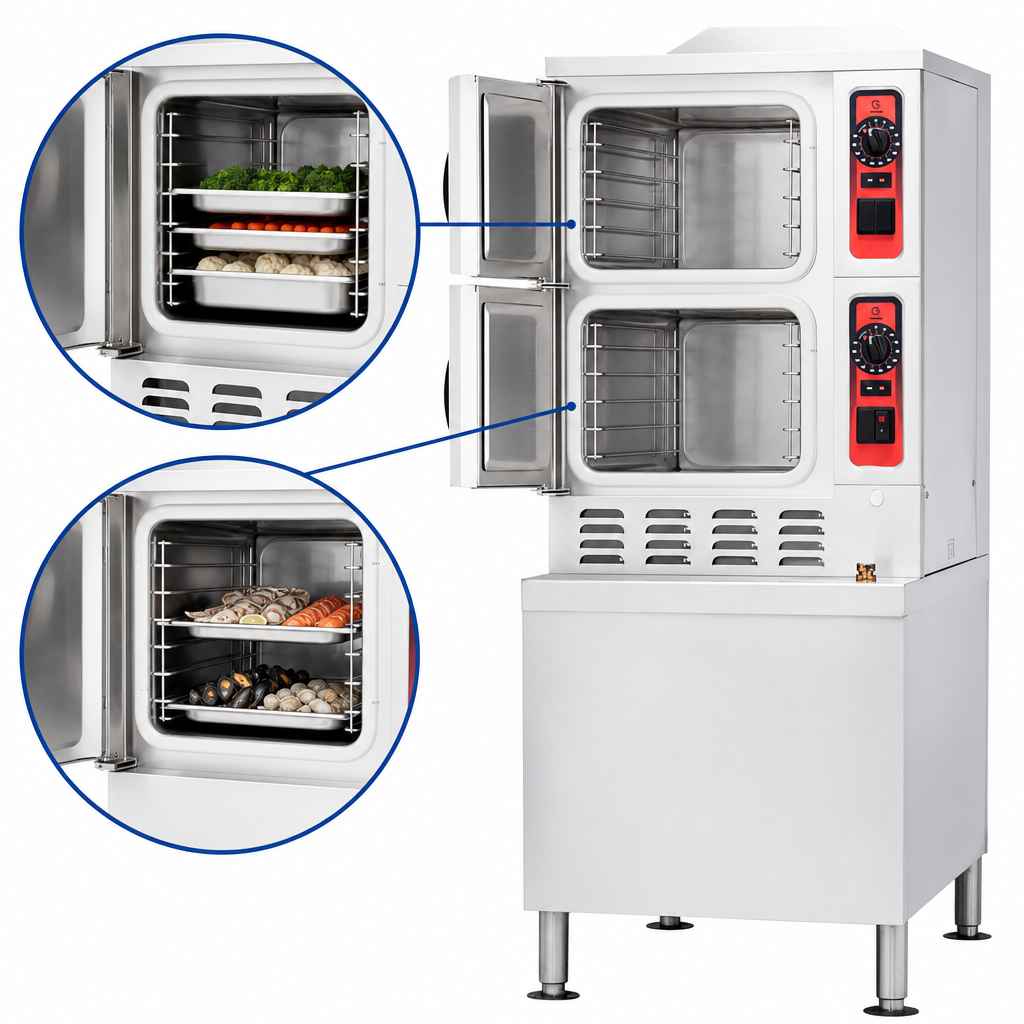

Two Independent Compartments

Two stainless steel cooking compartments let you steam multiple items at once, with coved interior corners for easier cleanup.

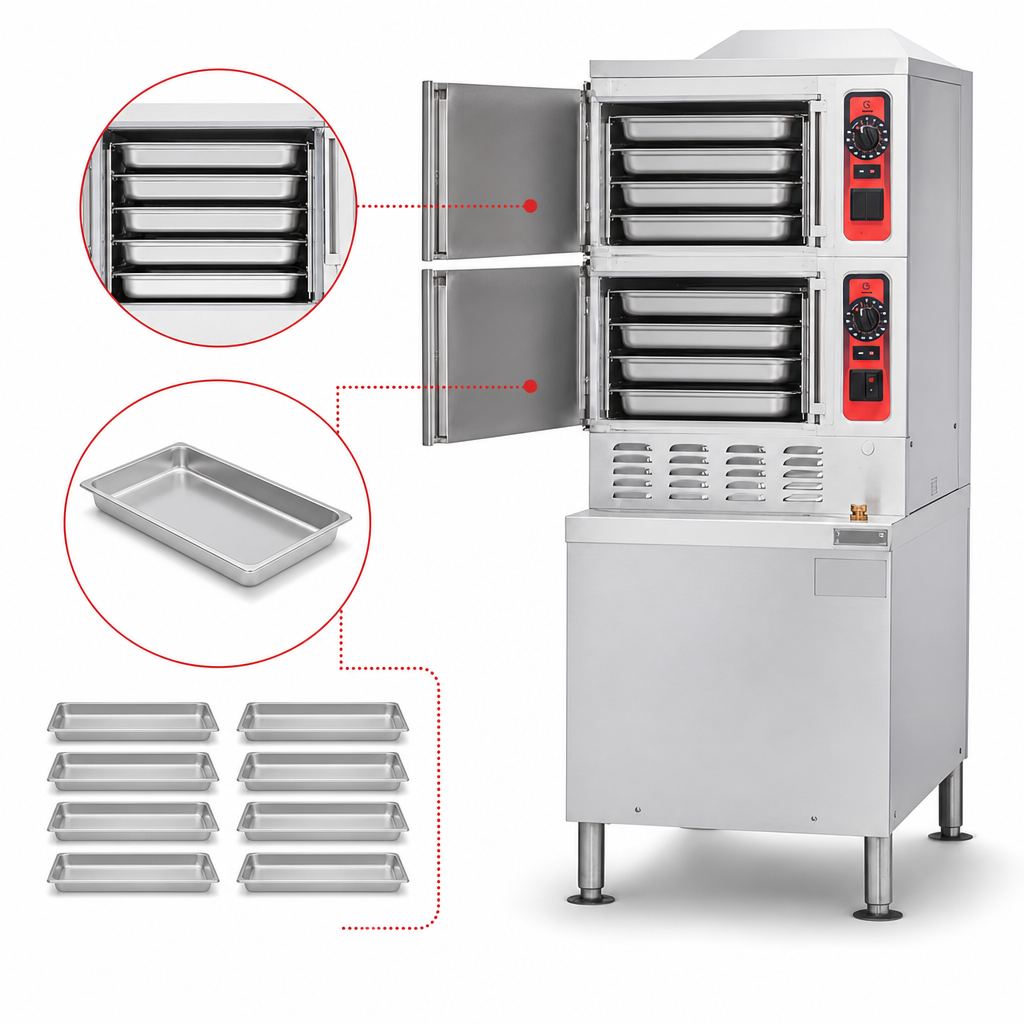

10-Pan Capacity

Holds 10 total 12 Inches x 20 Inches x 2-1/2 Inches deep pans, or 5 pans per compartment.

Separate 60-Minute Timers

Each compartment has its own 60-minute timer and constant steam feature for controlled batch cooking.

Direct Potable Steam Connection

Includes a 3/4 inch NPT direct steam connection with pressure regulator.

Stainless Steel Construction

Stainless steel exterior, interior, cabinet base, and flanged feet support durability and sanitation.

Heavy-Duty Door Hardware

Heavy-duty doors and latch mechanisms help maintain a secure seal during operation.

Utility Requirements

Requires 120/60/1 power, 2.0 amps maximum draw, a 6-foot cord, a 3-prong plug, a 3/4 inch water line, and a 1-1/2 inch drain connection.

Adjustable Leveling Legs

6-inch adjustable stainless steel legs make installation and leveling easier.

Type Direct Steam Convection Steamer
Installation Type Floor Model (On Cabinet Base)
Controls Manual
Capacity 10 Pans
Pan Capacity 5 Pans Per Compartment
Pan Size 12 Inches x 20 Inches x 2-1/2 Inches Deep
Compartments 2
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 120 Volts
Amps 2.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 3-Prong
Cord Length 6 Feet
Water Connection Required
Water Inlet Size 3/4 Inch NPT
Drain Connection Required
Drain Connection Size 1-1/2 Inch NPT
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 36 Inches
Shipping Height 72 Inches
Shipping Weight 565 lb.

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has two stainless steel cooking compartments.
It holds 10 total 12 Inches x 20 Inches x 2-1/2 Inches deep pans, or 5 pans per compartment.
It uses manual controls with a separate 60-minute timer and constant steam feature for each compartment.
It requires 120/60/1 power, 2.0 amps maximum draw, a 3/4 inch direct potable steam connection, a 3/4 inch water line, and a 1-1/2 inch drain connection.
A stainless steel pan cover, removable sliding shelf, steamer security package, and second-year extended warranty contract are available separately.
A one-year limited parts and labor warranty is included.
