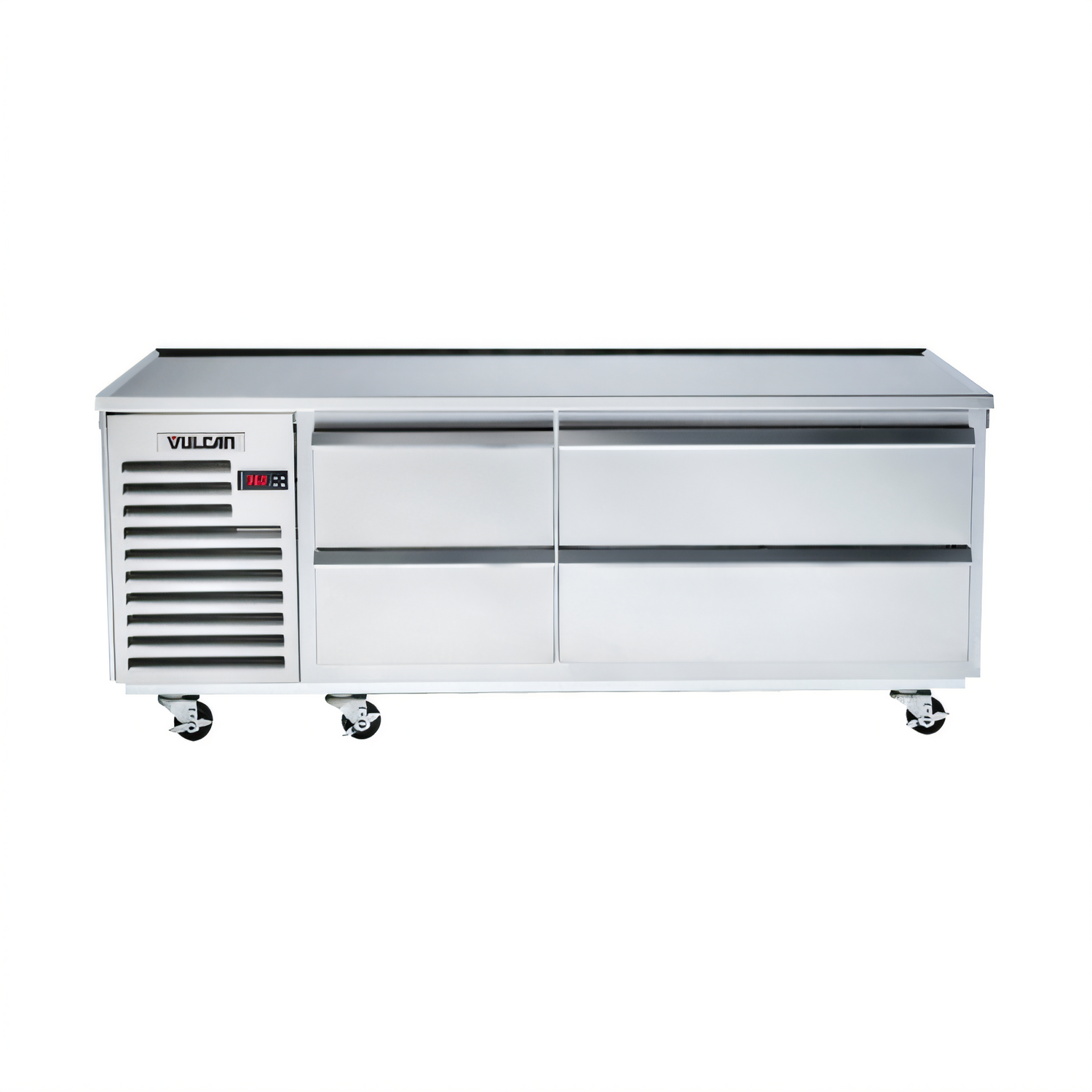

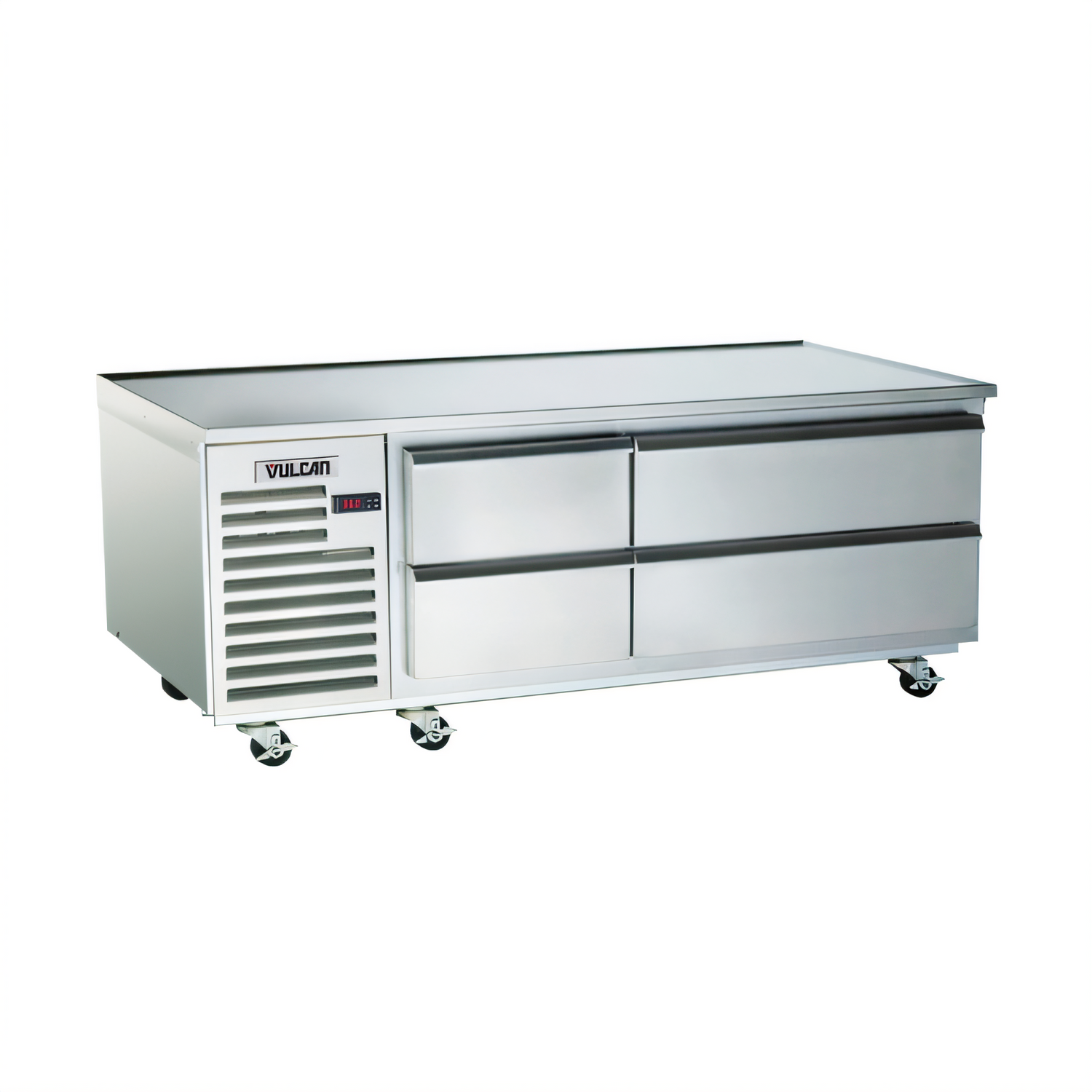

Vulcan Achiever ARS96 96-Inch Self-Contained 6-Drawer Refrigerated Base with Marine Edge Top
Vulcan Achiever ARS96 96-Inch Self-Contained 6-Drawer Refrigerated Base with Marine Edge Top
Stainless Steel, Left-Side Compressor, 115V/60/1
This heavy-duty refrigerated base combines six drawers of cold storage with a stainless steel work surface in one compact, ready-to-install unit.
- 96-inch, three-section refrigerated base with six drawers for high-capacity cold storage
- Self-contained, left-side mounted R-404A refrigeration system
- Stainless steel top, front, sides, and interior with galvanized steel back and bottom
- Marine edge top and front-breathing design support zero-clearance installation
- Drawers accept 12 x 20 x 6 inch pans and use magnetic snap-in gaskets
- 115V/60/1 electrical connection with NEMA 5-15P plug and 9-foot cord
- Three-year parts and labor warranty plus additional compressor coverage
Overall Dimensions:
96.0"W x 34.0"D x 26.0"HProduct Weight:

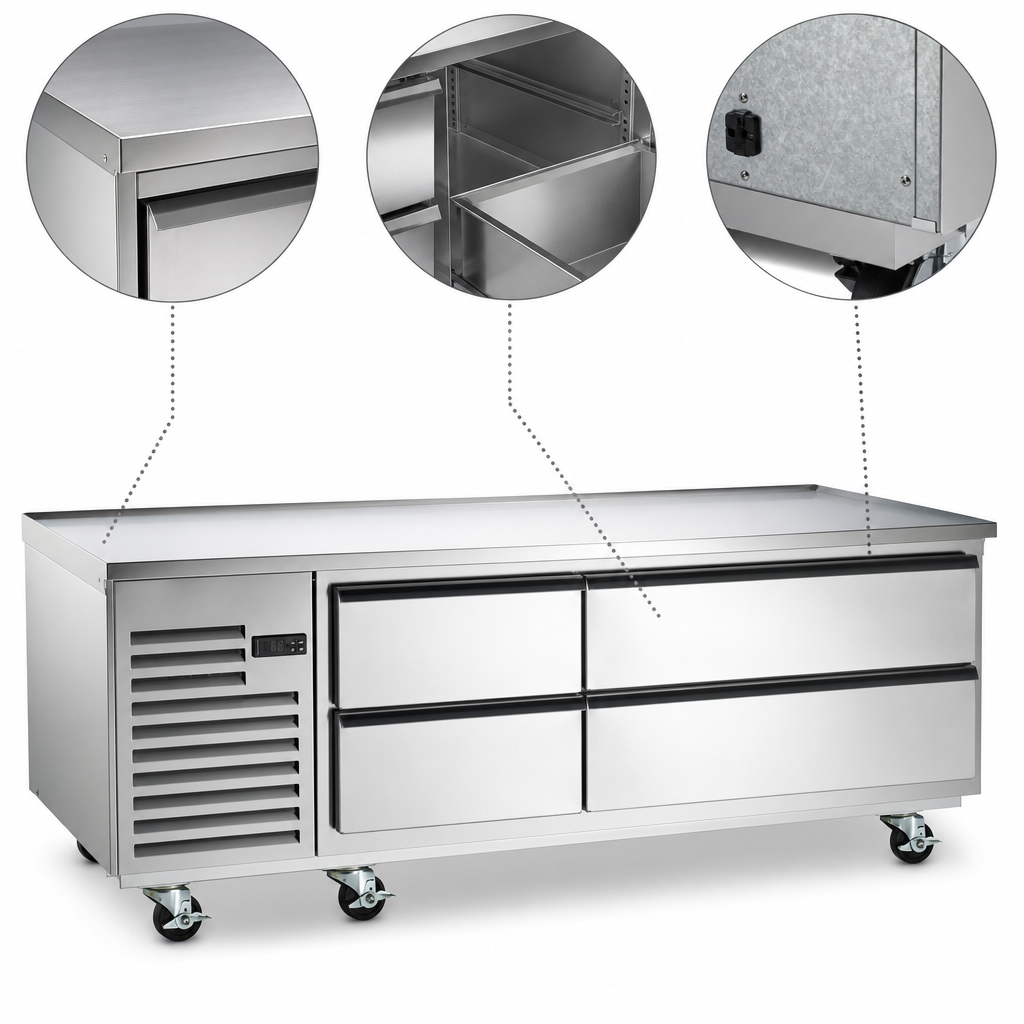

525.0 lbStainless Steel Construction
Stainless steel top, front, sides, and interior provide durability and easy cleaning, while the back and bottom are galvanized steel.
Marine Edge Top
Raised marine edge helps contain spills on the work surface.
Six Drawer Sections
Six heavy-duty drawers provide organized refrigerated storage and feature self-closing, stay-open operation.
Magnetic Drawer Gaskets
Snap-in magnetic gaskets help each drawer maintain a tight seal.
Self-Contained Left-Side Refrigeration
Balanced, self-contained refrigeration uses a left-mounted compressor, R-404A refrigerant, and a dedicated rear-mounted evaporator.
Microprocessor Controls
INTELA-TRAUL microprocessor control system offers digital temperature management and alarm functions.
Front-Breathing Zero-Clearance Design
Front-breathing airflow supports zero-clearance installation and easier service access.
Pan Compatibility
Each drawer is designed for 12 x 20 x 6 inch pans, with 12-pan total capacity.
Heavy-Duty Casters
Casters are included for easier positioning and mobility.
Electrical Package
115V/60/1 operation draws 11.25 amps and includes a 9-foot cord with NEMA 5-15P plug.
Defrost And Condensate Management
Off-cycle defrost, automatic condensate evaporator, condenser filter, and anti-condensate drawer heaters help maintain performance.
Heavy-Duty Top Load Capacity
Supports up to 1,500 lb. of equipment on the top surface.
NDP Ready
NAFEM Data Protocol ready; optional gateway hardware is required for NDP compliance.
Warranty & Protection
3-year parts and labor, plus 2 additional years of compressor parts coverage.
