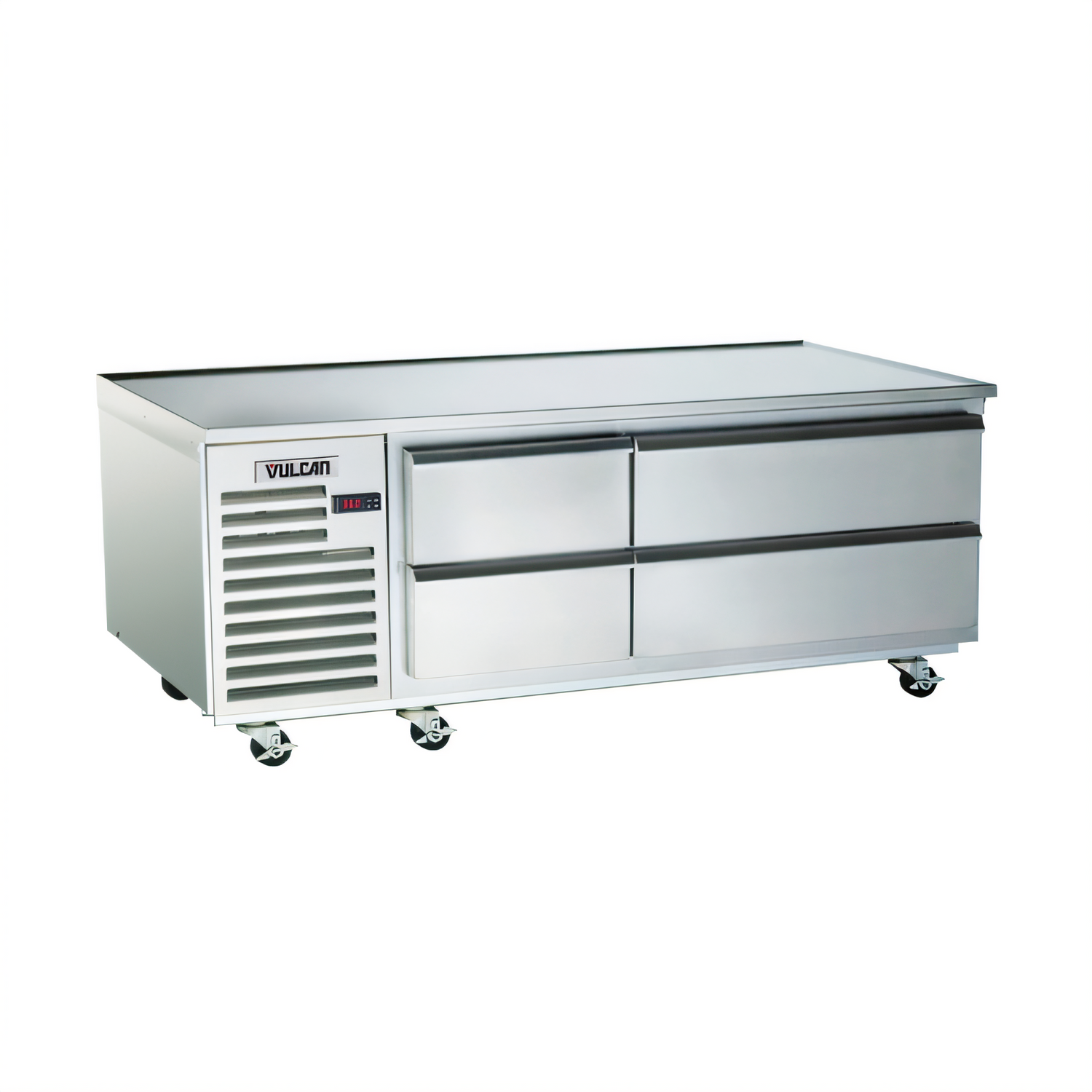

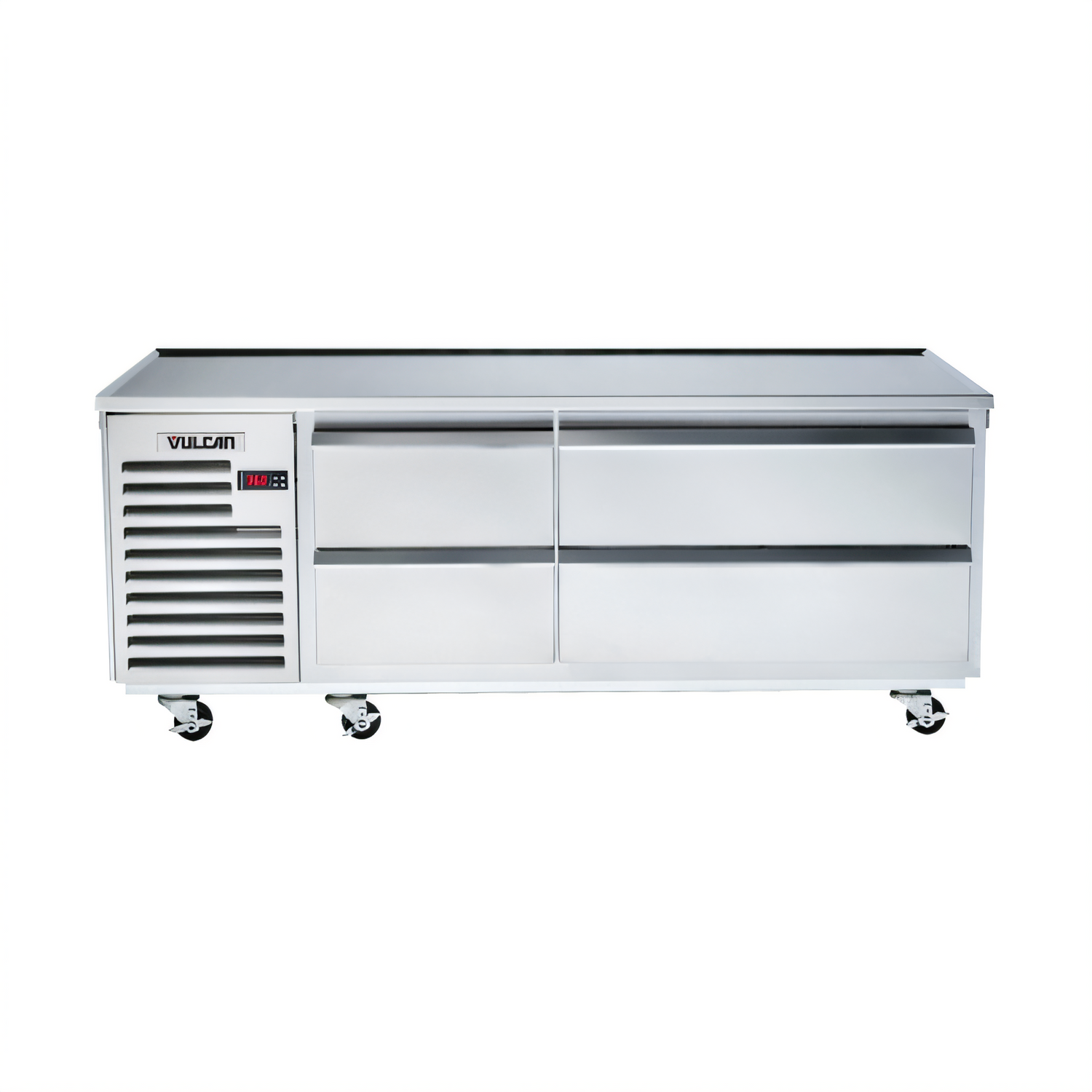

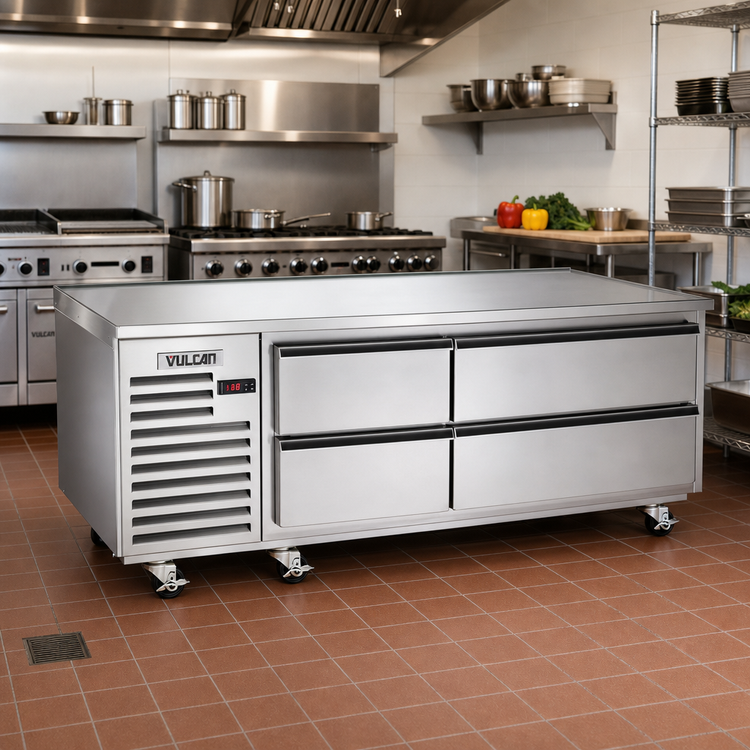

Vulcan Achiever 84-Inch Self-Contained Refrigerated Base with 4 Drawers and Marine Top

Front-Breathing Stainless Steel Base with Zero-Clearance Installation

This 84-inch refrigerated base combines four cold-storage drawers with a durable marine-top work surface in a front-breathing design that fits tight kitchen layouts.

  • 84-inch self-contained refrigerated base with 4 drawers for organized cold storage under cooking equipment.
  • Marine-edge stainless steel top provides a durable work surface for busy commercial kitchens.
  • Front-breathing, zero-clearance design helps simplify tight-space installation.
  • Self-contained R-404A refrigeration with off-cycle defrost supports reliable temperature control.
  • Magnetic drawer gaskets, self-closing action, and stay-open drawers improve day-to-day operation.
  • INTELA-TRAUL microprocessor controls include LED display and alarm monitoring.

Overall Dimensions:

84.0"W x 34.0"D x 26.0"H

Product Weight:

490.0 lb

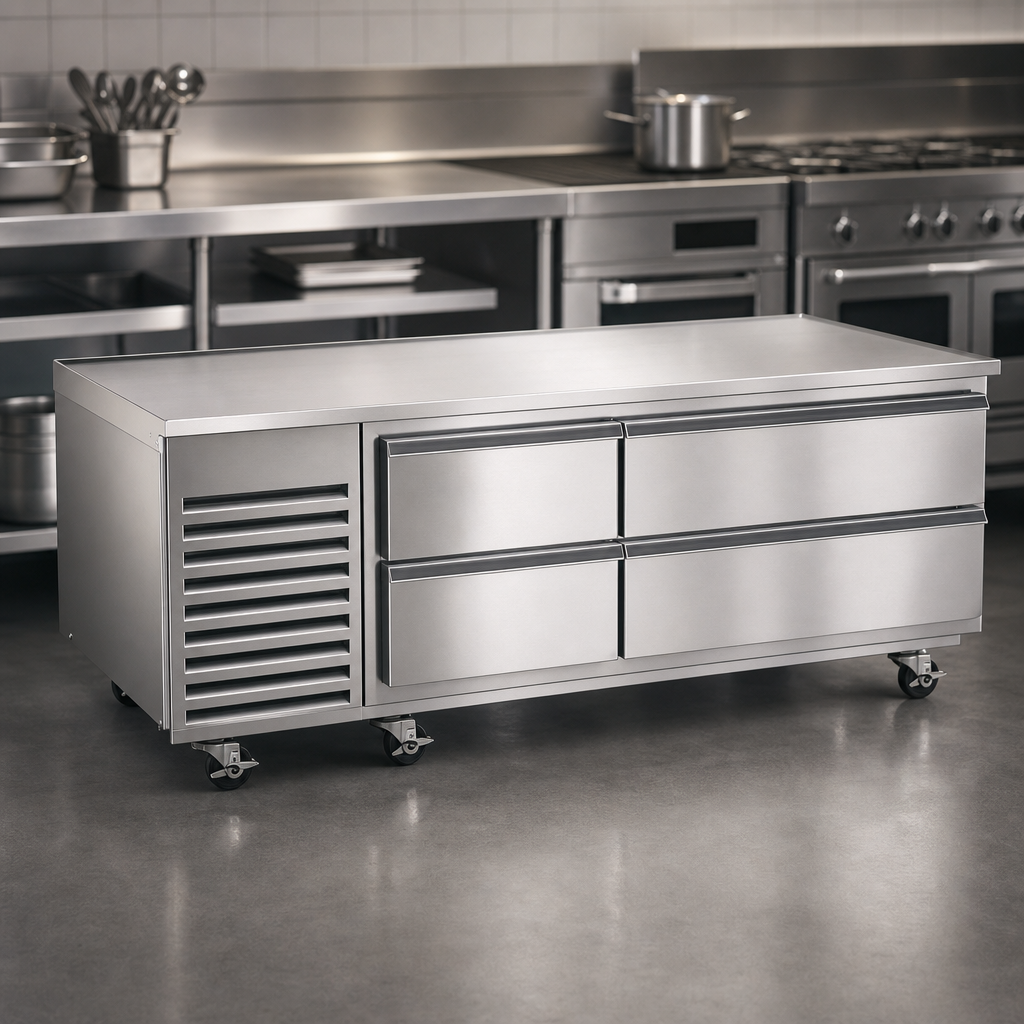

Stainless Steel Construction

Stainless steel top, front, sides, and interior help provide durability and a professional finish.

Marine Edge Top

The marine-edge top helps contain spills and supports use as a heavy-duty work surface.

Front-Breathing Design

Front-breathing airflow supports zero-clearance installation and easier placement in tight kitchen spaces.

Self-Contained R-404A Refrigeration

A balanced, self-contained refrigeration system uses R-404A refrigerant and off-cycle defrost for dependable cooling.

INTELA-TRAUL Microprocessor Control

The microprocessor control system includes a 3-digit LED display, temperature scale display capability, and alarm functions.

Heavy-Duty Drawer Assembly

Drawers feature magnetic snap-in gaskets, self-closing action, stay-open capability, 14-gauge stainless steel slides, and stainless steel rollers.

Drawer Perimeter Heat

Controllable anti-condensate drawer perimeter heaters help reduce moisture buildup around the drawer openings.

Service-Friendly Access

Side, front, and rear access panels support easier service and maintenance.

Type Self-Contained Refrigerated Base
Style Drawer Base
Installation Type Undercounter
Drawer Count 4
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel and Galvanized Steel
Refrigeration Type Self-Contained
Refrigerant Type R-404A
Compressor HP 1/3 HP
Compressor Location Left
Temperature Range 34 to 38 Degrees F
Controls Microprocessor
Voltage 115 Volts
Amps 6.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Pan Capacity 8 Full-Size Pans
Pan Size 12 x 20 x 6 Inches
Pan Orientation Side By Side
Top Load Capacity 1,500 lb.
Shipping Weight 655 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

3-year parts and labor, plus 2 additional years compressor parts.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes 4 heavy-duty drawers.
Each drawer is designed to accommodate 12 x 20 x 6 inch pans.
No. The front-breathing design supports zero-clearance installation.
The standard operating temperature is 34 to 38°F.
It includes a NEMA 5-15 plug with a 9-foot cord.
The standard warranty is three years parts and labor, plus two additional years of compressor parts coverage.
