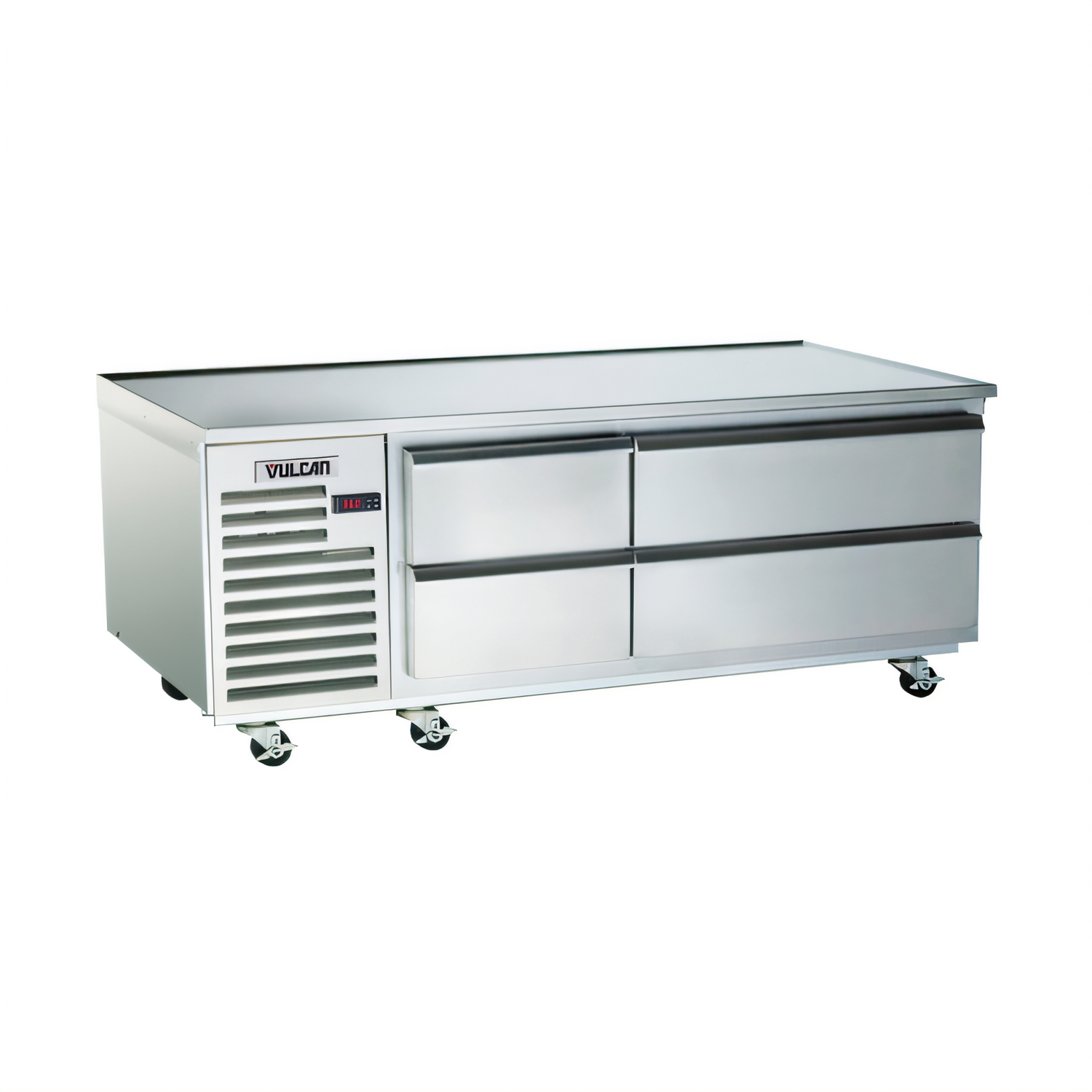

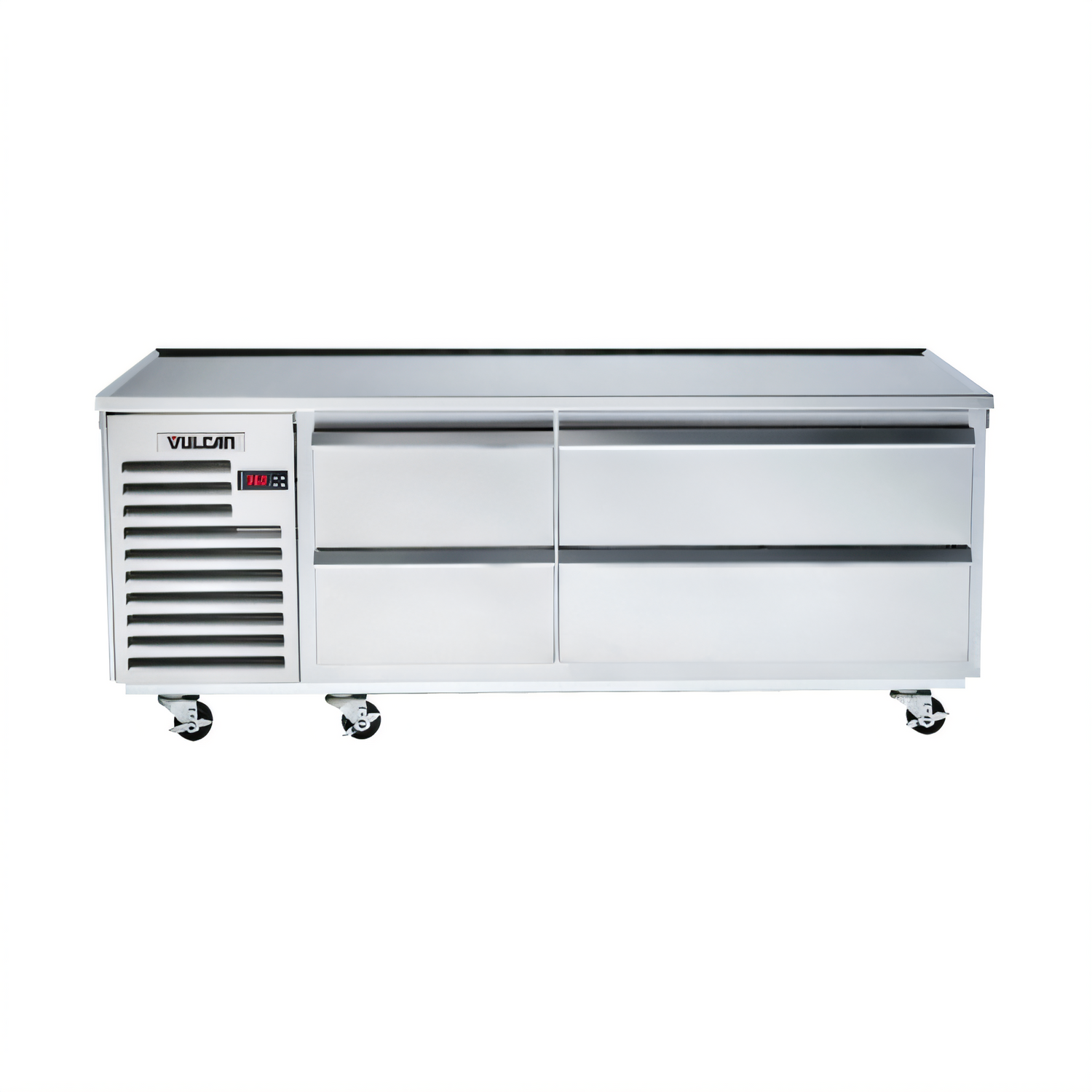

Vulcan Achiever 72-Inch Self-Contained Refrigerated Drawer Base with Marine Edge Top, 4 Drawers, 115V
Vulcan Achiever 72-Inch Self-Contained Refrigerated Drawer Base with Marine Edge Top, 4 Drawers, 115V
Left-Mounted Compressor, Stainless Steel Construction, R-404A Refrigeration

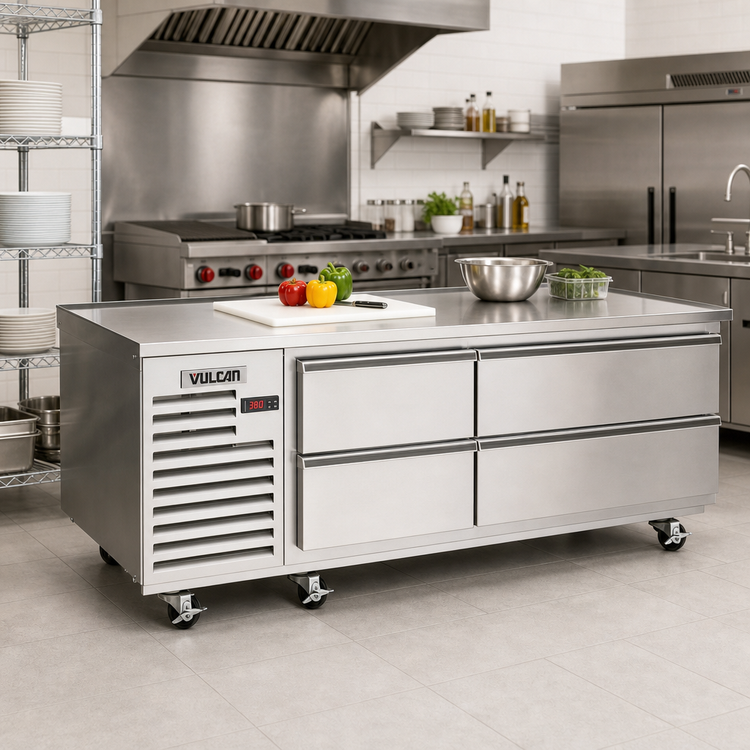

Keep chilled ingredients within easy reach under the cookline with a 72-inch refrigerated drawer base that combines four drawers, a marine edge top, and self-contained R-404A refrigeration.
- 72-inch refrigerated base with 4 heavy-duty drawers and a marine edge top for under-counter cookline use.
- Self-contained R-404A refrigeration maintains a standard operating temperature of 34°F to 38°F.
- Stainless steel top, front, sides, and interior with galvanized steel back and bottom for commercial durability.
- Front-breathing design supports zero-clearance installation and easier service access.
- Each drawer accommodates 12 x 20 x 6-inch pans, with 8-pan total capacity and 1,200-lb top load support.
- Includes microprocessor controls, magnetic drawer gaskets, and self-closing drawers with stay-open capability.
- 115V/60Hz/1-phase electrical package with 6.7 amps, NEMA 5-15P plug, and 9-foot cord.
- Backed by a 3-year parts and labor warranty plus 2 additional years of compressor parts coverage.
Overall Dimensions:
72.0"W x 34.0"D x 26.0"HProduct Weight:

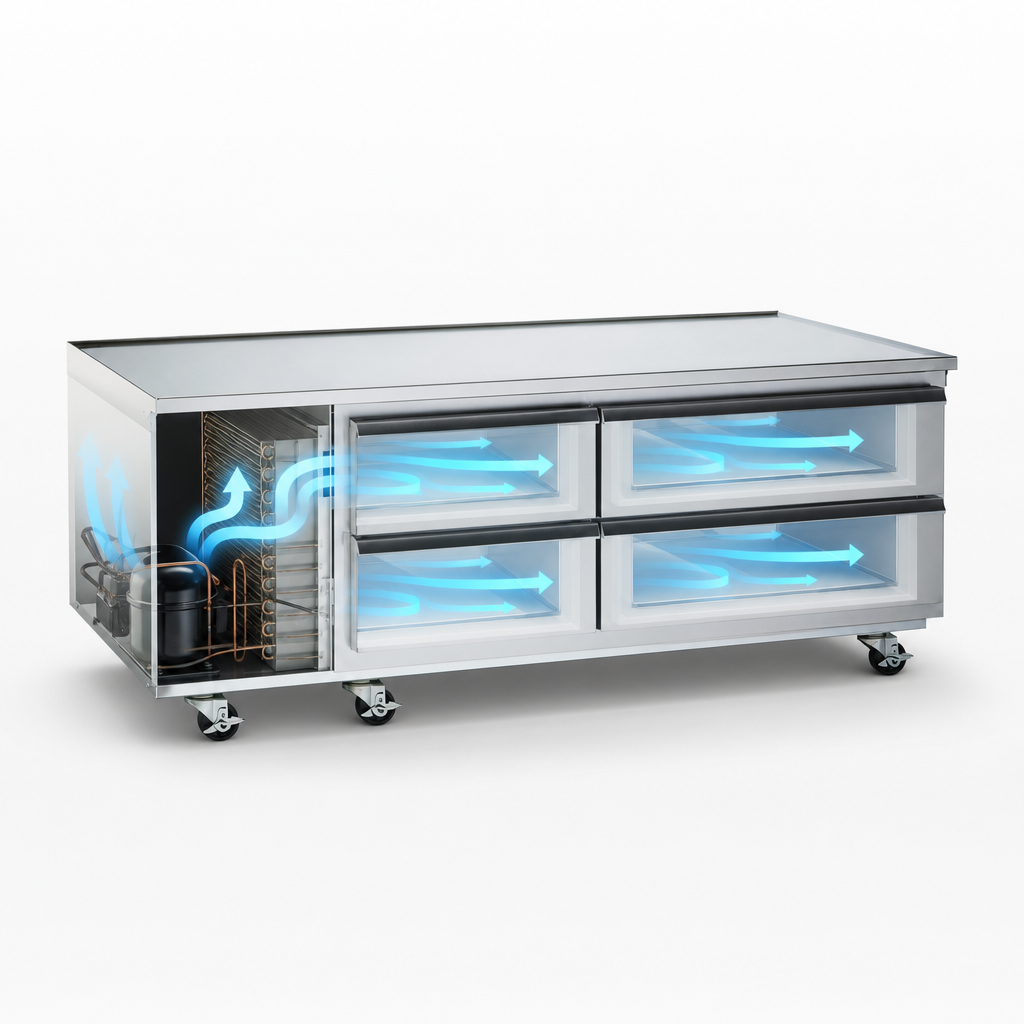

440.0 lbSelf-Contained R-404A Refrigeration
Balanced, self-contained refrigeration system with R-404A refrigerant, off-cycle defrost, air-cooled hermetic compressor, and a rear-mounted evaporator design that serves each drawer section.
Microprocessor Control System
Water-resistant microprocessor controls include LED temperature display, °F/°C display capability, RS485 data port, and audio/visual alarms for cabinet and system faults.
Four-Drawer Storage
Heavy-duty drawer bank provides 4 drawers with self-closing and stay-open operation for fast ingredient access.
Marine Edge Stainless Steel Top
Marine edge top offers a durable stainless steel work surface suited for cooking equipment mounted above the base.
Stainless Steel Construction
Stainless steel top, front, sides, and interior combine with galvanized steel back and bottom for long-term commercial use.
Drawer Sealing and Slides
Magnetic snap-in drawer gaskets, 14-gauge stainless steel slides, and stainless steel rollers help maintain a tight seal and smooth drawer movement.
Front-Breathing Zero-Clearance Design
Front-breathing construction supports zero-clearance installation and provides access panels for service and maintenance.
Electrical Package
Supplied with 115V/60Hz/1-phase power, 6.7 amps, a NEMA 5-15P plug, and a 9-foot cord with retainer.
Warranty Coverage
Standard warranty includes 3 years parts and labor plus 2 additional years of compressor parts coverage.
Warranty & Protection
3-year parts and labor; 2 additional years compressor parts.
