Vulcan

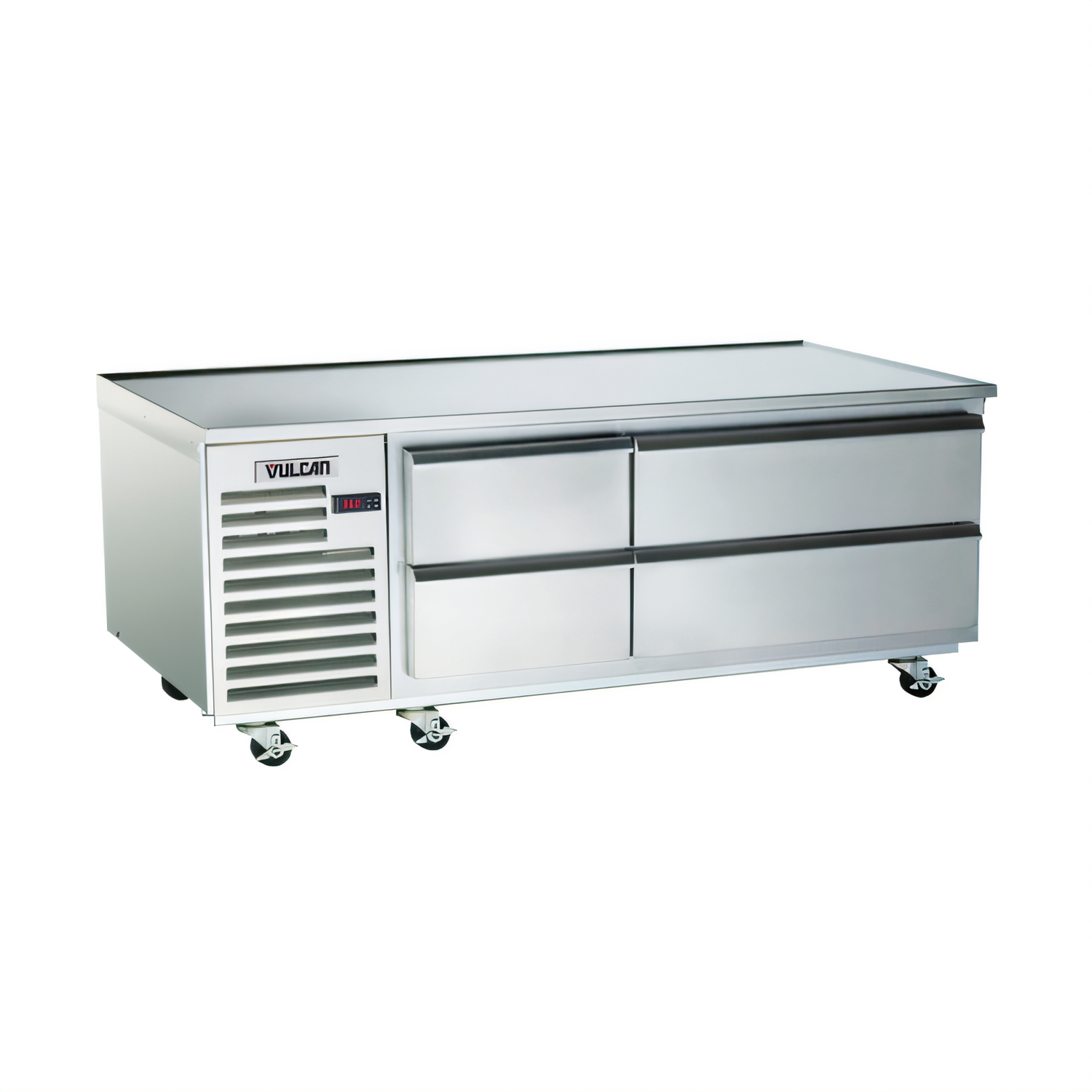

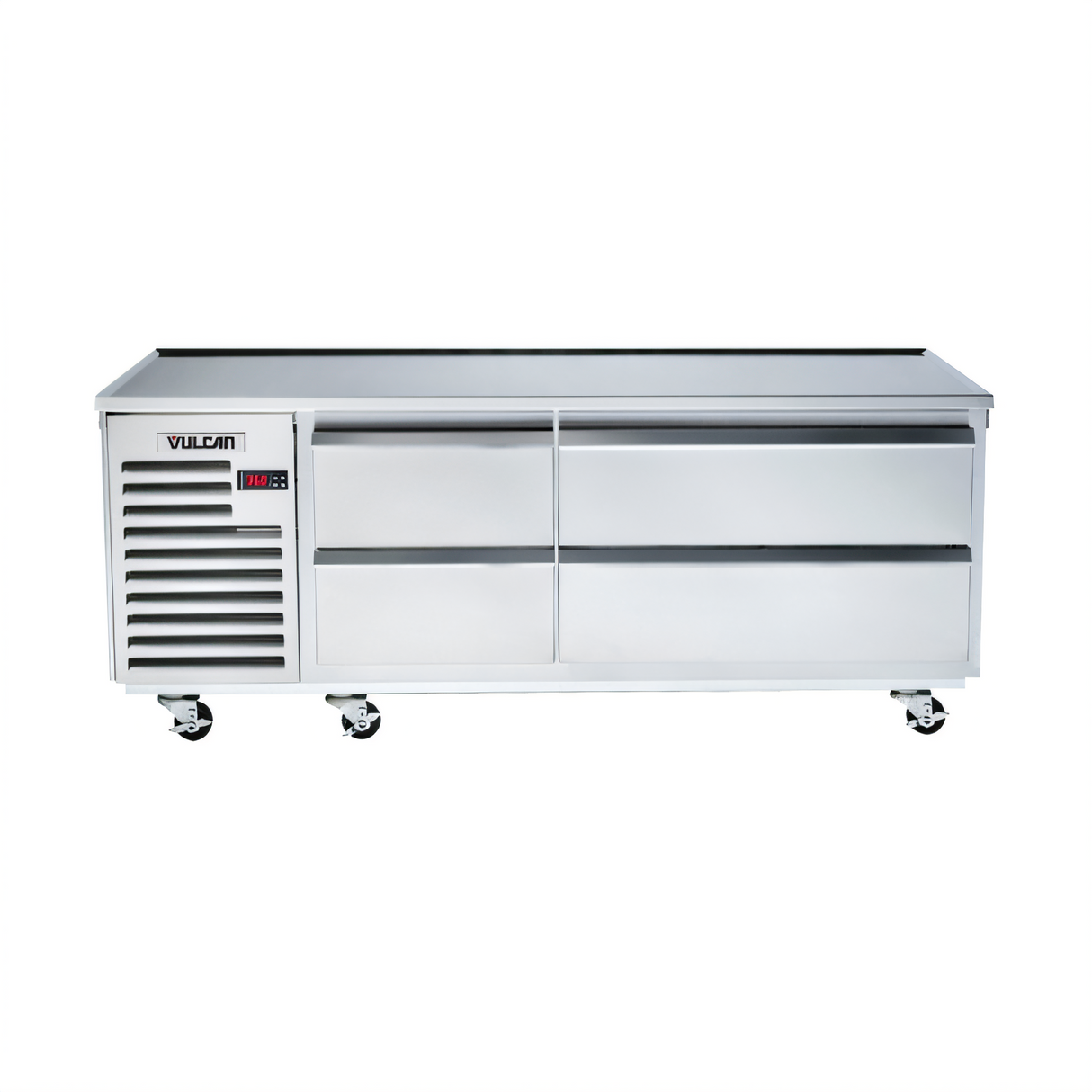

Vulcan Achiever ARS60 60-Inch Self-Contained Refrigerated Base with 2 Drawers and Marine Top

SKU: ARS60
$14,987.61
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration Vulcan

Vulcan Achiever ARS60 60-Inch Self-Contained Refrigerated Base with 2 Drawers and Marine Top

One Section, Stainless Steel, Left-Side Compressor

Built for busy prep lines, this 60-inch refrigerated base combines durable stainless construction, drawer storage, and self-contained cooling in one reliable footprint.

  • 60-inch, one-section refrigerated base with 2 drawers for line-side ingredient storage.
  • Stainless steel top, front, sides, and interior with a galvanized back and bottom.
  • Marine-edge top and magnetic drawer gaskets help protect product and maintain a tight seal.
  • Self-contained, left-side mounted refrigeration system uses R-404A and microprocessor controls.
  • Front-breathing design supports zero-clearance installation in tight kitchen layouts.
  • Heavy-duty drawers self-close and stay open when loaded, and accept 12" x 20" x 6" pans.
  • 115V / 60 Hz / 1-phase operation with NEMA 5-15P plug and 9-foot cord.

Overall Dimensions:

60.0"W x 34.0"D x 26.0"H

Product Weight:

340.0 lb

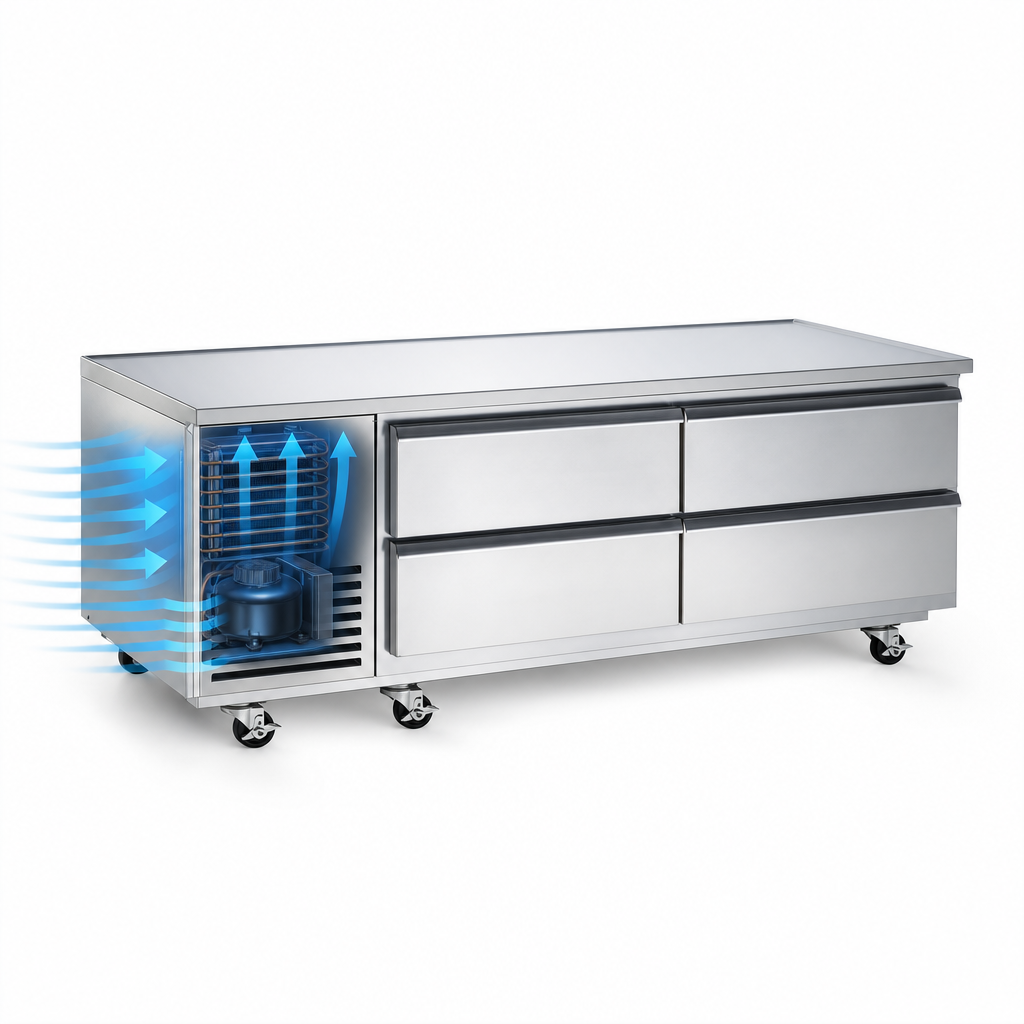

Self-Contained Refrigeration System

Left-side mounted, air-cooled refrigeration with R-404A keeps the base cold without remote components.

Self-Contained Refrigeration System

Stainless Steel Construction

Top, front, sides, and interior are stainless steel for durability, with galvanized steel used on the back and bottom.

Marine-Edge Top

The marine edge work surface helps contain spills on the prep line.

Two Heavy-Duty Drawers

Self-closing drawers stay open when loaded and are designed to hold 12" x 20" x 6" pans.

Magnetic Drawer Gaskets

Vinyl magnetic snap-in gaskets help maintain a tight drawer seal.

Microprocessor Controls

Water-resistant INTELA-TRAUL controls include LED display capability, temperature scale display, alarms, and data-port readiness.

Front-Breathing Design

Allows zero-clearance installation and easier placement in compact kitchen layouts.

Insulated Cabinet and Drawers

Foamed-in-place polyurethane insulation helps maintain cabinet temperature and improve efficiency.

Type Refrigerated Base
Style Self-Contained
Installation Type Floor Model
Capacity 1 Section
Drawer Qty 2
Pan Capacity 6 12" x 20" x 6" Pans
Compressor HP 1/3 HP
BTU 2,440 BTU/HR
Refrigerant Type R-404A
Controls Microprocessor
Temperature Range 34°F to 38°F
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.7 Amps
Plug Type NEMA 5-15P
Cord Length 9 Feet
Material Stainless Steel
Interior Finish Stainless Steel
Shipping Weight 475 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

3-year parts and labor, plus 2 additional years of compressor parts.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 2 heavy-duty drawers.
Each drawer is designed to accommodate 12" x 20" x 6" deep pans.
The standard operating temperature is 34°F to 38°F.
This unit uses R-404A refrigerant.
Yes. The front-breathing design allows zero-clearance installation.
The unit includes a 3-year parts and labor warranty plus 2 additional years of compressor parts coverage.
