Vulcan Achiever ARS36 36-Inch Self-Contained Refrigerated Drawer Base with Marine Edge Top and 2 Drawers

SKU: ARS36
$13,746.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration Vulcan

Vulcan Achiever ARS36 36-Inch Self-Contained Refrigerated Drawer Base with Marine Edge Top and 2 Drawers

Left-Mounted Compressor, Stainless Steel Construction, 115V, 1/3 HP

A compact refrigerated base that keeps ingredients cold beneath the cookline while adding a durable marine-edge work surface and two heavy-duty drawers.

  • 36-inch one-section refrigerated base with 2 drawers for undercounter cold storage.
  • Self-contained, side-mounted refrigeration system using R-404A refrigerant.
  • Marine-edge stainless steel top is built to support cooking equipment and help contain spills.
  • Stainless steel top, front, sides, and interior with galvanized steel back for durability.
  • Heavy-duty drawers include magnetic gaskets, self-closing action, and stay-open capability.
  • Front-breathing design supports zero-clearance installation in tight cooklines.
  • Each drawer accommodates 12" x 20" x 6" deep pans.
  • Includes a 9-foot cord with NEMA 5-15 plug.

Overall Dimensions:

36.0"W x 34.0"D x 26.0"H

Product Weight:

290.0 lb

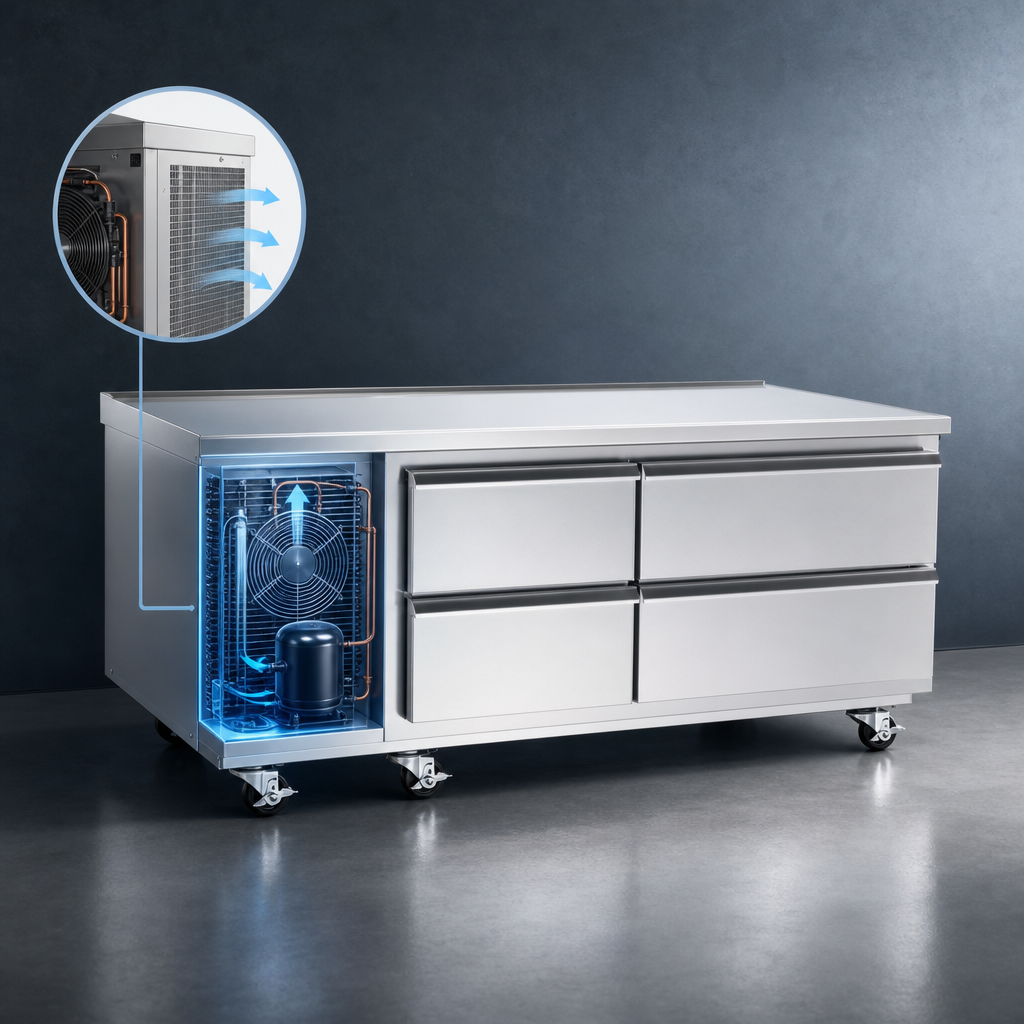

Self-Contained Refrigeration System

Balanced, side-mounted refrigeration system uses R-404A refrigerant and off-cycle defrost for reliable cold holding.

Marine Edge Top

The stainless steel marine-edge top provides a durable work surface for cooking equipment.

Stainless Steel Construction

Top, front, sides, and interior are stainless steel, with a galvanized steel back for added durability.

Heavy-Duty Drawer Design

Drawers use stainless steel slides and rollers, and include both self-closing and stay-open functionality.

Magnetic Drawer Gaskets

Snap-in magnetic gaskets help maintain a tight drawer seal and protect cabinet temperatures.

Front-Breathing Cabinet

Front-breathing design allows for zero-clearance installation and easier placement under cookline equipment.

Microprocessor Control System

Standard control system includes a digital display, temperature scale selection, and alarm functions.

Pan-Ready Drawer Capacity

Each drawer accommodates 12" x 20" x 6" deep pans for convenient refrigerated storage.

Electrical Connection

Includes a 9-foot cord with a NEMA 5-15 plug for standard 115V operation.

Type Refrigerated Base
Style Drawer Base
Installation Type Floor Model (With Casters)
Refrigeration Type Self-Contained, Side Mounted
Refrigerant Type R-404A
Compressor HP 1/3 HP
Voltage 115 Volts
Amps 6.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Controls Microprocessor
Temperature Range 34 to 38 Degrees F
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel and Galvanized Steel
Capacity 1 Section
Drawer Quantity 2
Pan Capacity 2
Pan Size 12 Inches x 20 Inches x 6 Inches
Top Load Capacity 625 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

3-year parts and labor, plus 2 additional years of compressor parts coverage.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 2 heavy-duty drawers.
Each drawer accommodates 12" x 20" x 6" deep pans.
It uses a self-contained, side-mounted refrigeration system with R-404A refrigerant.
The standard operating temperature is 34 to 38°F.
Yes. The front-breathing design allows for zero-clearance installation.
It operates on 115V/60/1 power and includes a NEMA 5-15 plug with a 9-foot cord.
