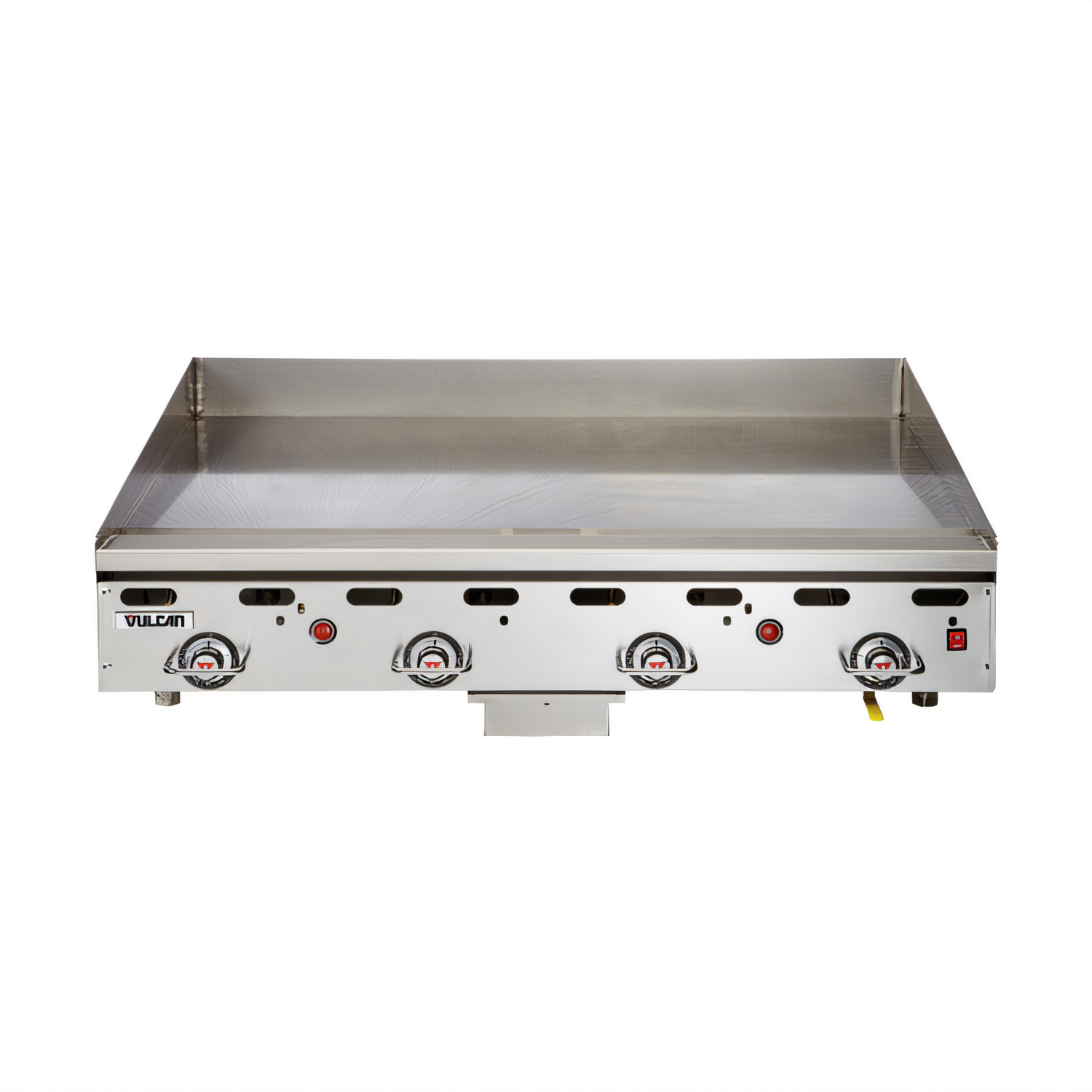

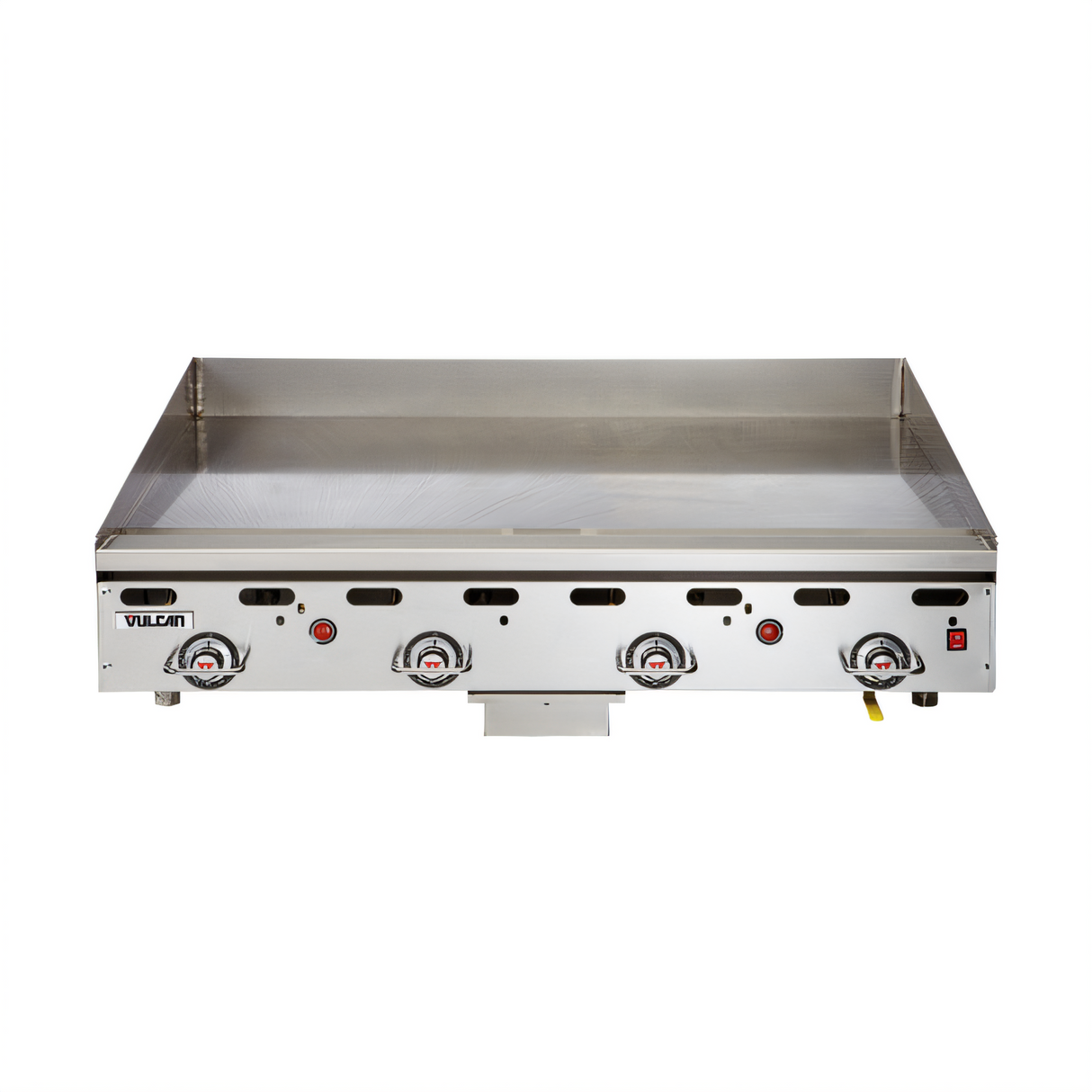

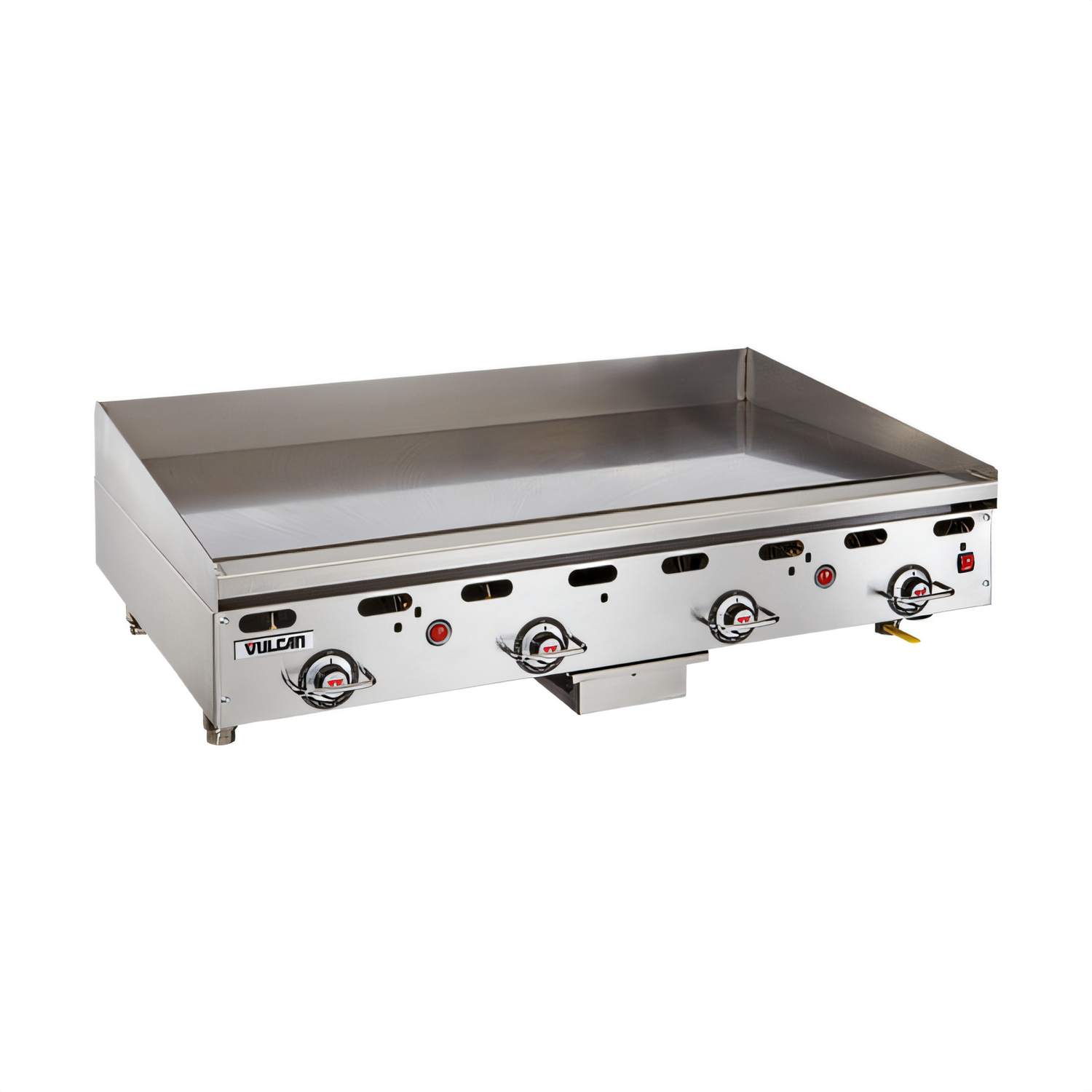

Vulcan 972RX 72-Inch Countertop Heavy Duty Gas Griddle with 24-Inch Deep Cooking Surface
Vulcan 972RX 72-Inch Countertop Heavy Duty Gas Griddle with 24-Inch Deep Cooking Surface
1-Inch Polished Steel Plate, Mechanical Thermostats, 162,000 BTU
Built for high-volume cooking, this low-profile 72-inch griddle combines precise thermostat control, a 1-inch steel plate, and 162,000 BTU of heating power.
- 72-inch countertop gas griddle with a 24-inch deep cooking surface for high-volume production.
- 1-inch thick polished steel griddle plate with stainless steel front, sides, and splashes.
- Six 27,000 BTU burners deliver 162,000 BTU total output.
- Embedded mechanical snap-action thermostats control every 12 inches of griddle width.
- Millivolt pilot safety and dual manual/electric ignition support dependable operation.
- Front grease trough, two grease drawers, and a low-profile design help streamline cleanup and service.
Overall Dimensions:
72.0"W x 31.5"D x 15.25"HProduct Weight:

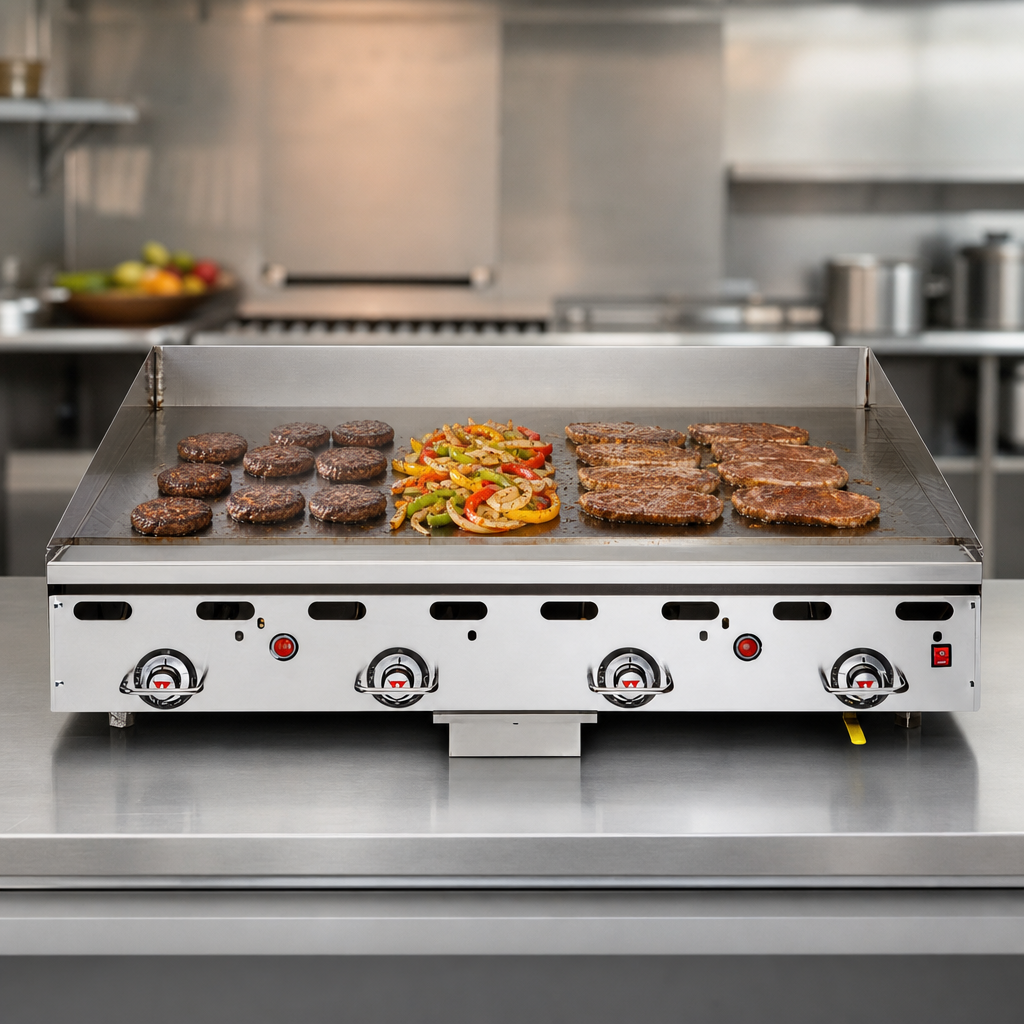

790.0 lbHeavy Duty 72-Inch Griddle Surface
Large 72-inch wide cooking surface with 24-inch depth for high-output kitchen use.

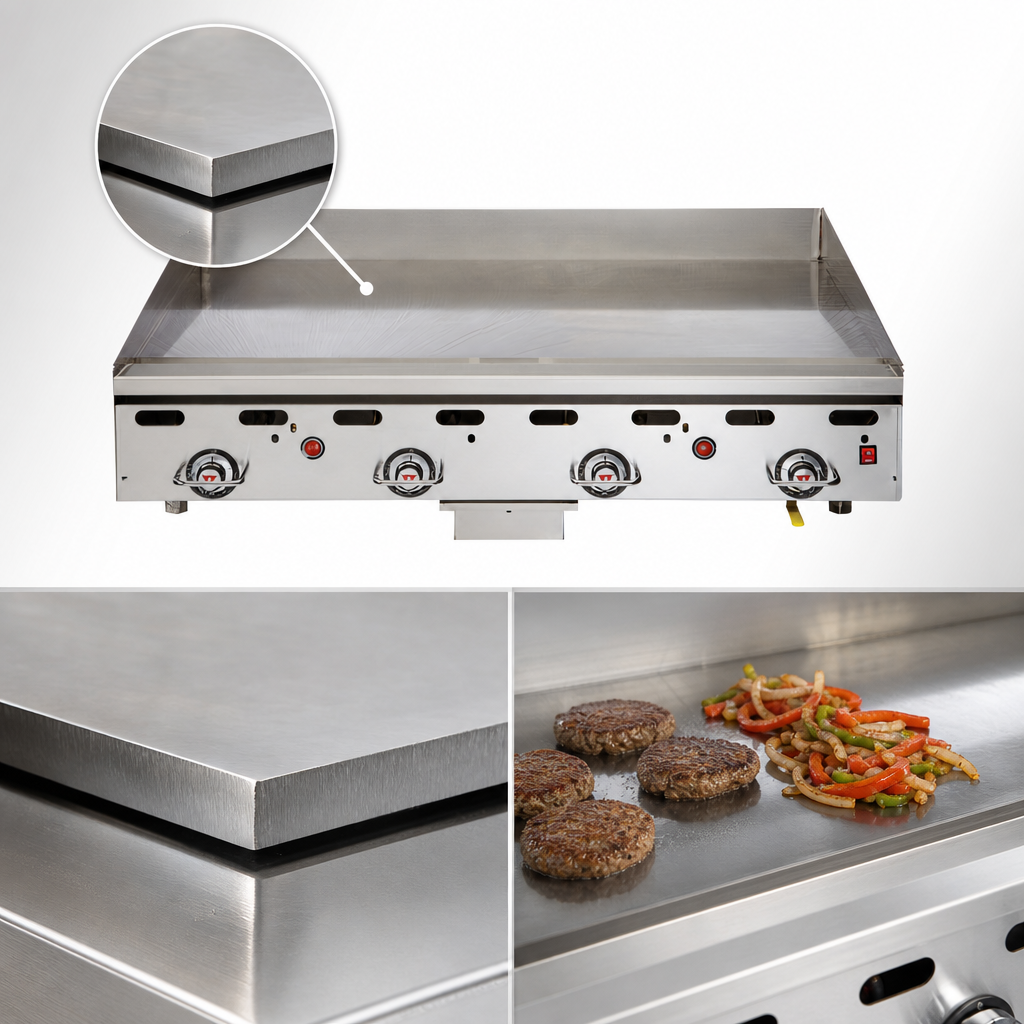

1-Inch Polished Steel Plate
Thick polished steel griddle plate provides strong heat retention and even cooking performance.
Thermostatic Zone Control
Embedded mechanical snap-action thermostat is positioned every 12 inches and adjusts from 200°F to 550°F.
High-BTU Burner System
One 27,000 BTU burner is used for every 12 inches of griddle width, totaling 162,000 BTU.
Millivolt Pilot Safety
Pilot safety valve shuts off gas to the pilot and burners if the pilot extinguishes.
Dual Ignition System
Supports either manual or electric spark ignition for flexible start-up.
Stainless Steel Construction
Stainless steel front, sides, and top ledge with 4-inch back and tapered side splashes.
Front Grease Management
Front grease trough with two 6-quart grease drawers on the 72-inch model simplifies cleanup.
Low-Profile Installation
Designed with an 11-inch cooking height on 4-inch adjustable legs for a low-profile footprint.
Service Connections
Includes a front manifold gas shut-off valve, 3/4-inch rear gas connection, gas pressure regulator, and 120V ignition circuit.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
