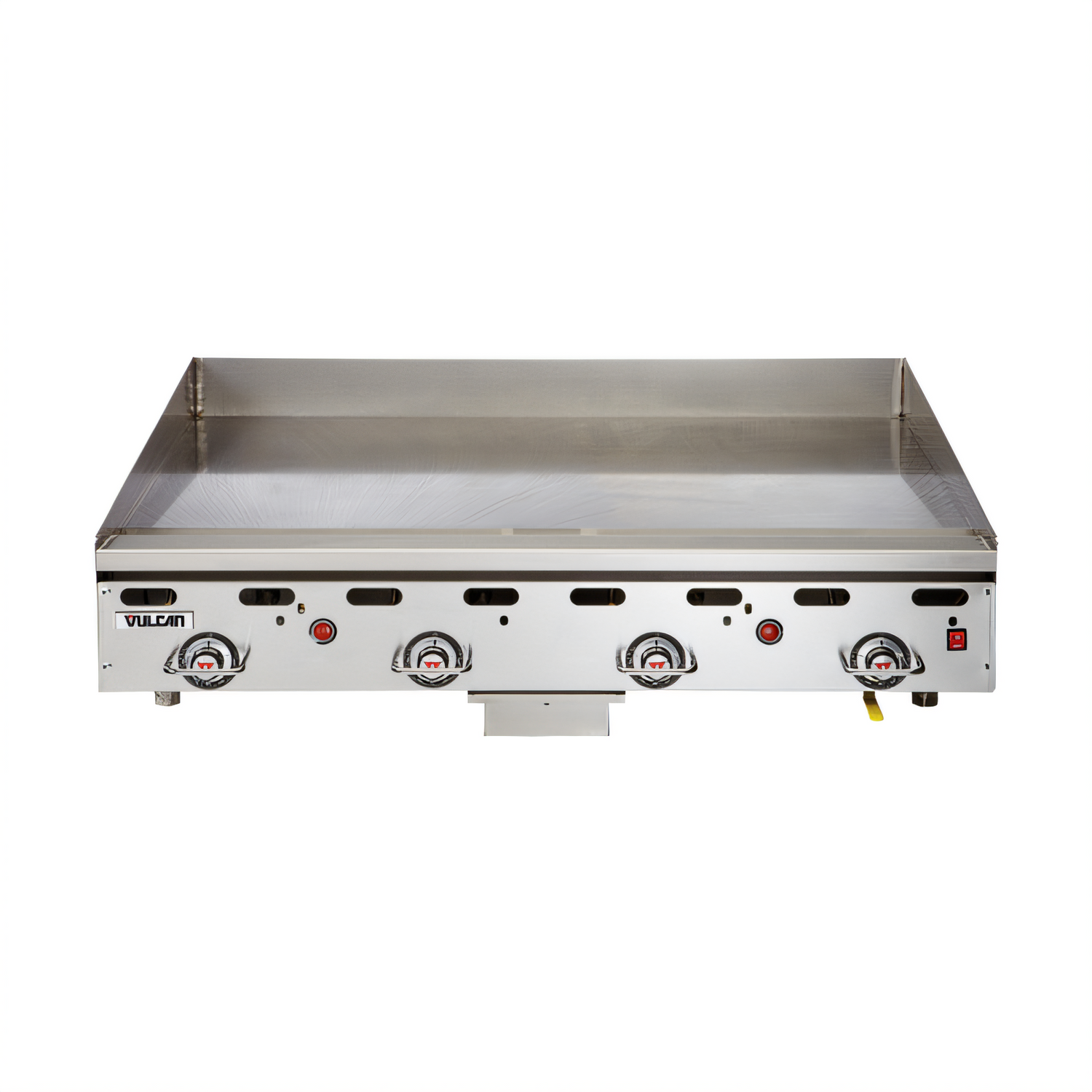

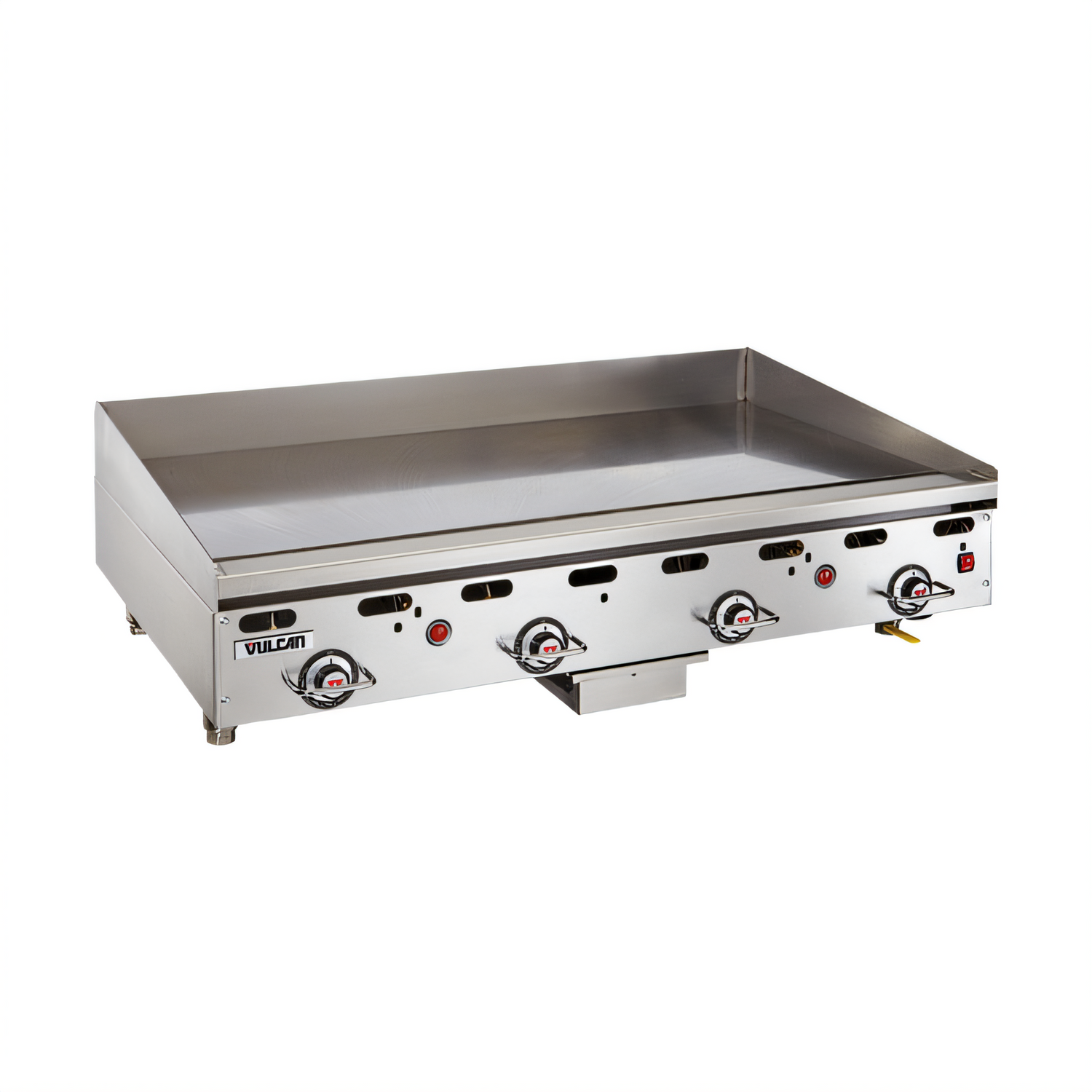

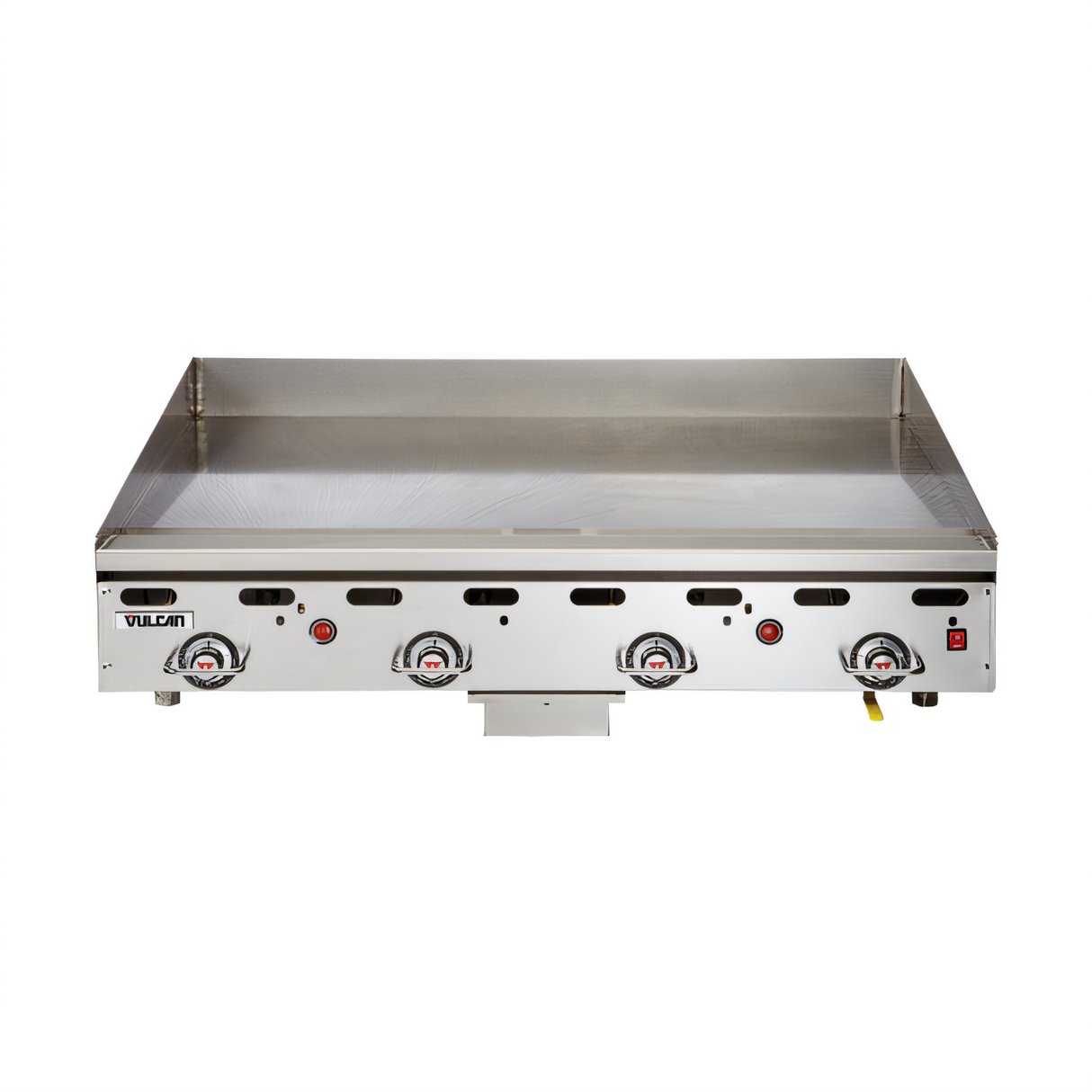

Vulcan Heavy Duty Deep Countertop Gas Griddle, 72-Inch x 30-Inch Cooking Surface, 162,000 BTU
Vulcan Heavy Duty Deep Countertop Gas Griddle, 72-Inch x 30-Inch Cooking Surface, 162,000 BTU
Low Profile, 1-Inch Polished Steel Plate
Built for high-volume cooklines, this deep 72-inch griddle pairs six burners and zone-by-zone thermostat control with a thick steel plate for dependable heat.
- 72-Inch x 30-Inch deep cooking surface supports high-volume service.
- 1-inch polished steel plate promotes even heat transfer and durable daily use.
- Six 27,000 BTU burners deliver 162,000 BTU total output.
- Embedded snap-action thermostats control heat in 12-inch zones from 200°F to 550°F.
- Stainless steel front and sides with a low-profile design fit busy cooklines.
- Front grease trough, welded grease gutter/chute, and dual grease drawers simplify cleanup.
- Dual manual/electric ignition, pilot safety, and a front shut-off valve help with safe operation.
Overall Dimensions:
72.0"W x 37.5"D x 15.25"HProduct Weight:

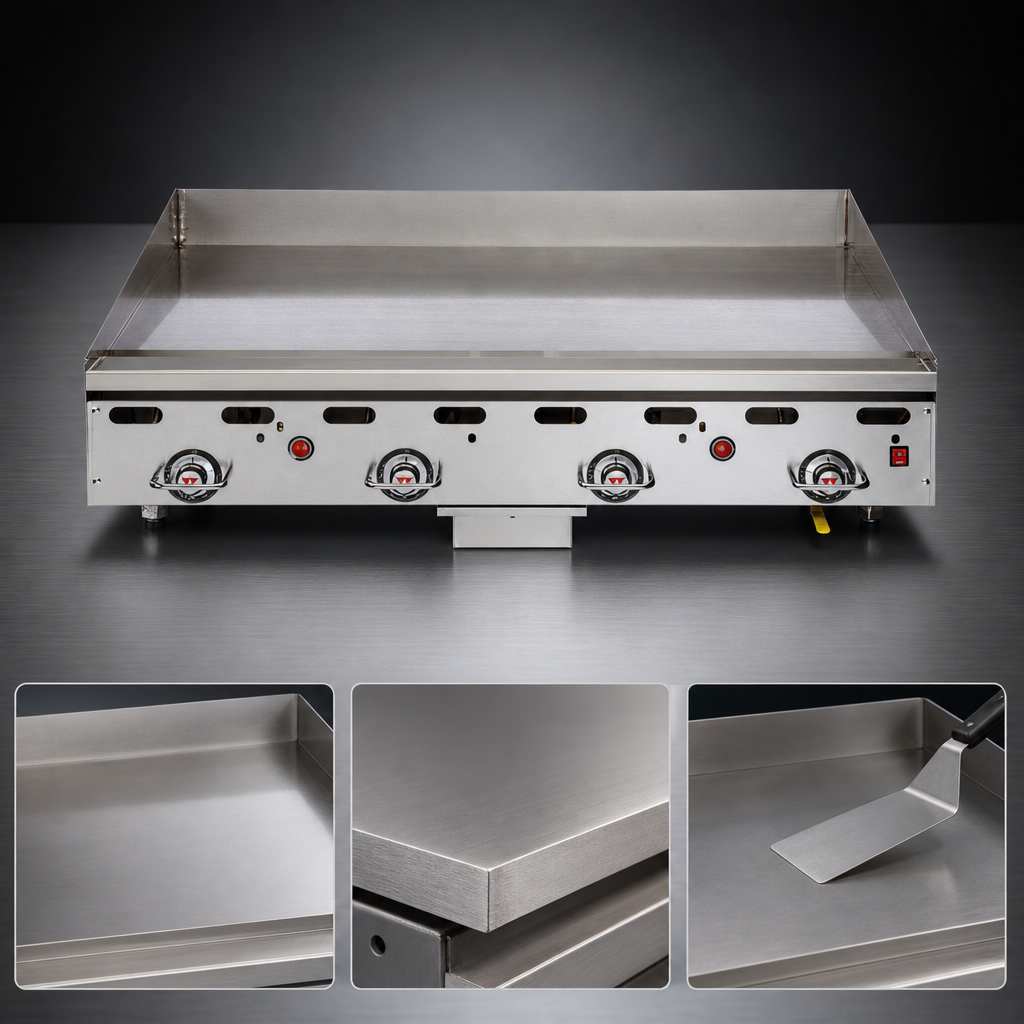

790.0 lb1-Inch Polished Steel Plate
Heavy-duty smooth plate is built for even heat transfer and long service life.

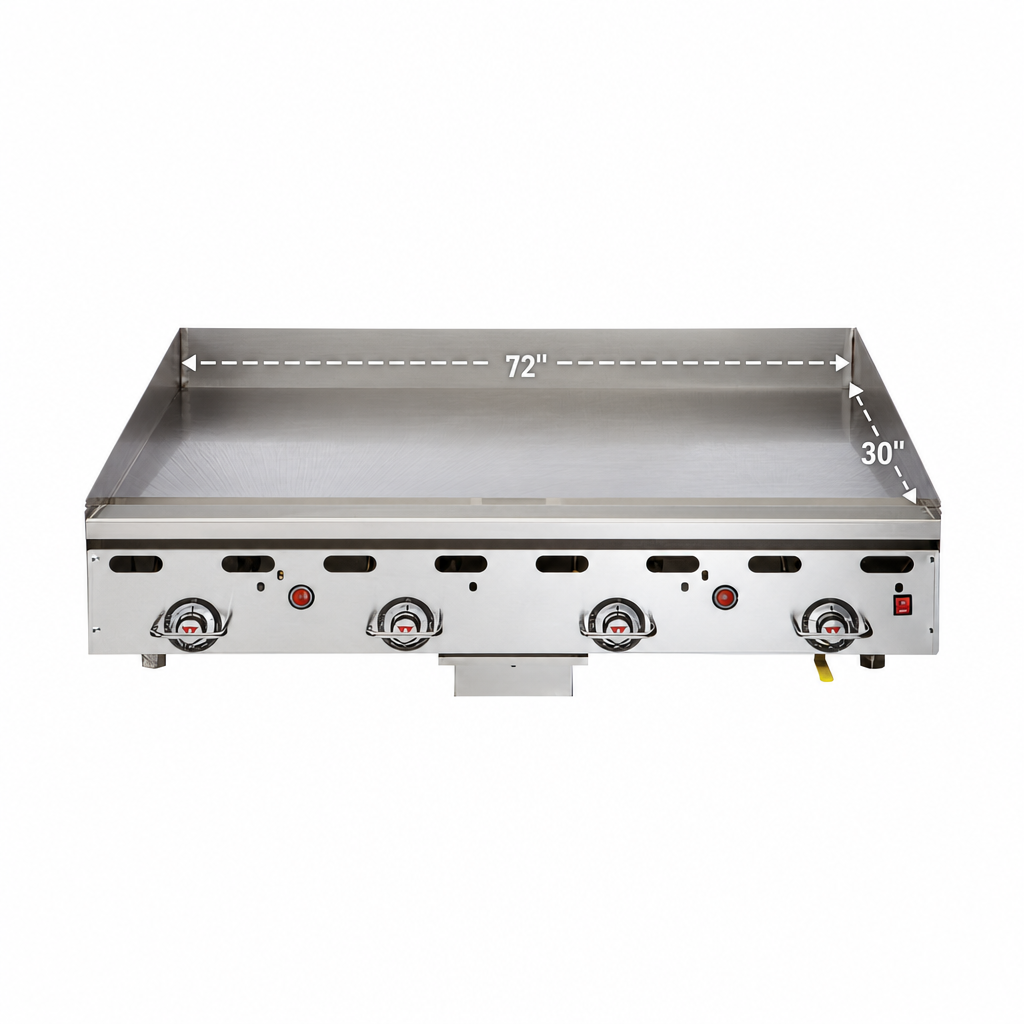

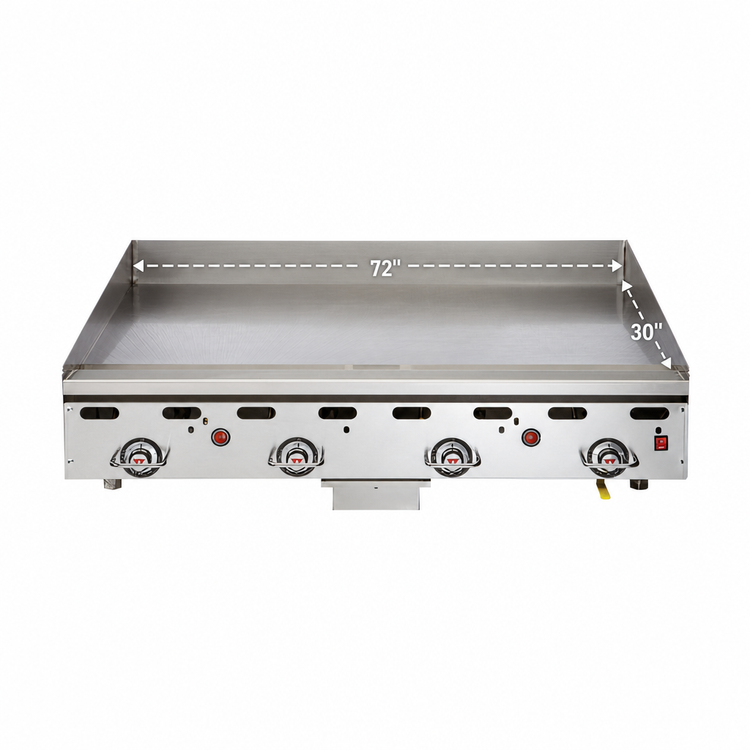

72-Inch x 30-Inch Deep Cooking Surface
Large, deep cooking area supports high-volume production across the line.
Six High-Output Burners
One 27,000 BTU/hr burner per 12 inches of width provides 162,000 BTU total.
Thermostatic Heat Zones
Embedded mechanical snap-action thermostats provide independent zone control and adjust from 200°F to 550°F.
Dual Ignition and Pilot Safety
Manual/electric ignition is paired with millivolt pilot safety that shuts off gas if the pilot extinguishes.
Front Manifold Gas Shut-Off Valve
Front-access shut-off valve simplifies service and quick gas shutdown.
Stainless Steel Low-Profile Body
Stainless steel front and sides with a compact low-profile design and 4-inch adjustable legs.
Grease Management System
Front grease trough, welded gutter/chute, and dual grease drawers help contain drippings and speed cleanup.
120V Ignition Circuit
Single-phase ignition circuit uses a 120V connection with an 8-foot cord and NEMA 5-15 USA plug.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
