Vulcan

Vulcan QuickFry™ 4VHG70CF 4-Tank Gas Fryer Battery, 70 lb per Vat, Computer Controls, Built-In Filtration

SKU: 4VHG70CF
$60,924.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

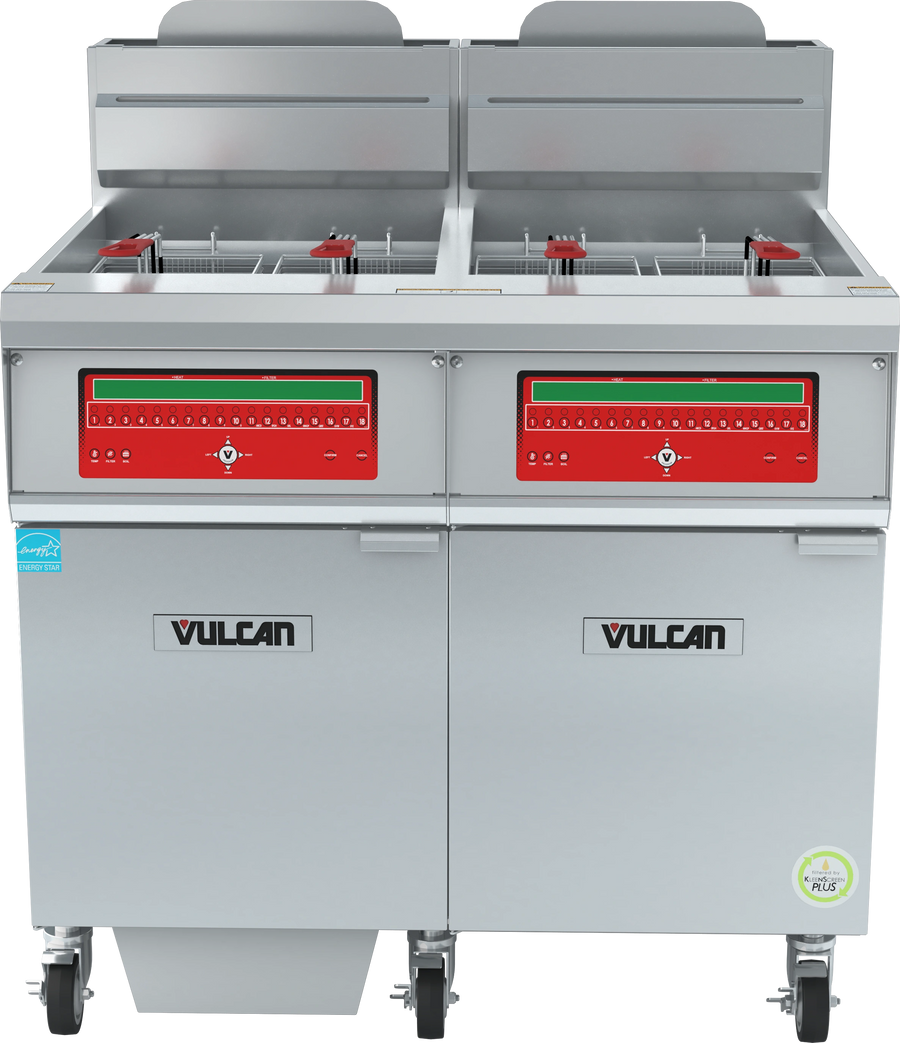

The Vulcan QuickFry™ 4VHG70CF is a four-tank gas fryer battery with 70 lb capacity per vat, programmable computer controls, and a built-in KleenScreen PLUS® filtration system.

Its controls provide 18 menu timers, digital temperature display, three melt modes, USB menu transfer, and automatic or manual boil-out. Each fryer has electronic ignition and 150–390°F temperature control.

Stainless steel cabinet and fry tanks, twin fry baskets, and adjustable casters support commercial installation. The battery has a documented total input of 440,000 BTU/hr and requires 120V, 50/60 Hz, single-phase power.

Overall Dimensions:

78.25"W x 33.5"D x 47.75"H

Product Weight:

871.0 lb

Programmable computer controls

Digital character display with 18 menu timers that show product names and cook times; menus can be transferred through USB.

Built-in KleenScreen PLUS filtration

Built-in filtration system with one-touch pump operation, stainless steel mesh filter screen, and an 8 gal/min pump rate.

Four-vat configuration

Four fryer tanks provide 70 lb oil capacity per vat.

Gas heating

Electronic matchless ignition with 110,000 BTU/hr input per vat for natural gas or 100,000 BTU/hr per vat for propane.

Stainless steel construction

Stainless steel cabinet and fry tanks.

Commercial frying controls

150–390°F temperature control, three melt modes, and automatic or manual boil-out.

Operational safety features

Includes hi-limit shut-off, dry-fire prevention, and a drain valve interlock that turns off gas burners when draining oil.

Mobility and baskets

Includes twin fry baskets and 6 in adjustable casters with two swivel locking and two non-locking casters.

Related Searches

Best Sellers Commercial Fryers Cooking Equipment Digital Kitchen Timers Equipment Fryers Gas Fryers Kitchen Timers & Food Thermometers New Arrivals Smallwares Vulcan
Fryer type Gas battery fryer
Fryer quantity 4 tanks
Capacity per vat 70 lb
Control type Programmable computer controls
Temperature range 150–390°F
Melt modes 3
Frying area per vat 18 1/8 in x 14 1/8 in
Oil depth 4 1/2 in
Total gas input 440,000 BTU/hr
Gas input per vat 110,000 BTU/hr natural gas; 100,000 BTU/hr propane
Gas type Natural gas or propane gas
Ignition Electronic matchless ignition
Filtration system KleenScreen PLUS built-in filtration
Filter pan capacity 90 lb
Filter pan material 16-gauge stainless steel
Filter area 462 sq in
Filter pump rate 8 gal/min at 60 Hz
Filter motor 1/3 HP
Construction Stainless steel cabinet and fry tanks
Fryer baskets Twin fry baskets
Casters 6 in adjustable casters; 2 swivel locking and 2 non-locking
Production 111 lb/hr per tank
Electrical requirement 120V, 50/60 Hz, 1 phase
Electrical current 7.8 A
Gas connection 1 1/4 in NPT-F rear connection

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited parts and labor warranty with a 10-year limited fry tank warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four gas fryer tanks.
Each vat has a documented capacity of 70 lb.
Yes. It has a built-in KleenScreen PLUS filtration system.
It uses programmable computer controls with a digital character display and 18 menu timers.
It is configured for natural gas or propane gas and requires 120V, 50/60 Hz, single-phase power. Input is 110,000 BTU/hr per vat for natural gas or 100,000 BTU/hr per vat for propane.
The product is 78.25 in wide, 33.5 in deep, and 47.75 in high, with a listed weight of 871 lb.
The product is specified without basket lifts.
The cutsheet lists a one-year limited parts and labor warranty and a 10-year limited fry tank warranty.
