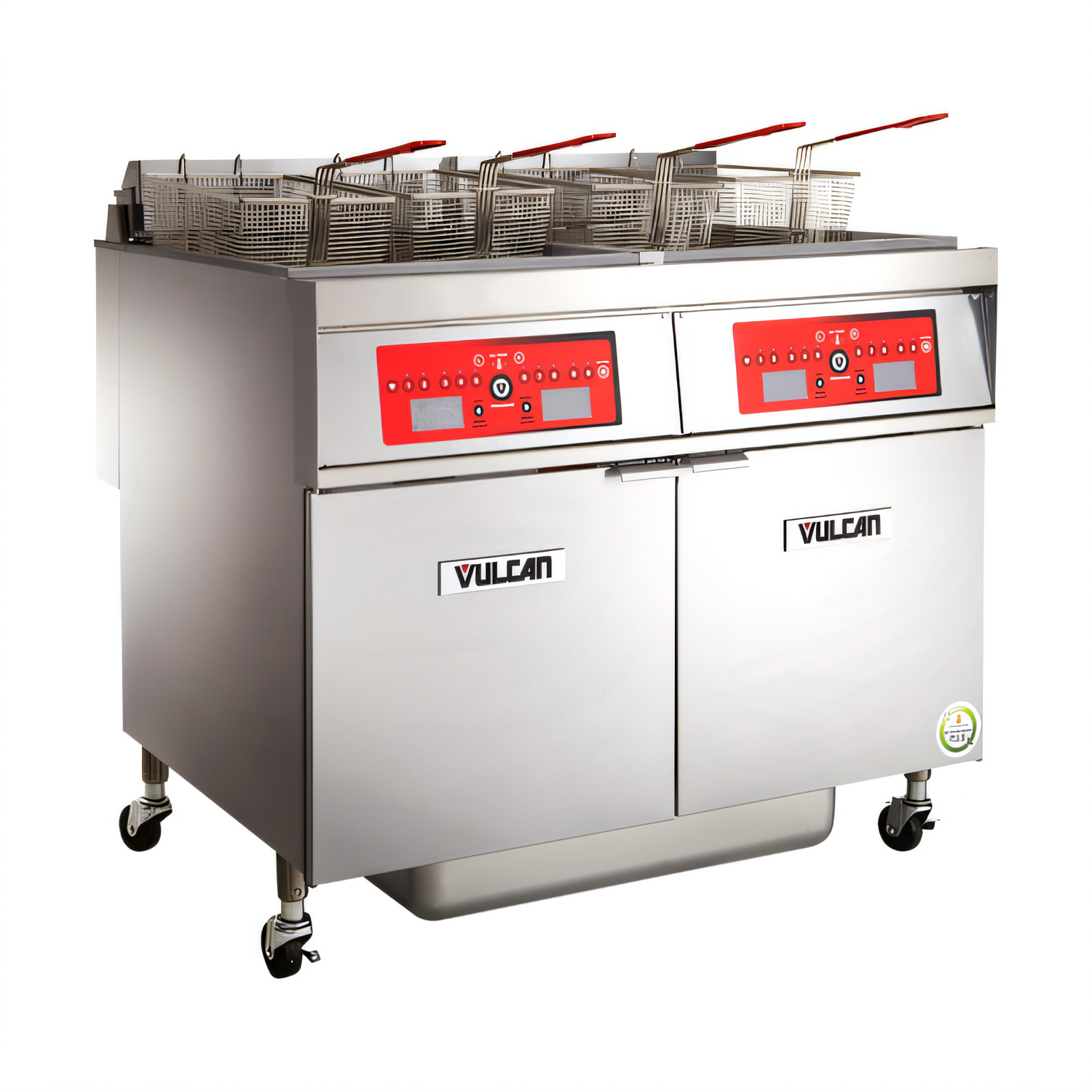

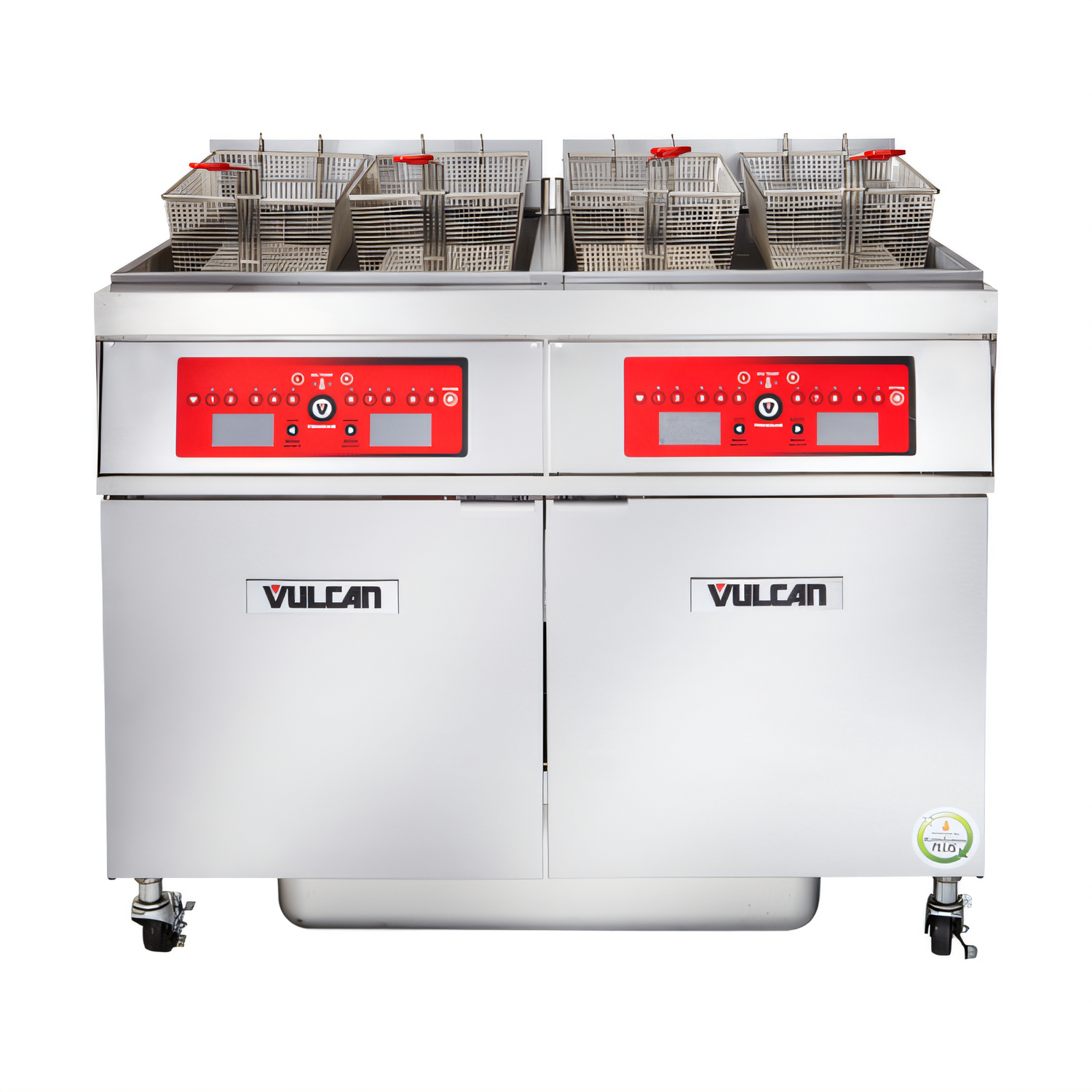

Vulcan 4ER50DF Four-Battery Electric Deep Fat Fryer with Digital Controls and KleenScreen PLUS Filtration, 50-Lb. Vats

SKU: 4ER50DF
$57,273.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Electric Fryers Food Prep Equipment Fryers New Arrivals Restaurant Equipment Vulcan

Vulcan 4ER50DF Four-Battery Electric Deep Fat Fryer with Digital Controls and KleenScreen PLUS Filtration, 50-Lb. Vats

Floor Model with Stainless Steel Cabinet and Fry Tank

Built for high-volume frying, this four-battery floor model combines precise digital controls, integrated KleenScreen PLUS filtration, and durable stainless steel construction to keep service moving.

  • Four 50-lb. vats provide ample capacity for busy kitchens.
  • Digital solid-state controls with melt cycles help maintain consistent frying performance.
  • Built-in KleenScreen PLUS filtration streamlines oil management and cleanup.
  • Stainless steel cabinet and fry tank are built for heavy-duty commercial use.
  • Twin fry baskets and adjustable legs come standard.
  • ENERGY STAR efficiency supports lower operating costs.

Overall Dimensions:

62.0"W x 34.38"D x 36.25"H

Product Weight:

927.0 lb

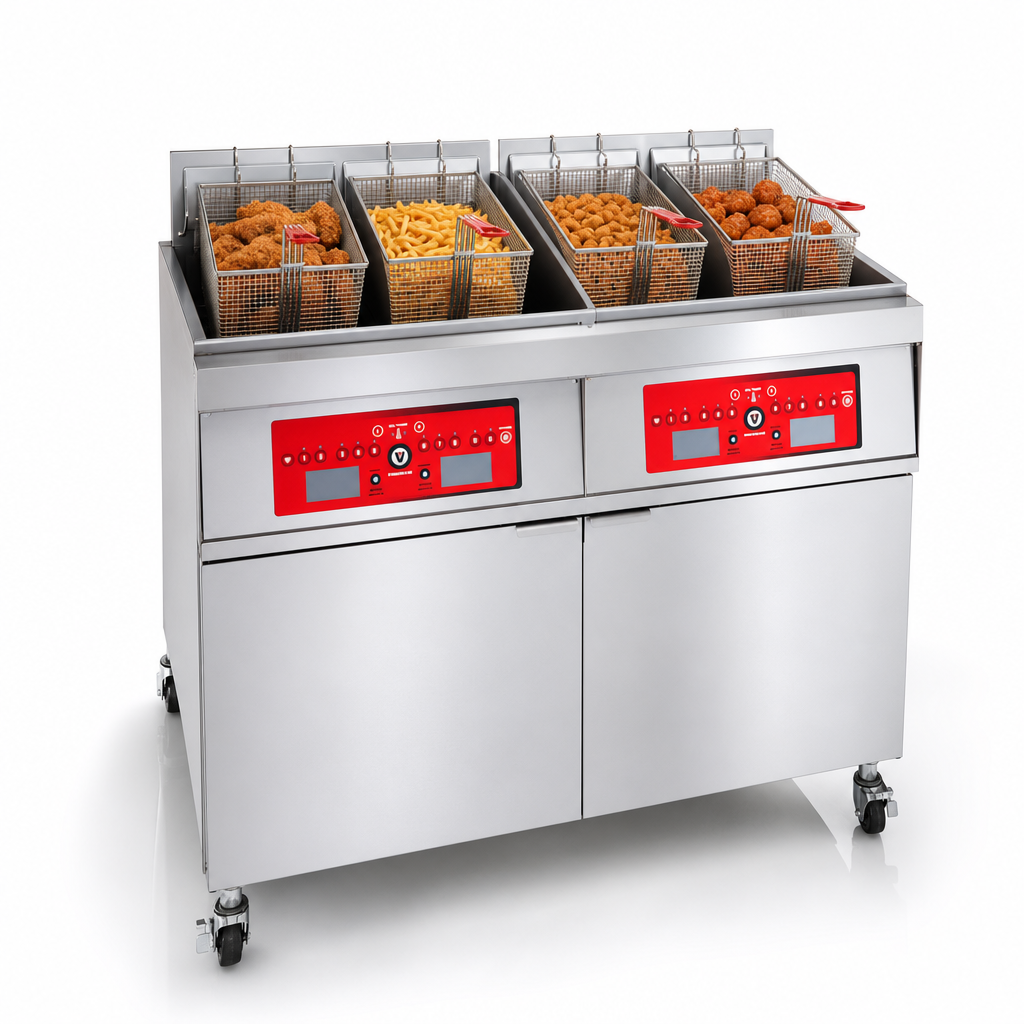

Four-Battery Frying Capacity

Four separate 50-lb. vats support high-volume production and menu separation.

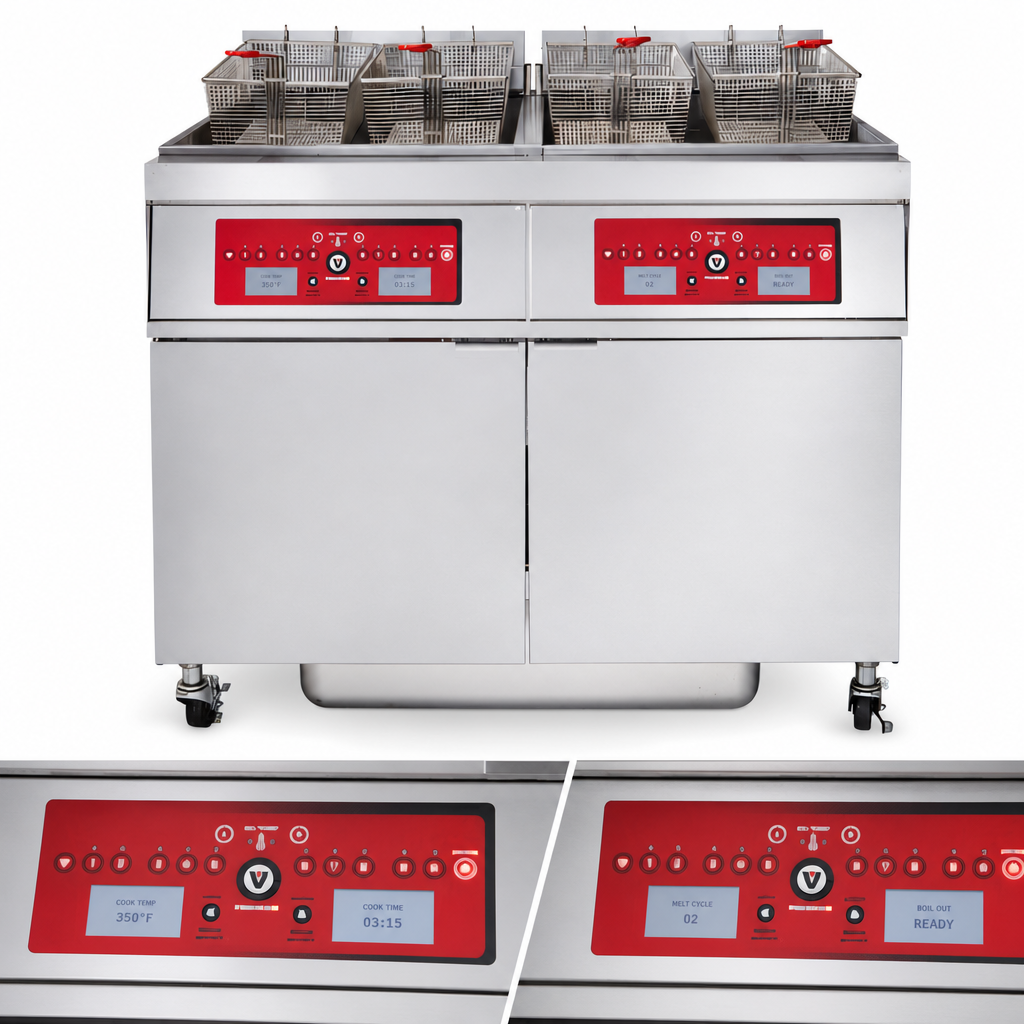

Digital Solid-State Controls

Accurate temperature control from 200°F to 390°F with multiple melt cycles, boil-out mode, and countdown timers.

KleenScreen PLUS Filtration System

Built-in drawer-style filtration helps recirculate oil and includes a drain valve interlock switch for safer draining and cleaning.

Stainless Steel Construction

Stainless steel cabinet and fry tank provide durability and easy cleanup.

Twin Fry Baskets

Standard twin baskets with plastic-coated handles are included.

High-Output Heating Elements

17 kW low watt density ribbon-style heating elements help support fast recovery, with high-limit control for added protection.

Adjustable Legs

Four 6-inch adjustable legs help simplify leveling on uneven floors.

Type Electric Deep Fat Fryer
Style Battery
Installation Type Floor Model
Compartments 4
Capacity 50 lbs per vat
Pan Capacity 70 lbs
Controls Solid State Digital
Temperature Range 200°F to 390°F
Watts 17 kW
Voltage 208 Volts
Hertz 50/60 Hz
Phase 3-Phase
Material Stainless Steel
Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 62 Inches
Shipping Depth 35 Inches
Shipping Height 37 Inches
Shipping Weight 927 lb.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor; 10-year limited fry tank warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Parts list PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The standard power supply is 208 volt, 50/60 Hz, 3 phase. Voltage must be specified when ordering, and a 480 volt, 3 phase option is available.
Each vat has a 50 lb. capacity.
Yes. It includes the KleenScreen PLUS built-in filtration system, which is designed to serve up to four fryer cabinets.
The temperature range is 200°F to 390°F.
Standard features include a stainless steel cabinet and fry tank, twin fry baskets, four adjustable legs, high-limit control, and a full-port drain valve.
