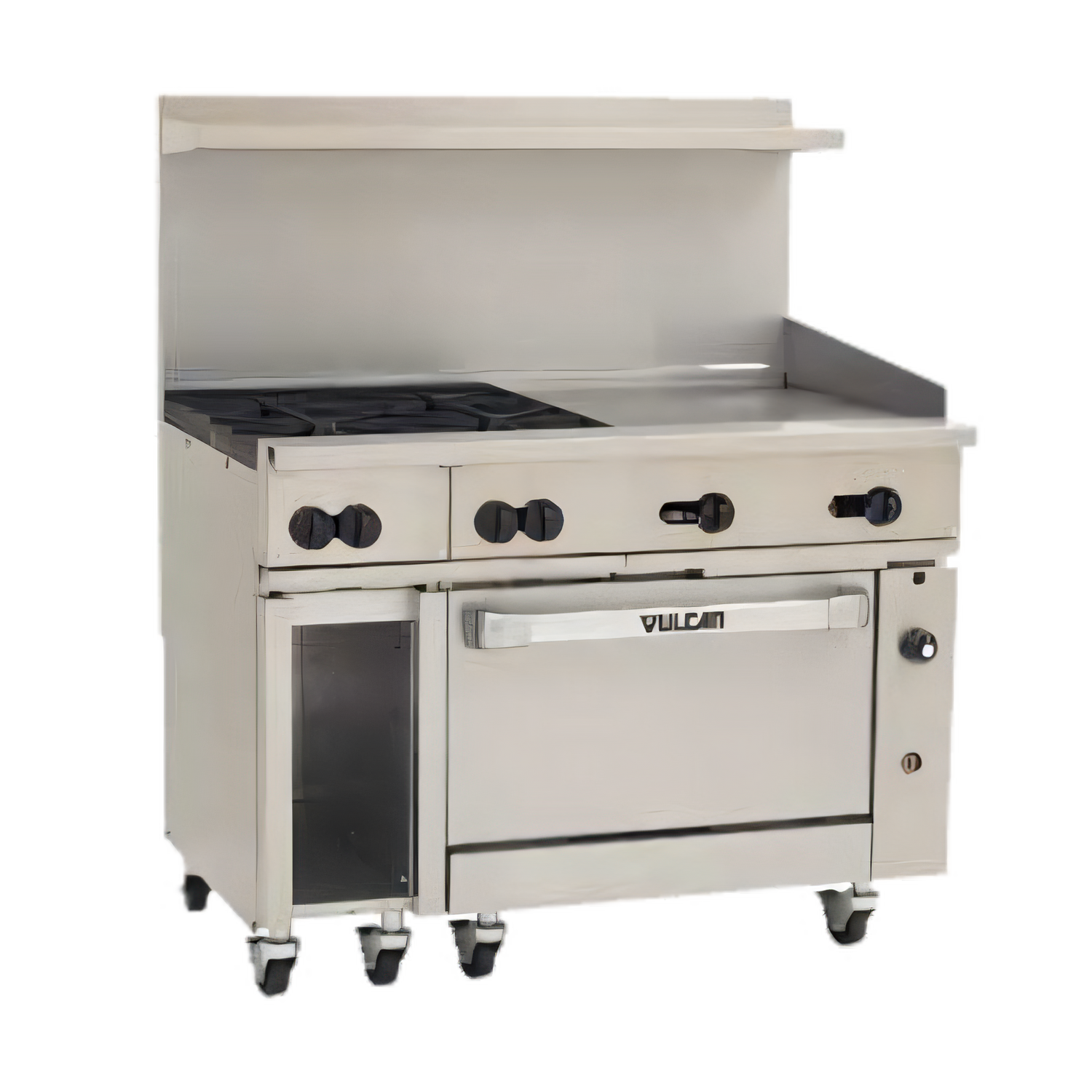

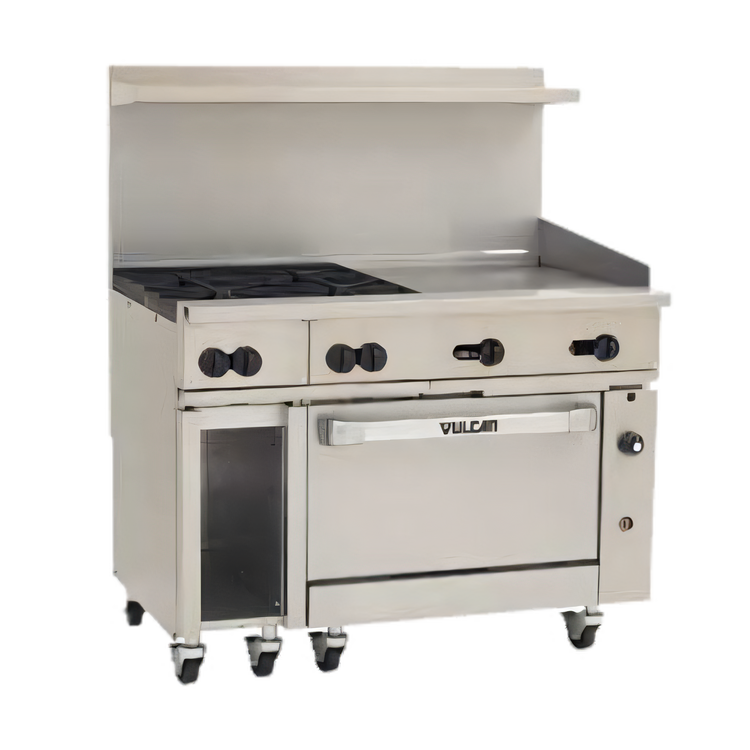

Vulcan Endurance 48-Inch Commercial Gas Range with 4 Open Burners, 24-Inch Griddle, Convection Oven and Cabinet Base

SKU: 48C-4B24GT
$17,694.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan Endurance 48-Inch Commercial Gas Range with 4 Open Burners, 24-Inch Griddle, Convection Oven and Cabinet Base

Stainless Steel Construction, 3/4-Inch Griddle Plate, 195,000 BTU

This 48-inch gas range packs burners, a thermostatic griddle, and a convection oven into one durable stainless steel footprint for versatile high-volume cooking.

  • Four 30,000 BTU open burners with lift-off heads support fast, flexible cooking and easier cleaning.
  • The 24-inch griddle features a 3/4-inch thick plate and thermostatic controls for consistent flat-top performance.
  • Integrated convection oven and cabinet base add baking capability and extra utility in one footprint.
  • Stainless steel front, sides, backriser, and lift-off high shelf are built for daily commercial use.
  • A 4-inch front grease trough helps capture drippings during griddle cooking.
  • 6-inch adjustable legs simplify leveling on uneven floors.
  • NSF, CSA Flame, and CSA Star listings provide added confidence.

Overall Dimensions:

48.0"W x 34.0"D x 58.0"H

Product Weight:

780.0 lb

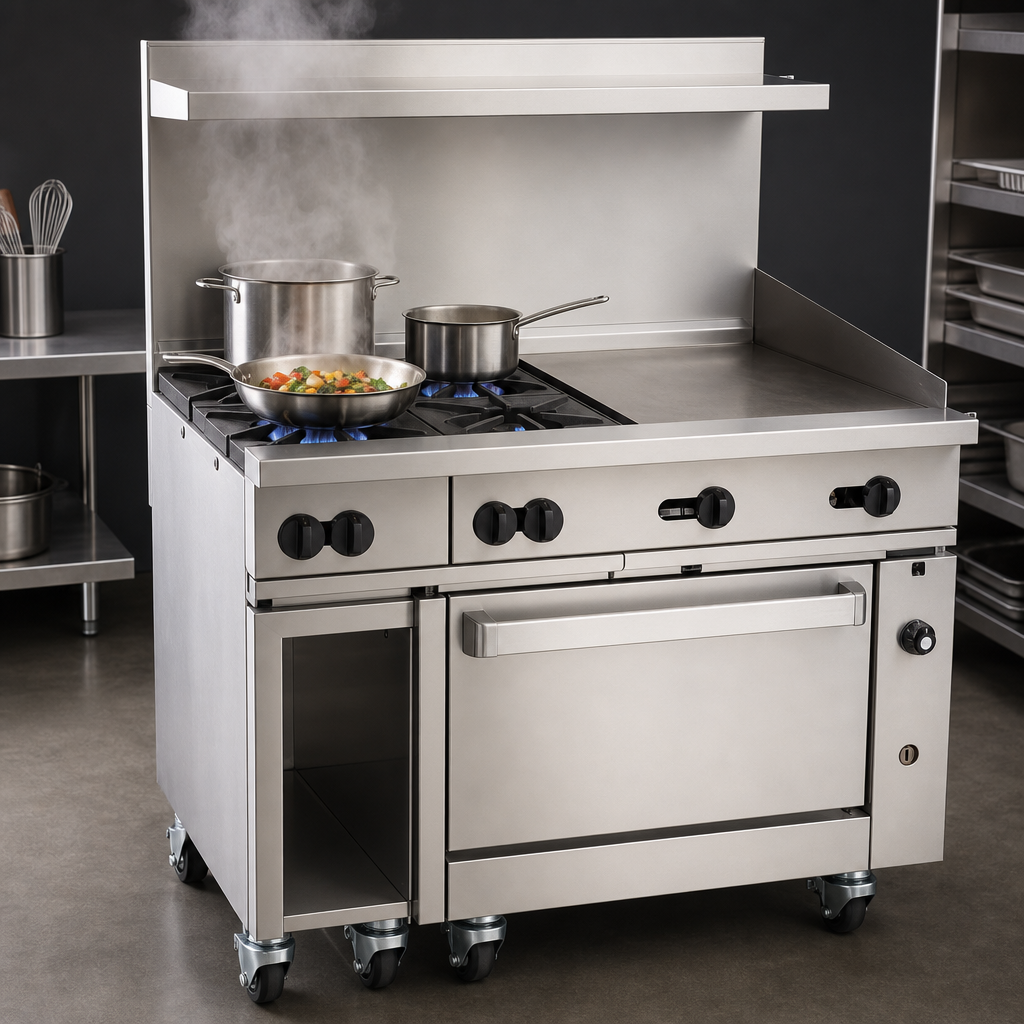

Four 30,000 BTU Open Burners

High-output burners support boiling, sautéing, and general range cooking.

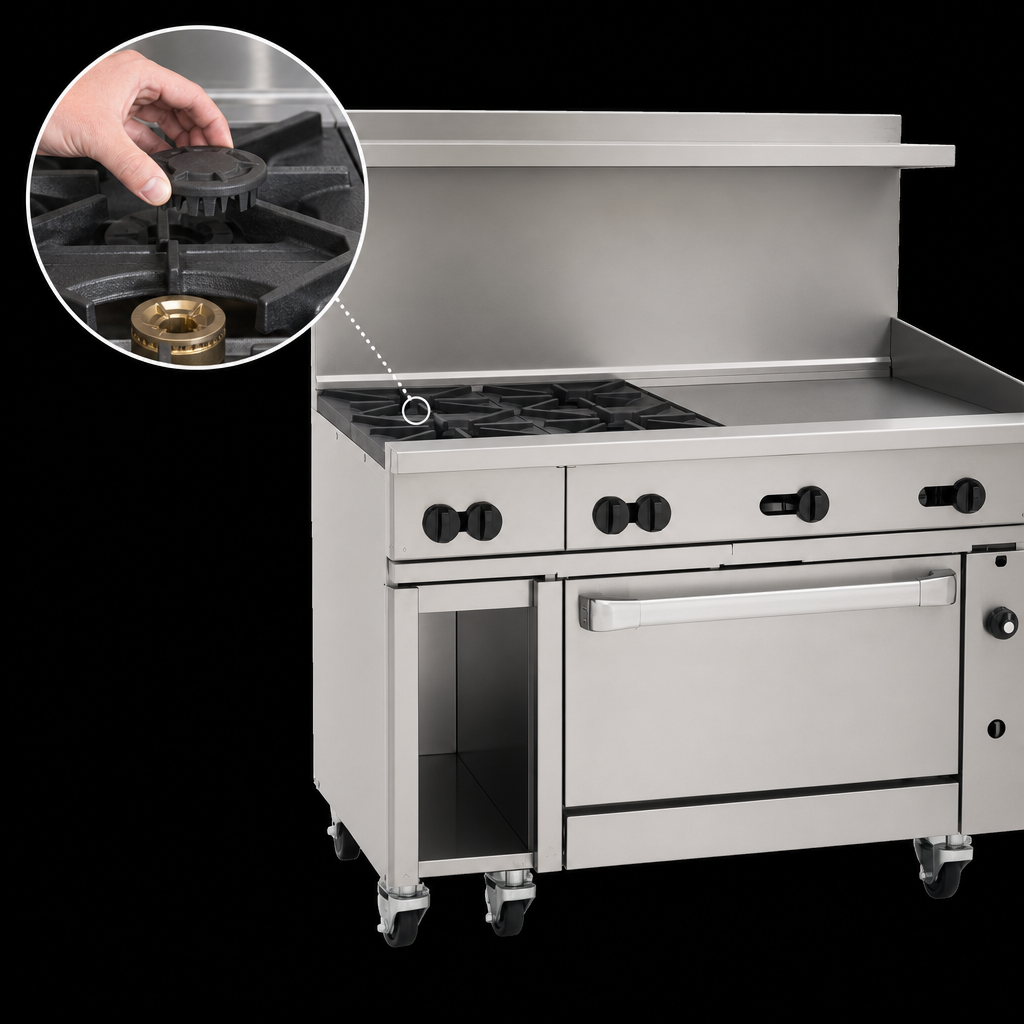

Lift-Off Burner Heads

Removable burner heads make routine cleaning and service easier.

24-Inch Thermostatic Griddle

The 3/4-inch thick plate provides even heat and precise temperature control for griddle service.

Convection Oven and Cabinet Base

Built-in lower section adds convection cooking capability with a cabinet section beneath the top.

4-Inch Front Grease Trough

Helps collect grease and runoff from the griddle for easier cleanup.

Stainless Steel Front, Sides, Backriser, and High Shelf

Durable, easy-to-clean construction with a professional appearance.

Fully MIG Welded Chassis

Heavy-duty welded frame is designed for demanding commercial kitchen use.

6-Inch Adjustable Legs

Helps level the range and adjust to floor conditions during installation.

195,000 BTU Total Output

High total heat output supports high-volume cooking and quick recovery.

Type Restaurant Range
Style Combination Range
Installation Type Floor Model
Burners 4
Griddle Width 24 Inches
Plate Thickness 3/4 Inch
Oven Type Convection
BTU 195,000 BTU
Controls Thermostatic
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 34 Inches
Shipping Height 58 Inches
Shipping Weight 780 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The top includes four 30,000 BTU open burners and one 24-inch griddle with thermostatic controls.
Yes, it includes a convection oven in the base.
The griddle plate is 3/4 inch thick.
The range is rated at 195,000 BTU.
NSF, CSA Flame, and CSA Star.
It measures 48 inches wide, 34 inches deep, and 58 inches high.
