Vulcan

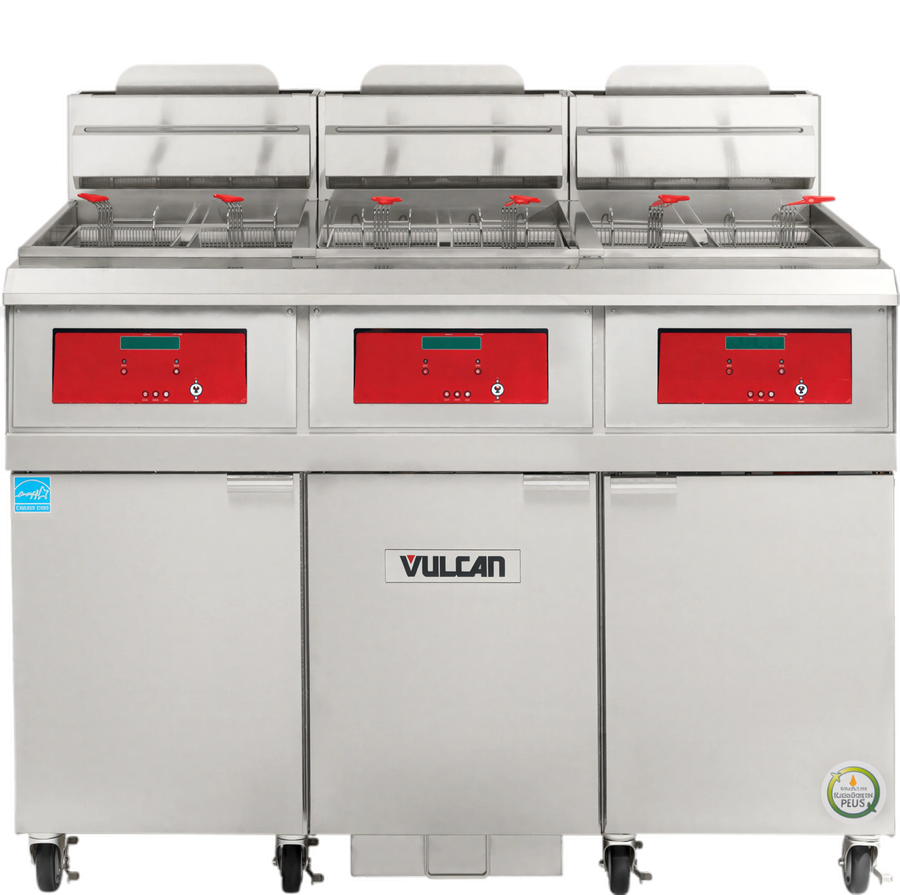

Vulcan QuickFry™ 3VHG50DF Gas Fryer, 3-Tank, 50 lb Each, Digital Controls, Built-In Filtration, Stainless Steel

SKU: 3VHG50DF
$40,548.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Vulcan QuickFry 3VHG50DF is a commercial three-tank gas fryer with 50 lb capacity per vat, digital controls, electronic ignition, and built-in KleenScreen PLUS filtration.

  • Stainless steel cabinet and fry tanks
  • Three melt modes, two countdown timers, and auto or manual boil-out
  • Twin fry baskets and adjustable casters
  • ENERGY STAR, CSA, and NSF listed or certified

Overall Dimensions:

46.75"W x 33.5"D x 47.75"H

Product Weight:

717.0 lb

Digital controls

Provides 150–390°F temperature control, Fahrenheit or Celsius display, three melt modes, compensating or actual cook time, two countdown timers, and auto or manual boil-out.

Built-in filtration

KleenScreen PLUS filtration includes a 90 lb filter pan, 462 sq. in. filter area, and an 8 gal/min pump rate.

Three-tank configuration

Includes three fry tanks with 50 lb capacity per vat.

Stainless steel construction

The cabinet and fry tanks are stainless steel.

Electronic ignition

Uses electronic matchless ignition.

Standard frying equipment

Includes twin fry baskets and adjustable casters with two swivel locking and two non-locking casters.

Related Searches

Best Sellers Commercial Fryers Cooking Equipment Digital Kitchen Timers Equipment Fryers Gas Fryers Kitchen Timers & Food Thermometers New Arrivals Smallwares Vulcan
Product type Battery gas fryer
Fryer quantity 3 tanks
Vat capacity 50 lb each
Controls Digital control
Temperature range 150–390°F
Melt modes 3
Filtration KleenScreen PLUS built-in filtration system
Ignition Electronic ignition
Cabinet and fry tank Stainless steel
Baskets Twin baskets
Casters Adjustable; 2 swivel locking and 2 non-locking
Gas input 225,000 BTU
Electrical requirements 120 V, 50/60 Hz, 1 phase; NEMA 5-15P
Filter pan capacity 90 lb
Filter area 462 sq. in.
Pump rate 8 gal/min
Motor 1/3 HP
Electrical current 7.5 A
Production 60 lb/hr per tank

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited parts and labor warranty, with a 10-year limited fry tank warranty stated in the product cutsheet.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three fry tanks, each with a 50 lb capacity.
It uses digital controls with 150–390°F temperature control, three melt modes, two countdown timers, and auto or manual boil-out.
Yes. It has a built-in KleenScreen PLUS filtration system.
The fryer measures 46.75 in wide, 33.5 in deep, and 47.75 in high.
It requires 120 V, 50/60 Hz, single-phase power with a NEMA 5-15P connection.
The cutsheet states a one-year limited parts and labor warranty and a 10-year limited fry tank warranty.
