Key specifications

BTU
50,000 BTU/hr
Gas Type
Natural Gas
Dimensions
36.0"W × 19.0"D × 17.63"H
Type
Salamander Broiler
Style
Radiant
Material
Stainless Steel
Spec sheet
Vulcan SKU: 36RB-N

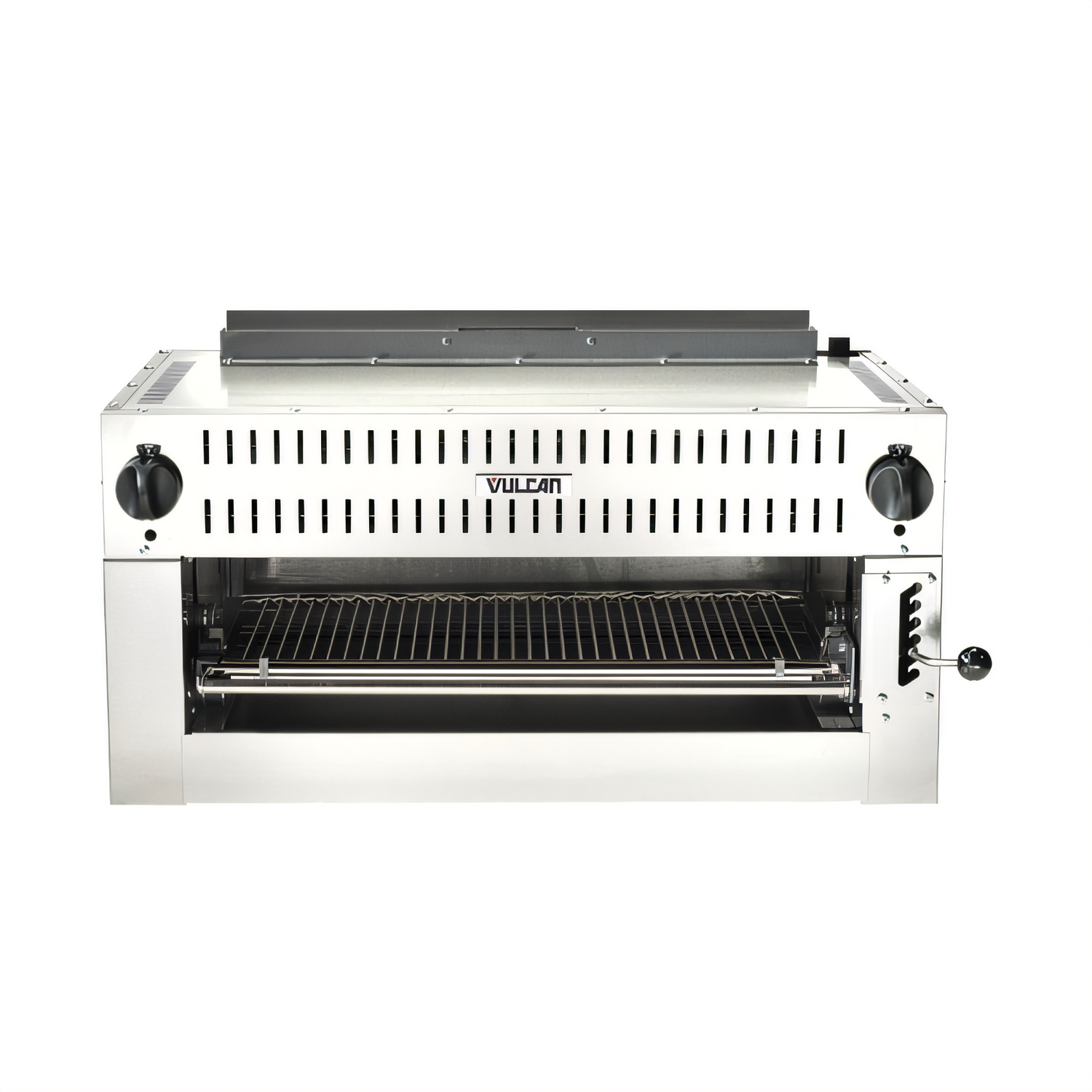

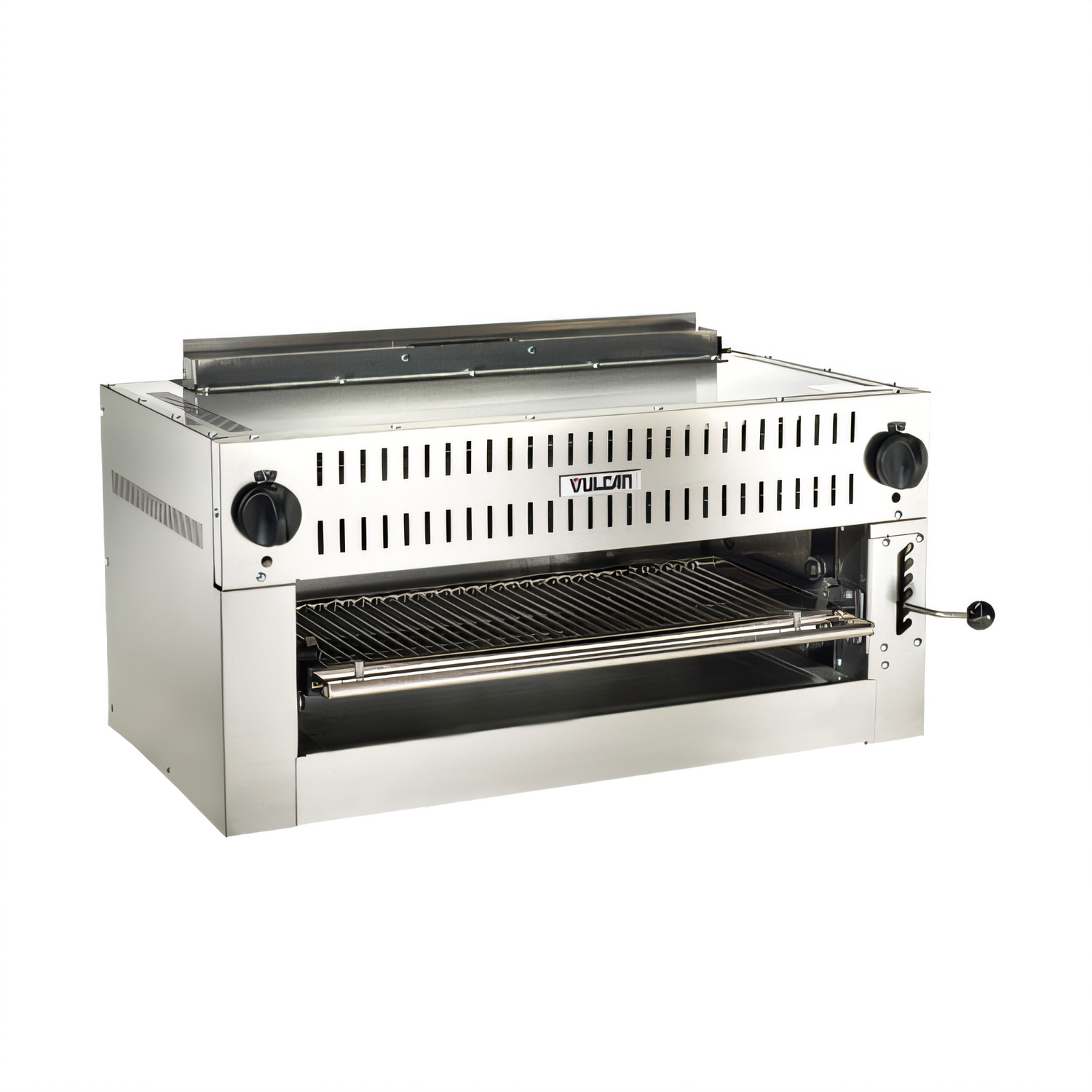

Vulcan 36RB-N 36-Inch Natural Gas Salamander Broiler

$3,954.00
/each
Estimated to ship in 8–11 business days Free Shipping
Output
Gas type
Gas Connector
Included: Vulcan warranty One-year limited commercial equipment warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $366/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Style Radiant
Material Stainless Steel
Width 36 Inches
Depth 19 Inches
BTU 50,000 BTU/hr
Gas Type Natural Gas
Controls Dual Heat Controls
Grid Positions 6
Burner Count 6
Burner Type Cast Iron
Radiants Stainless Steel
Grid Size 27.5 x 13 Inches
Pan Type Removable Full Width Spillage Pan
Gas Connection 3/4 Inch
Pressure Regulator Included
Temperature Range 250°F–800°F at Rack
Ignition Type Standing Pilot

Description

The Vulcan 36RB-N is a natural gas radiant salamander broiler with a 36-inch width and 50,000 BTU/hr total input.

  • Six 8,300 BTU/hr cast iron burners with stainless steel radiants.
  • Dual heat controls support zone cooking.
  • Six-position broiling carriage with a cool-to-the-touch positioning knob.
  • Heavy-duty chrome-plated grid measures 27.5 inches wide by 13 inches deep.
  • Removable full-width spillage pan.
  • Stainless steel front, top, and sides.
  • Includes a 3/4-inch top gas connection and gas pressure regulator.

Overall Dimensions:

36.0"W x 19.0"D x 17.63"H

Product Weight:

180.0 lb

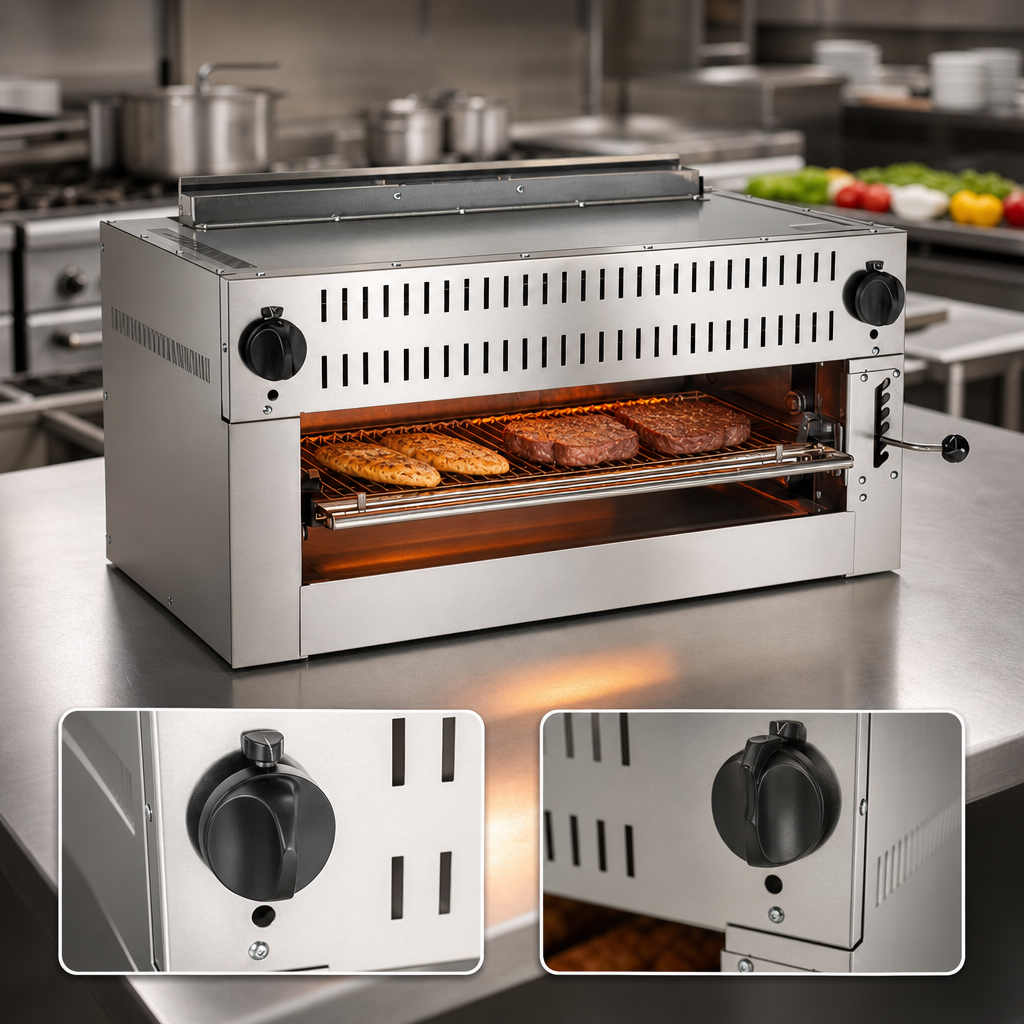

Dual Heat Controls

Supports zone cooking with separate heat controls.

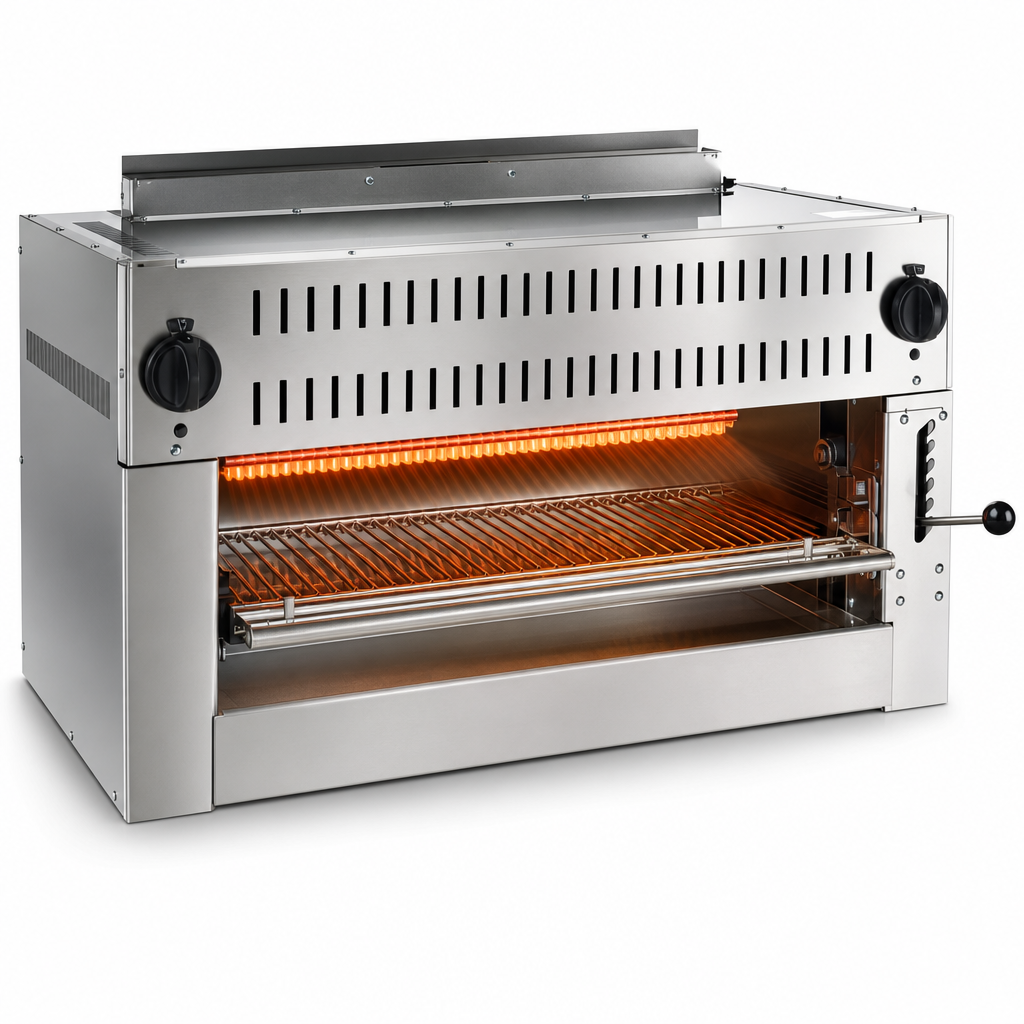

50,000 BTU/hr Input

Uses six 8,300 BTU/hr cast iron burners with stainless steel radiants.

Six-Position Carriage

The broiling carriage provides six positions and uses a cool-to-the-touch positioning knob.

Removable Spillage Pan

Includes a removable full-width spillage pan.

Stainless Steel Exterior

The front, top, and sides are stainless steel.

Chrome-Plated Grid

The heavy-duty grid measures 27.5 inches wide by 13 inches deep.

Gas Connection

Includes a 3/4-inch top gas connection and gas pressure regulator.

Frequently Asked Questions

The 36RB-N is configured for natural gas.
It has a total input of 50,000 BTU/hr.
The broiling carriage has six grid positions.
The product measures 36.0 inches wide, 19.0 inches deep, and 17.63 inches high.
Yes. It includes a gas pressure regulator and a 3/4-inch top gas connection.
