Key specifications

BTU
30,000 BTU
Gas Type
Natural Gas
Dimensions
36.0"W × 19.0"D × 17.63"H
Type
Salamander Broiler
Style
Infrared
Material
Stainless Steel
Spec sheet
Vulcan SKU: 36IRB-N

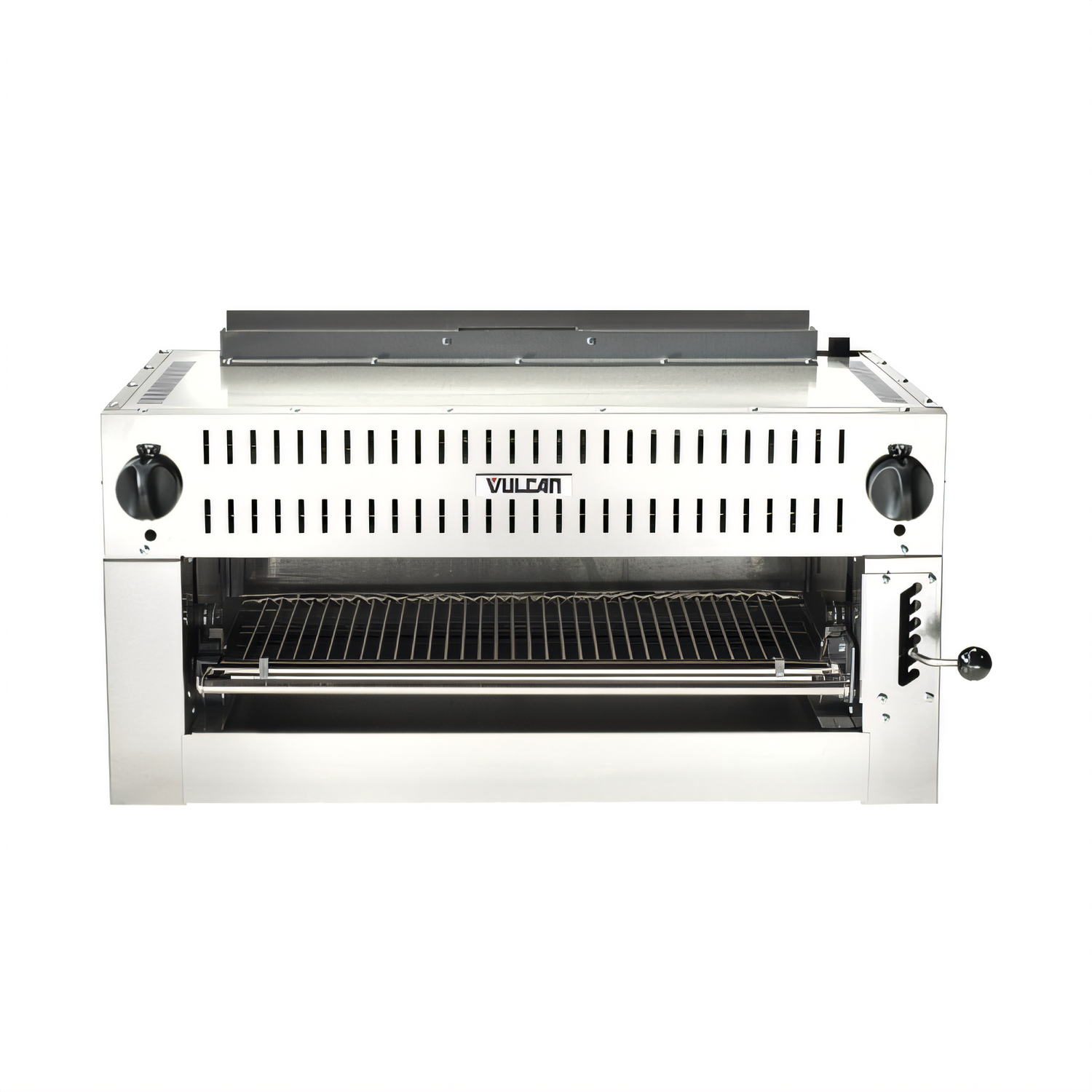

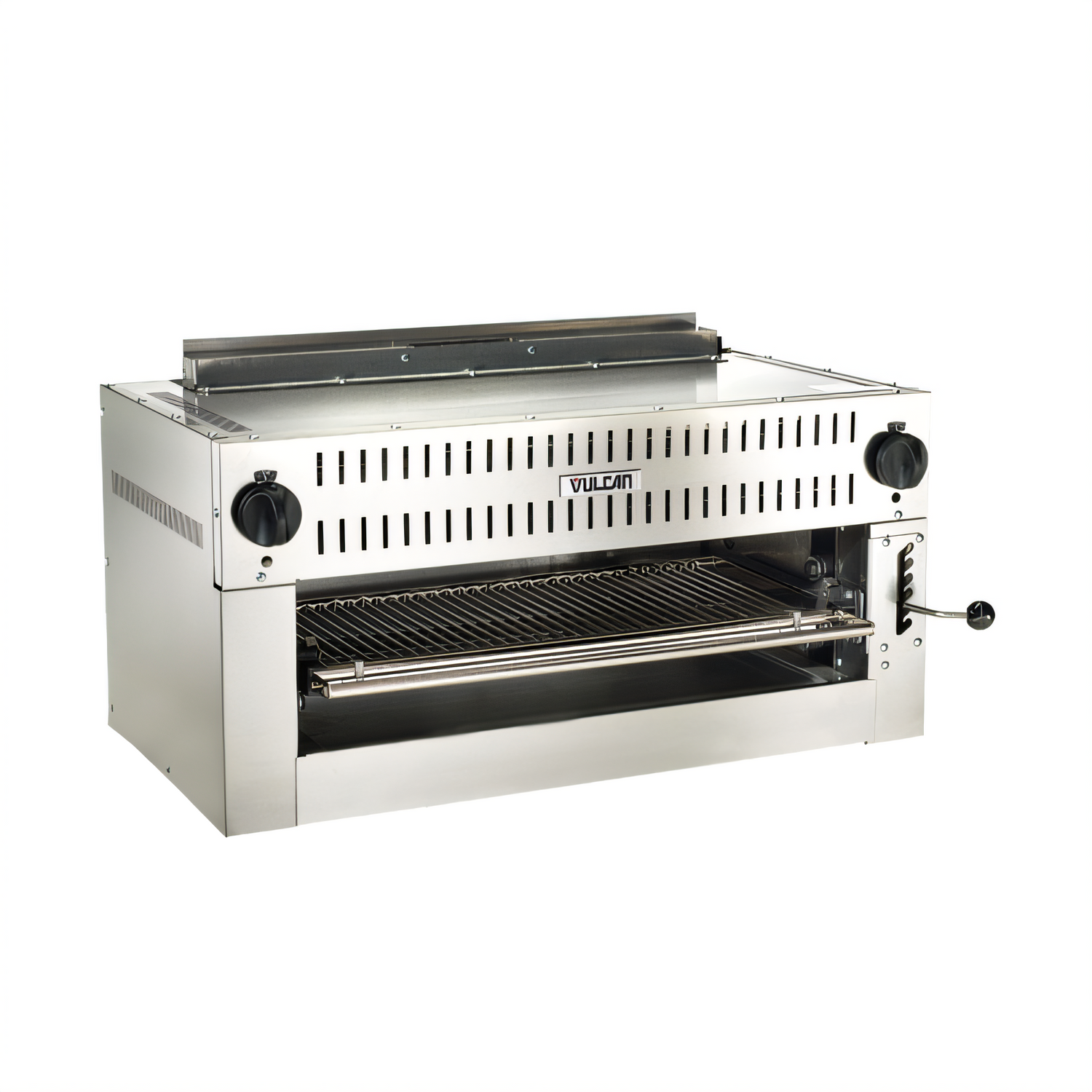

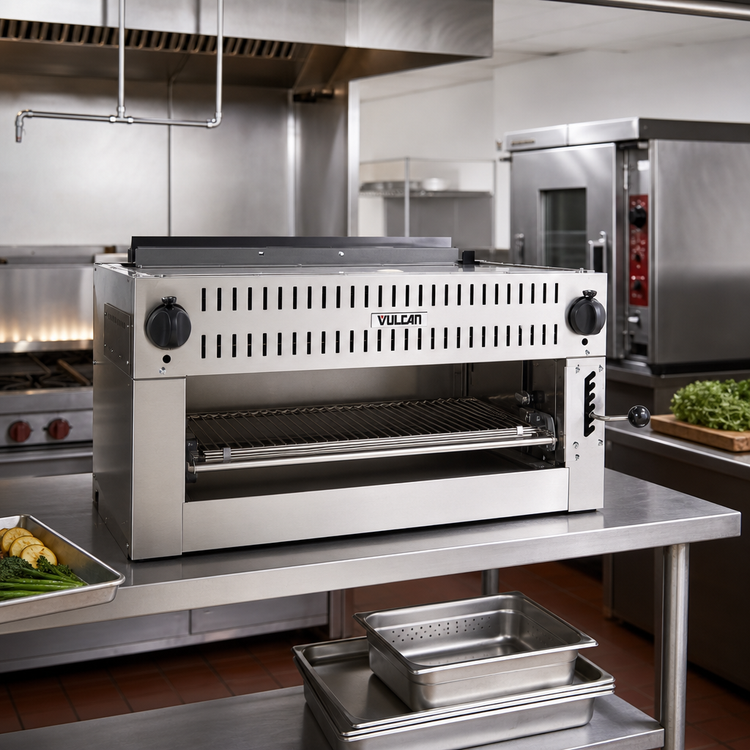

Vulcan 36IRB-N 36-Inch Natural Gas Infrared Salamander Broiler

$4,681.00
/each
Estimated to ship in 8–11 business days Free Shipping
Output
Gas type
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $433/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Style Infrared
Material Stainless Steel
Gas Type Natural Gas
BTU 30,000 BTU
Burner Type Ceramic Infrared
Burner Count 2
Controls Dual Heat Controls
Temperature Range 250°F-800°F
Grid Positions 6
Grid Size 27.5 x 13 Inches
Grid Finish Chrome Plated
Spillage Pan Removable Full Width
Gas Connection 3/4 Inch
Pressure Regulator Included
Width 36 Inches
Depth 19 Inches
Height 17.63 Inches

Description

The Vulcan 36IRB-N is a 36-inch natural gas salamander broiler with two ceramic infrared burners providing 30,000 BTU/hr total input.

  • Dual heat controls for zone cooking.
  • Six-position broiler carriage.
  • Heavy-duty chrome-plated broiling grid.
  • Removable full-width spillage pan.
  • Stainless steel front, top, and sides.
  • Standing pilot ignition and cool-to-the-touch control knob.

Overall Dimensions:

36.0"W x 19.0"D x 17.63"H

Product Weight:

180.0 lb

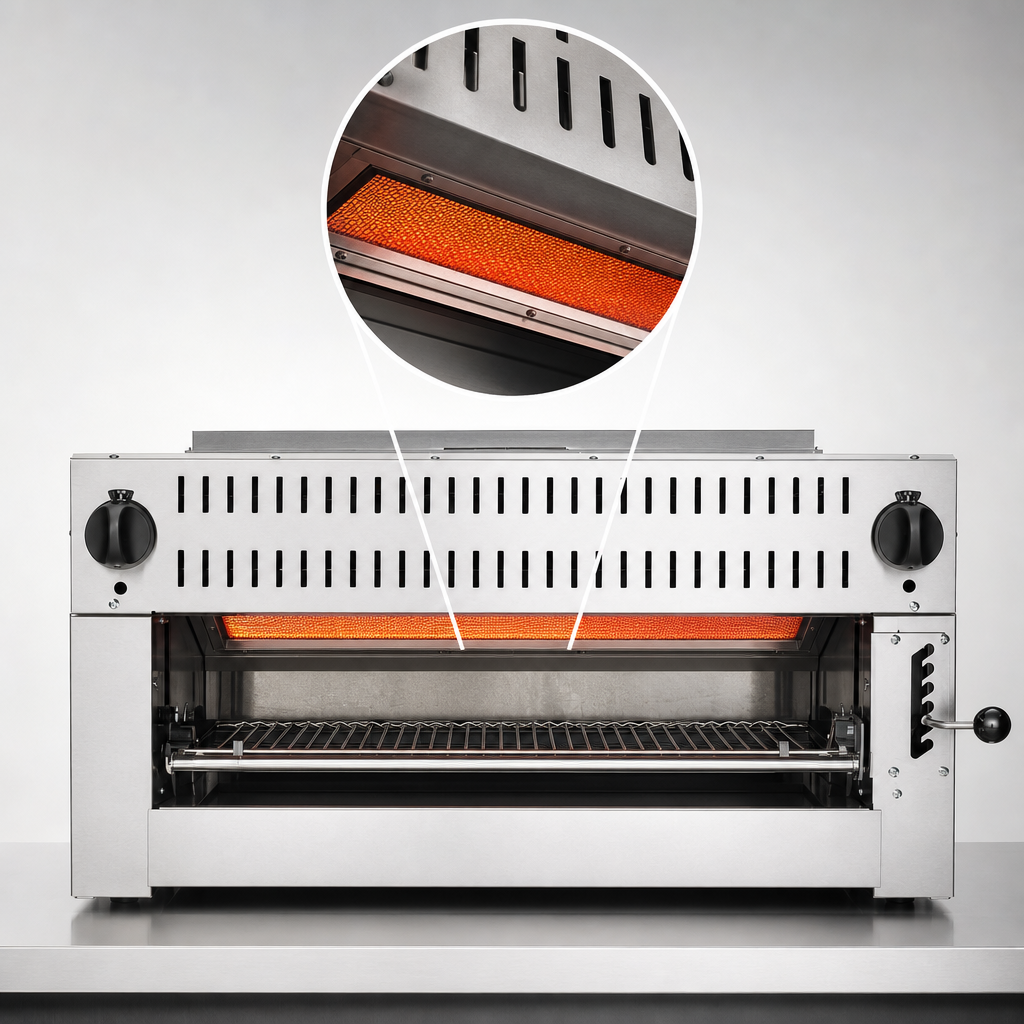

Ceramic Infrared Burners

Two 15,000 BTU/hr ceramic infrared burners provide 30,000 BTU/hr total input.

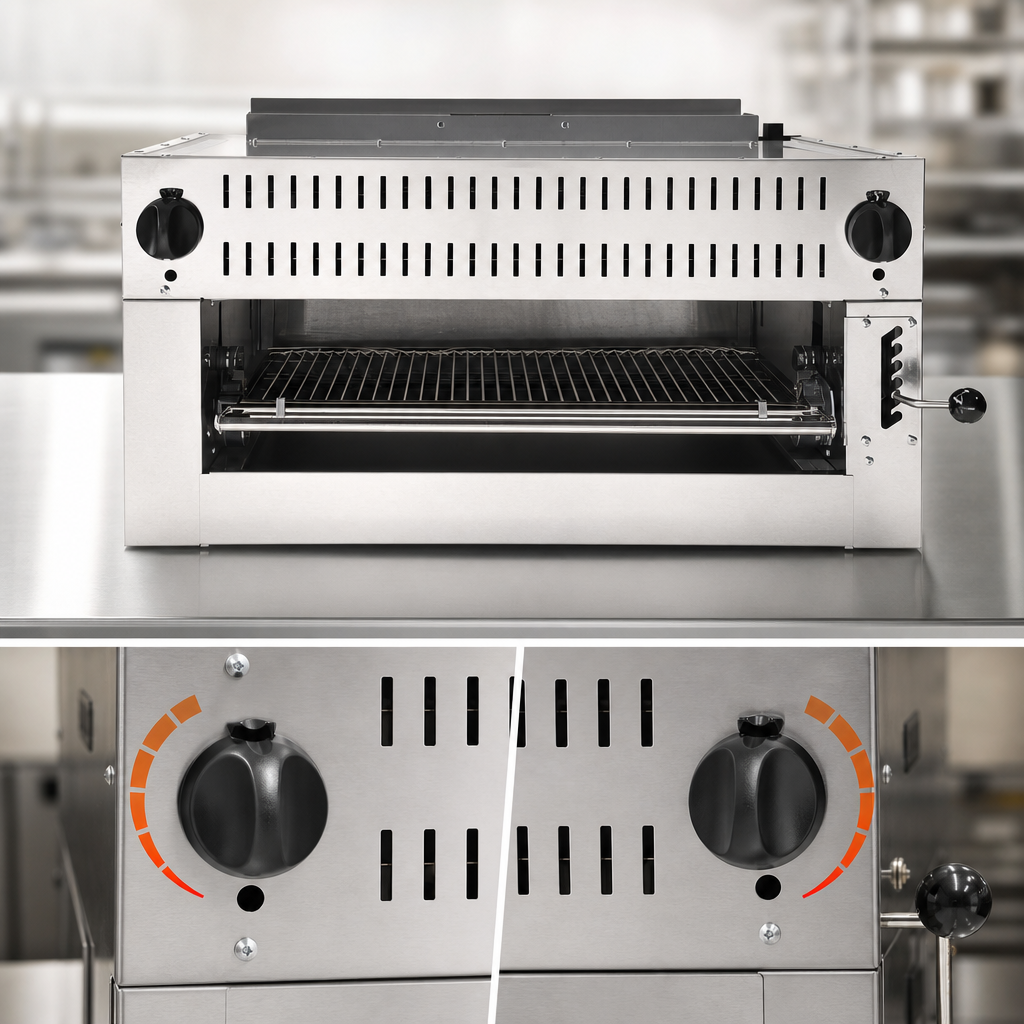

Dual Heat Controls

Dual controls are designed for zone cooking.

Six Carriage Positions

The broiler carriage provides six positioning options.

Removable Spillage Pan

A removable full-width spillage pan is included.

Chrome-Plated Broiling Grid

The heavy-duty broiling grid measures 27.5 inches wide by 13 inches deep.

Stainless Steel Exterior

The front, top, and sides are stainless steel.

Standing Pilot Ignition

The unit uses a standing pilot ignition system.

Gas Pressure Regulator

A gas pressure regulator is included with the 3/4-inch gas connection.

Frequently Asked Questions

It uses natural gas.
Total input is 30,000 BTU/hr from two 15,000 BTU/hr ceramic infrared burners.
The broiler carriage has six positions.
The broiler dimensions are 36 inches wide, 19 inches deep, and 17.63 inches high.
The specified temperature range is 250°F-800°F at the rack.
The product includes a one-year parts and labor warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
