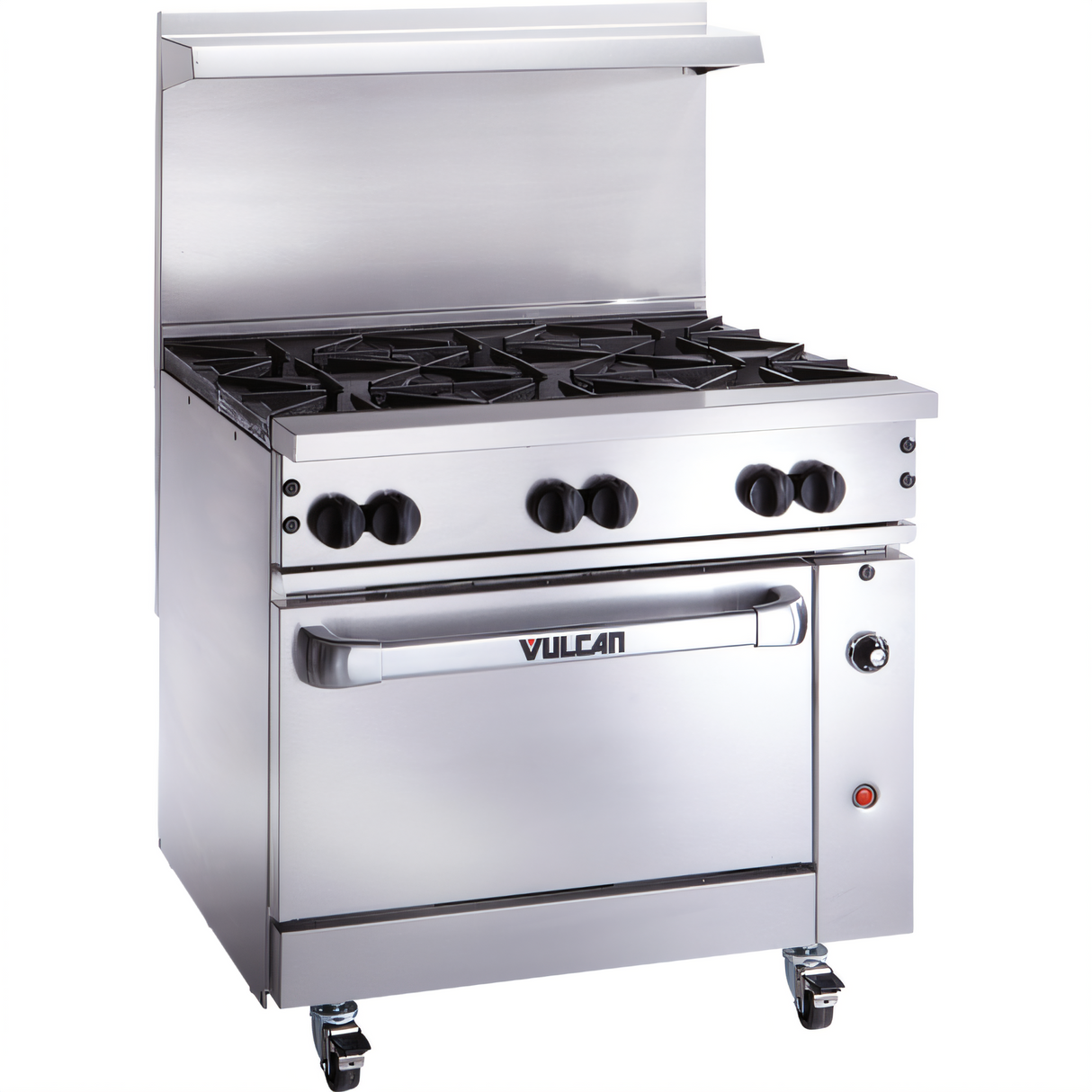

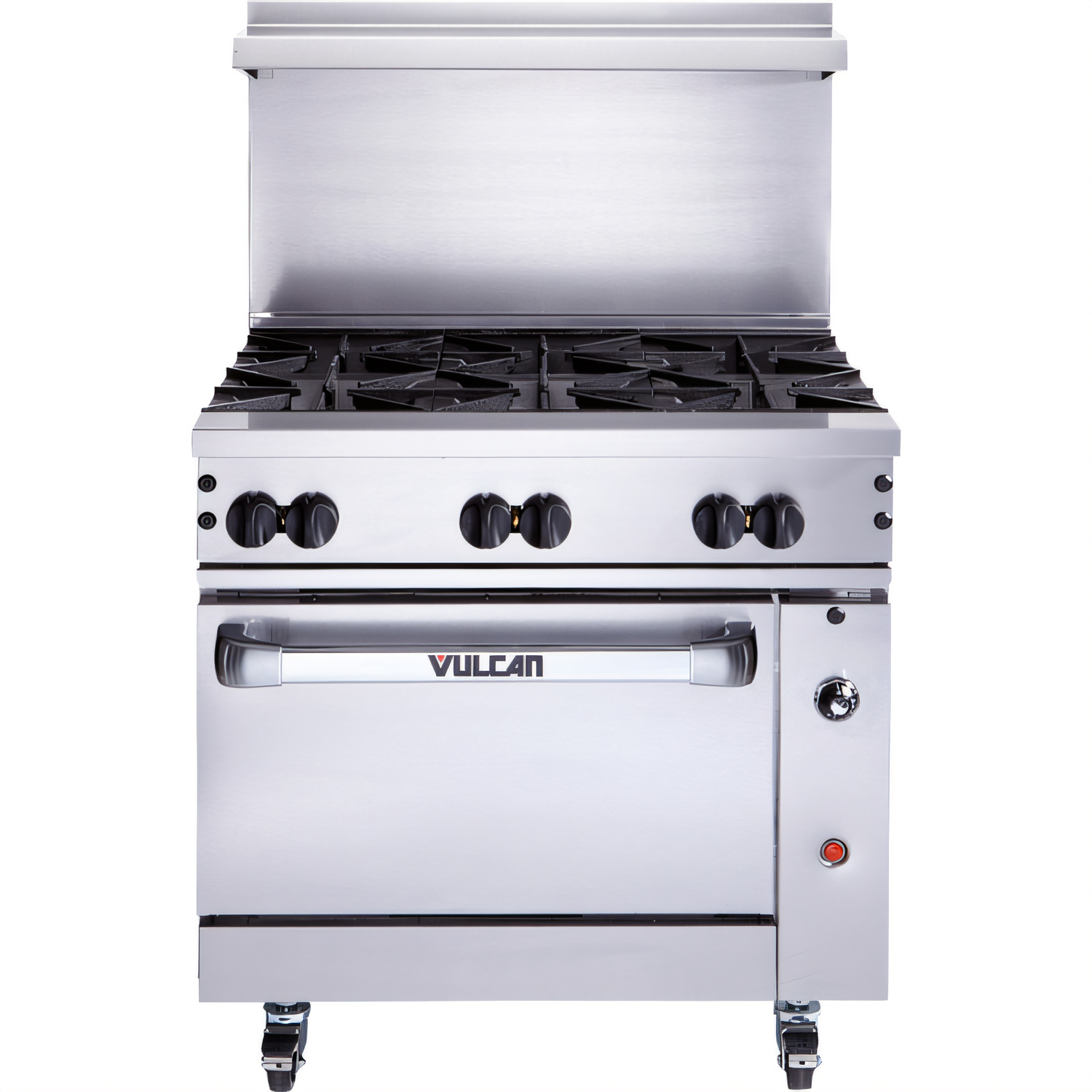

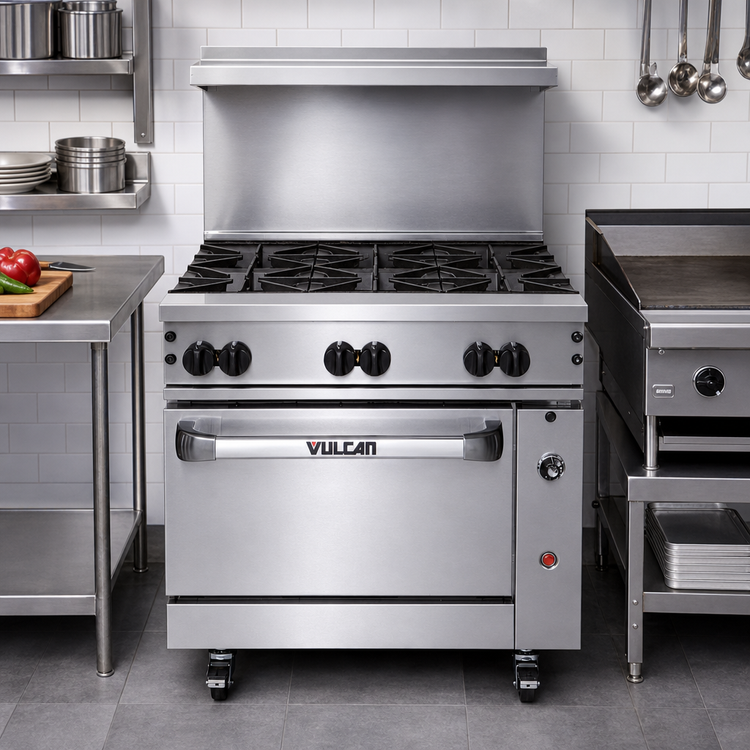

Vulcan Quick Ship Endurance 36-Inch Gas Restaurant Range with 6 Open Burners and Convection Oven

Natural Gas, Stainless Steel Exterior, Backriser with High Shelf

Built for busy commercial kitchens, this 36-inch range combines six high-output burners and a convection oven in a rugged all-stainless package.

  • Six 30,000 BTU/hr open burners deliver strong heat for boiling, sautéing, and stockpot use.
  • Convection oven base adds baking and roasting versatility without taking up extra floor space.
  • Stainless steel front, sides, backriser, and lift-off high shelf provide durability and easy cleanup.
  • Fully MIG welded construction, cast grates, and an extra-deep crumb tray are made for heavy daily use.
  • 6-inch adjustable stainless steel legs and a rear gas connection help simplify installation.

Overall Dimensions:

36.0"W x 34.0"D x 58.0"H

Product Weight:

580.0 lb

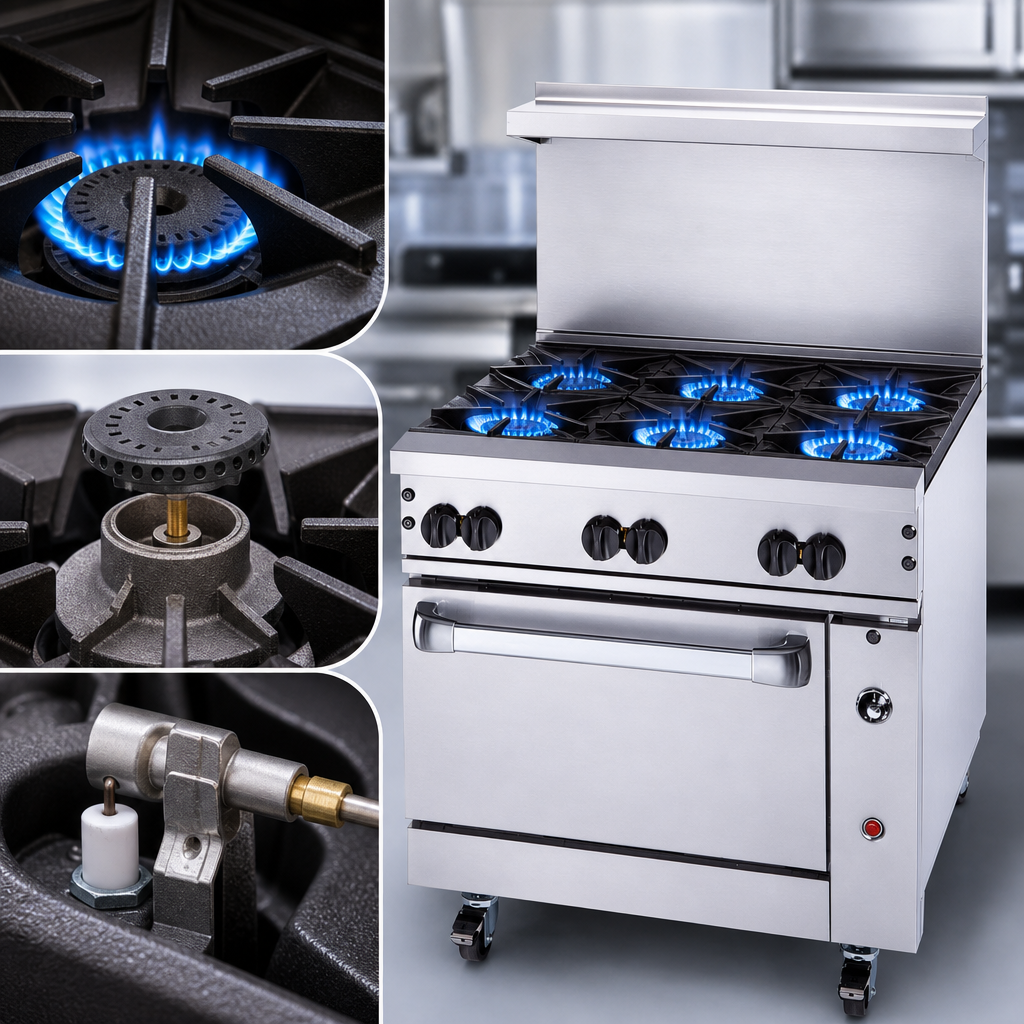

Six 30,000 BTU Open Burners

Lift-off burner heads and a shrouded flash-tube pilot system support fast cleaning and reliable ignition.

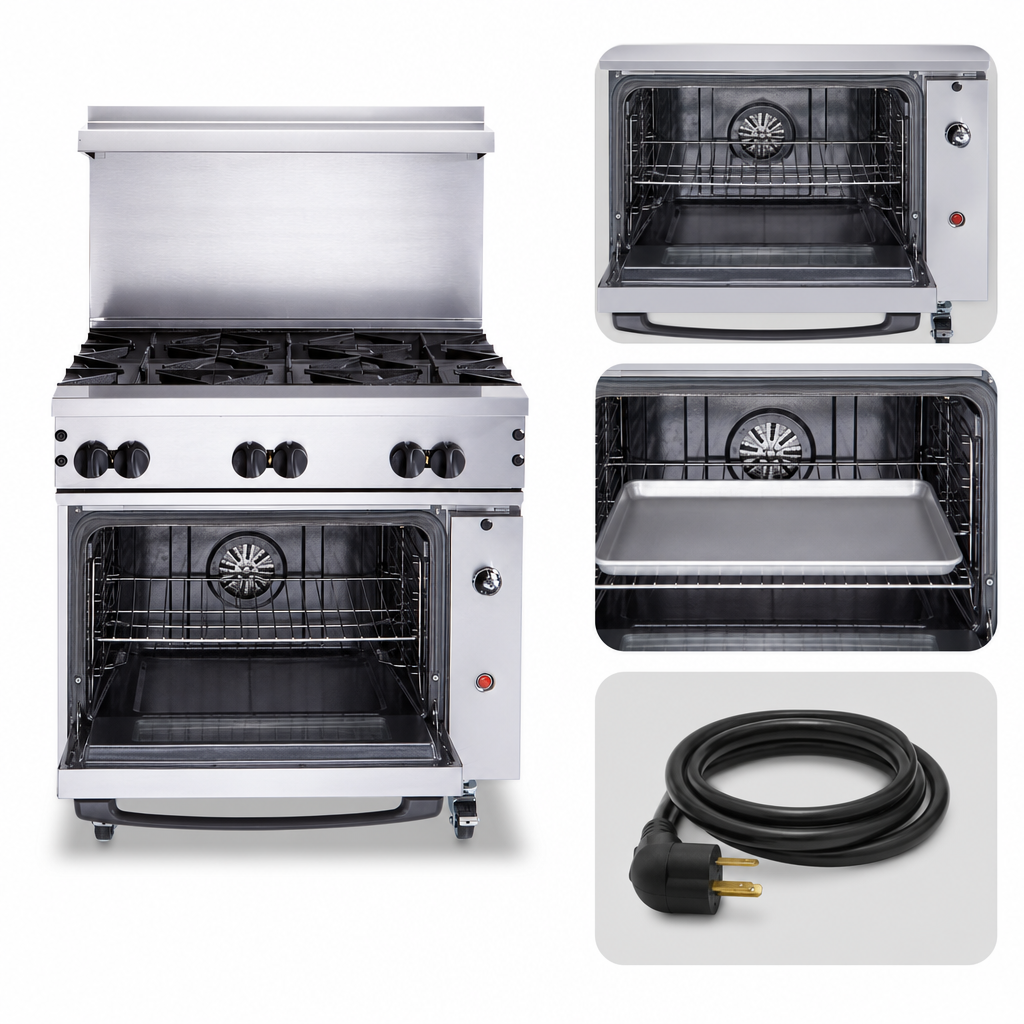

Convection Oven Base

The convection oven provides a 35,000 BTU/hr baking cavity with a 115V, 1-phase blower motor and a 6-foot cord and plug; full-size sheet pans fit side-to-side only.

Stainless Steel Exterior With High Shelf

Stainless steel front, sides, backriser, and lift-off high shelf create a durable, professional-looking exterior.

Fully MIG Welded Frame

A welded chassis adds strength and long-term durability for demanding commercial kitchens.

Heavy-Duty Cooking Surface

Cast grates and an extra-deep pull-out crumb tray support heavy use and easier cleanup.

Adjustable Legs and Rear Gas Connection

Six-inch stainless steel adjustable legs help with leveling, and the 3/4-inch rear gas connection includes a pressure regulator.

Type Gas Restaurant Range
Style 6 Open Burners
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Gas Type Natural Gas
BTU 215,000 BTU/hr
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5.0 Inches W.C.
Compartments 1
Voltage 115 Volts
Amps 4 Amps
Phase 1-Phase
Cord Length 6 Feet
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 58 Inches
Shipping Weight 580 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Parts manual PDF Download PDF Owner's manual PDF Download PDF Sell sheets PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is configured for natural gas.
It has six 30,000 BTU/hr open burners and a total input of 215,000 BTU/hr.
Yes. The convection oven blower motor uses 115V, single-phase power and draws 4 amps.
The range uses a 3/4-inch rear gas connection and 5.0 Inches W.C. inlet pressure for natural gas.
Full-size sheet pans fit side-to-side only in the convection oven.
Yes. The convection oven motor requires field attachment.
