Vulcan

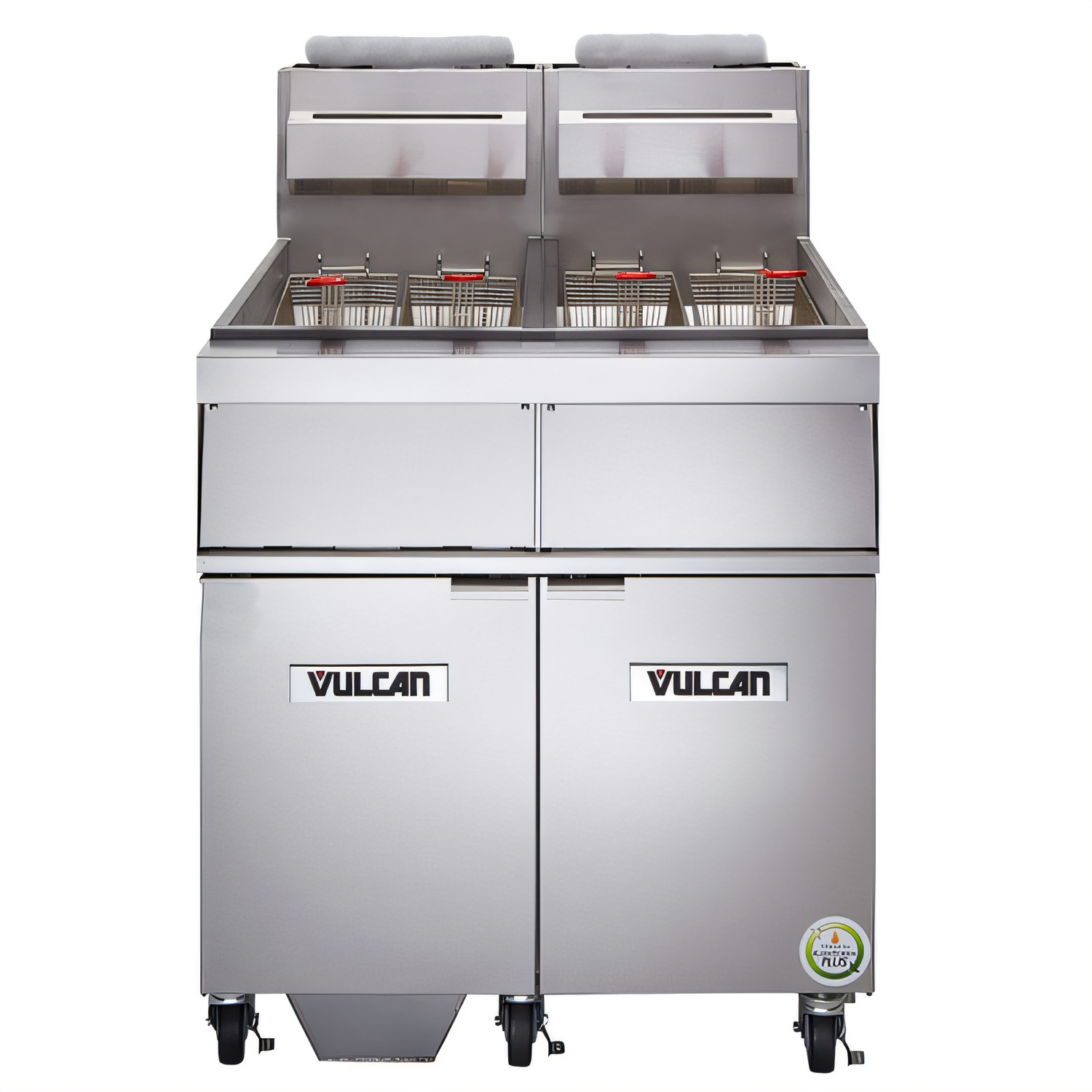

Vulcan Quick Ship 31-Inch 2-Vat Gas Floor Fryer with KleenScreen Plus Filtration, Millivolt Controls, 45-50 lb. Capacity per Vat

SKU: 2GR45MF-QS-PLATINUM
$18,330.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vulcan Quick Ship 31-Inch 2-Vat Gas Floor Fryer with KleenScreen Plus Filtration, Millivolt Controls, 45-50 lb. Capacity per Vat

Stainless Steel Cabinet and Fry Tank, Twin Baskets, 240,000 BTU

Built for high-volume frying, this quick-ship gas fryer combines two 45-50 lb. vats, KleenScreen Plus filtration, and millivolt controls in a durable stainless steel package.

  • Two vats with 45-50 lb. capacity per vat support high-output frying in a compact 31-inch footprint.
  • Built-in KleenScreen Plus filtration helps streamline oil handling and cleanup.
  • Millivolt thermostat controls provide straightforward, dependable operation.
  • Stainless steel cabinet and fry tank are built for commercial durability and easy cleaning.
  • 240,000 BTU gas output supports strong heat recovery during peak service.
  • Twin baskets and adjustable casters add convenience for daily kitchen use.

Overall Dimensions:

31.0"W x 30.13"D x 46.25"H

Product Weight:

512.0 lb

Built-In KleenScreen Plus Filtration System

Includes a stainless steel mesh filter screen, Boil Out ByPass, one-touch push-button operation, hands-free oil return line connection, and an 18-gauge stainless steel filter pan.

Dual High-Capacity Vats

Two frying vats provide 45-50 lb. capacity per vat, and twin baskets are included for production frying.

Millivolt Thermostat Controls

Millivolt controls provide simple, reliable temperature management.

Stainless Steel Construction

Stainless steel cabinet and fry tank construction supports durability and easy maintenance.

240,000 BTU Output

High gas input helps deliver fast recovery for busy service periods.

Adjustable Casters

Six-inch casters include two swivel locking and two non-locking wheels for mobility and positioning.

Filter System Power Requirements

The built-in filter system requires 120V, 60 Hz, 1-phase power and uses a NEMA 5-15P plug.

Included Service Tools

Tank brush, clean-out rod, and high-temperature discard hose are included to support routine maintenance.

Type Gas Fryer
Style Battery
Installation Type Floor Model
Compartments 2
Capacity 45-50 lb. Per Vat
Controls Millivolt
Material Stainless Steel
Finish Stainless Steel
BTU 240,000 BTU
Voltage 120 Volts
Amps 6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Gas Connection Size 1 1/4 Inches NPT
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 47 Inches
Shipping Weight 512 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It includes a built-in KleenScreen Plus filtration system with a stainless steel mesh filter screen, Boil Out ByPass, and a 1/3 HP motor and pump.
Each vat has a 45-50 lb. capacity.
The filter system requires 120V, 60 Hz, 1-phase power and uses a NEMA 5-15P plug.
The documentation says to specify Natural Gas or Propane when ordering. Natural Gas operating pressure is 4.0 inches W.C. with recommended supply pressure 7-9 inches W.C.; Propane operating pressure is 10.0 inches W.C. with recommended supply pressure 11-12 inches W.C.
It uses a 1 1/4-inch NPT common rear gas connection.
The documentation lists a 1-year limited parts and labor warranty and a 10-year limited fry tank warranty.
