Vulcan

Vulcan QuickFry™ 1VHG70DF Gas Fryer, 70 lb Capacity, Digital Control, Built-In Filtration

SKU: 1VHG70DF
$20,912.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

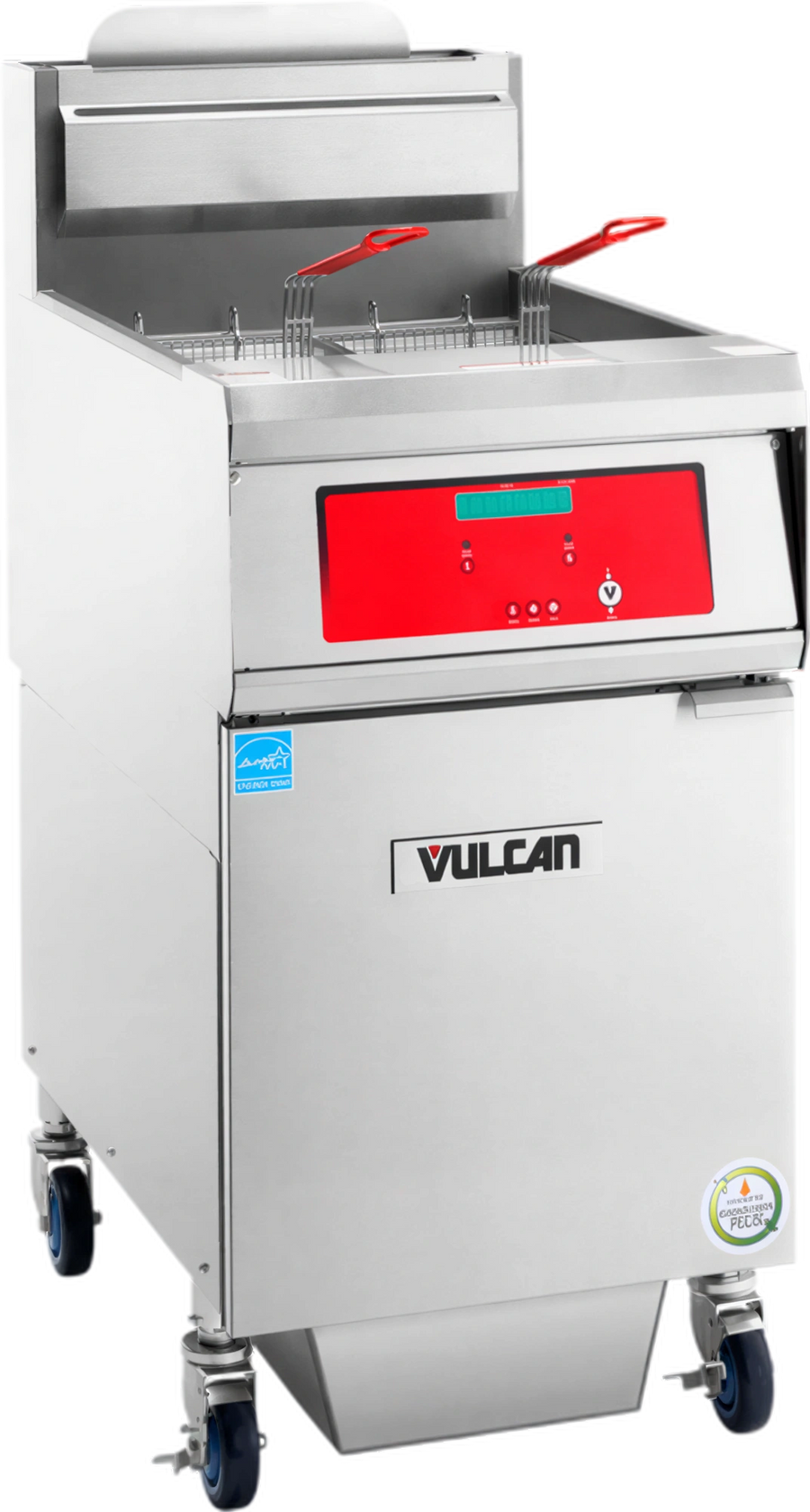

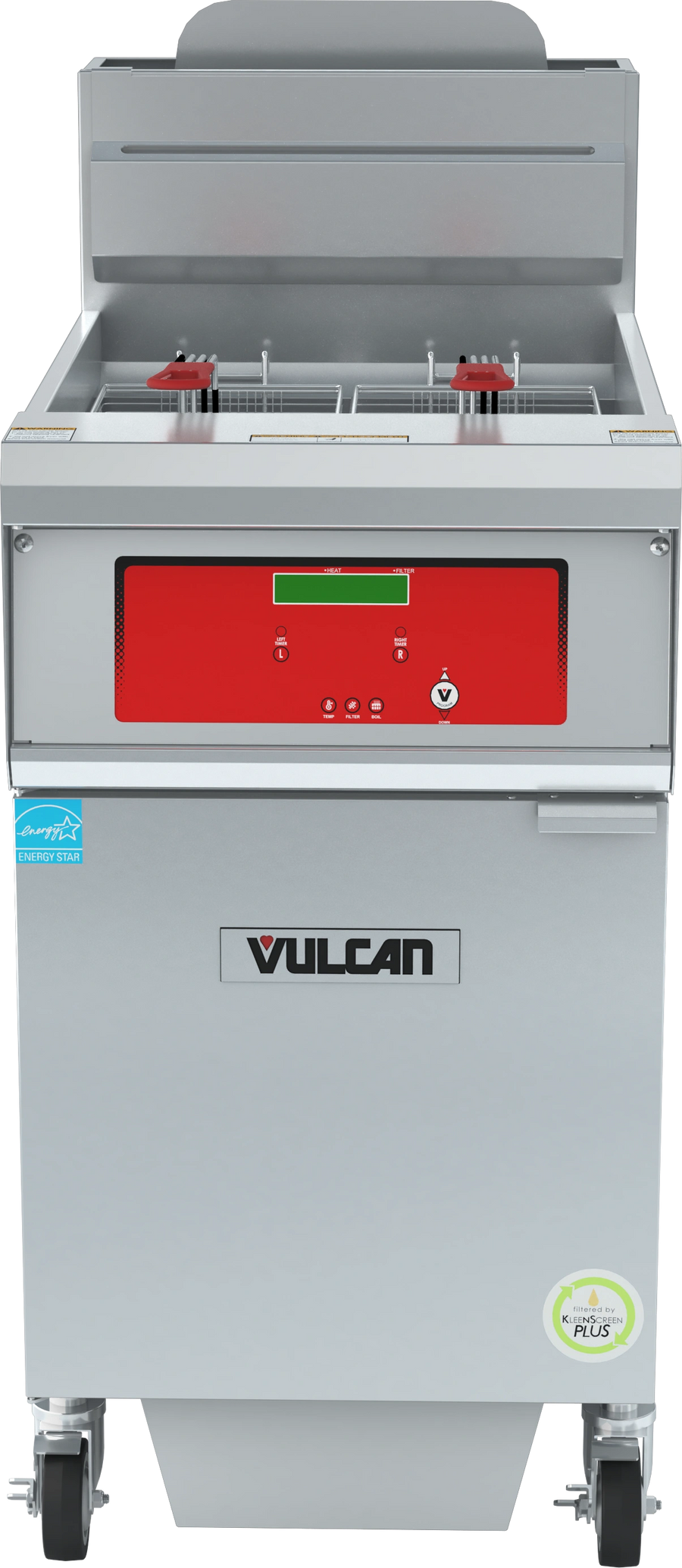

The Vulcan QuickFry™ 1VHG70DF is a freestanding gas fryer with a 70 lb capacity per vat, digital control, electronic ignition, and a built-in KleenScreen PLUS® filtration system.

  • Digital control provides 150-390°F temperature control, Fahrenheit or Celsius display, compensating or actual cook time, two countdown timers, three melt modes, and automatic or manual boil-out.
  • The stainless steel cabinet and fry tank include twin fry baskets, adjustable casters, and a 120V electrical connection.
  • Gas input is 110,000 BTU/hr for natural gas or 100,000 BTU/hr for propane.

Overall Dimensions:

19.69"W x 32.69"D x 47.75"H

Product Weight:

230.0 lb

Digital control

Provides 150-390°F temperature control, Fahrenheit or Celsius display, compensating or actual cook time, two countdown timers, three melt modes, and automatic or manual boil-out.

Built-in filtration

KleenScreen PLUS® filtration includes a stainless steel filter pan and stainless steel mesh filter screen.

Electronic ignition

Matchless electronic ignition is paired with hi-limit shut-off and a dry-fire prevention safety sequence.

Stainless steel construction

The cabinet and fry tank are constructed of stainless steel.

Twin fry baskets

Includes twin fry baskets with plastic-coated handles.

Adjustable casters

Includes four 6-inch adjustable casters, with two swivel locking casters and two non-locking casters.

One-touch filtration pump

The filtration system uses a one-touch push-button switch to engage the pump and motor.

Related Searches

Best Sellers Commercial Fryers Commercial Ranges Cooking Equipment Equipment Fryers Gas Fryers New Arrivals Restaurant Equipment Stock Pot Ranges Vulcan
Fry Capacity 70 lb per vat
Control Digital control with Fahrenheit/Celsius display, compensating or actual cook time, two countdown timers, three melt modes, and automatic/manual boil-out
Temperature Range 150-390°F (66-199°C)
Gas Input 110,000 BTU/hr natural gas; 100,000 BTU/hr propane
Filtration System KleenScreen PLUS® built-in filtration
Filter Pan Capacity 90 lb frying compound
Filter Area 462 sq. in.
Pump Flow Rate 8 gal/min at 60 Hz
Frying Area 18 1/8 in. x 14 1/8 in.
Oil Depth 4 1/2 in.
Electrical Requirements 120V, 50/60Hz, 1 phase, 6.9A
Electrical Connection NEMA 5-15P
Gas Connection 1/2 in. ID and 3/4 in. OD rear gas connection
Construction Stainless steel cabinet and fry tank; 16-gauge stainless steel filter pan
Basket Configuration Twin fry baskets with plastic-coated handles
Caster Configuration Four 6 in. adjustable casters; two swivel locking and two non-locking

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited parts and labor warranty, plus a 10-year limited tank warranty stated in the product cutsheet.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The fryer has a 70 lb capacity per vat.
It uses digital control with 150-390°F temperature control, Fahrenheit or Celsius display, compensating or actual cook time, two countdown timers, three melt modes, and automatic or manual boil-out.
Yes. It includes a built-in KleenScreen PLUS® filtration system with a 90 lb filter pan capacity.
The cutsheet lists 110,000 BTU/hr for natural gas or 100,000 BTU/hr for propane, plus 120V, 50/60Hz, single-phase electrical service with a NEMA 5-15P connection.
Yes. The installation instructions state that the appliance is manufactured for commercial installation only and is not intended for home use.
