Vulcan

Vulcan 1GR35M Freestanding Gas Fryer, 15-1/2-Inch Wide, 35-40 lb. Capacity, Millivolt Controls, Stainless Steel

SKU: 1GR35M
$4,031.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Fryers Gas Fryers New Arrivals Restaurant Equipment Stock Pot Ranges Vulcan

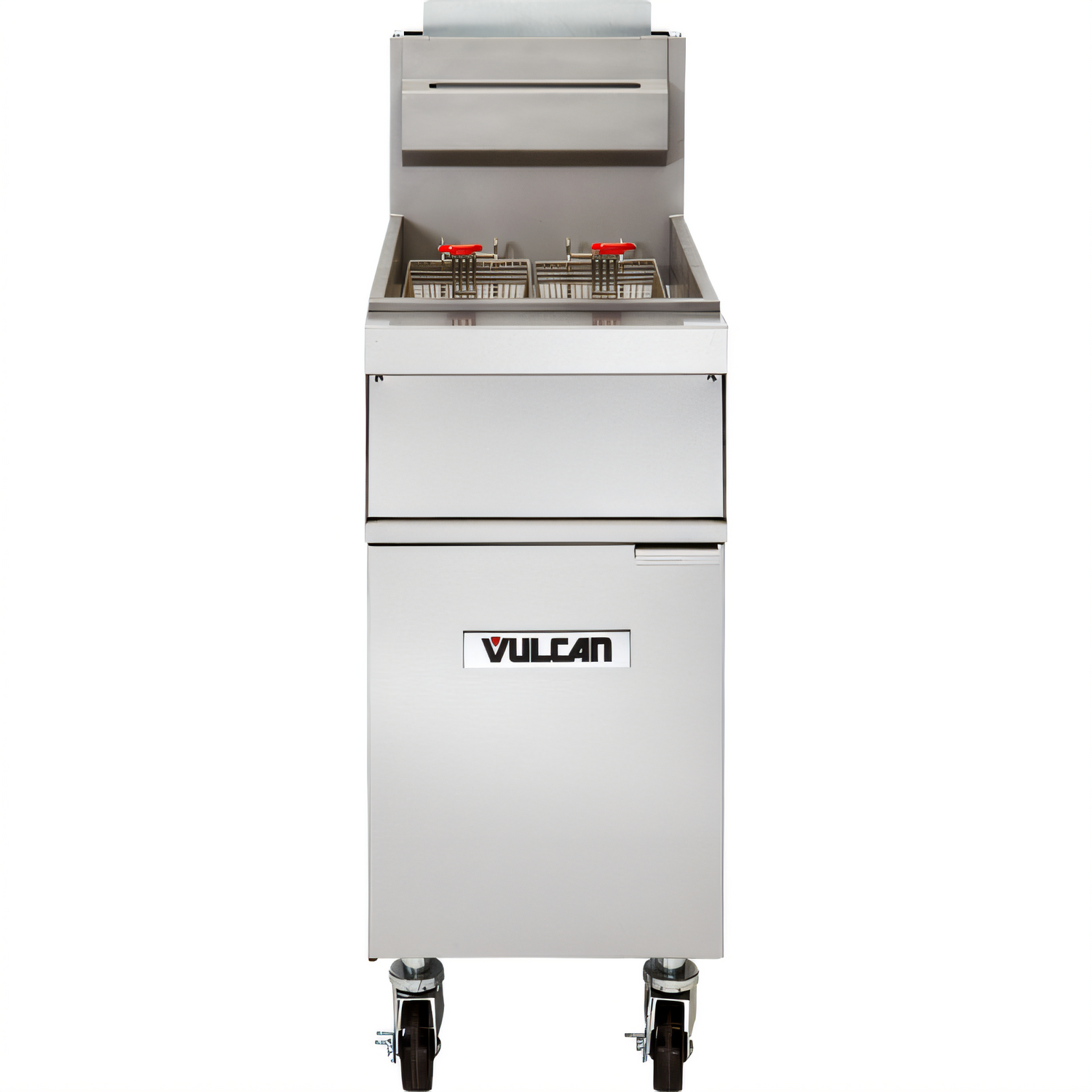

Vulcan 1GR35M Freestanding Gas Fryer, 15-1/2-Inch Wide, 35-40 lb. Capacity, Millivolt Controls, Stainless Steel

Floor Model with Twin Baskets and Stainless Steel Fry Tank

Built for high-volume frying, this freestanding gas fryer combines a 35-40 lb. stainless steel fry tank, millivolt controls, and 90,000 BTU/hr output for dependable daily performance.

  • 35-40 lb. stainless steel fry tank with a V-shaped cold zone for efficient frying and cleanup.
  • Millivolt thermostat control adjusts from 200°F to 400°F behind the door.
  • 90,000 BTU/hr input and three heat exchanger tubes support fast recovery.
  • Twin fry baskets with plastic-coated handles are included.
  • Freestanding design rides on four 6-inch adjustable casters, including 2 locking wheels.
  • Full-port drain valve and included cleaning tools make maintenance easier.

Overall Dimensions:

15.5"W x 30.25"D x 47.13"H

Product Weight:

215.0 lb

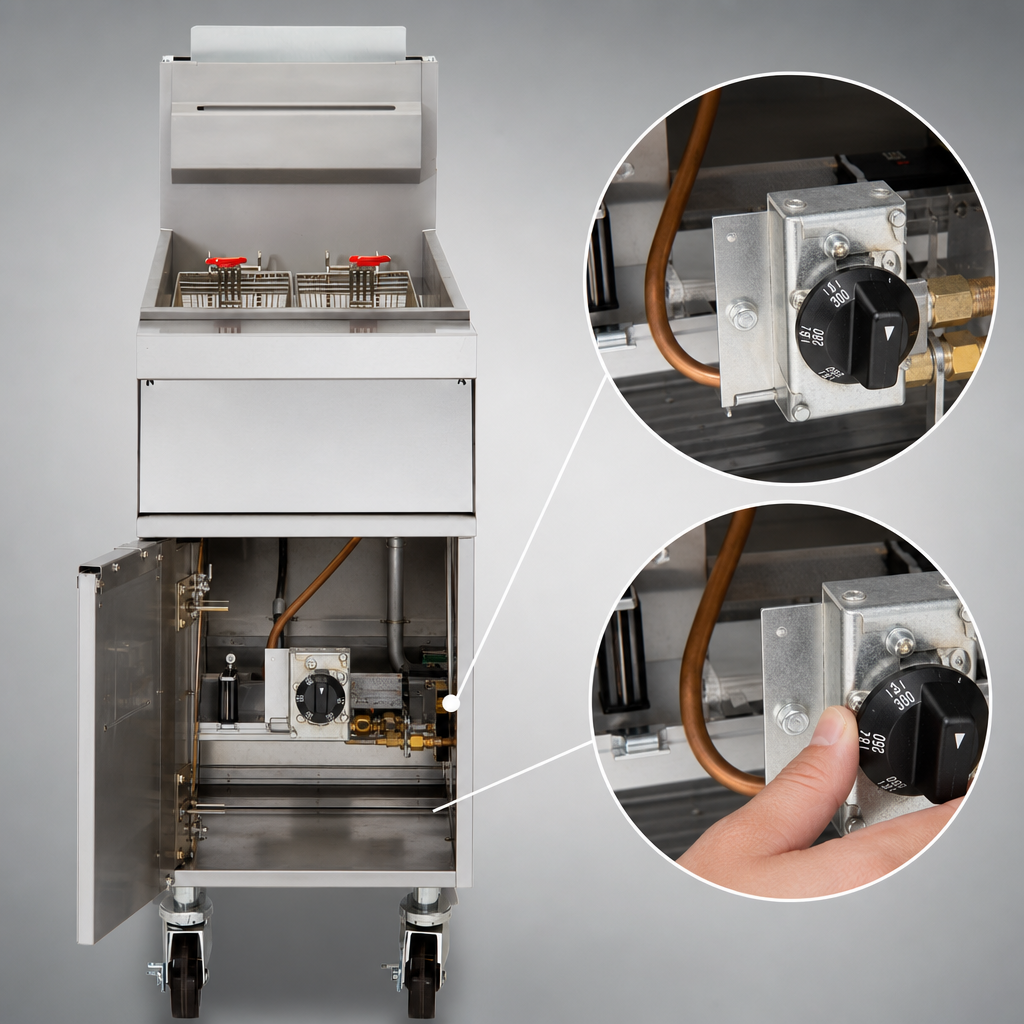

Millivolt Thermostat Control

Behind-the-door control adjusts from 200°F to 400°F.

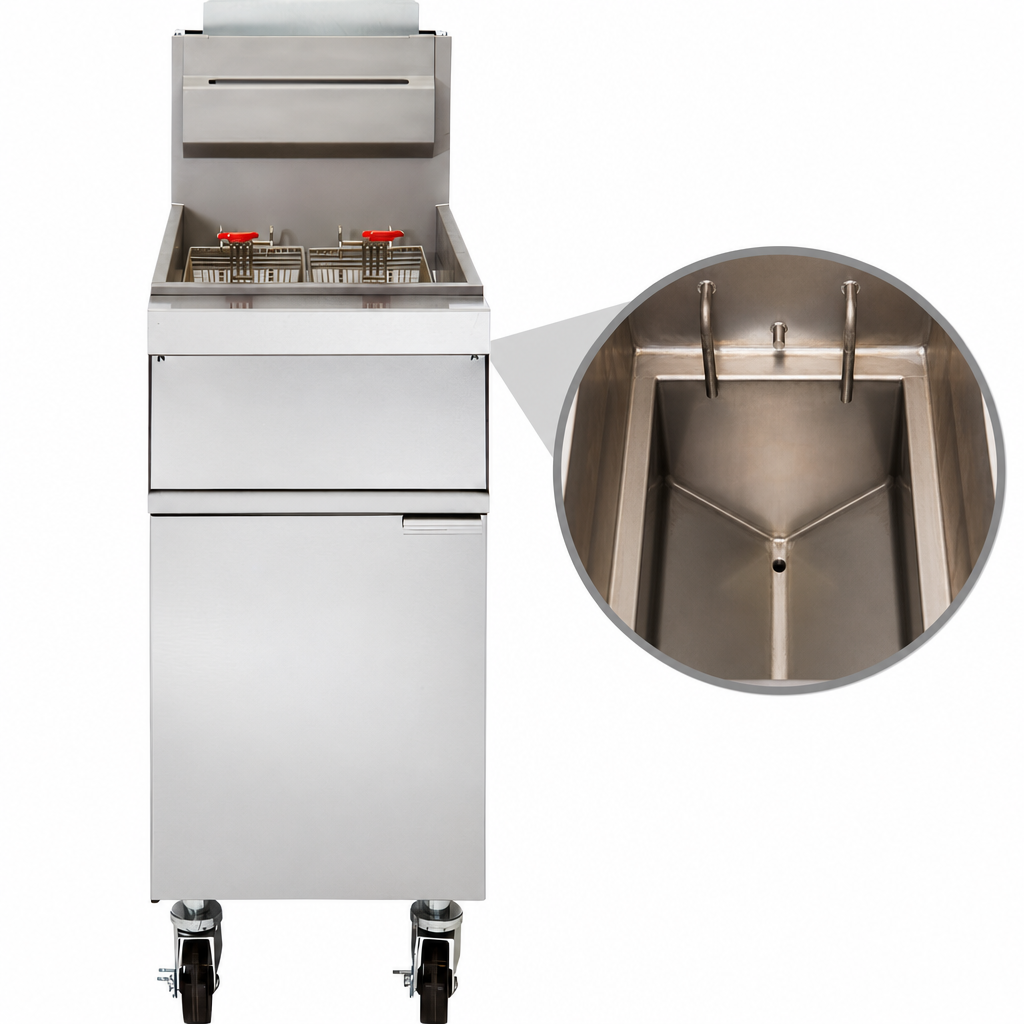

35-40 lb. Stainless Steel Fry Tank

Heavy-duty fry tank includes a V-shaped cold zone for better sediment control.

90,000 BTU/hr Input

Delivers strong heat output for fast recovery and consistent frying.

Three Heat Exchanger Tubes

Tube placement is designed for efficient heating and easier cleaning.

Twin Fry Baskets

Two baskets with plastic-coated handles are included.

Full-Port Drain Valve

1-1/4-inch ball-type drain valve simplifies oil removal.

Adjustable Casters

Four 6-inch casters are included, with two locking and two non-locking wheels.

Included Cleaning Tools

Tank brush, stainless steel crumb scoop, and clean-out rod are provided.

Safety Controls

Includes a hi-limit shut-off and combination gas shut-off valve with pilot safety system.

Type Gas Fryer
Style Floor Model
Installation Type Freestanding
Controls Millivolt Thermostat
Temperature Range 200°F to 400°F
Capacity 35-40 lb.
BTU 90,000 BTU/hr
Material Stainless Steel
Gas Connection Size 1/2 Inch ID x 3/4 Inch OD Rear
Shipping Width 16 Inches
Shipping Depth 31 Inches
Shipping Height 48 Inches
Shipping Weight 215 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Guide d'installation et d'utilisation PDF Download PDF Installation & operation PDF Download PDF Service manual PDF Download PDF Warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It can be ordered for natural gas or propane gas; specify the gas type when ordering.
The millivolt thermostat adjusts from 200°F to 400°F.
It holds approximately 35-40 lb. of shortening per fry tank.
Twin fry baskets, tank brush, crumb scoop, clean-out rod, crumb rack, basket hanger, and a drain pipe extension for freestanding units are included.
Operating pressure is 4.0" W.C. for natural gas and 10.0" W.C. for propane.
The fryer includes a one-year limited parts and labor warranty, and an optional second-year extended limited parts and labor warranty is available.
