Vulcan

Vulcan 50-Inch Electric Quartz Infrared Cheesemelter with 4 Rack Positions

SKU: 1048
$5,885.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters New Arrivals Restaurant Equipment Vulcan

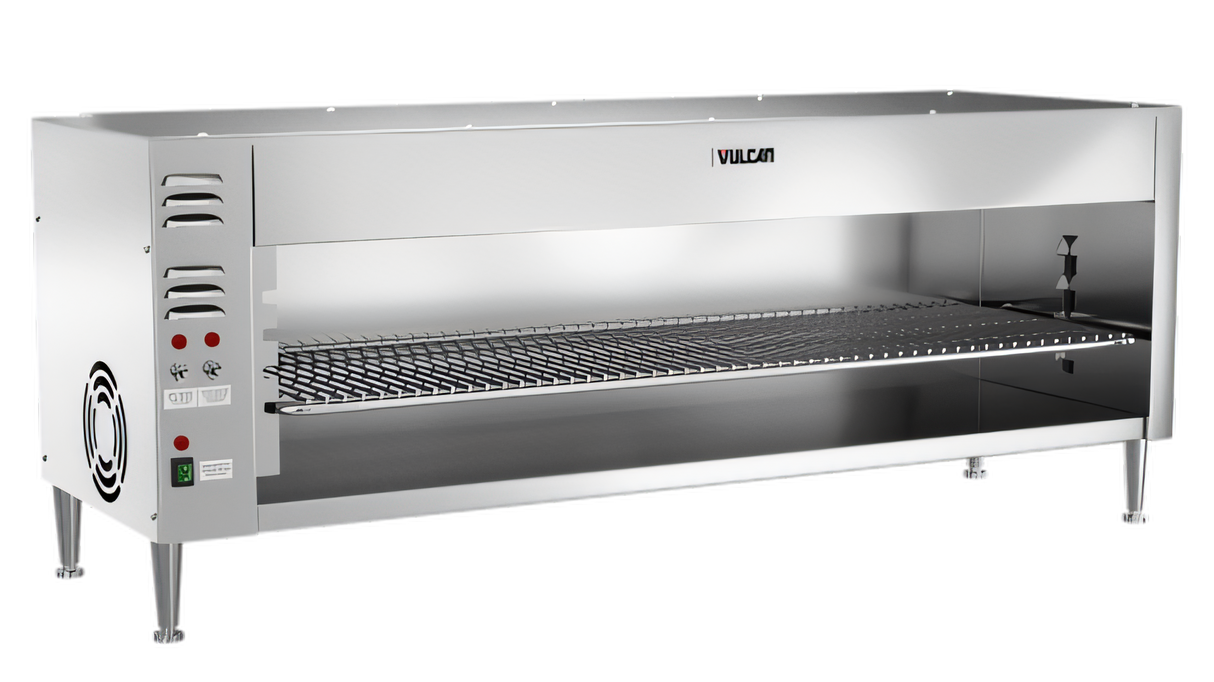

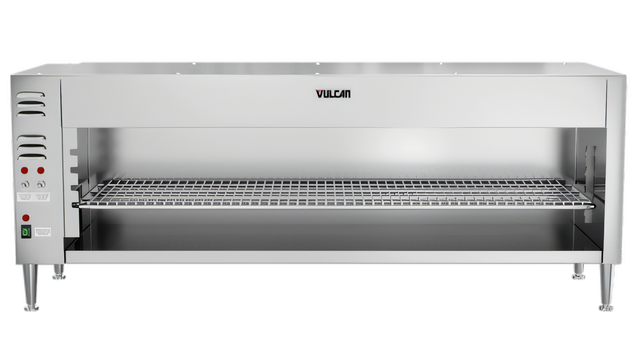

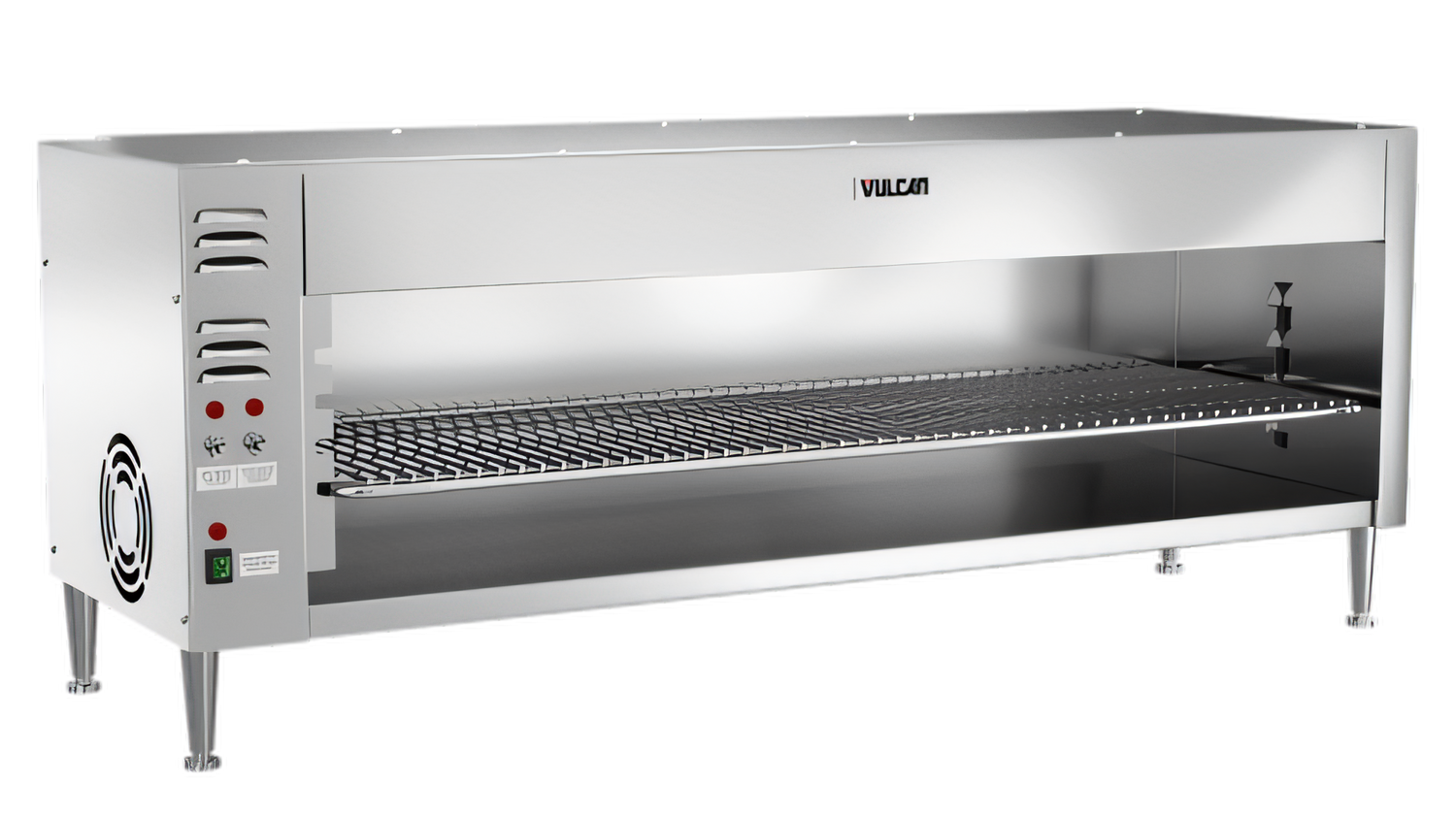

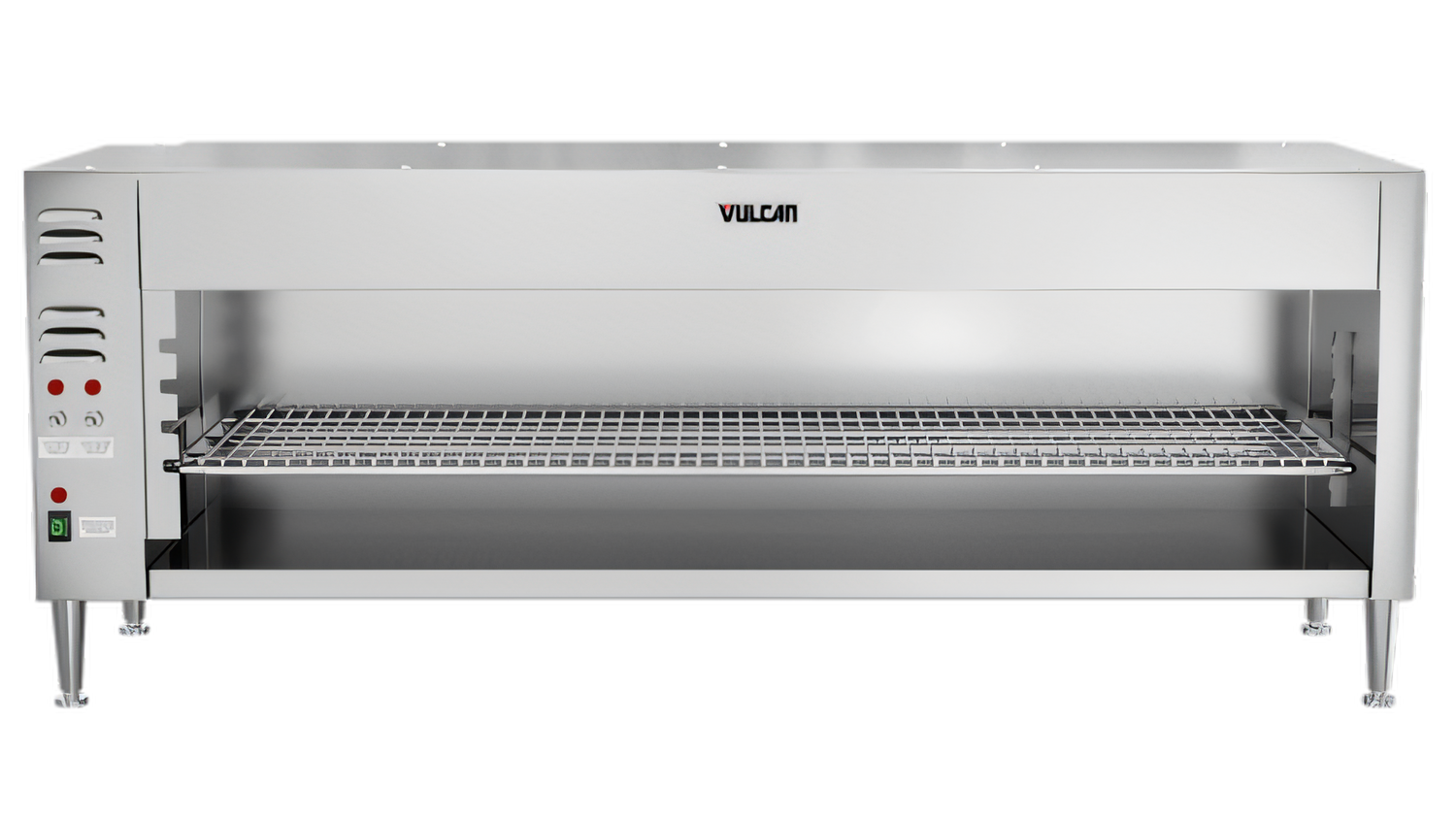

Vulcan 50-Inch Electric Quartz Infrared Cheesemelter with 4 Rack Positions

Stainless Steel, Countertop or Wall Mount, 208/240V, 4.8 kW

This 50-inch quartz cheesemelter delivers fast, even finishing with adjustable rack positions and flexible countertop or wall-mount installation.

  • 50-inch electric quartz infrared cheesemelter for melting, broiling, and finishing.
  • Four adjustable rack positions help control product distance from the heat source.
  • Solid-state controls and rack-activated heating provide fast response and efficient operation.
  • Stainless steel exterior and interior support durability and easy cleaning.
  • Includes 4-inch adjustable legs plus wall-mount panel and brackets for flexible installation.
  • Designed for 208V or 240V single-phase electrical service.

Overall Dimensions:

50.0"W x 17.13"D x 19.25"H

Product Weight:

120.0 lb

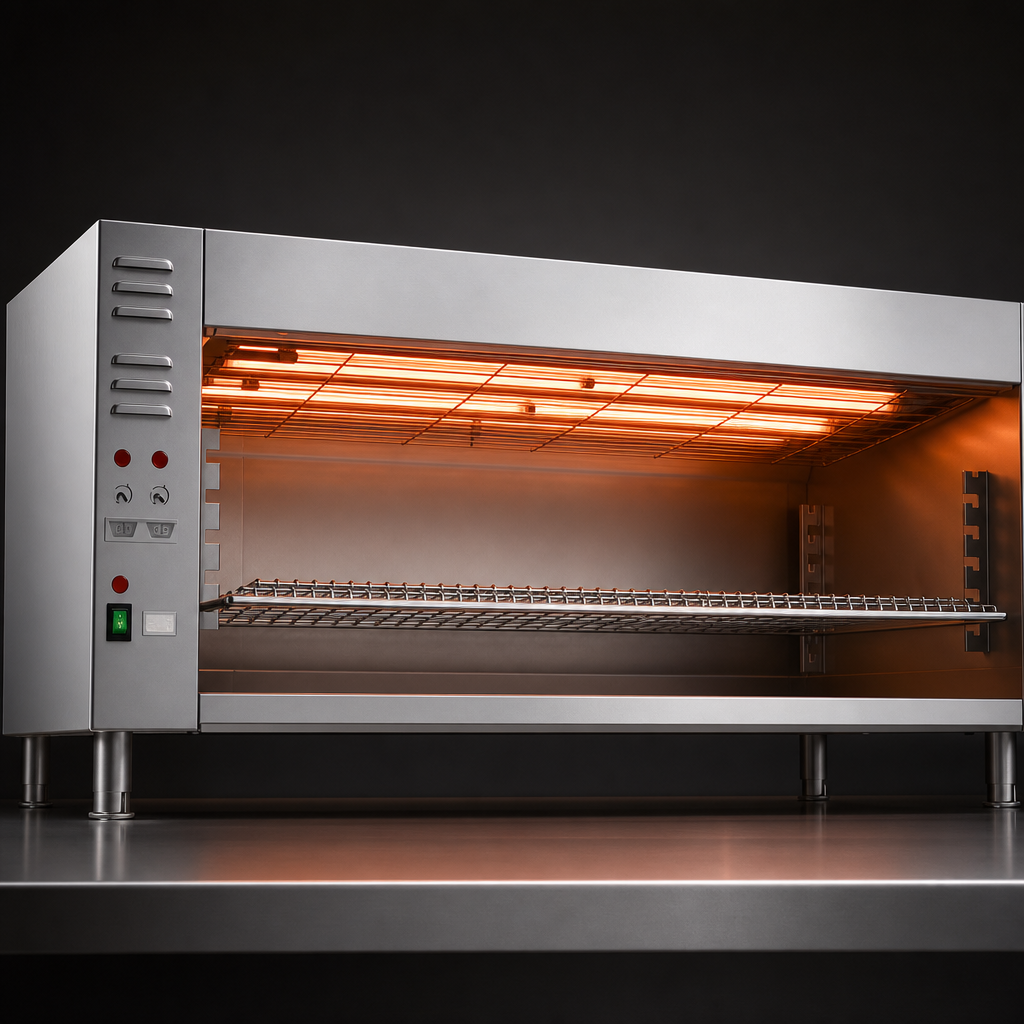

Quartz Infrared Tube Heating Elements

Top-mounted quartz infrared heaters provide instant heat and even radiant broiling performance.

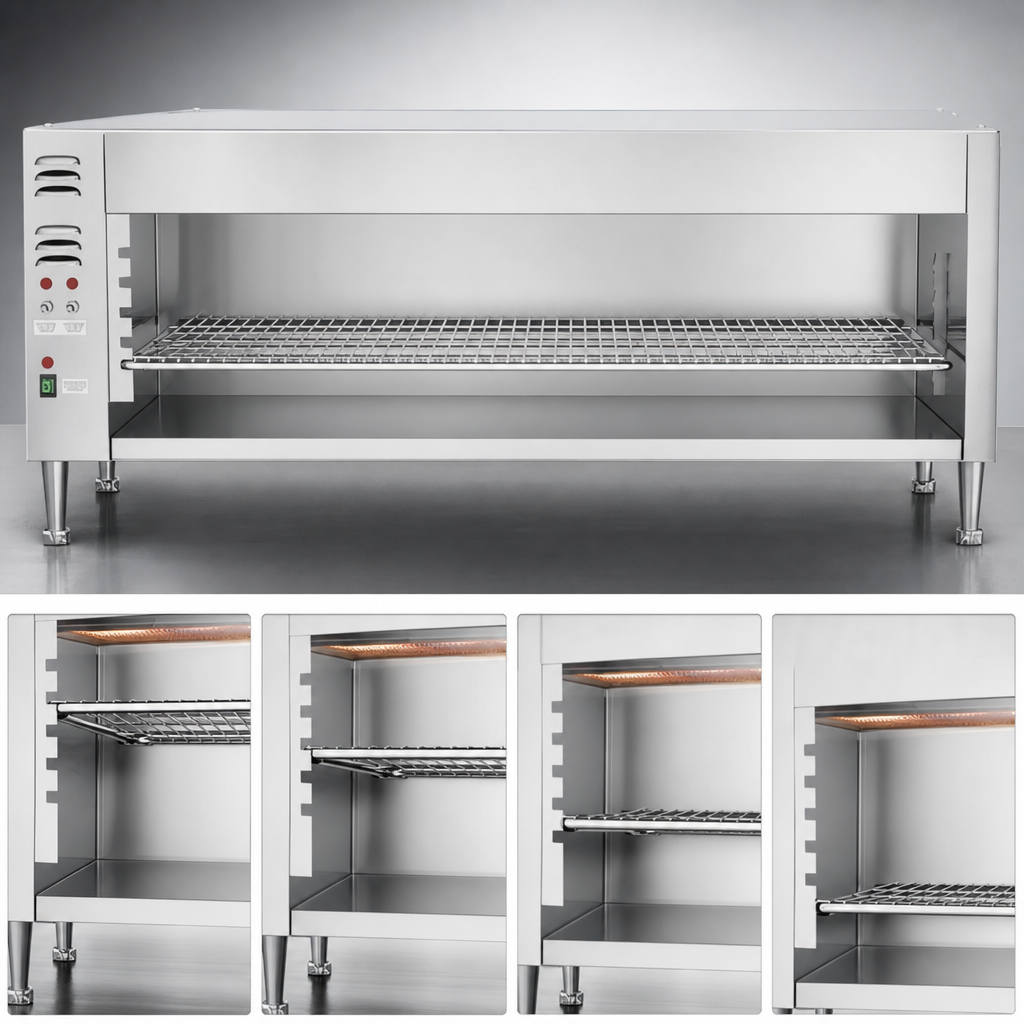

Four Rack Positions

The adjustable rack can be set to four positions to vary clearance and heat intensity for different menu items.

Solid State Controls

Solid-state controls offer straightforward operation and consistent heat management.

Rack-Activated Heat Response

Heaters ramp to full power when product is placed on the rack and idle at reduced heat when the rack is empty.

Stainless Steel Construction

Stainless steel exterior and interior surfaces are built for durability and easier cleanup in busy kitchens.

Flexible Mounting Options

Includes 4-inch adjustable legs for countertop use and a wall mounting panel with brackets for wall installation.

Fan-Cooled Electrical Compartment

A fan-cooled electrical compartment helps support reliable operation.

Type Cheesemelter
Style Quartz Infrared
Installation Type Countertop
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Controls Solid State
Voltage 208/240 Volts
Phase 1-Phase
Watts 4.8 kW
Amps 20.2 Amps at 208 Volts / 17.5 Amps at 240 Volts
Shipping Width 50 Inches
Shipping Depth 18 Inches
Shipping Height 20 Inches
Shipping Weight 120 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor; 90 days on heating elements.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses quartz infrared tube heating elements for instant, even heat.
It has four adjustable rack positions.
Yes. It includes a wall mounting panel and wall mount brackets, along with 4-inch adjustable legs for countertop installation.
It is designed for 208V or 240V single-phase power.
The unit includes a one-year limited parts and labor warranty on all components except heating elements, which carry a 90-day limited parts and labor warranty.
Rack clearance from the top is 2 inches at Position 1, 3.5 inches at Position 2, 4.75 inches at Position 3, and 6 inches at Position 4.
