Vulcan 36-1/2-Inch Electric Quartz Infrared Cheesemelter, 3.6 kW, Countertop/Wall Mount

Stainless Steel, 4 Rack Positions, 208/240V Single-Phase

Fast-heating quartz infrared performance and flexible mounting make this 36-1/2-inch cheesemelter a versatile finishing station for busy kitchens.

  • 36-1/2-inch electric cheesemelter with 3.6 kW output for high-heat finishing.
  • Quartz infrared tube elements deliver instant on/off heat response.
  • Adjustable rack offers 4 positions for better control over browning and melting.
  • Solid state controls and a fan-cooled electrical compartment support dependable operation.
  • Stainless steel exterior and interior with 1-inch insulation help improve durability and heat retention.
  • Includes 4-inch adjustable legs for countertop use plus wall-mount panel and brackets for alternate installation.

Overall Dimensions:

36.5"W x 17.13"D x 19.25"H

Product Weight:

100.0 lb

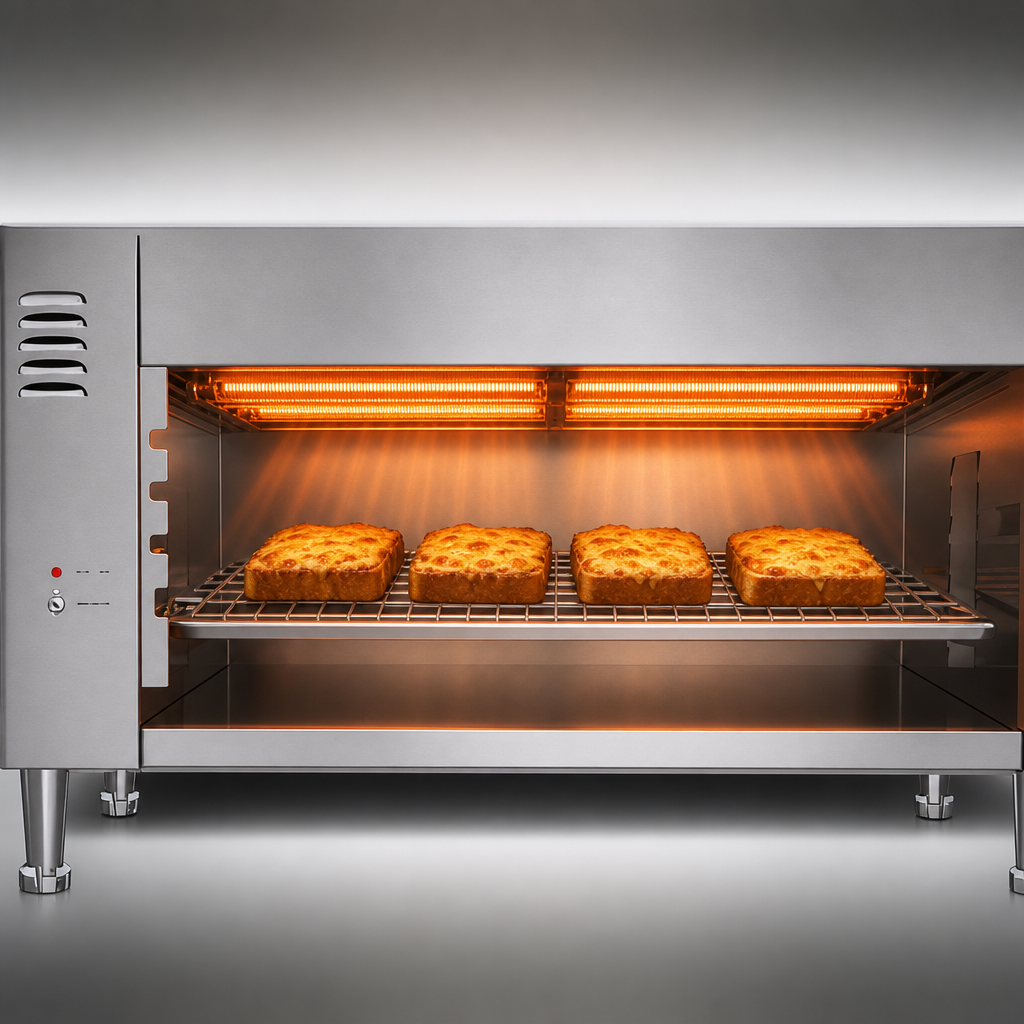

Quartz Infrared Heating Elements

Top-mounted quartz tube heaters provide instant heat response and even broiling performance.

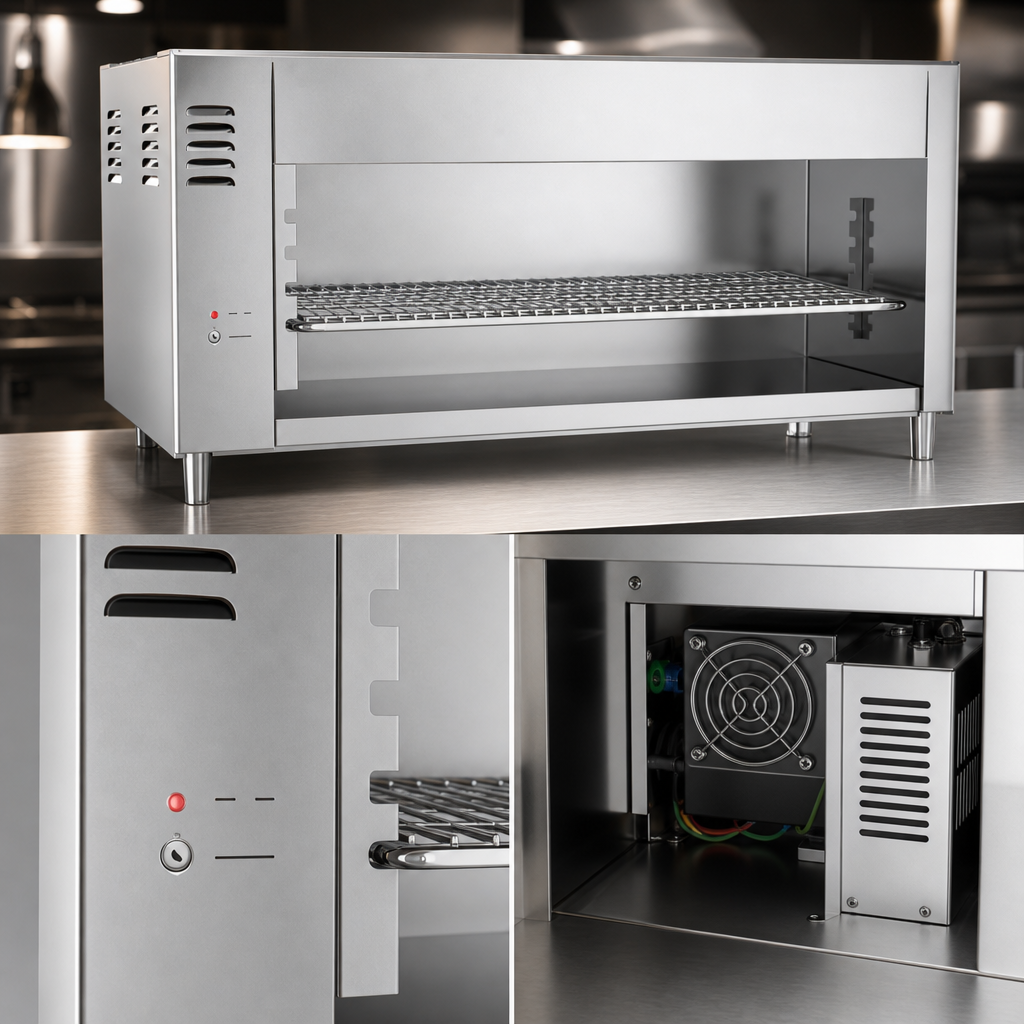

Solid State Controls

Electronic controls offer simple, reliable operation and are paired with a fan-cooled electrical compartment.

Four Rack Positions

The adjustable rack can be set in four positions to help control product distance from the heat source.

Rack-Activated Heat Output

Heaters switch to full power when product is placed on the rack and idle at reduced heat when empty.

Stainless Steel Construction

Stainless steel exterior and interior are built for durability and easy cleaning.

Flexible Mounting Options

Includes 4-inch adjustable legs for countertop installation and a wall-mount panel with brackets for wall mounting.

208/240 Volt Single-Phase Operation

Designed for 208 or 240 volt single-phase electrical service.

Left-Side Electrical Connection

Field wiring connection is located on the left side for installation convenience.

Type Cheesemelter
Style Quartz Infrared
Installation Type Countertop
Controls Solid State
Voltage 208/240 Volts
Amps 17.3 Amps at 208 Volts / 15.0 Amps at 240 Volts
Watts 3.6 kW
Phase 1-Phase
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 37 Inches
Shipping Depth 18 Inches
Shipping Height 20 Inches
Shipping Weight 100 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor; 90 days on heating elements

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires 208 or 240 volt single-phase power.
The adjustable rack has 4 positions.
Yes. It includes a wall-mount panel and wall-mount brackets, and it also comes with 4-inch adjustable legs for countertop installation.
It uses quartz infrared tube heating elements.
The unit measures 36 1/2 inches wide, 17 1/8 inches deep, and 19 1/4 inches high.
It includes a 1-year limited parts and labor warranty on all components except heating elements, which carry a 90-day limited parts and labor warranty.
