Vulcan

Vulcan 27-Inch Electric Quartz Infrared Cheesemelter with 4 Rack Positions

SKU: 1024
$3,668.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters New Arrivals Restaurant Equipment Vulcan

Vulcan 27-Inch Electric Quartz Infrared Cheesemelter with 4 Rack Positions

Countertop or Wall Mount, 2.4 kW, 208/240V

A compact electric quartz infrared cheesemelter with fast heat response, four rack positions, and flexible countertop or wall-mount installation.

  • Quartz infrared tube heating elements deliver instant on/off response and even top heat.
  • Four adjustable rack positions let you dial in clearance for different finishing tasks.
  • Solid state controls and a fan-cooled electrical compartment support dependable operation.
  • Stainless steel exterior and interior help with durability and easier cleanup.
  • Includes 4-inch adjustable legs plus a wall-mount panel and brackets for flexible installation.
  • Available in 208V or 240V single-phase power with a 2.4 kW input.

Overall Dimensions:

27.0"W x 17.13"D x 19.25"H

Product Weight:

75.0 lb

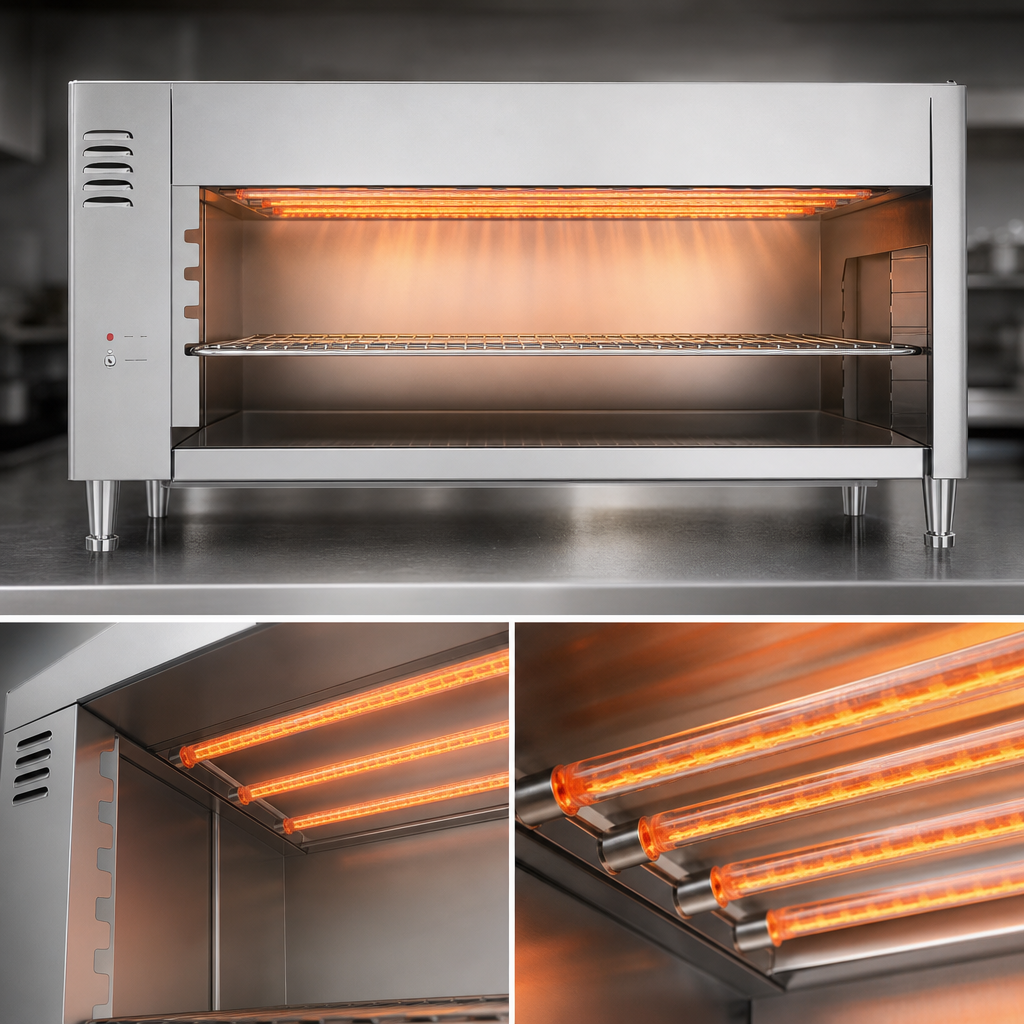

Quartz Infrared Tube Heating Elements

Top-mounted quartz heaters provide fast response and even heating for cheesemelting and finishing.

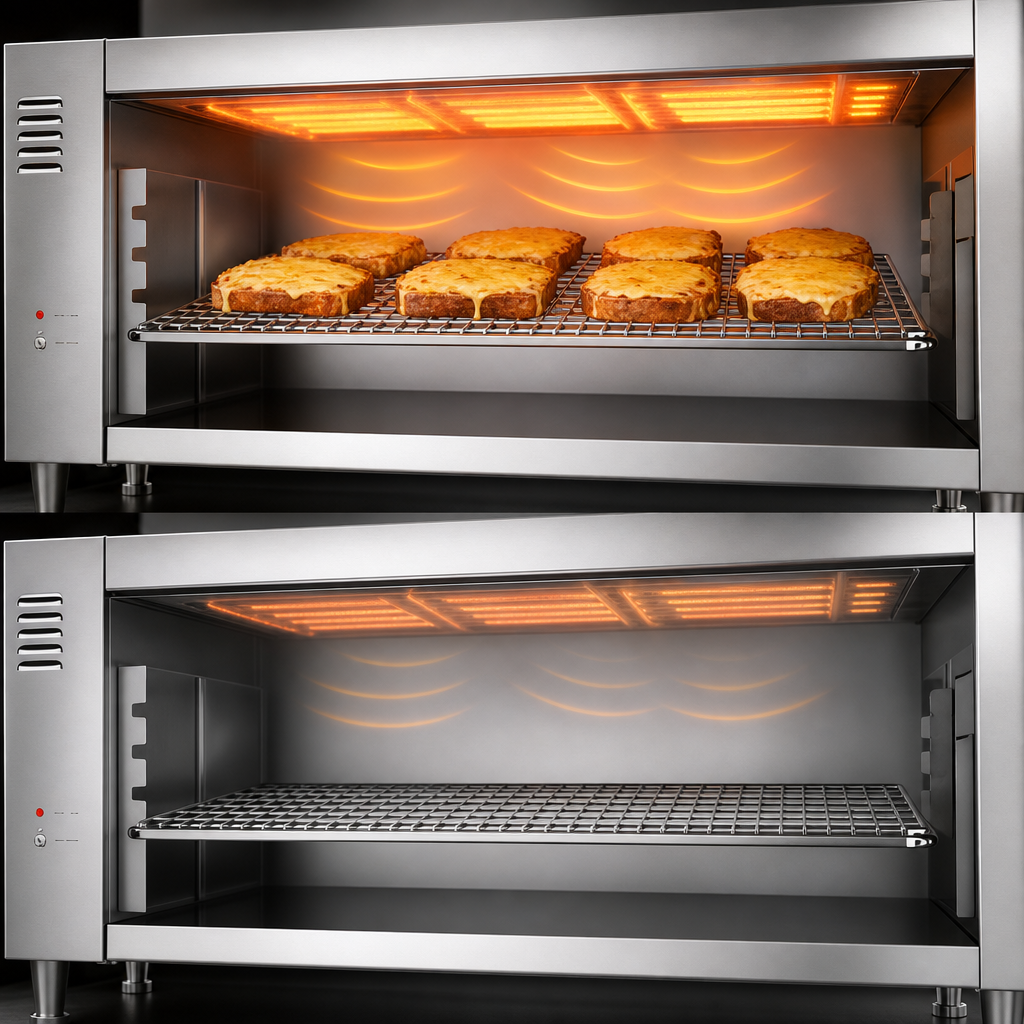

Rack-Activated Heat Control

Heaters ramp to full power when product is placed on the rack and idle at reduced heat when the master switch is on with no product.

Four Adjustable Rack Positions

The rack adjusts to four positions to help control product height and heat exposure.

Solid State Controls

Solid state controls with a master switch and indicator light simplify operation.

Stainless Steel Construction

Stainless steel top, front, sides, and interior support durability and easier cleanup.

Flexible Mounting Options

Includes 4-inch adjustable legs for countertop installation and a wall mounting panel with brackets for wall-mounted use.

Fan-Cooled, Insulated Cabinet

A fan-cooled electrical compartment and 1-inch insulation on the top, sides, and back help support cooler operation and heat retention.

Type Cheesemelter
Style Quartz Infrared
Installation Type Countertop
Controls Solid State
Voltage 208/240 Volts
Phase 1-Phase
Watts 2.4 kW
Material Stainless Steel
Finish Stainless Steel
Shipping Width 27 Inches
Shipping Depth 18 Inches
Shipping Height 20 Inches
Shipping Weight 75 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor; 90 days on heating elements.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It includes 4-inch adjustable legs for countertop installation and a wall-mount panel with brackets for wall mounting.
It is available for 208V or 240V single-phase power and uses a left-side field wiring connection.
It has four adjustable rack positions.
It uses top-mounted quartz infrared tube heating elements for fast, even heating.
The unit has a one-year limited parts and labor warranty on all components except heating elements, which carry a 90-day limited parts and labor warranty.
