Description

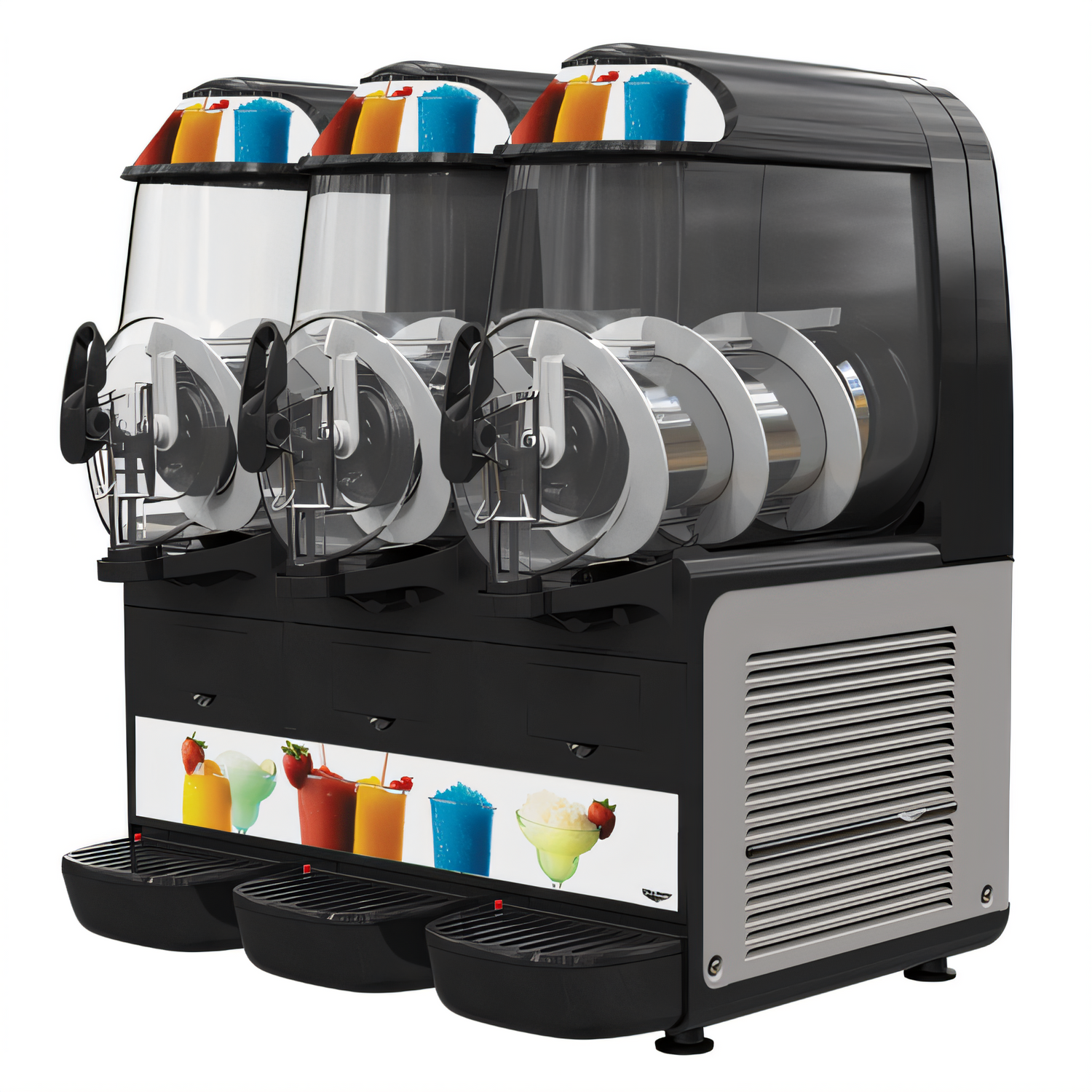

Vollrath Frozen Beverage / Granita Dispenser – 3 Bowls (10 L | 2.64 gal each)
Model VCBF168-AF | Auto-Fill Ready · NSF & cETLus ListedServe higher-margin frozen drinks all day, every day. With three independently controlled 10-liter bowls, a powerful compressor and Vollrath’s brush-less magnetic drive, this countertop workhorse chills, freezes and merchandises slushes, smoothies, granitas and frozen cocktails faster—while keeping cleanup and labor to a minimum.
Key features & benefits

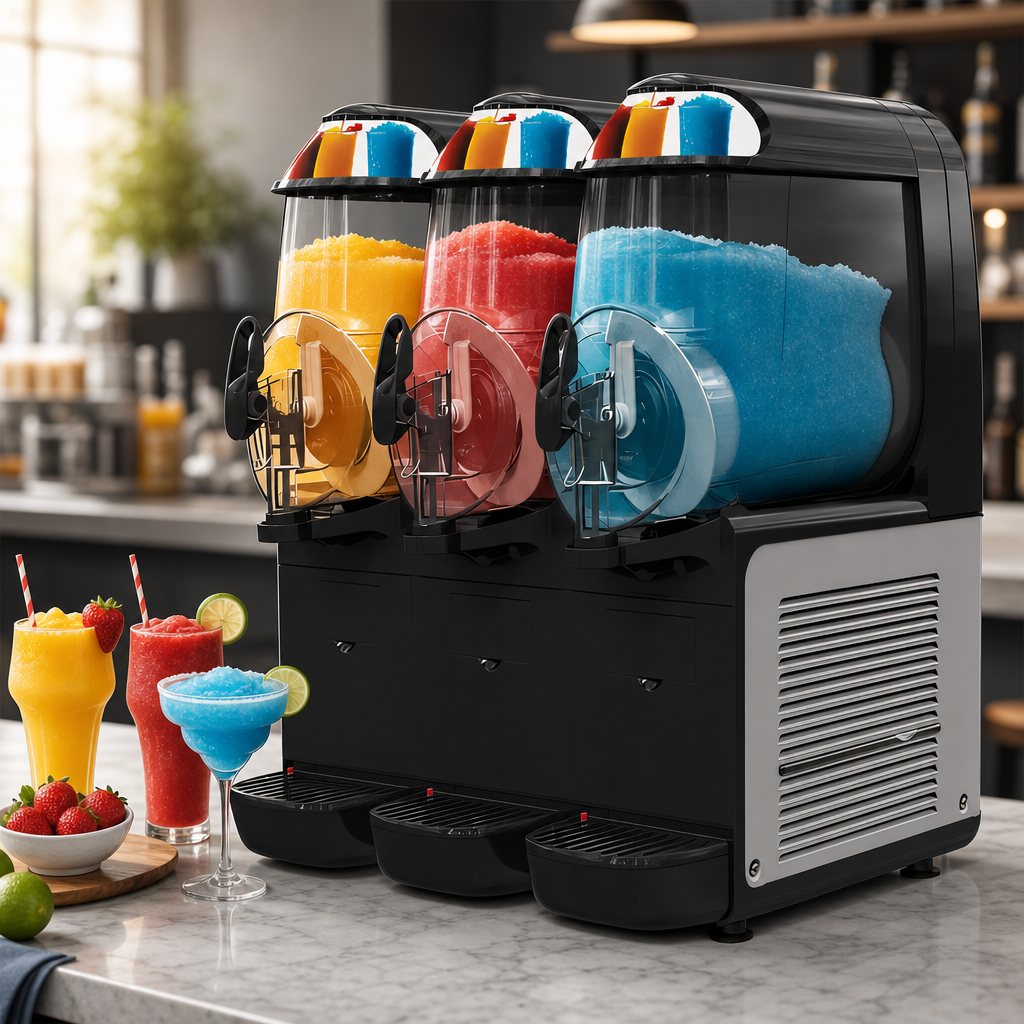

- Triple 10 L bowls – 2.64 gal each (≈7.9 gal total) for serious service capacity.
- Independent controls on every bowl: On/Off, Granita mode (consistency control) or Frozen-beverage mode (temperature control).
- Magnetic drive & brush-less motor – increased reliability, quieter operation and no worn gears to replace.
- Gasket-less spigots – nothing to take apart, nothing to replace, nothing to leak.
- Large 3 630 BTU/hr compressor – rapid freeze-down keeps product ready through peak traffic.
- Illuminated bowls with separate On/Off switch showcase product and boost impulse sales.

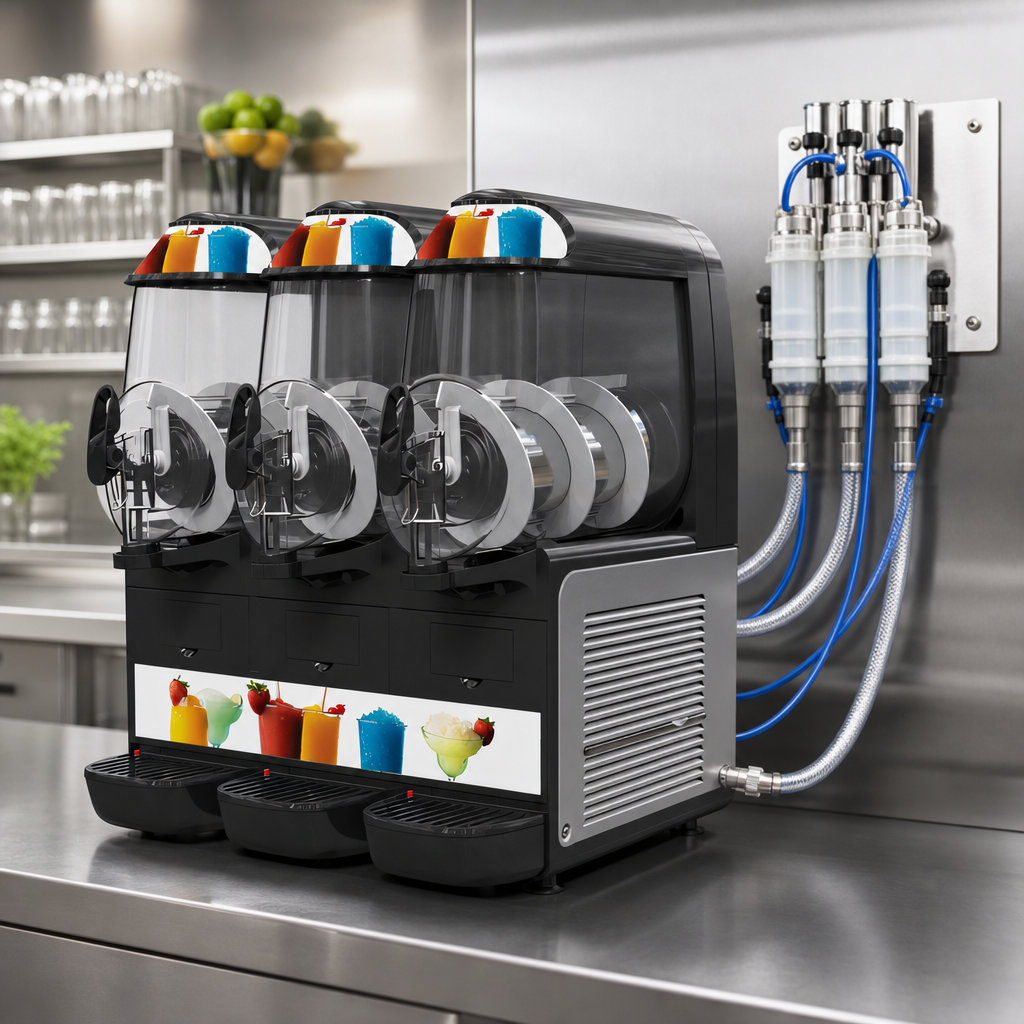

- Auto-Fill ready kit installed – connect an optional remote fill system to keep bowls topped off automatically, reducing trips back-of-house.
- Optional double-wall bowls eliminate exterior condensation for spotless counters.
- White Glove Service: 24 / 7 / 365 direct access to technical and warranty support.
Technical specifications
Capacity (per bowl) | 2.64 gal | 10 L |
---|---|
Number of bowls | 3 – independently controlled |
Overall dimensions | 23 ½ W × 19 ½ D × 27 H in (59.4 × 49.7 × 68.4 cm) |
Electrical | 120 V | 60 Hz | 1-ph · 13.9 A · NEMA 5-20P (6.5 ft cord) |
Refrigeration | 3 630 BTU/hr · R448A |
Net weight | 129 lb (58.5 kg) |
Certifications | NSF • cETLus |
Warranty | 1 yr parts & labor · 2 yrs warranty parts · 3 yrs electronic board · 5 yrs compressor (see Vollrath for full policy) |
Installation & operating notes
- Provide 6 in (15 cm) unobstructed clearance on all sides for ventilation.
- Indoor use only; maximum ambient temperature 89 °F (32 °C).
- Do not place unit in direct sunlight.
Compatible accessories (sold separately)
- 4177349 Electric Remote Fill System
- 4177370 Gas Remote Fill System
- BR0208 Double-Wall Bowl Kit
Auto-Fill function requires a compatible remote fill system.
For full warranty terms, downloadable manuals and spare parts, visit vollrathfoodservice.com.
