Description

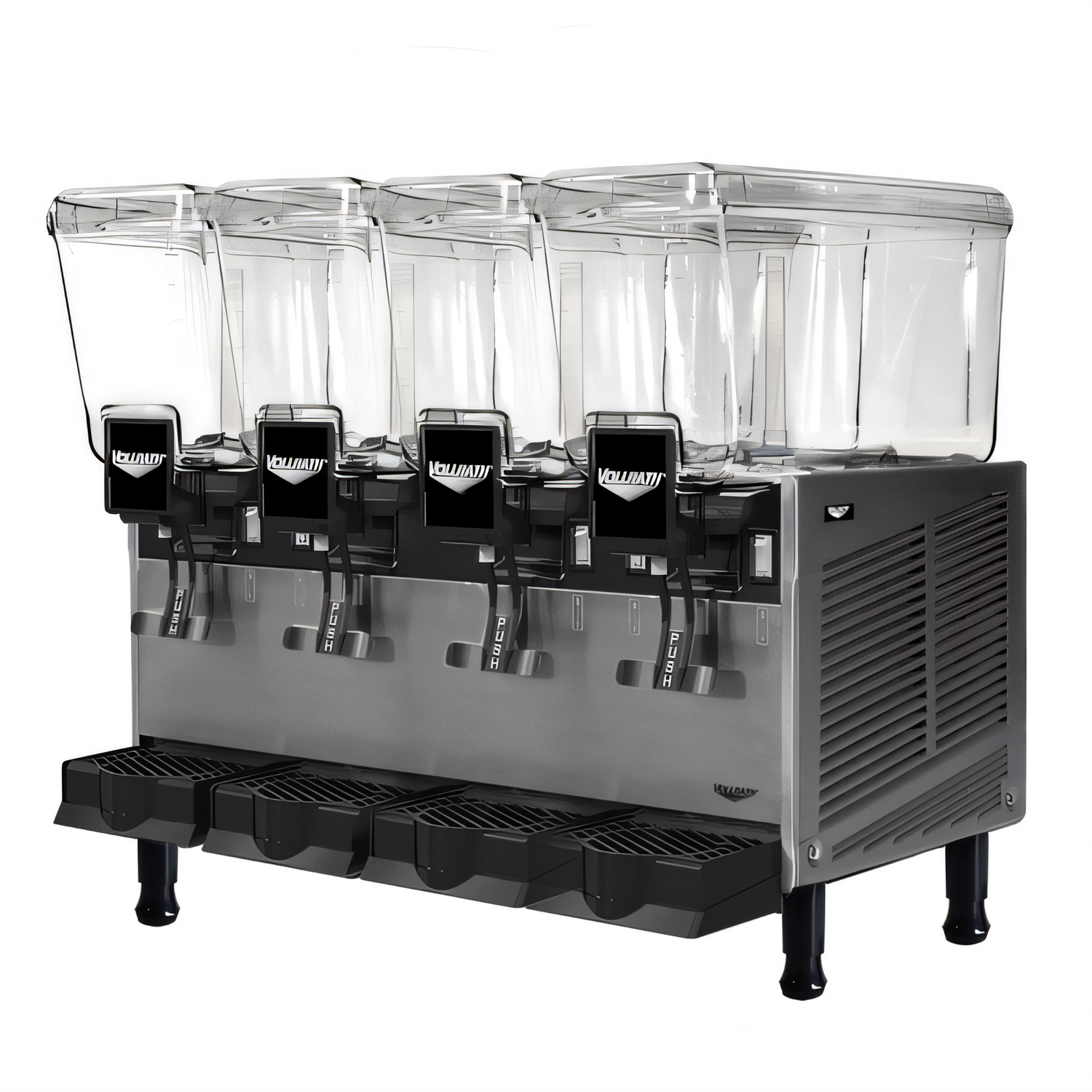

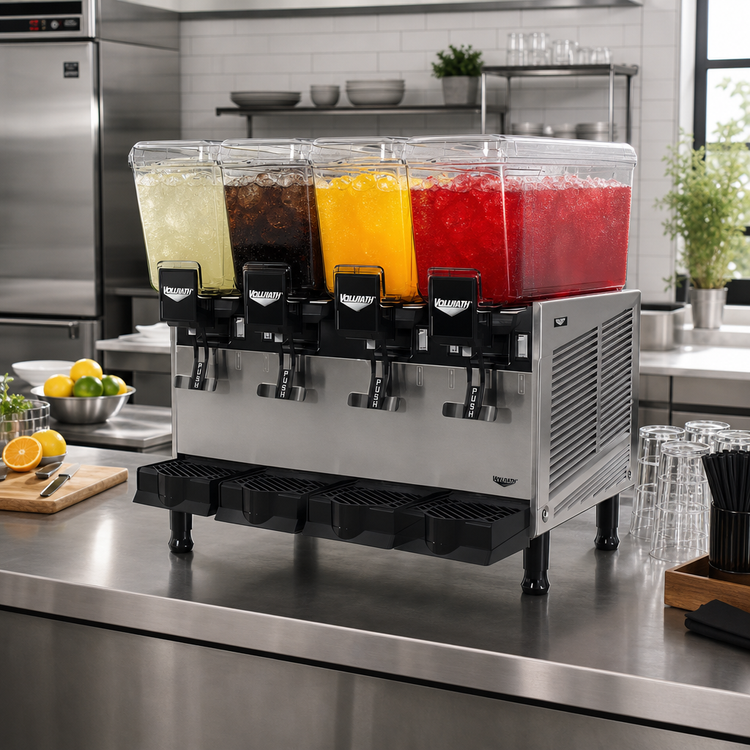

Vollrath VBBD4-37-F 4-Bowl Refrigerated Beverage Dispenser

Fountain-spray circulation • 4 × 3.2 gal bowls • 115 V

Keep up to 12.8 gallons of juice, lemonade, or other non-foaming drinks perfectly chilled and eye-catching with this four-bowl Vollrath pre-mix dispenser. Independent thermostats, a durable stainless body, and easy-use rocker switches give you the control and reliability busy service lines demand.

Why You’ll Love It

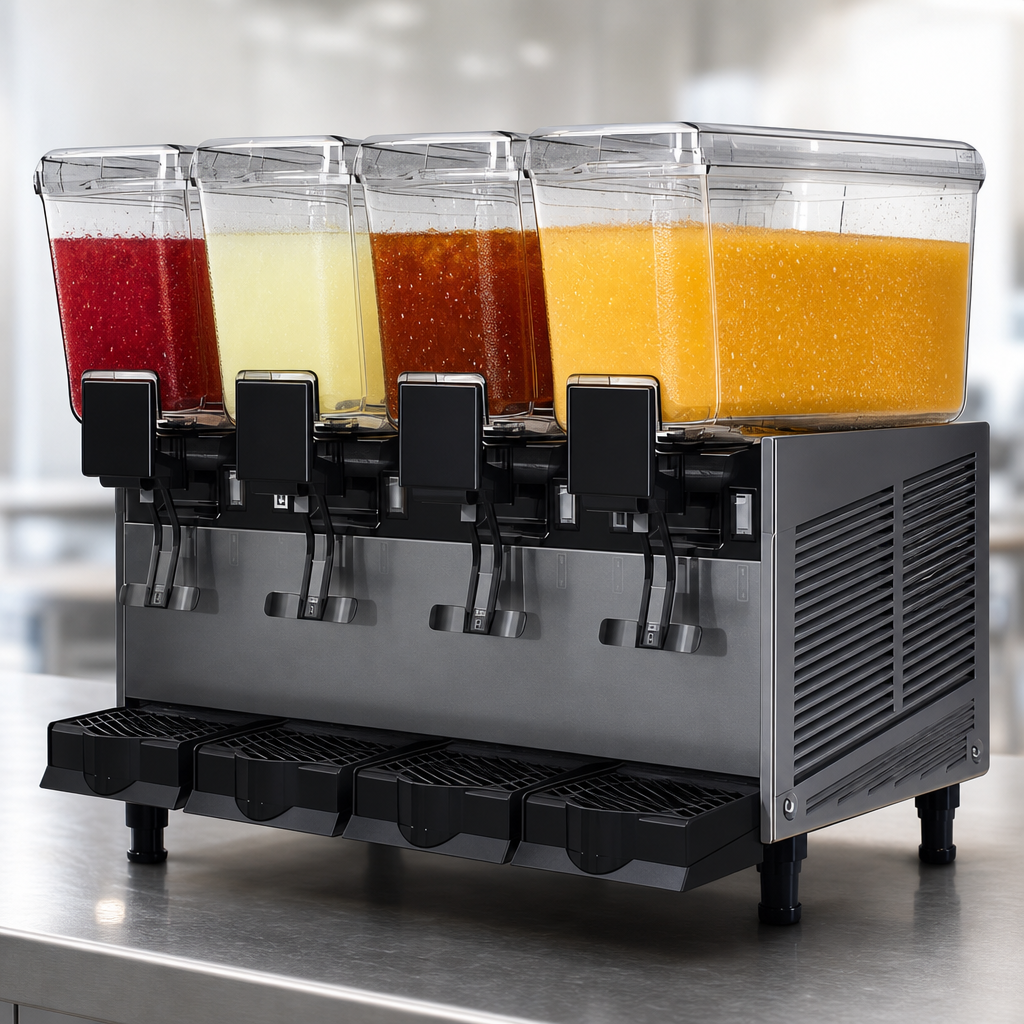

  • Crystal-clear merchandising – food-grade polycarbonate bowls showcase product and lift off in seconds for cleaning.

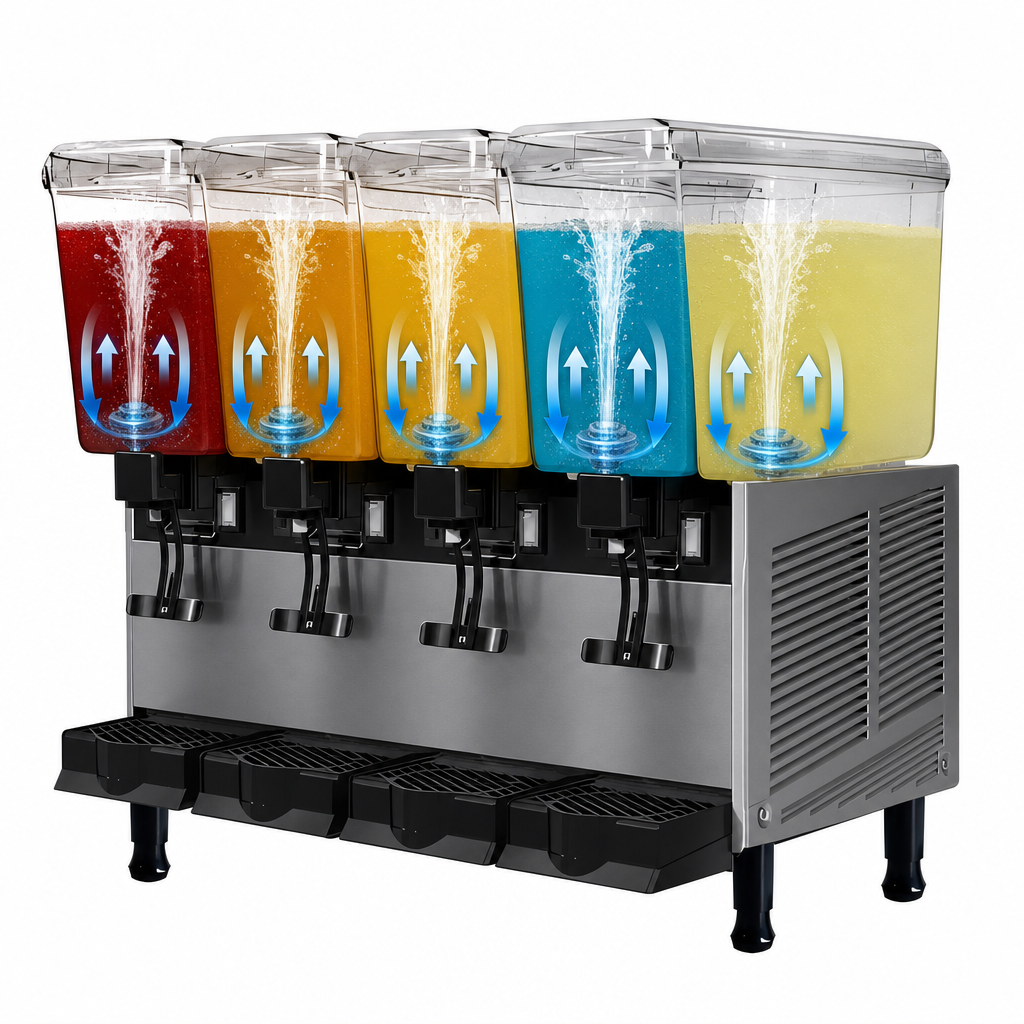

  • Show-stopping fountain spray – magnetic-drive spray keeps beverages mixed and visually appealing (not for drinks that foam).
  • Independent temperature control – one thermostat per bowl maintains 35 – 41 °F (2 – 5 °C) so each flavor is served at its best.
  • Rugged stainless steel chassis – one-piece unibody cabinet stands up to constant commercial use.
  • Gravity-fed, drip-free spigots – stainless steel valves deliver a fast, consistent pour without pumps or electronics.
  • Quick-clean ABS drip trays – oversized catch trays snap out to empty and sanitize in seconds.
  • Simple rocker controls – master refrigeration switch plus one circulation switch per bowl; shut off unused bowls to save energy.
  • Plug-and-play power – 115 V, 16 A, NEMA 5-20P cord included; charged with environmentally friendly R134a.

Perfect For

  • C-stores & self-serve beverage stations
  • Hotel breakfast bars
  • Buffets, cafeterias & corporate dining
  • Juice bars & smoothie shops (non-pulpy juice)
  • Catering & event concessions

Technical Specs

Model VBBD4-37-F
Total Capacity 12.8 gal / 48 L (4 × 3.2 gal bowls)
Circulation Method Fountain spray, magnetic drive
Holding Temperature Adjustable 35 – 41 °F (2 – 5 °C)
Controls Master refrigeration rocker & individual bowl circulation rockers
Exterior Stainless steel unibody cabinet
Spigots Gravity-fed stainless steel, drip-free design
Drip Trays Removable ABS plastic
Refrigerant / BTU hr R134a / 2 × 1,830 BTU hr
Electrical 115 V / 60 Hz / 1-ph, 16 A, NEMA 5-20P
Dimensions (D × W × H) 18.5 in × 28.6 in × 25.5 in (47.1 × 72.6 × 64.7 cm)
Weight 110 lb (50 kg)
Certifications cETLus, NSF
Clearance & Environment Indoor use; 6 in (15 cm) clearance on all sides; 41 – 86 °F (5 – 30 °C) ambient
Warranty 1 yr parts & labor, 2 yr parts, 5 yr compressor (full policy)
Important: This dispenser is not intended for beverages containing fruit pieces, large pulp, seeds, or drinks that create excess foam (e.g., coffee or tea). Such products can block the spigot or interfere with fountain circulation.

Need help with set-up or service? Vollrath’s 24/7 White Glove Service is just a phone call away.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cETLus

Height

25.5in

Width

28.63in

Depth

18.5in

Shipping Weight

131.0lbs

Bowl Qty

4

Bowl capacity (each)

3.2 gal

Specifications

Vollrath Pre-Mix Refrigerated Beverage Dispenser, electric, fountain spray circulation, (4) 3.2 gallon polycarbonate food grade bowls, 35° to 41°F temperature range, (1) thermostat per bowl, rocker controls, stainless steel unibody cabinet, gravity fed, stainless steel spigot, ABS plastic drip trays, R134a, 115v/60/1-ph, 16 amps, NEMA 5-20P, cETLus, NSF (Refer to vollrathfoodservice.com for full warranty policy)
