Vollrath VBBD3-37-F Hot Water/Beverage Dispensers
Description

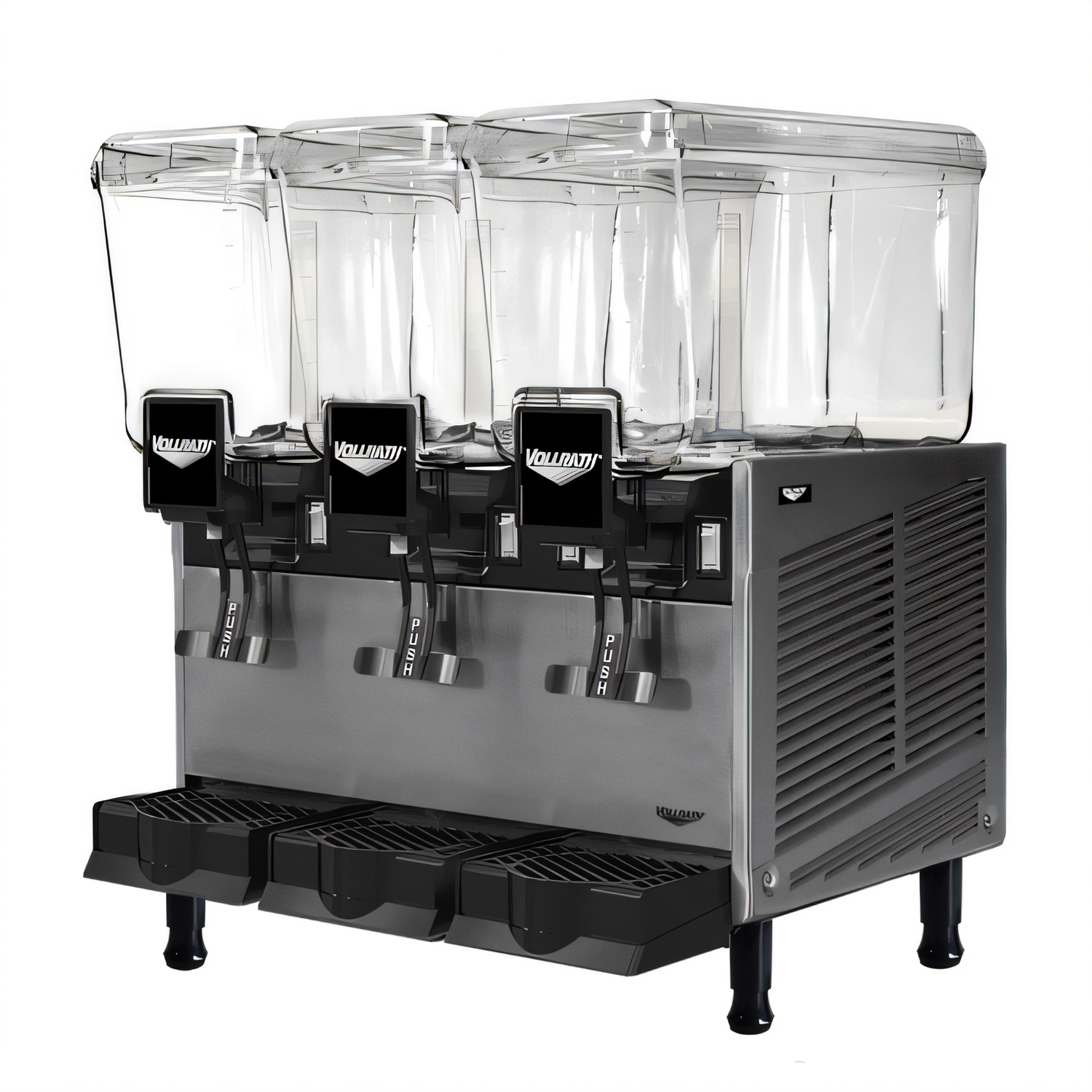

Vollrath Pre-Mix Refrigerated Beverage Dispenser – 3-Bowl, Fountain Spray
Model VBBD3-37-F | 9.6 gal (36 L) total capacityGive guests an ice-cold, crystal-clear view of your most popular drinks. Vollrath’s 3-bowl pre-mix dispenser uses a magnetic fountain-spray system to keep product gently agitated, perfectly chilled, and ready to pour all day long.
Why You’ll Love It

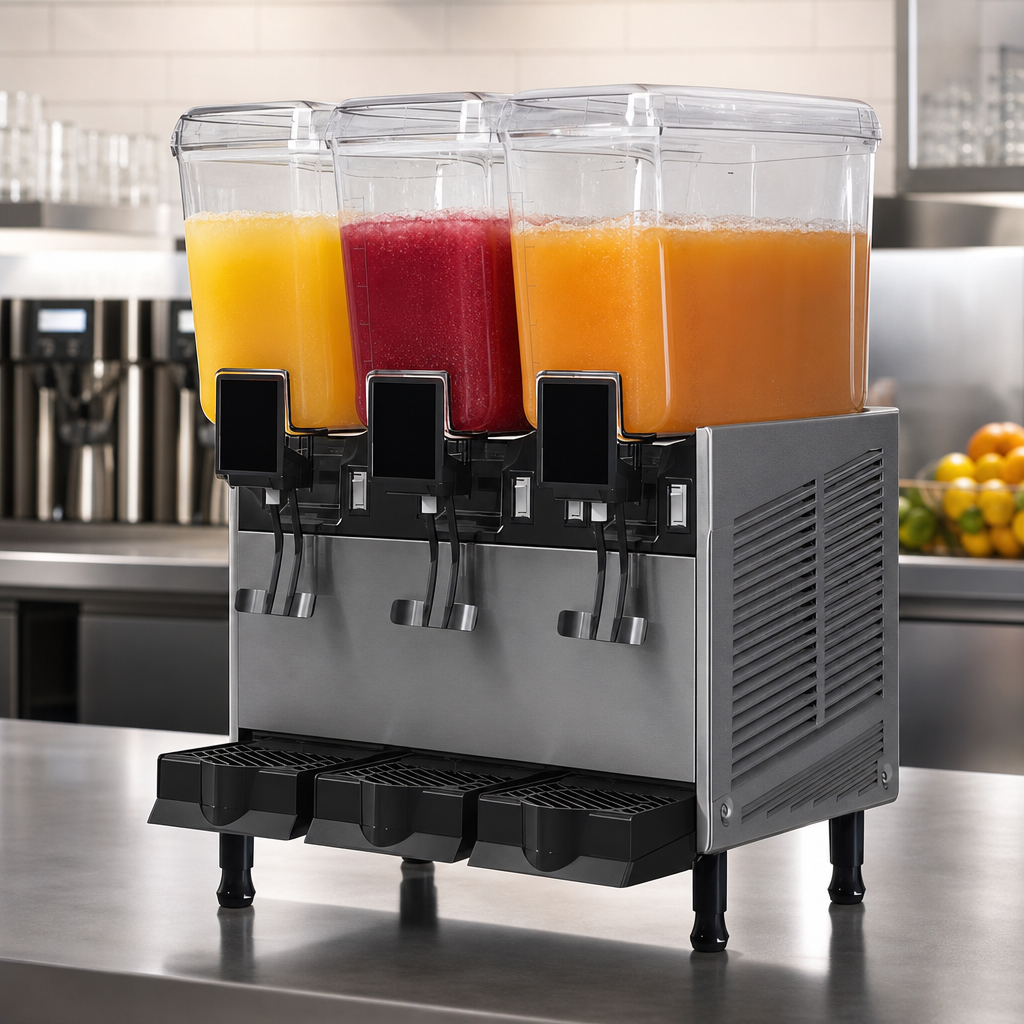

- Three food-grade polycarbonate bowls – 3.2 gal (12 L) each – for a 9.6 gal (36 L) yield.

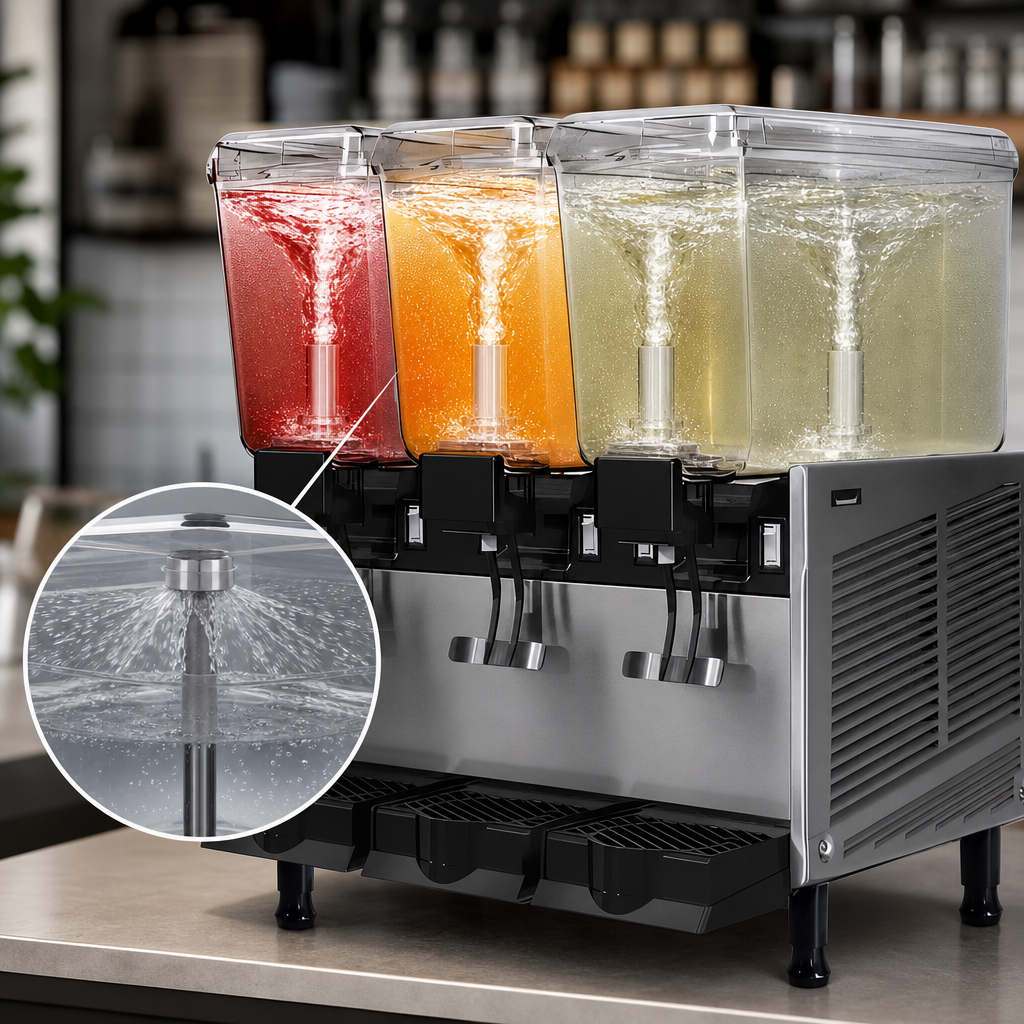

- Fountain-spray circulation showcases product movement and maintains even temperatures.
- Individually adjustable thermostats (one per bowl) hold 35 – 41 °F / 1.7 – 5 °C.
- Simple rocker switches: one master refrigeration switch + one circulation switch per bowl.
- Stainless steel unibody cabinet resists corrosion and wipes clean in seconds.
- Gravity-fed, drip-free stainless steel spigots for fast, clog-free dispensing.
- Removable ABS plastic drip trays catch spills and are dishwasher safe.
- Tool-free bowl, cover & handle removal speeds up nightly cleaning.
- cETLus & NSF listed for commercial use; backed by Vollrath’s renowned White-Glove Service.
Perfect For
- Lemonade, fruit punch, aguas frescas & flavored waters
- Iced coffee or cold brew (low-foam recipes)
- Cafeterias, C-stores, concession stands & self-serve stations
Technical Specifications
| Capacity | 3 × 3.2 gal (12 L) bowls |
|---|---|
| Circulation Type | Magnetic fountain spray |
| Temperature Range | 35 – 41 °F (1.7 – 5 °C) |
| Thermostats | 1 adjustable thermostat per bowl |
| Controls | Rocker (refrigeration) + 3 rocker (circulation) |
| Refrigerant | R404a |
| Electrical | 115 V / 60 Hz / 1-ph, 7.2 A, NEMA 5-15P |
| Compressor Output | 5,719 BTU/hr |
| Cabinet Material | Stainless steel |
| Dispensing | Gravity-fed stainless steel spigots |
| Overall Dimensions | 18.5″ D × 21.5″ W × 25.5″ H (47 × 55 × 65 cm) |
| Shipping Weight | 75 lb (34 kg) |
Installation requires 6″ (15 cm) clearance on all sides. Indoor use only. Not for beverages containing pulp, seeds, or fruit pieces that could obstruct the spigot.
