Vollrath SO2-22014.5 Conveyor Ovens
Description

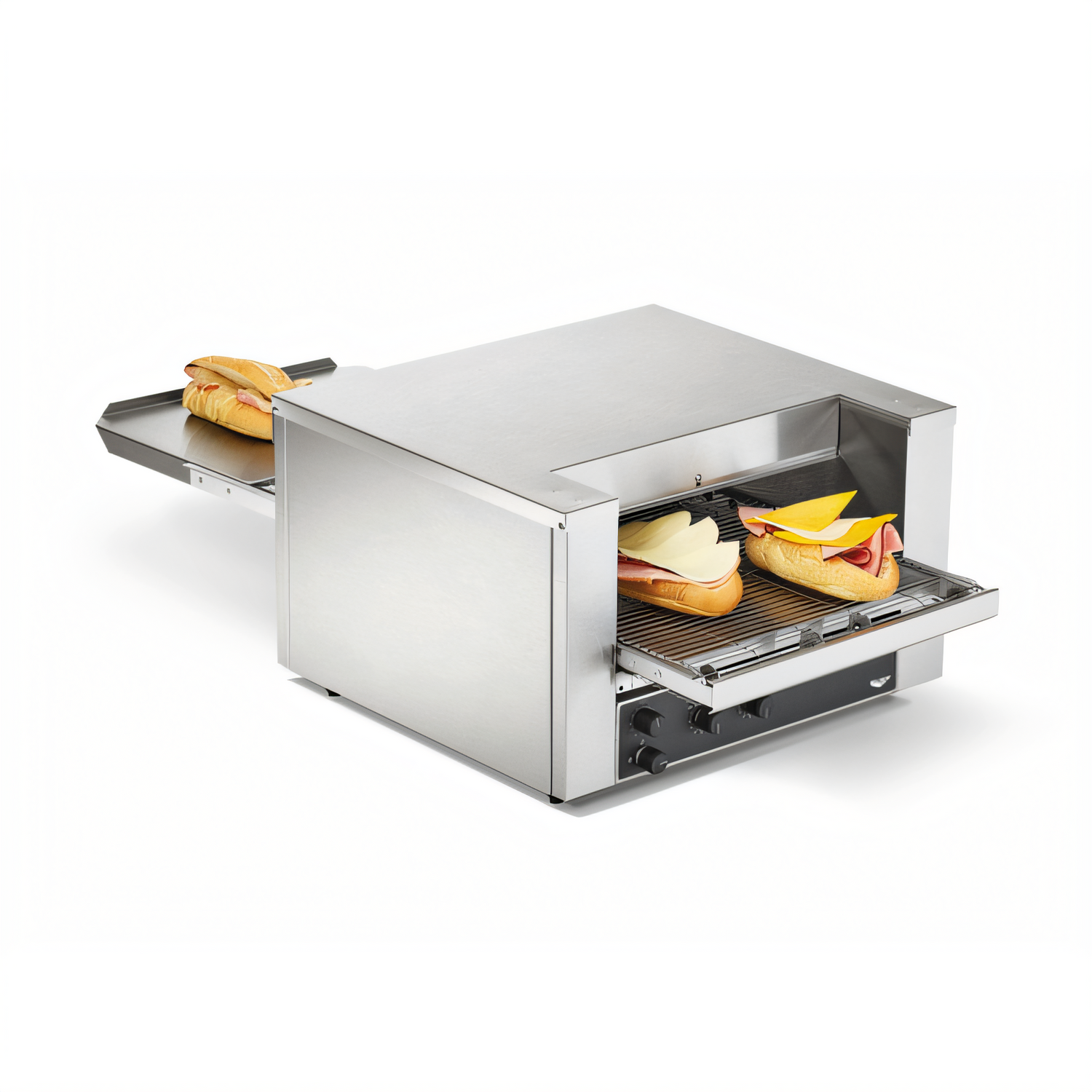

Vollrath JB3H Ventless Conveyor Sandwich Oven – 14.5" Belt, 220 V
Model SO2-22014.5 • Made to Order in the USAGive your sandwich line the speed, consistency, and flexibility it deserves. The Vollrath JB3H 40" conveyor sandwich oven delivers rapid, even toasting and finishing with energy-efficient quartz elements, independent top and bottom heat controls, and a variable-speed belt—all in a compact, ventless footprint that frees you from expensive hood space.
Why You’ll Love It

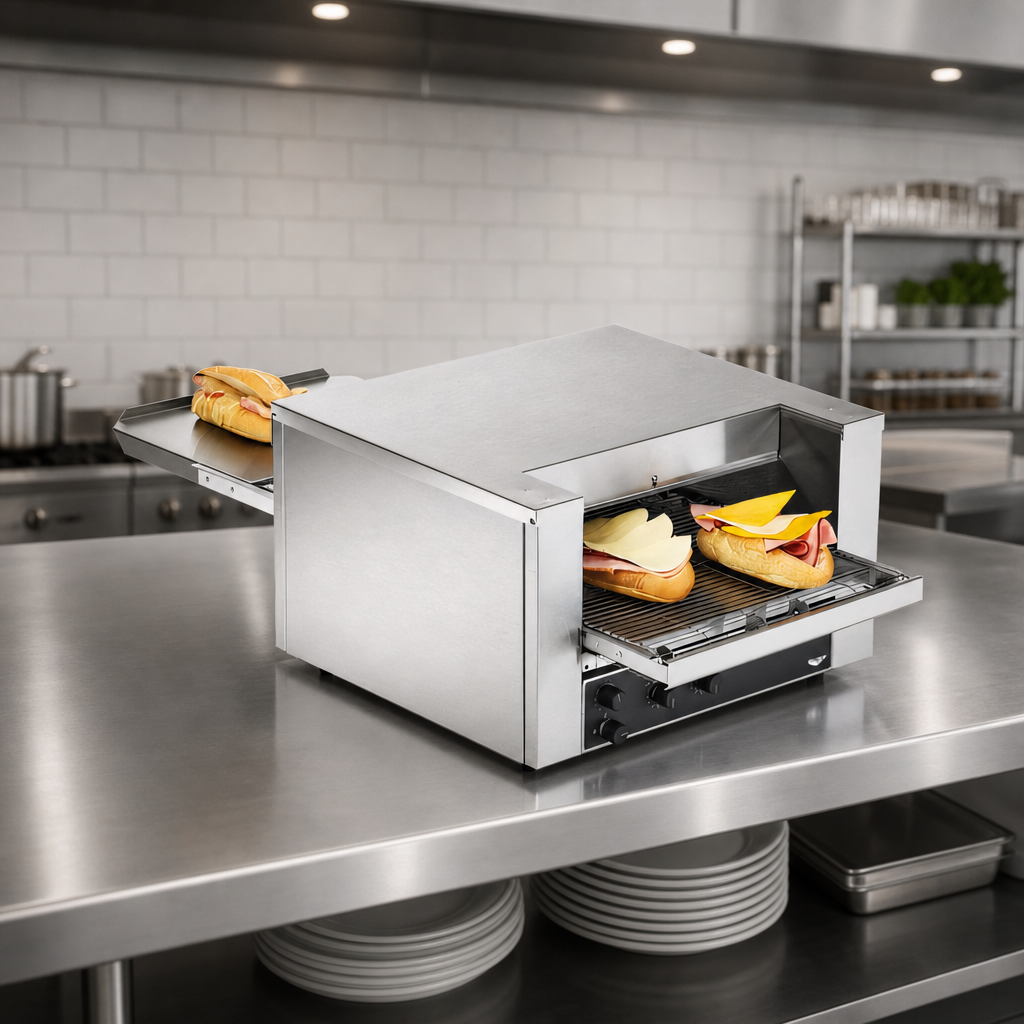

- Ventless & Certified – UL, NSF, and cUL listed; EPA 202 compliant for hood-free installation (check local codes).
- 14.5 in (36.8 cm) Belt handles subs, ciabatta, flatbreads, and plated entrées.
- Independent top / bottom heat plus infinite belt speed put you in total control.

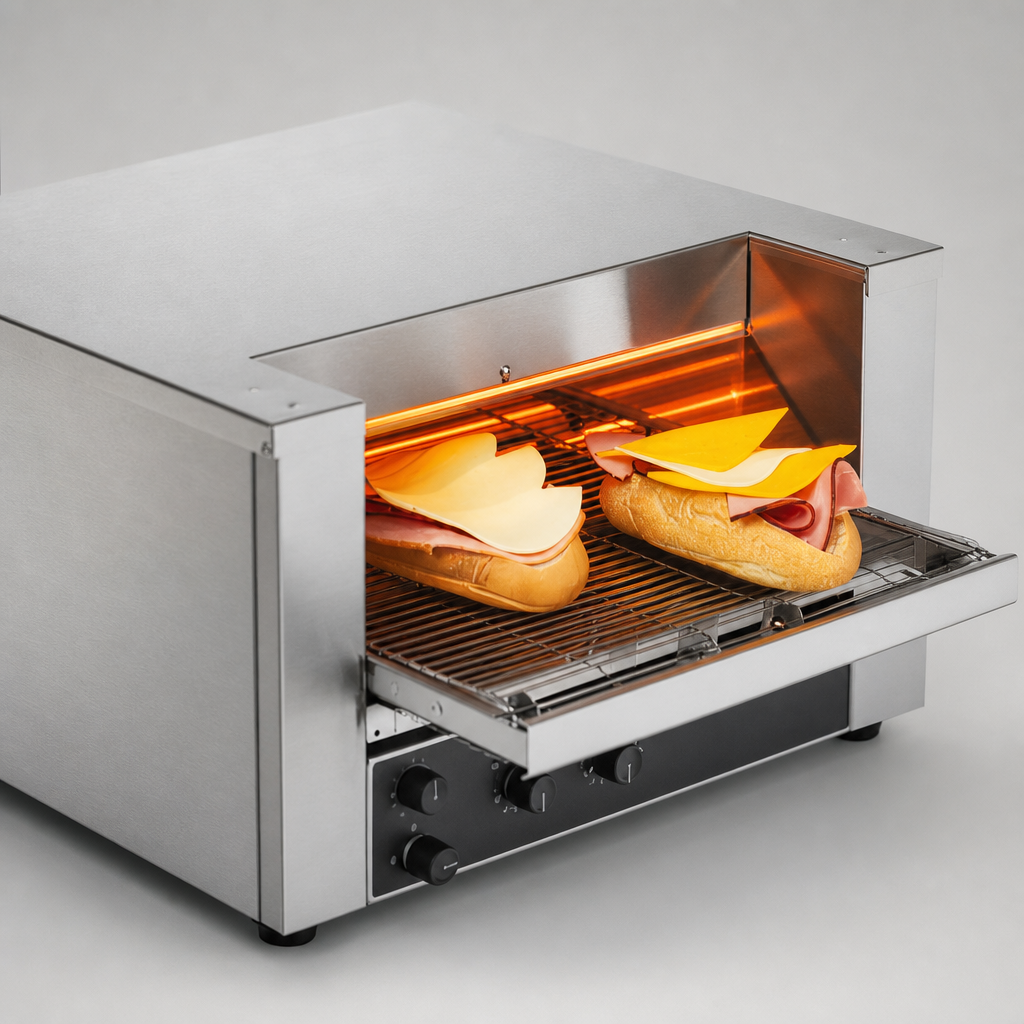

- Fast-reacting quartz heaters reach temperature quickly and recover instantly between orders.
- Forced-convection airflow promotes uniform browning while reducing energy use.
- Adjustable product opening 1½ – 3" (3.8 – 7.6 cm) to fine-tune heat retention for melts, toast, or finished entrées.
- Extended loading & receiving trays streamline pass-through service.
- Stackable design (use spacer #351042) doubles output without adding floor space.
- Low-maintenance stainless steel drive chain & aluminized steel construction.
- 4.5 ft (1.4 m) cord with NEMA 6-30P plug included.
Technical Specs
| Item / Model | SO2-22014.5 | JB3H Series |
|---|---|
| Overall Dimensions | 14.5"W × 40.87"D × 12.5"H (368 × 1038 × 318 mm) |
| Conveyor Belt Width | 14.5" (36.8 cm) |
| Product Opening | 1.5" – 3" adjustable (3.8 – 7.6 cm) |
| Electrical | 220 V / 60 Hz / 1-phase |
| Power | 3,600 W | 16.4 A |
| Plug Type | NEMA 6-30P (pre-wired) |
| Construction | Stainless & aluminized steel; quartz heating elements |
| Certifications | UL, NSF, cUL – Ventless verified |
| Country of Origin | Made in USA |
Installation & Operation
- Provide 8" (20.3 cm) clearance on left and right sides for airflow.
- Maximum ambient temperature: 104 °F (40 °C).
- Designed for toasting sandwiches, bread, and finishing pre-cooked items; not for cooking raw proteins or continuous 24/7 use.
Warranty
2 Year Parts | 1 Year Labor standard warranty – backed by Vollrath’s nationwide service network.
