Vollrath R39736 2-Series Affordable Portable™ Serving Counters
Description

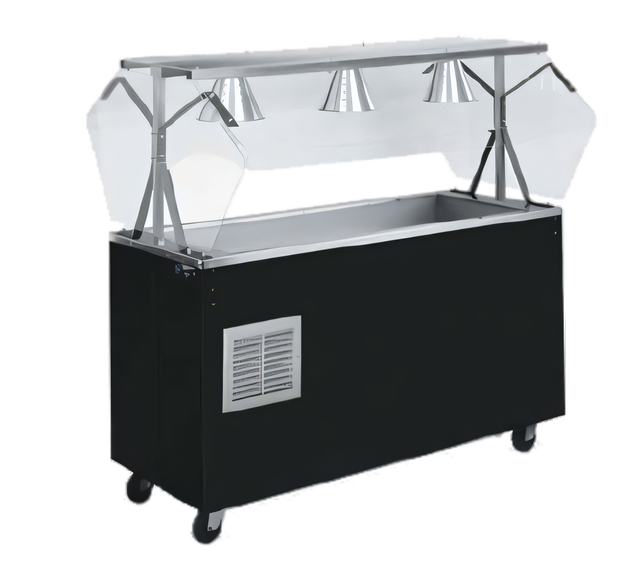

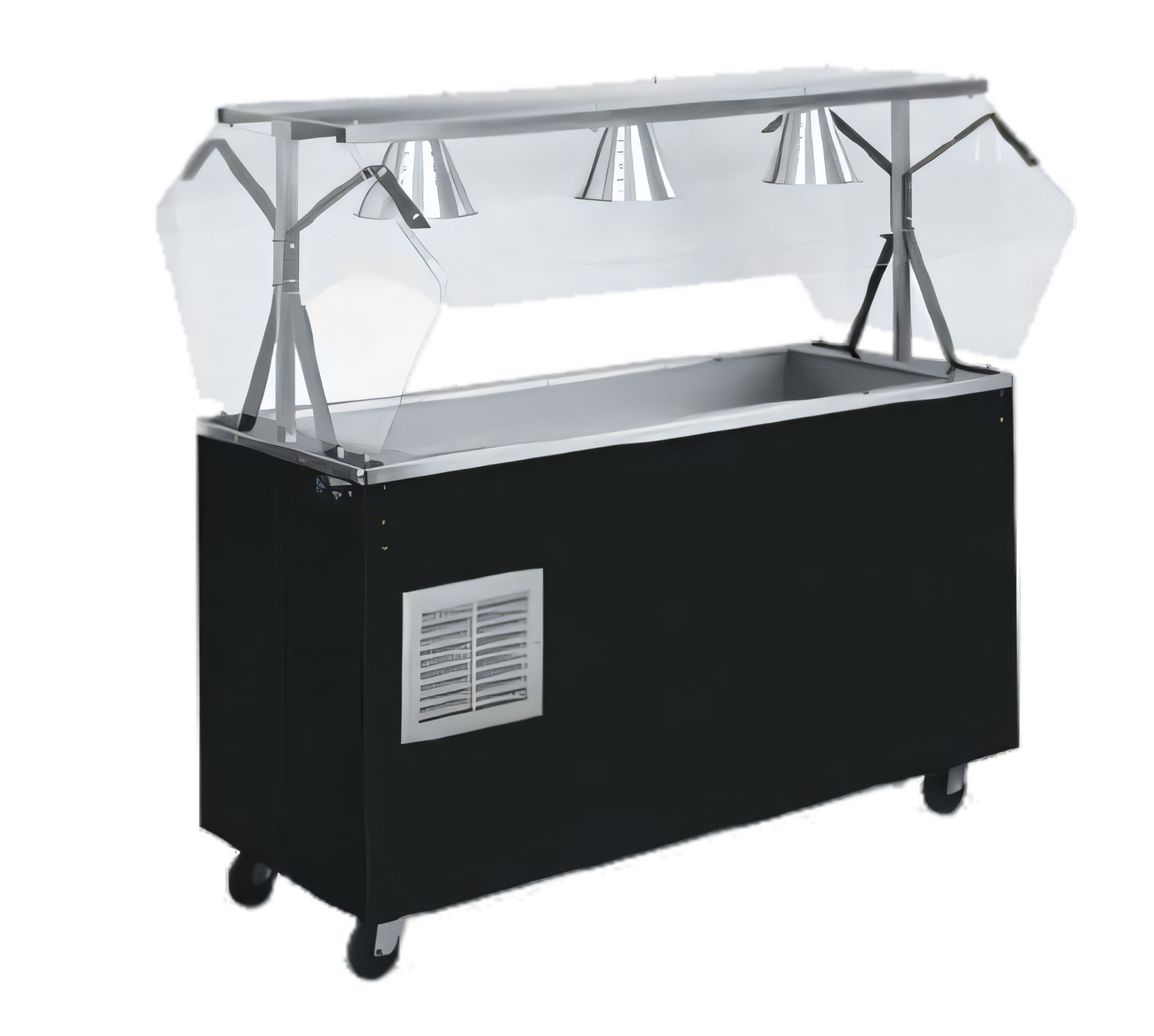

2-Series Affordable Portable™ Refrigerated Cafeteria Unit – 60" Granite, 4-Pan
Vollrath model R39716 | NSF & UL Listed | Made in USAServe crisp salads, chilled entrées and grab-and-go beverages with confidence. Built for demanding food-service environments, the Affordable Portable™ station delivers the performance of built-in refrigeration—without the construction costs.
Key Features
- 4-pan mechanically refrigerated cold well accommodates (4) full-size 12" × 20" pans up to 6" deep.
- Eco-friendly R290 refrigerant and foamed-in-place polyurethane insulation for quick pull-down and energy savings.
- Durable granite-finish, vinyl-clad 20-gauge carbon-steel exterior with 18-gauge stainless work surface.

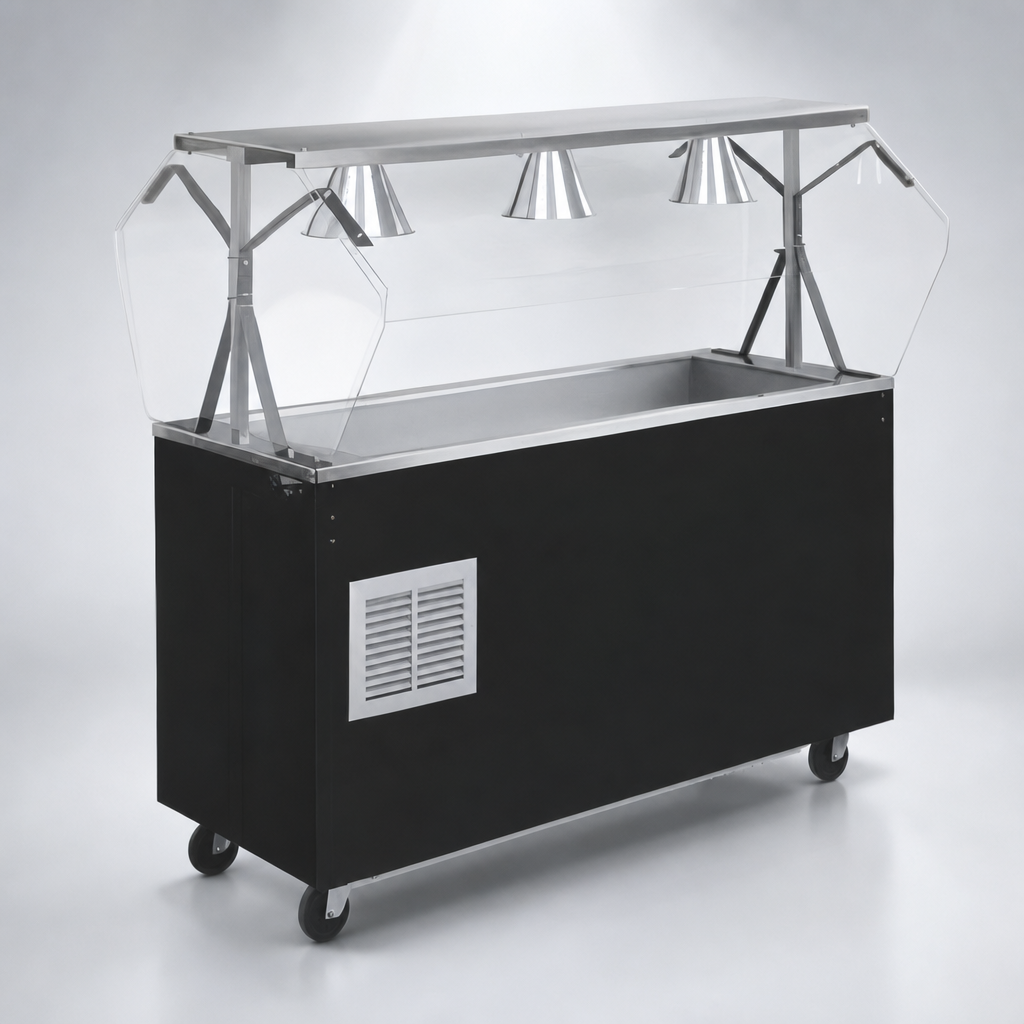

- NSF/ANSI 2 certified acrylic cafeteria breath guard shields product on all sides.
- 1" (2.54 cm) integral drain with gate valve simplifies ice-melt cleanup.
- 8 ft (2.4 m) cord and NEMA 5-15P plug—no hard-wiring required.
- Four swivel casters (front locking) for effortless mobility and rock-solid service.
- Made-to-order in the USA and backed by Vollrath’s standard warranty plus 4 additional years on the compressor.
Specifications
| Model | R39716 |
|---|---|
| Pan Capacity | (4) Full-size 12" × 20" pans, 6" deep |
| Overall Dimensions | 60" W × 24" D × 35" H (counter height) |
| Cold-well Depth | 6" (15.2 cm) |
| Refrigerant / HP | R290 / ⅓ HP |
| Heat Rejection | 4,800 BTU/hr |
| Electrical | 120 V / 60 Hz / 1-ph, 5.2 A, NEMA 5-15P |
| Cord Length | 8 ft (2.4 m) |
| Drain Size | 1" (2.54 cm) integral |
| Certifications | NSF 2, UL (US & C) |
| Country of Origin | United States |
Installation & Operation Notes
- Provide a minimum 3" (7.6 cm) clearance in front of compressor vents for unrestricted airflow.
- Avoid positioning the unit under ceiling fans or HVAC returns that can create detrimental drafts.
- Breath guard ships installed; if removed for transport, tool-free re-assembly instructions are included.
Made to Order: Ships approximately 10 working days after order entry. Orders cannot be cancelled or returned.
Full warranty details available at vollrathfoodservice.com. Always check local health codes for cold-holding requirements.
