Vollrath R3896160 2-Series Affordable Portable™ Serving Counters
$8,650.90
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath R3896160 2-Series Affordable Portable™ Serving Counters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath R3896160 2-Series Affordable Portable™ Serving Counters
$8,650.90
Unit price
/
Unavailable
Description

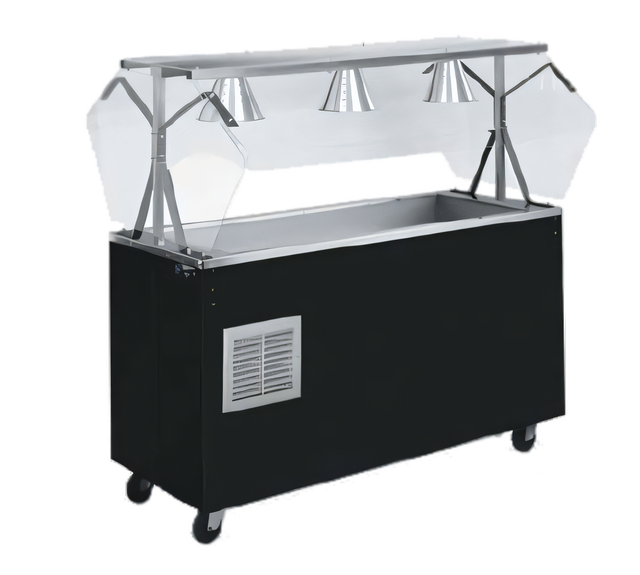

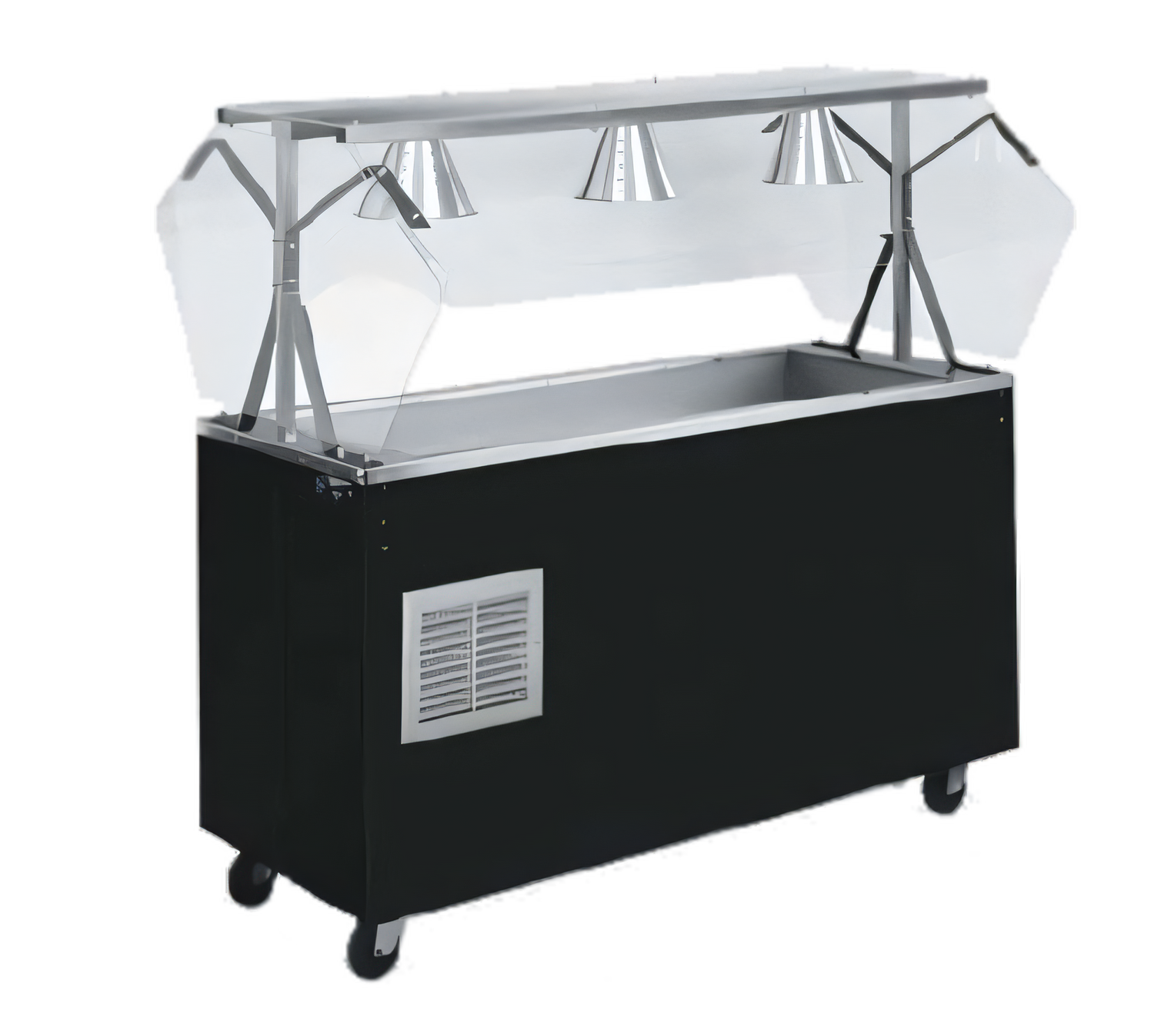

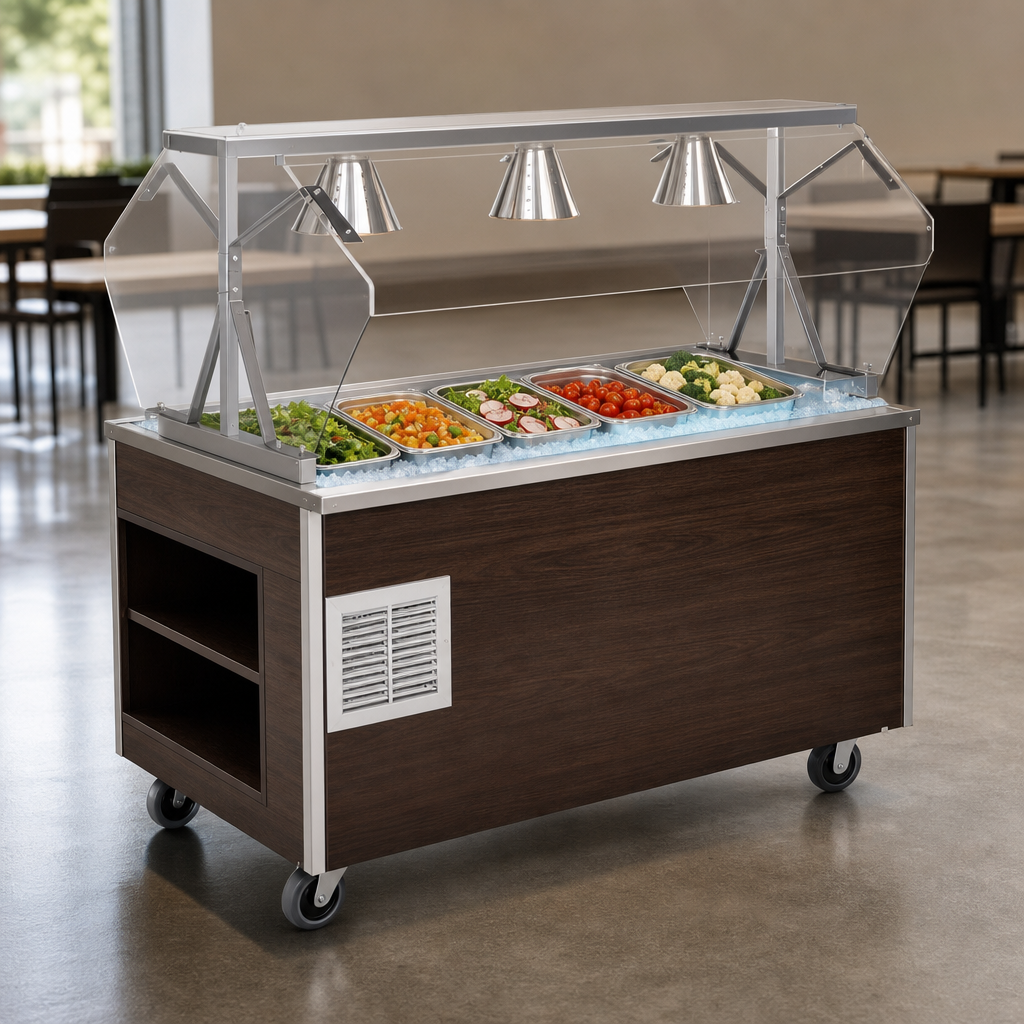

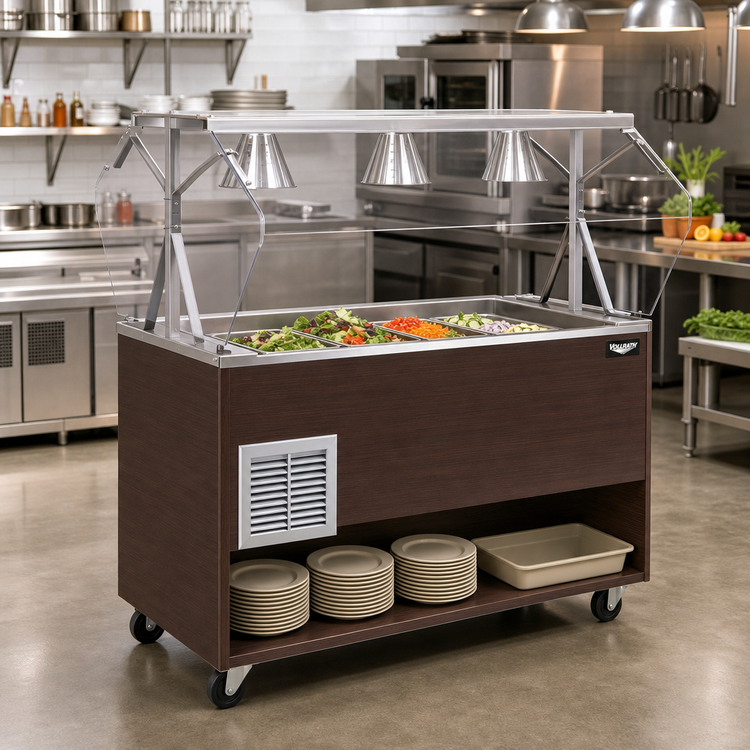

2-Series Affordable Portable™ Refrigerated Cold Food Pan Station – Walnut Woodgrain, 4-Pan, w/Lights
Model: R3896160 – Open-Storage Base • Made in USABring reliable cold holding to any dining room, pop-up, or catering line. Designed around Vollrath’s field-proven Affordable Portable™ platform, this 60 inch refrigerated station delivers four full-size pans of chilled product right where you need them—no plumbing required.
Why You’ll Love It
- Eco-friendly R290 refrigeration keeps food safe while lowering GWP.
- 6 in (15.2 cm) deep stainless steel well is NSF 2 listed for direct food contact.
- Factory-installed clear acrylic buffet breath guard provides a generous 12 in (30.5 cm) reach-in opening.
- Warm walnut woodgrain wrapper elevates front-of-house presentation.
- Built-in LED fixture housings (40 W max, bulbs sold separately) highlight your menu.
- Open storage base keeps extra pans, utensils, or chemicals at arm’s reach.
- Foamed-in-place polyurethane insulation plus locking casters for energy-saving mobility.
- 8 ft (2.4 m) cord with
NEMA 5-15Pplug—just roll in and power up. - UL, NSF & cULus certified; backed by Vollrath’s 1-year parts & labor warranty + 4-year compressor warranty.
Key Specifications
| Pan Capacity | 4 full-size (12 × 20 in) × 6 in deep |
|---|---|
| Exterior Dimensions | 60 W × 39 ½ D × 35 H in (152.4 × 100.3 × 88.9 cm) |
| Breath Guard Clearance | 12 in (30.5 cm) between counter & glass |
| Refrigeration | 1/3 HP, R290, peak heat rejection 4 800 BTU/h |
| Electrical | 120 V / 60 Hz / 1 ph, 6.5 A, cord & NEMA 5-15P plug |
| Drain | 1 in (2.54 cm) integral, front-mounted |
| Construction | Vinyl-clad 20-ga carbon-steel body, polyurethane insulation |
| Mobility | 4 swivel casters, 2 locking |
| Lead Time | Made to order – ships in approx. 15 working days* |
Suggested Add-Ons (Sold Separately)
- Stainless tray slide for 60 in stations
- Polyethylene cutting board insert
- Plate rest or 250 W infrared bulbs (40 W max per fixture)
Important:
- Unit requires a minimum of 3 in (7.6 cm) unobstructed airflow in front of the compressor vents.
- Light bulbs are not included; use 40 W max incandescent or compatible LED.
- Made-to-order equipment cannot be cancelled or returned.
- *Lead time does not include transit; contact us for current production schedule.
For complete warranty terms please visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Brand_name
2-Series Affordable Portable™
Certifications
NSF, UL, Made in USA
Height
59.0in
Width
60.0in
Depth
39.5in
Shipping Weight
400.0lbs
Base Design
open rear
Mobile or Stationary
mobile
Pan Capacity
(4) pan
Base Construction
vinyl covered steel
Overall Width (side - side)
55" - 60"
Cooling Type
refrigerated
Working Height
35"
Base Finish
wood
Top Construction
stainless steel top
Specifications
2-Series Affordable Portable™ Refrigerated Cold Food Pan with walnut woodgrain wrapper & lights, (bulbs not included), 120v/60/1-ph, with easy access fully enclosed clear acrylic Buffet NSF2 Certified breath guard, 12" clearance, 60"W x 39-1/2"D x 35"H, with open storage base, 4-pan size, 6" deep stainless well, 1" drain, MTO-15 working days plus day for order entry, with locking casters, 120v/60/1-ph, NEMA 5-15P, UL, NSF, Made in USA, made to order, cannot be cancelled or returned (Refer to vollrathfoodservice.com for full warranty policy)
